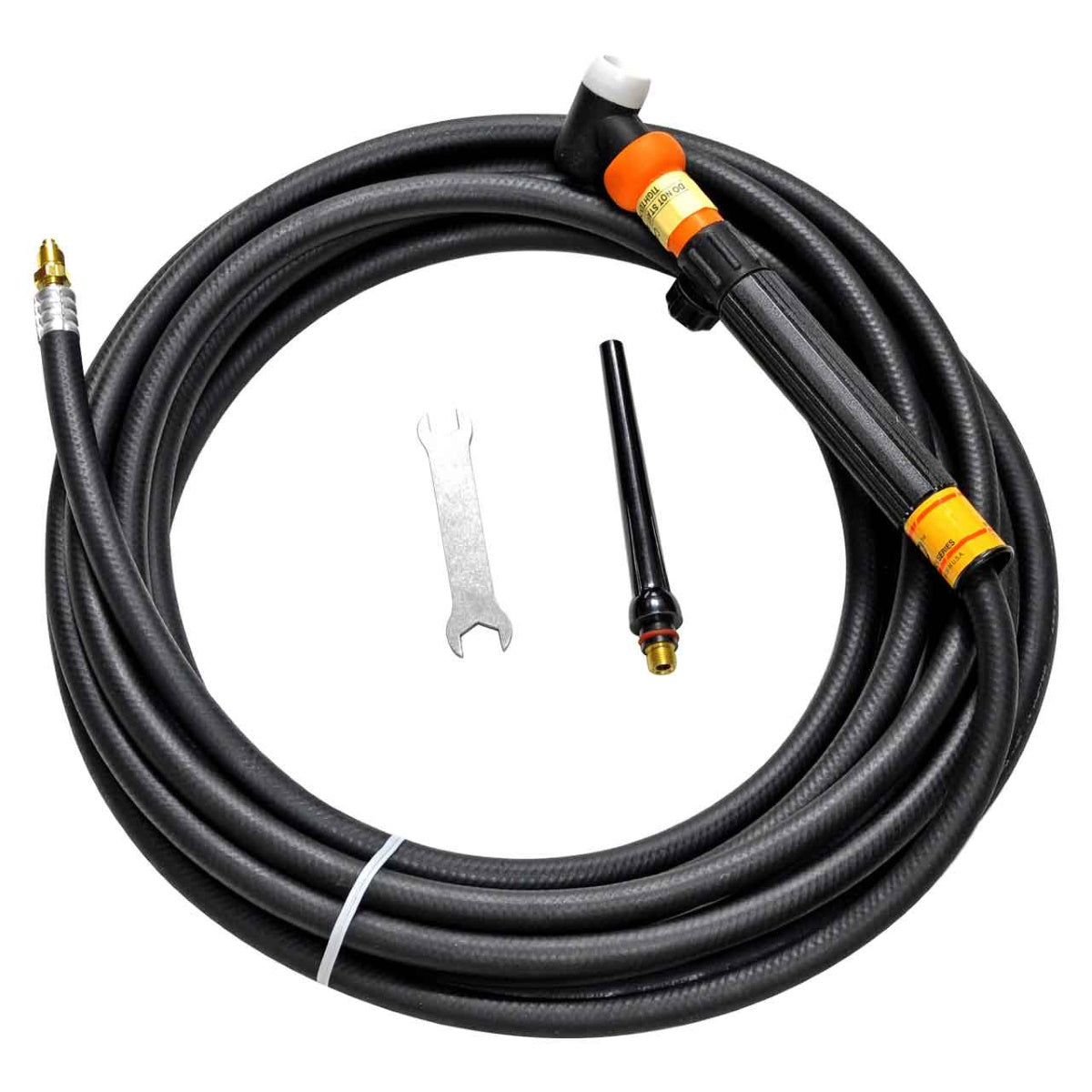

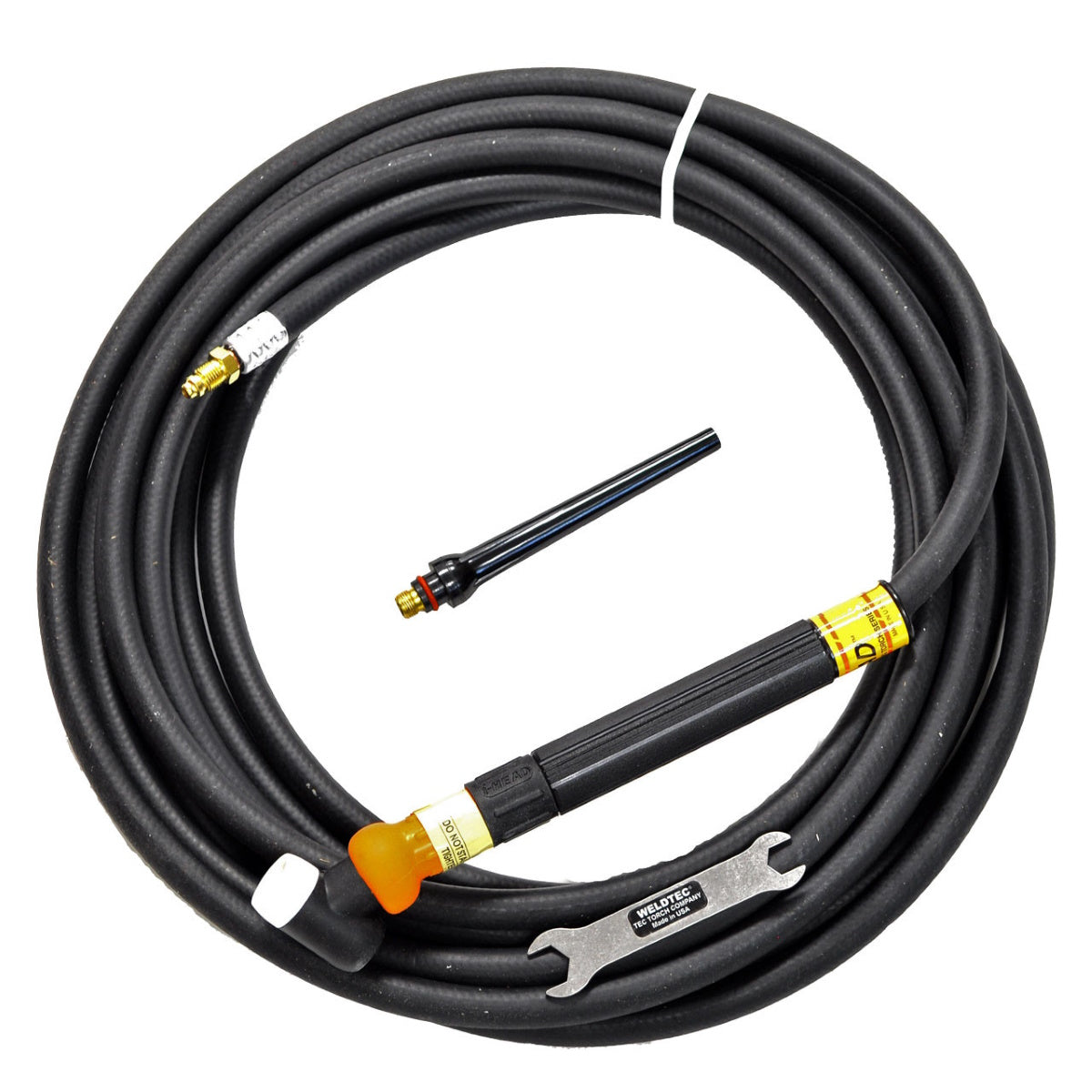

Weldtec I-Head 17 Series Ball-Joint Tig Torch (WTB-17)
Select Size (Parts & Accessories):
Select Size (Parts & Accessories)
The Weldtec I-Head series torches are offered in Ball-Joint, Flex-Neck, and Roto-Head styles. The ball-joint model features a swivel ball joint that locks the head in place with a twist of the torch body. These torches are ideal for out of position welding, or working in tight areas. Numerous head styles interchange between the Flex-Head and the Ball-Joint torch models. Both torch styles are available in air-cooled with or without a built-in gas valve along with two water-cooled models. All torch bodies and heads are made with resilient high temperature silicone rubber insulation that resist “HF” current leakage, chipping, cracking and withstands temperatures to 500º F. Made in USA.
Please choose your cable length, valve option, and cable type from the drop-down box. The "SF" cable stands for soft-flex, which is more flexible but lighter duty than the rubber cable.

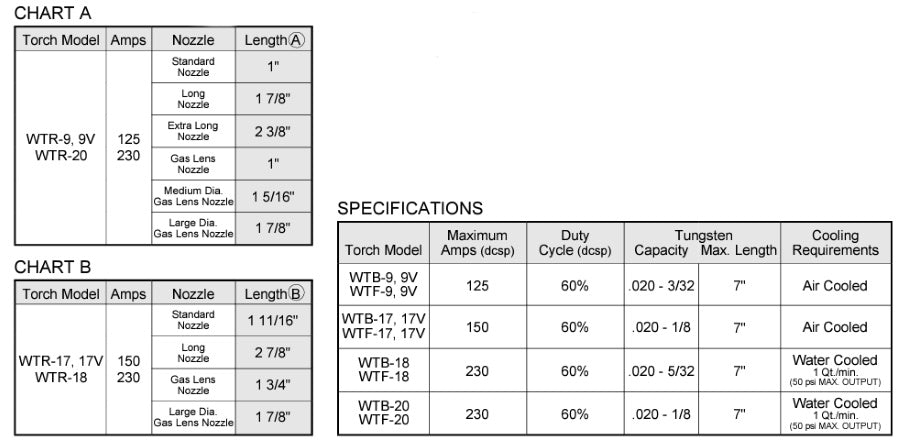

Quick Specs
• Style: 17 Series Air-Cooled
• Max Amperage: 150A
• Duty Cycle: 60%
• Tungsten Size: .020" - 1/8"
• Max Tungsten Length: 7"
Please choose your cable length, valve option, and cable type from the drop-down box. The "SF" cable stands for soft-flex, which is more flexible but lighter duty than the rubber cable.
Quick Specs
• Style: 17 Series Air-Cooled
• Max Amperage: 150A
• Duty Cycle: 60%
• Tungsten Size: .020" - 1/8"
• Max Tungsten Length: 7"
| MPN: | WLTWTB-17 |
|---|
MPN: WLTWTB-17
