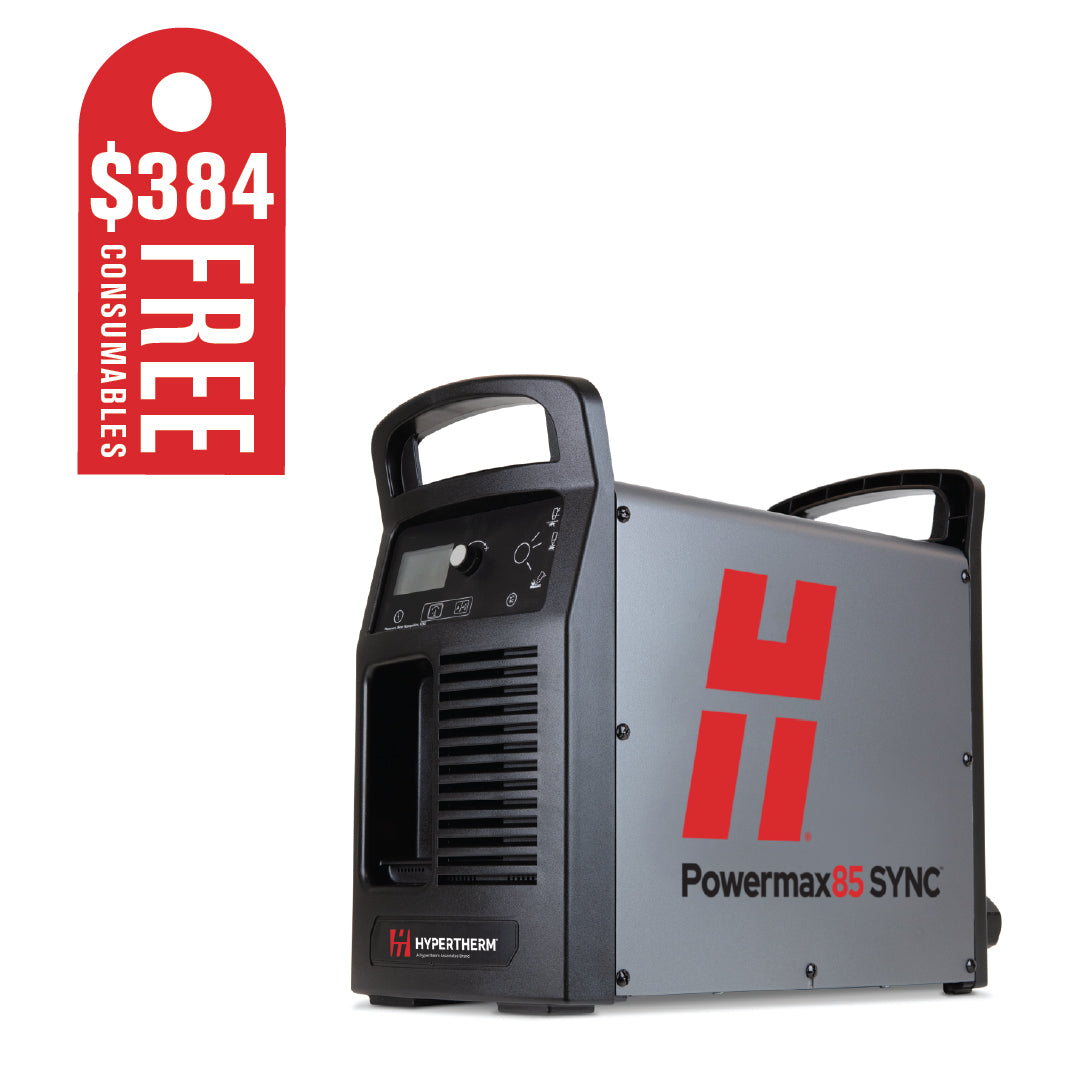

Hypertherm Powermax 85 Sync Plasma Cutter w/25ft 75° and 15° Hand Torch (087187)
Download Product Spec Sheet
The Powermax85 SYNC is a next-generation professional grade air plasma system that dramatically simplifies system operation for cutting and gouging up to 25 mm (1″). Features automated system process set-up via advanced RFID-enabled SmartSYNC torches and a revolutionary single-piece cartridge consumable that provides trackable utilization data. The Powermax85 SYNC maximizes productivity through reductions in downtime, optimized cut quality performance and streamlined consumable inventory management.Sync systems contain an end-of-life consumable detection on the torch and the power source, letting the user know when to properly change the cartridge. The cartridge also retains its end-of-life status so it can not be re-used improperly.
This particular model does NOT include a CPC port for automated hookup.
Smart Sync Torch Features
Internal Cap Sensor - confirms the cartridge is installed correctly.
Cartridge Reader - reads information on the RFID chip and relays it to the power source.
LED - visual indicators on the handle show system ready state.
7-Step Amperage LED - allows user to select one of seven preset values.
Torch Lock Switch - allows consumable changes without turning off the power supply.
Safety Trigger - protects the operator from accidental activation.
Fiber Reinforced Handle - ensures long life operation and protection if dropped.
Spring Strain Relief - protects the torch lead connection to the torch handle.
Abrasion Resistant Torch Lead - protects the lead when being dragged over rough surfaces.
End-of-Life detection is disabled when one of the following occur
• A Fine Cut hand cutting cartridge is installed
• The amperage is set below 40 amps for any type of cartridge
• The output amperage is set below 55 amps and no communication between the cartridge and system
SYNC Features
• Color Coded Single-Piece Cartridge Consumable (Hand, Mechanized/Stand Off, Gouging, and FlushCut/HyAccess)
• Radio Frequency Identification (RFID)
• Consumable Life Data Tracking
Quick Specs
• Input Voltage: 200-600V | 1/3 Phase | 50-60 Hz
• Duty Cycle: 240-600V - 100% @ 66A | 200-240V - 50% @ 85A
• Power Source Weight: 67 lbs
• Dimensions: 19.7" L x 9.2" W x 17.9" H
• Travel Speed: 20 ipm on 1" Metal
• Recommended Air Pressure: 85 psi (5.9 bar) | 400 scfh (6.7 scfm)
• Warranty: 3 years on Power Source | 1 year on Torch
Includes
• Powermax 85 Sync Power Source
• 75 Degree and 15 Degree Smart Sync Torch with 25ft lead and 25ft work clamp
• (2) 85A Drag and (2) 45-85A Max Removal Gouging Cartridges
• Operator and Safety Manuals
This particular model does NOT include a CPC port for automated hookup.
Smart Sync Torch Features
Internal Cap Sensor - confirms the cartridge is installed correctly.
Cartridge Reader - reads information on the RFID chip and relays it to the power source.
LED - visual indicators on the handle show system ready state.
7-Step Amperage LED - allows user to select one of seven preset values.
Torch Lock Switch - allows consumable changes without turning off the power supply.
Safety Trigger - protects the operator from accidental activation.
Fiber Reinforced Handle - ensures long life operation and protection if dropped.
Spring Strain Relief - protects the torch lead connection to the torch handle.
Abrasion Resistant Torch Lead - protects the lead when being dragged over rough surfaces.
End-of-Life detection is disabled when one of the following occur
• A Fine Cut hand cutting cartridge is installed
• The amperage is set below 40 amps for any type of cartridge
• The output amperage is set below 55 amps and no communication between the cartridge and system
SYNC Features
• Color Coded Single-Piece Cartridge Consumable (Hand, Mechanized/Stand Off, Gouging, and FlushCut/HyAccess)
• Radio Frequency Identification (RFID)
• Consumable Life Data Tracking
Quick Specs
• Input Voltage: 200-600V | 1/3 Phase | 50-60 Hz
• Duty Cycle: 240-600V - 100% @ 66A | 200-240V - 50% @ 85A
• Power Source Weight: 67 lbs
• Dimensions: 19.7" L x 9.2" W x 17.9" H
• Travel Speed: 20 ipm on 1" Metal
• Recommended Air Pressure: 85 psi (5.9 bar) | 400 scfh (6.7 scfm)
• Warranty: 3 years on Power Source | 1 year on Torch
Includes
• Powermax 85 Sync Power Source
• 75 Degree and 15 Degree Smart Sync Torch with 25ft lead and 25ft work clamp
• (2) 85A Drag and (2) 45-85A Max Removal Gouging Cartridges
• Operator and Safety Manuals
| MPN: | HYP087187 |
|---|---|
| UPC: | 00662310498689 |
