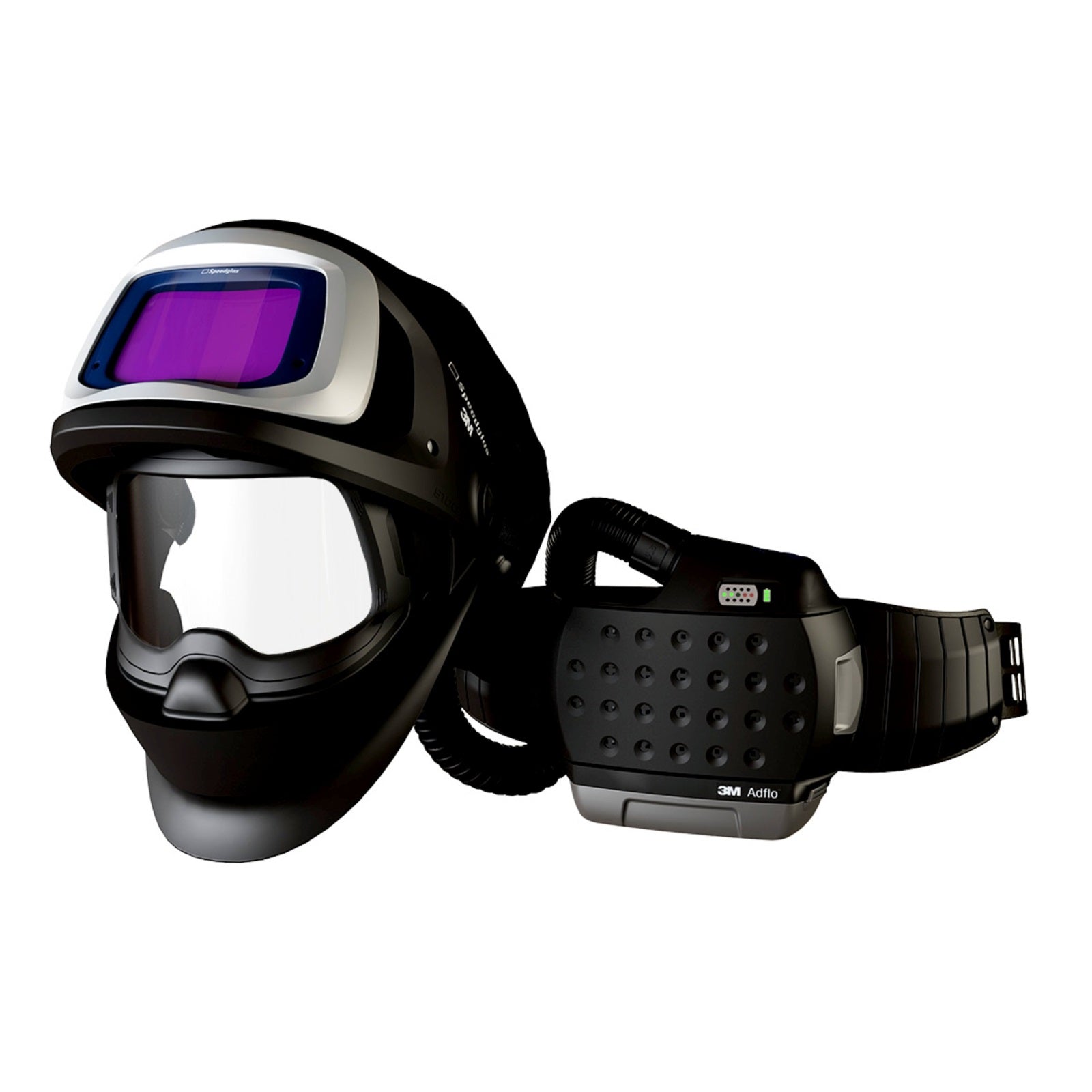

3M Adflo 9100FX-Air PAPR System with 9100XX ADF (36-1101-30SW)
The 3M Adflo is a high efficiency particulate respiratory protection system for welders. The 3M Speedglas 9100 FX Welding Helmet features a flip-up 9100XX dark shade 5, 8-13 auto-darkening filter assembly, shade 5 Side Windows and a clear 8 in x 4.25 in (200 mm x 110 mm) faceshield. By using the Adflo PAPR, you get both increased protection and comfort. With the HE filter and OV/AG cartridge, the Adflo PAPR can help protect against both particles and certain gases — all in one system. And you can selectively replace either the particle filter or the OV/AG cartridge as needed: you don’t need to change the filter and cartridge at the same time. The Adflo PAPR is designed to provide airflow which is at a constant nominal rate of approximately 7 CFM (205 litres/minute), regardless of the battery’s charge or the particle loading of the filter. 3M helmets have a 2-year lens warranty.
These PAPR blower units will not work properly at elevations above 3,000 feet.

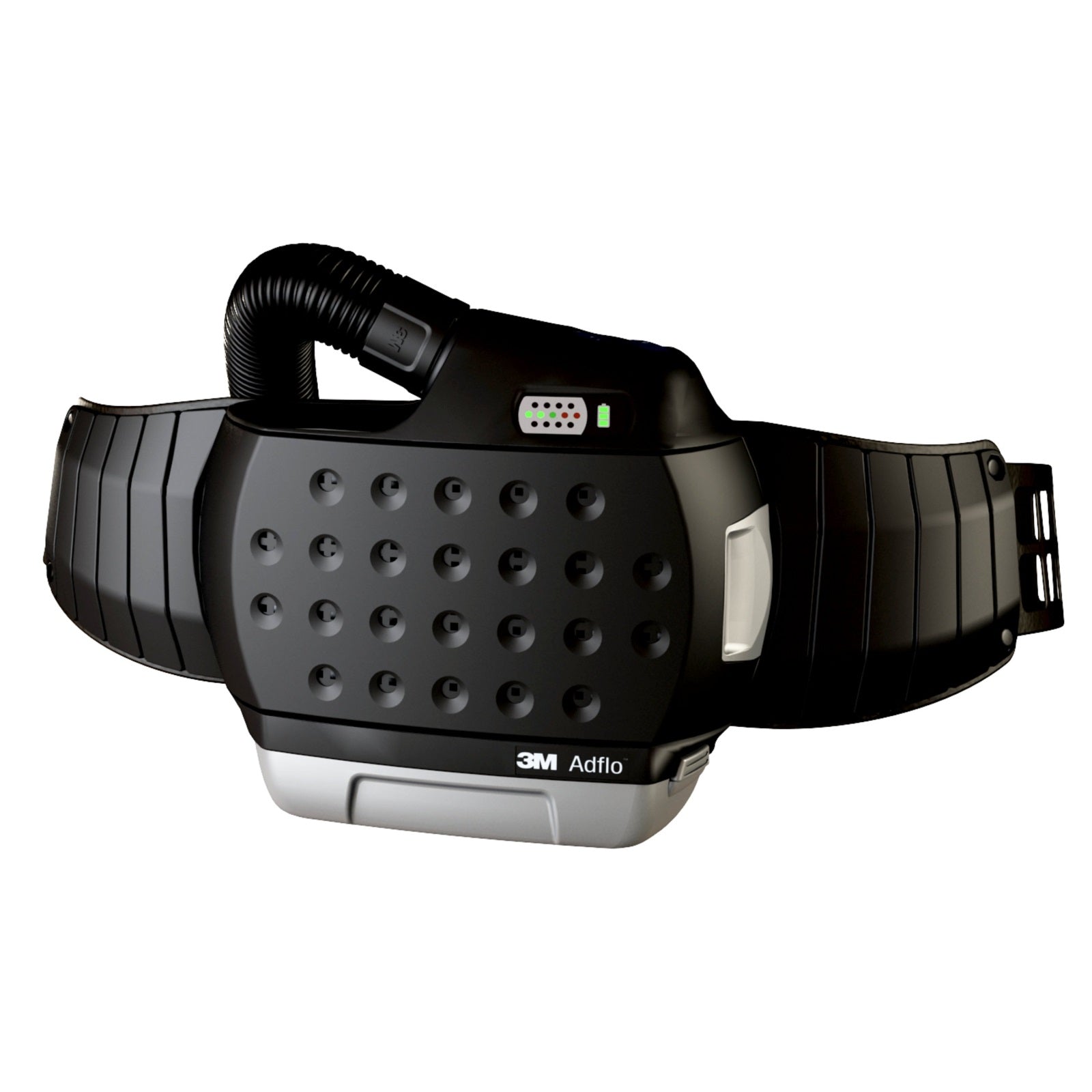

Adflo PAPR Quick Specs
• HE Particulate Filter
• Airflow: 7 CFM
• Weight: 2.6lbs
• Battery: NIMH, 4-Hour Charge Time, 8-10 Hour Operating Time
• Belt: 30-45 inches
• Operating Temp: 23 degrees F to 131 degrees F

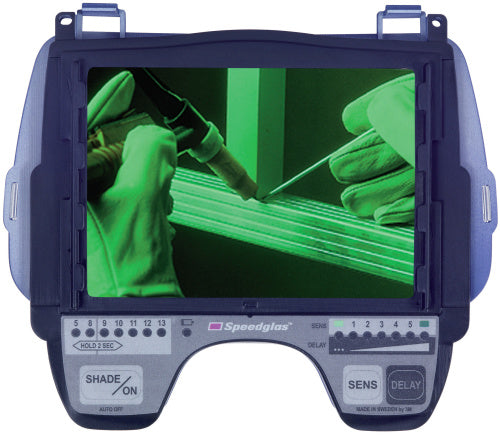

Speedglas 9100XX Auto Darkening Lens Features
• Switching time: 0.1 ms
• Delay: Adjustable 40-1300 ms
• Viewing Area: 2.87 in X 4.21 in
• Light State: Shade 3
• Dark State: Shade 5, 8, 9-13 (variable)
• Battery Type: Lithium 3 Volt
• Battery Lifetime: 2000 hours
Comes complete with
• Speedglas 9100 FX welding helmet with 9100XX auto darkening lens
• 3M Breathing Tube L-122SG
• Flow Indicator

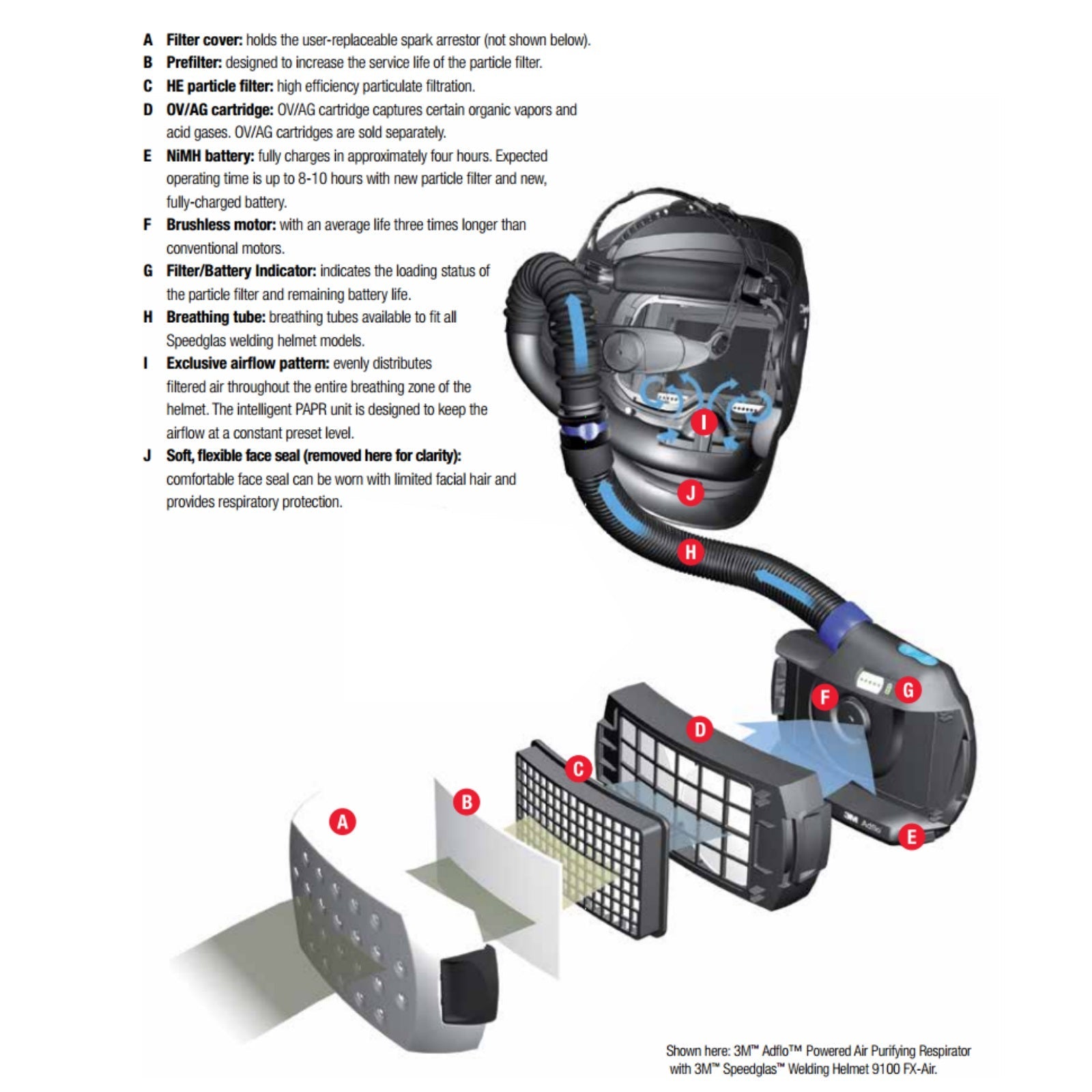

• PAPR - Belt, Spark Arrestor, Turbo Filter Cover, Prefilter, HE Particle Filter, Lithium-Ion Battery, Smart Charger
• SG-90 Carry Bag
These PAPR blower units will not work properly at elevations above 3,000 feet.
Adflo PAPR Quick Specs
• HE Particulate Filter
• Airflow: 7 CFM
• Weight: 2.6lbs
• Battery: NIMH, 4-Hour Charge Time, 8-10 Hour Operating Time
• Belt: 30-45 inches
• Operating Temp: 23 degrees F to 131 degrees F
Speedglas 9100XX Auto Darkening Lens Features
• Switching time: 0.1 ms
• Delay: Adjustable 40-1300 ms
• Viewing Area: 2.87 in X 4.21 in
• Light State: Shade 3
• Dark State: Shade 5, 8, 9-13 (variable)
• Battery Type: Lithium 3 Volt
• Battery Lifetime: 2000 hours
Comes complete with
• Speedglas 9100 FX welding helmet with 9100XX auto darkening lens
• 3M Breathing Tube L-122SG
• Flow Indicator
• PAPR - Belt, Spark Arrestor, Turbo Filter Cover, Prefilter, HE Particle Filter, Lithium-Ion Battery, Smart Charger
• SG-90 Carry Bag
| MPN: | HOR36-1101-30SW |
|---|---|
| UPC: | 00051141561585 |
MPN: HOR36-1101-30SW
UPC: 00051141561585
