3M Adflo 9100MP-Air PAPR System with 9100XX ADF (37-1101-30SW)

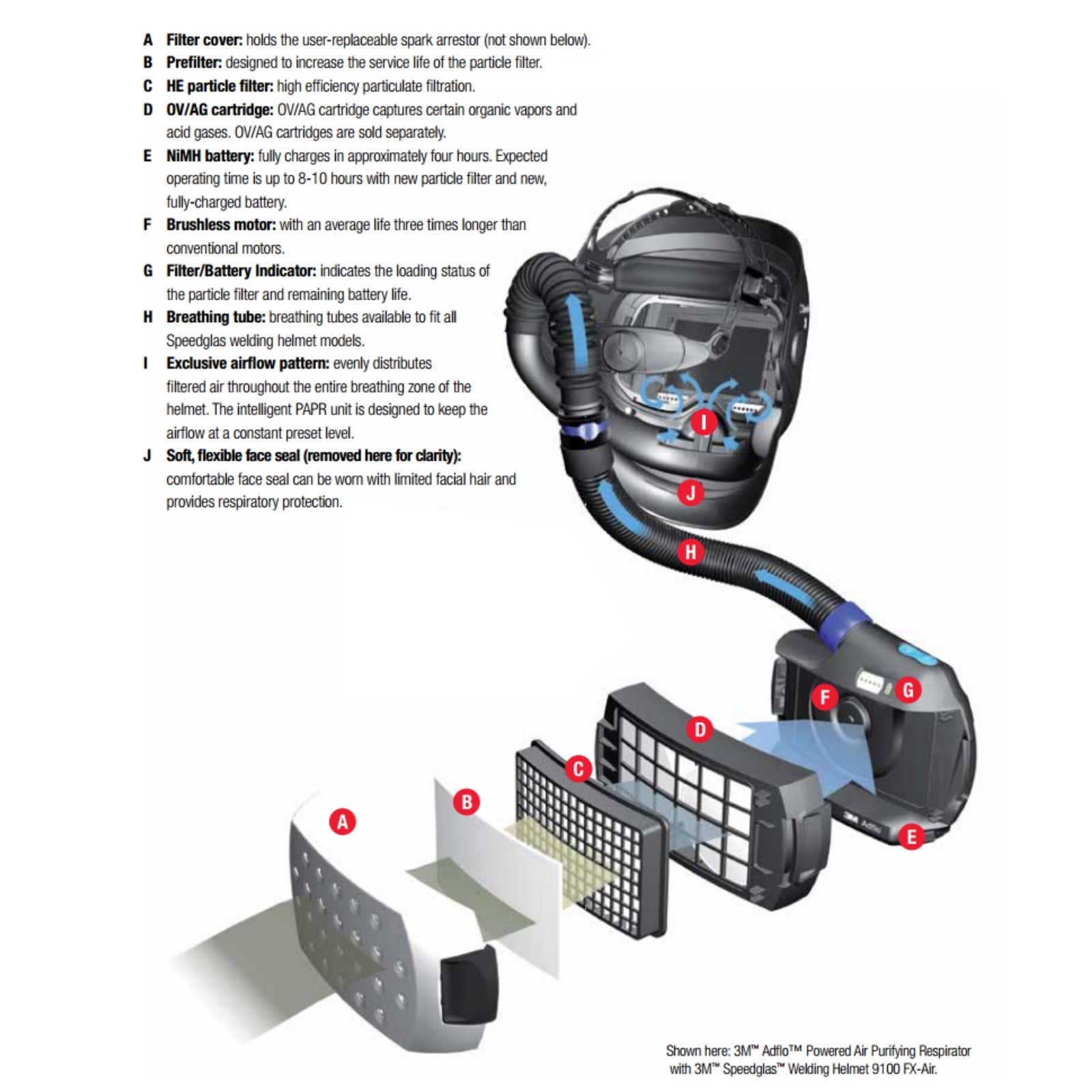

The 3M Adflo is a high efficiency particulate respiratory protection system for welders. The 3M Speedglas 9100MP Welding Helmet features a flip-up 9100XX dark shade 5, 8-13 auto-darkening filter assembly, shade 5 Side Windows and a clear 8 in x 4.25 in (200 mm x 110 mm) faceshield. By using the Adflo PAPR, you get both increased protection and comfort. With the HE filter and OV/AG cartridge, the Adflo PAPR can help protect against both particles and certain gases — all in one system. And you can selectively replace either the particle filter or the OV/AG cartridge as needed: you don’t need to change the filter and cartridge at the same time. The Adflo PAPR is designed to provide airflow which is at a constant nominal rate of approximately 7 CFM (205 litres/minute), regardless of the battery’s charge or the particle loading of the filter. 3M helmets have a 2-year lens warranty.
The 3M MP series helmets have the integrated hard had built into the helmet shell. The hard hat shell is made from heat resistant polycarbonate and meets the ANSI Z89.1-2009 requirements for type 1 G class hard hats.

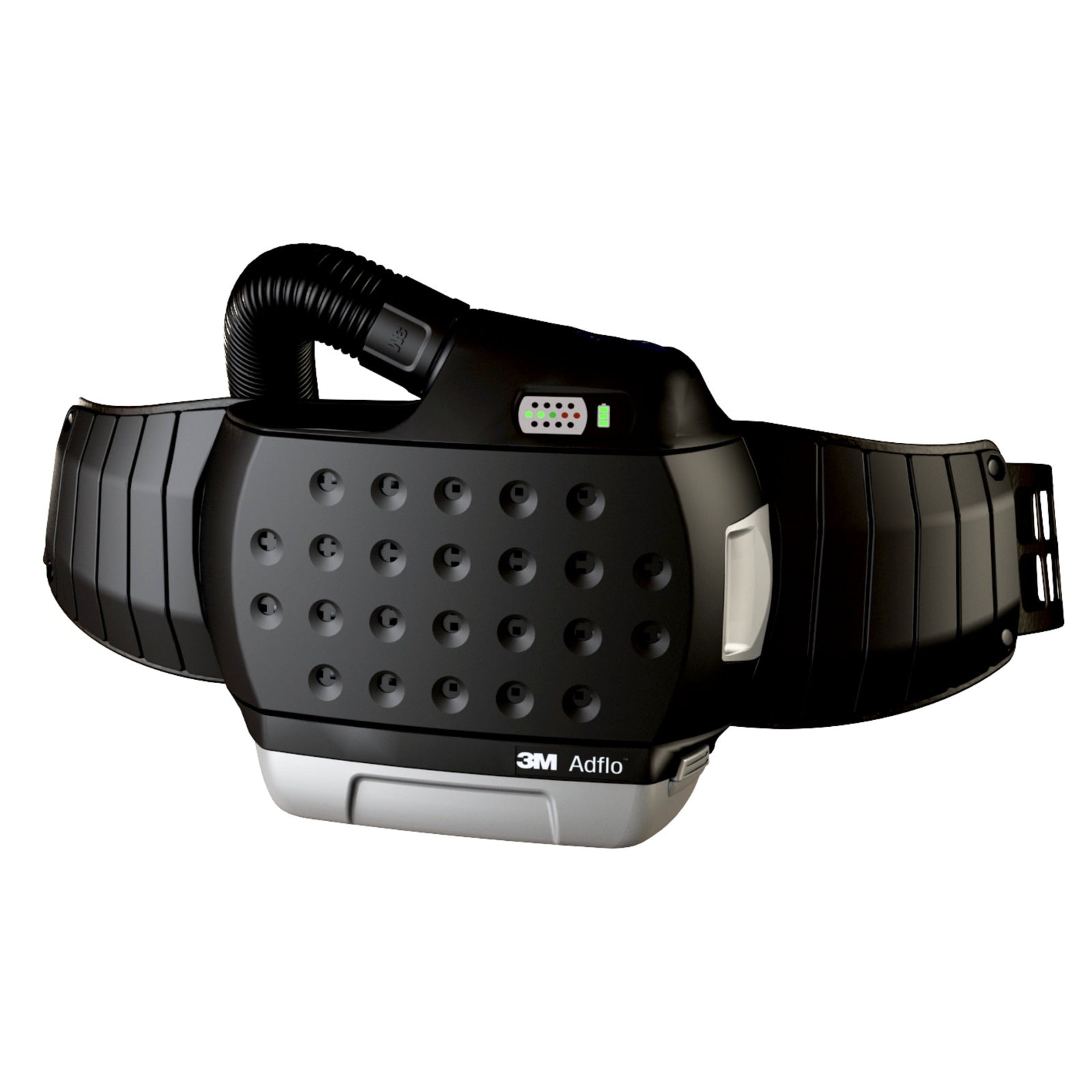

Adflo PAPR Quick Specs
• HE Particulate Filter
• Airflow: 7 CFM
• Weight: 2.6lbs
• Battery: NIMH, 4-Hour Charge Time, 8-10 Hour Operating Time
• Belt: 30-45 inches
• Operating Temp: 23 degrees F to 131 degrees F

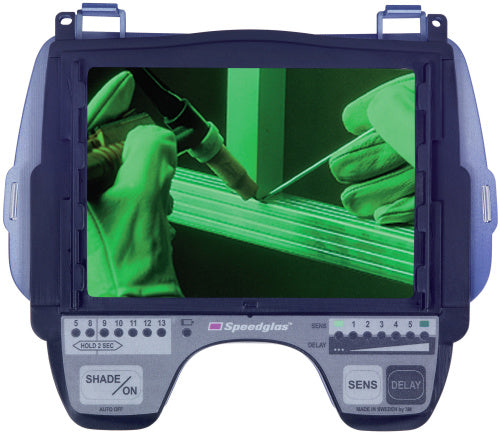

Speedglas 9100XX Auto Darkening Lens Features
• Switching time: 0.1 ms
• Delay: Adjustable 40-1300 ms
• Viewing Area: 2.87 in X 4.21 in
• Light State: Shade 3
• Dark State: Shade 5, 8, 9-13 (variable)
• Battery Type: Lithium 3 Volt
• Battery Lifetime: 2000 hours
Comes complete with
• Speedglas 9100 MP welding helmet with 9100XX auto darkening lens
• 3M Breathing Tube L-122SG
• Flow Indicator
• PAPR - Belt, Spark Arrestor, Turbo Filter Cover, Prefilter, HE Particle Filter, Lithium-Ion Battery, Smart Charger
• SG-90 Carry Bag
The 3M MP series helmets have the integrated hard had built into the helmet shell. The hard hat shell is made from heat resistant polycarbonate and meets the ANSI Z89.1-2009 requirements for type 1 G class hard hats.
Adflo PAPR Quick Specs
• HE Particulate Filter
• Airflow: 7 CFM
• Weight: 2.6lbs
• Battery: NIMH, 4-Hour Charge Time, 8-10 Hour Operating Time
• Belt: 30-45 inches
• Operating Temp: 23 degrees F to 131 degrees F
Speedglas 9100XX Auto Darkening Lens Features
• Switching time: 0.1 ms
• Delay: Adjustable 40-1300 ms
• Viewing Area: 2.87 in X 4.21 in
• Light State: Shade 3
• Dark State: Shade 5, 8, 9-13 (variable)
• Battery Type: Lithium 3 Volt
• Battery Lifetime: 2000 hours
Comes complete with
• Speedglas 9100 MP welding helmet with 9100XX auto darkening lens
• 3M Breathing Tube L-122SG
• Flow Indicator
• PAPR - Belt, Spark Arrestor, Turbo Filter Cover, Prefilter, HE Particle Filter, Lithium-Ion Battery, Smart Charger
• SG-90 Carry Bag
| MPN: | HOR37-1101-30SW |
|---|---|
| UPC: | 00051141561660 |
MPN: HOR37-1101-30SW
UPC: 00051141561660
