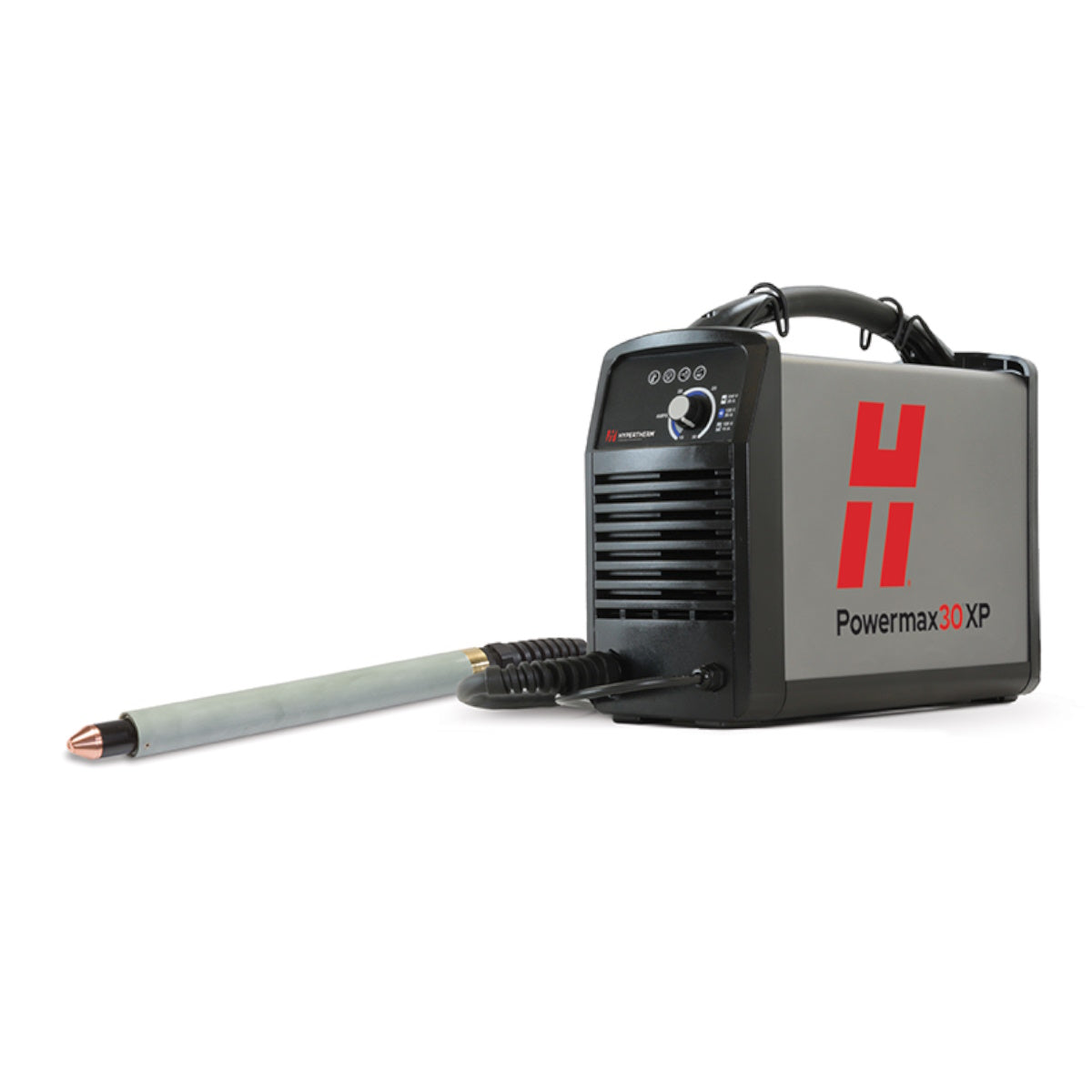

Hypertherm Powermax 30 XP with 15ft Machine Torch (088178)
Download Product Spec Sheet
The Powermax30 XP (088178) delivers high performance in a small, portable package. With its two-in-one design, the system provides high-power capability for thick metal cutting, plus FineCut® consumables for detailed, thin metal cutting.
Quick Specs
• Weight: 21.4 lbs (with torch)
• Dimensions: 14"D x 6.6"W x 12"H
• Input Voltages: 120-240 V, 1-PH, 50/60 Hz
• Output Current: 15-30A
• Duty Cycle: 35% on 240V, 20% on 120V
• Input Power Cable Length: 10ft
• Engine Drive Requirement: 5.5 kW for full 30A Output
• Air Pressure Requirement: 80 psi at 5.5 bar
• 3-year Warranty on Power Supply, 1-year Warranty on Torch

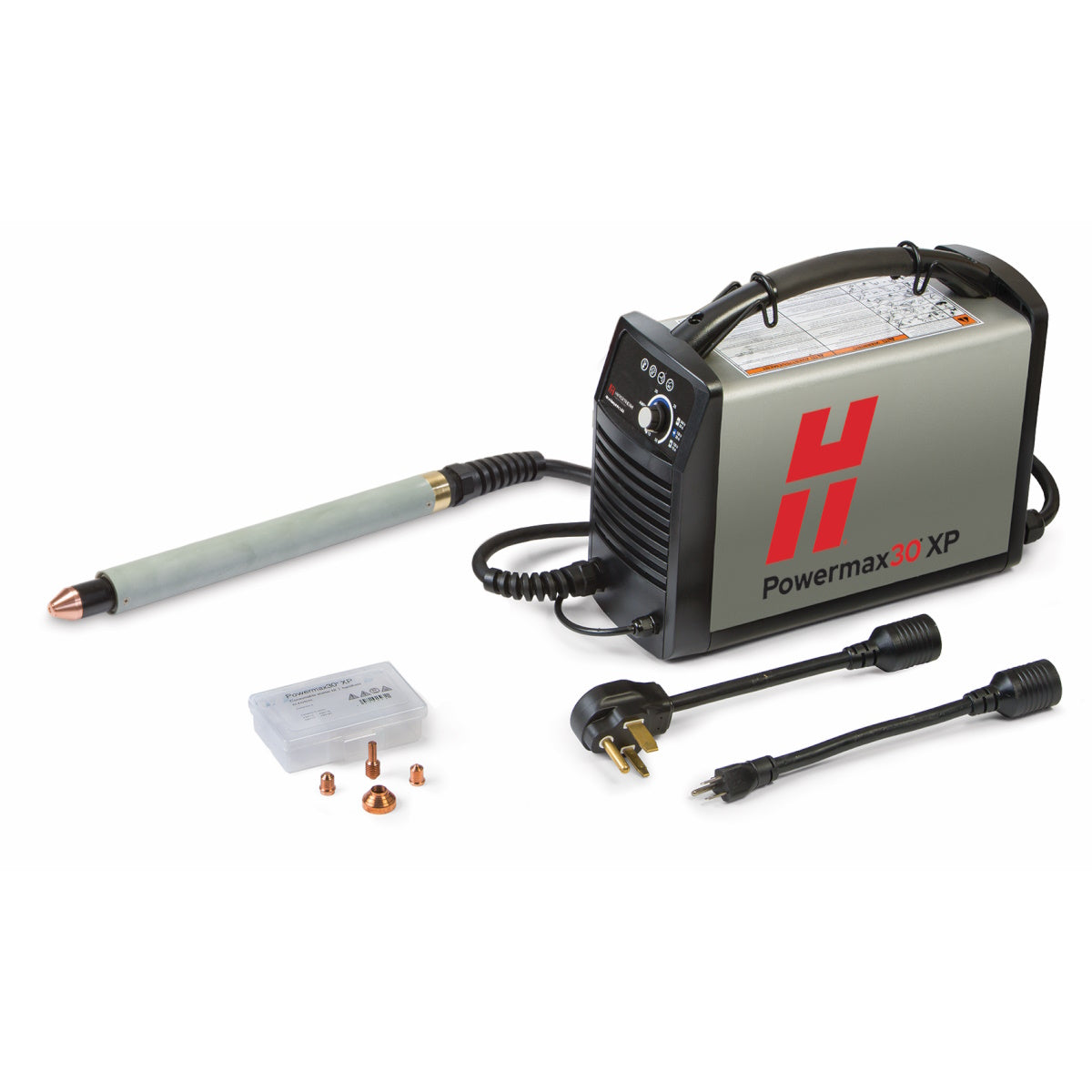

Includes:
• Power Supply
• Duramax LT Machine torch with 15ft lead & 15ft work clamp
• 240V / 20A plug with adapters for 120V / 15A and 240V / 20A circuits

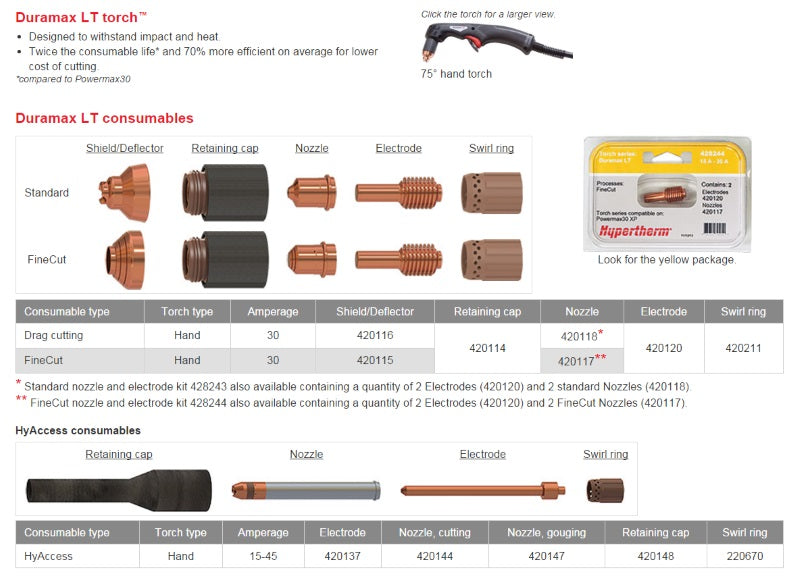

• 1 Nozzle, 1 Electrode, 1 FineCut Nozzle, and 1 FineCut Deflector
• Operator & Safety Manuals
| MPN: | HYP088178 |
|---|---|
| UPC: | 00662310535933 |
Download Product Spec Sheet
