Miller Deltaweld 350 Power Source w/ArcConnect and Meters (907747001)
Download Product Spec Sheet
The Miller Deltaweld 350 power source comes with ArcConnect and Accu-Pulse technology. Accu-pulse process allows for precise control of the pulse arc. This technology also provides optimum molten puddle control and has power to increase wire feed speeds and deposition 20 to 25 percent in many applications. The Deltaweld comes with several of Miller's standard features such as Wind Tunnel Technology and Fan-On-Demand, yet features their newest generation of technology called ArcConnect. ArcConnect utilizes high speed signals to improve weld performance and allow point-of-use controls to be located at the feeder.

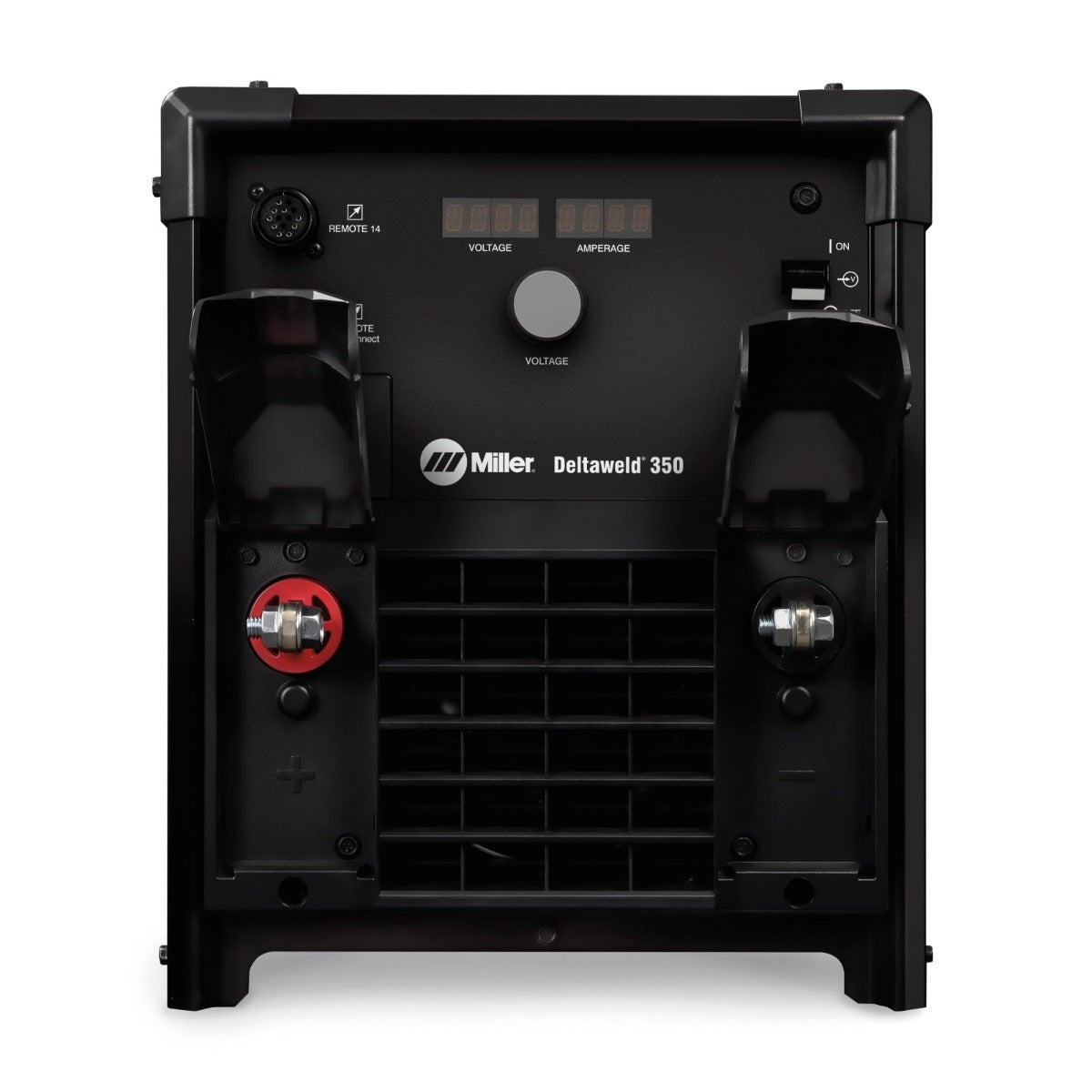

This particular Deltaweld 350 includes digital meters and a 14-pin receptacle.

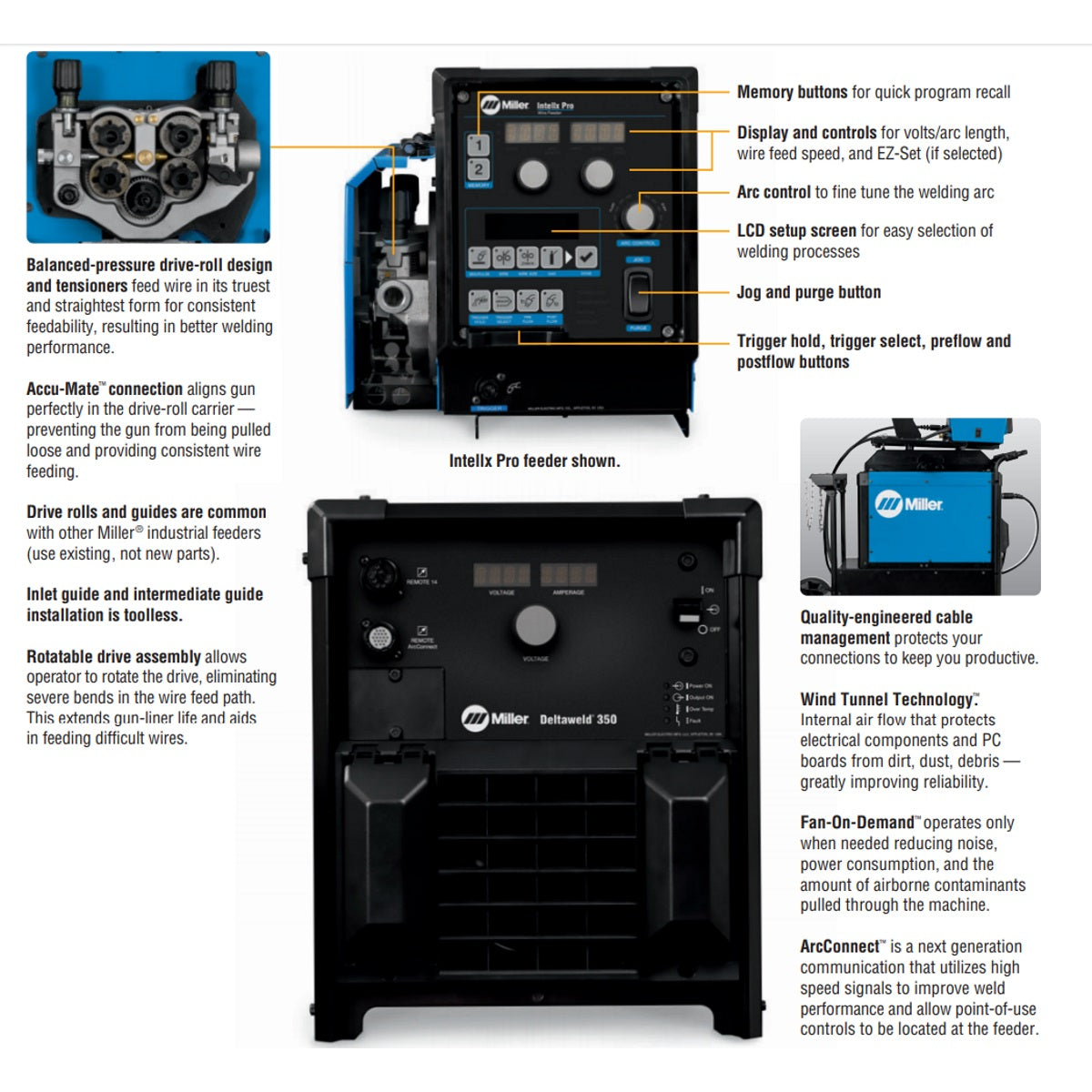

In order to realize all of the Deltaweld's capabilities, you should pair it up with an Intellx or Intellx Pro feeder. The Intellx feeders come with digital meters, remote voltage, arc control, and jog/purge controls. The drive system comes with a balanced-pressure drive roll design that feeds wire in its truest and straightest form for consistent performance. The accu-mate connection aligns gun perfectly in the drive-roll carrier, preventing the gun from being pulled loose and providing consistent wire feeding. The Intellx Pro feeder allows more capabilities like stainless, flux-cored, metal-cored, different wire types, and different gas types.
Deltaweld Features
• Accu-Pulse Technology
• EZ-Set Parameters
• ArcConnect Technology
• Fan-On-Demand
• Wind Tunnel Technology
Quick Specs
• Output Range: 20-400A | 10-38V
• Duty Cycle: 60% @ 350A | 100% @ 300A
• Input Power: 230/460 | 3-Phase Only
• Weight: 115 lbs
• Dimensions: 22.36"H x 12.38"W x 27.88"L
Includes
• Deltaweld 350 Power Source
This particular Deltaweld 350 includes digital meters and a 14-pin receptacle.
In order to realize all of the Deltaweld's capabilities, you should pair it up with an Intellx or Intellx Pro feeder. The Intellx feeders come with digital meters, remote voltage, arc control, and jog/purge controls. The drive system comes with a balanced-pressure drive roll design that feeds wire in its truest and straightest form for consistent performance. The accu-mate connection aligns gun perfectly in the drive-roll carrier, preventing the gun from being pulled loose and providing consistent wire feeding. The Intellx Pro feeder allows more capabilities like stainless, flux-cored, metal-cored, different wire types, and different gas types.
Deltaweld Features
• Accu-Pulse Technology
• EZ-Set Parameters
• ArcConnect Technology
• Fan-On-Demand
• Wind Tunnel Technology
Quick Specs
• Output Range: 20-400A | 10-38V
• Duty Cycle: 60% @ 350A | 100% @ 300A
• Input Power: 230/460 | 3-Phase Only
• Weight: 115 lbs
• Dimensions: 22.36"H x 12.38"W x 27.88"L
Includes
• Deltaweld 350 Power Source
| MPN: | MIL907747001 |
|---|---|
| UPC: | 715959664202 |
