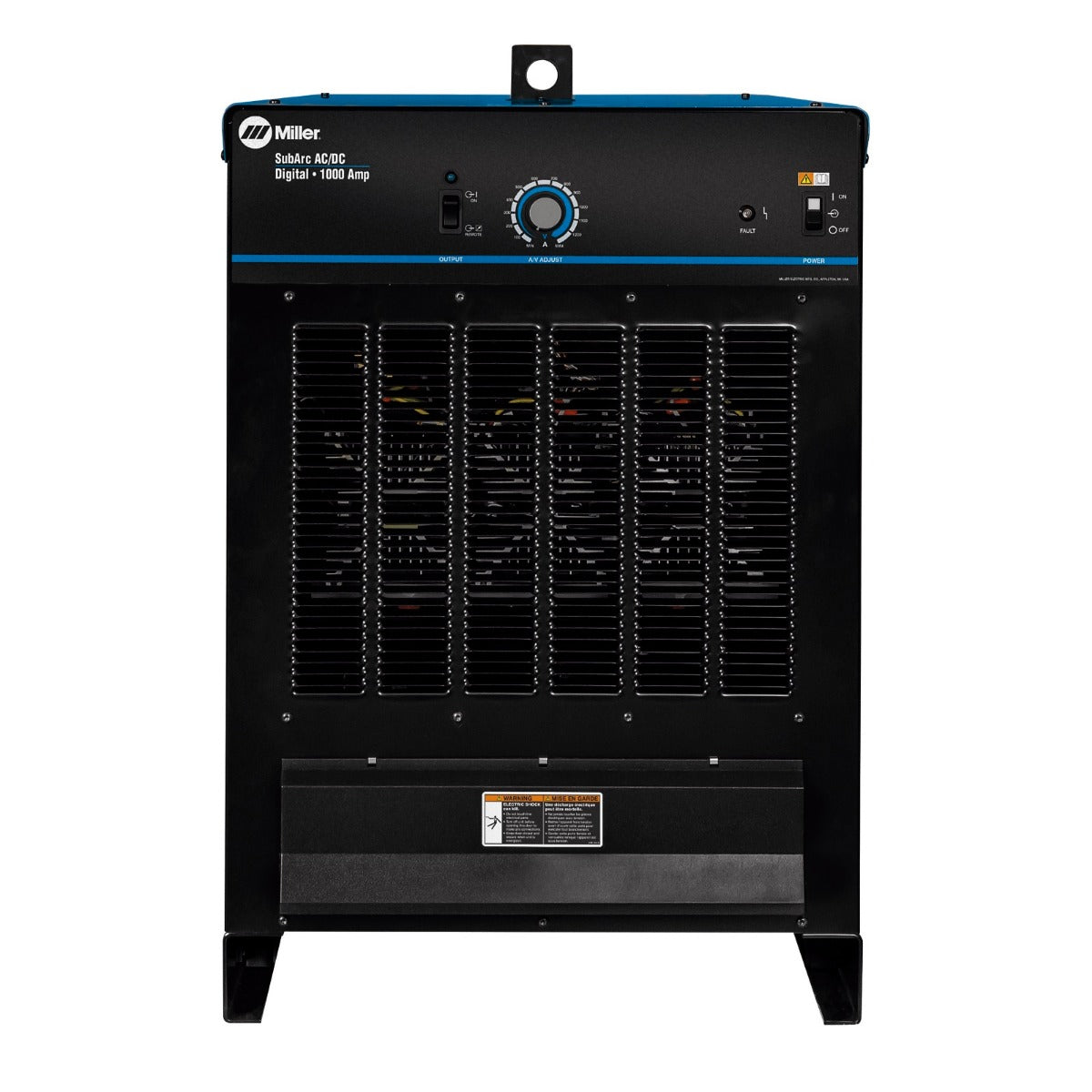

Miller Subarc AC/DC 1000 Digital Submerged Arc Welder (907620)
The Miller Subarc AC/DC 1000 Digital series welders are the industry standard for submerged arc welding. Miller offers three different power source options, three interface controls, and a range of wire drive motors and accessories.
Features
• Digital process control technology
• Highly reliable thyristor power regulation
• Digital control improve performance and integration
• Standard Modbus connection
• Thermal overload protection
• Line voltage compensation
• Fan-on demand
Quick Specs
• 460V, 3-Phase Only
• Amperage Range: 300-1,250A in CC mode
• Rated Output: 1,000A @ 44V, 100% Duty Cycle
• Amperage Draw: 122A @ 460V
• Dimensions: 30" H x 23" W x 38" D
• Weight: 1,187 lbs
Features
• Digital process control technology
• Highly reliable thyristor power regulation
• Digital control improve performance and integration
• Standard Modbus connection
• Thermal overload protection
• Line voltage compensation
• Fan-on demand
Quick Specs
• 460V, 3-Phase Only
• Amperage Range: 300-1,250A in CC mode
• Rated Output: 1,000A @ 44V, 100% Duty Cycle
• Amperage Draw: 122A @ 460V
• Dimensions: 30" H x 23" W x 38" D
• Weight: 1,187 lbs
| MPN: | MIL907620 |
|---|---|
| UPC: | 715959600248 |
| Processes | Submerged arc (SAW) Electroslag (ESW) Air carbon arc cutting and gouging (CAC-A) |
| Designed For | Shipbuilding Pipeline Manufacturing Railcar Railcar Shipbuilding Heavy fabrication Pipe manufacturing Pressure vessel |
| Amperage | 100–1,250 A in CC mode |
| Weldable Metals | Stainless Steel Steel |
| Input Voltage | 460/480 V |
| Input Phase | Requires 3-phase power |
| Input Hz | 60 Hz |
| Input Phase | DC |
| Rated Output | 1,000 A at 44 V, 100% duty cycle |
| Max Open Circuit Voltage | 1,000 A at 44 V, 100% duty cycle |
| Portability | Lift Eye (Standard) |
| Weld Output | 1,000 A at 44 V, 100% duty cycle |
| Weight | 682 lb. (309 kg) |
| Warranty | True Blue Warranty |
MPN: MIL907620
UPC: 715959600248
