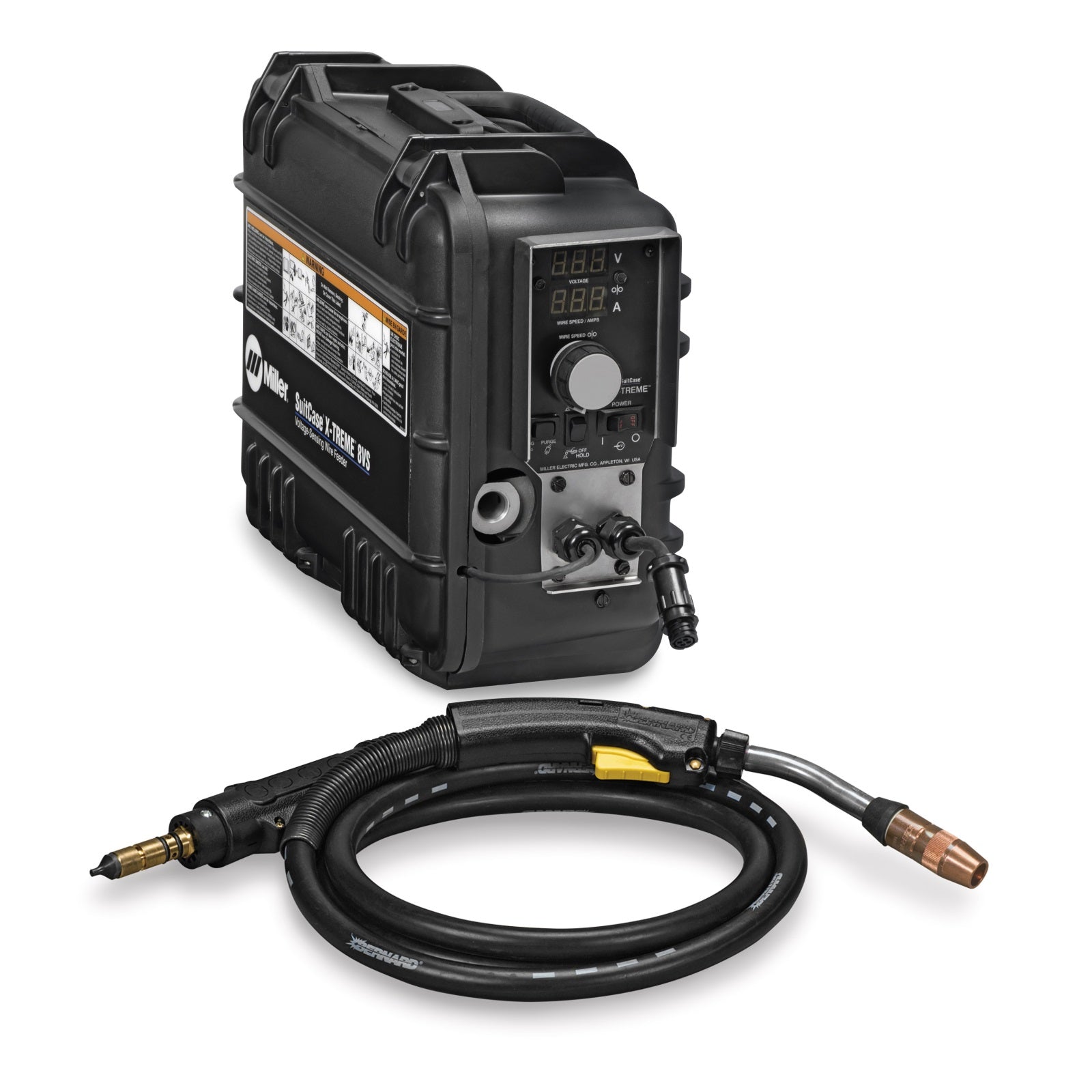

Miller SuitCase X-Treme 8VS with Bernard BTB Gun, Meters, and Trigger Hold (951582)
Download Product Spec Sheet
The Suitcase 8VS is no longer available. The suggested replacement is the ArcReach 8 Suitcase 951726.
The Miller SuitCase X-Treme 8VS with Bernard BTB Gun, Digital Meters, and Trigger Hold offers the complete package when it comes to outdoor, extreme welding conditions.
Features:
• Smaller 8VS size for shipbuilding,maintenance or wherever a lighter, smaller, more portable feeder is required. Same great features as its big brother the X-TREME 12VS. Ergonomically sound, lightweight unit is well balanced for ease of carrying to remote welding sites. Fits through a 14 in (25 mm) manhole/manway • Polypropylene case with built-in slide rails and the ability to open the door to change wire with feeder in vertical position.
• Potted and trayed main printed circuit board for the harshest environments adds exceptional reliability. Board has full-trigger isolation so a shorted gun trigger will not affect feeder operation.
• Improved contactor for high-amperage, high duty cycle applications (8VS: 330 A at 60%).

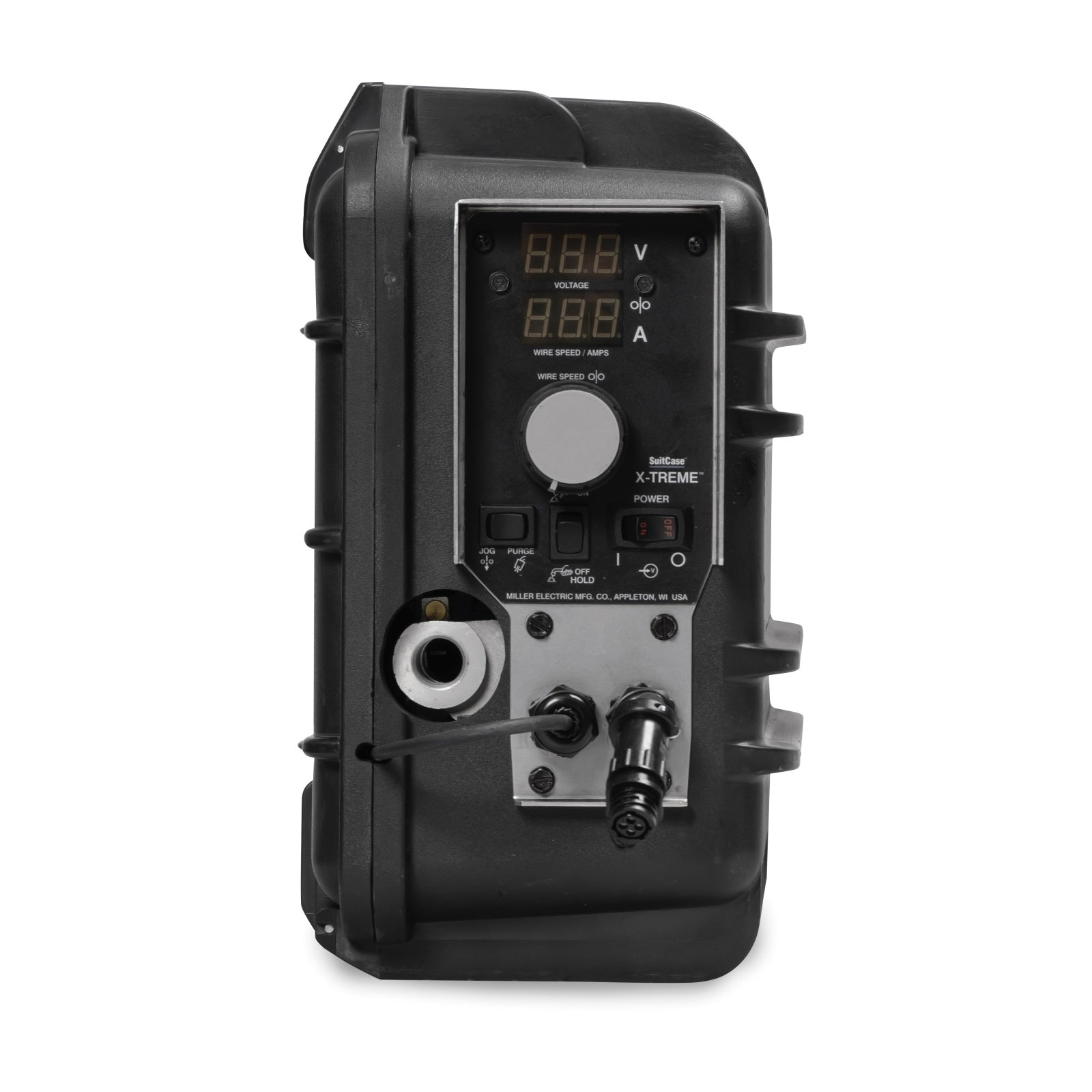

• Trigger hold, wire jog, and gas purge are all located on front panel (
• Wider voltage range for small and large wires with no contactor chatter or arc outages.
• Double-filtered gas valve helps keep dirt from clogging and affecting gas flow.
• Excellent starts and improved superior arc performance for all types and sizes of wires whether using CV or CC power supply.
• Digital meters with SunVision technology can display voltage and wire speed, and also amperage if desired. Meters can be seen clearly even in direct sunlight.
• 28 lbs
The Miller SuitCase X-Treme 8VS with Bernard BTB Gun, Digital Meters, and Trigger Hold offers the complete package when it comes to outdoor, extreme welding conditions.
Features:
• Smaller 8VS size for shipbuilding,maintenance or wherever a lighter, smaller, more portable feeder is required. Same great features as its big brother the X-TREME 12VS. Ergonomically sound, lightweight unit is well balanced for ease of carrying to remote welding sites. Fits through a 14 in (25 mm) manhole/manway • Polypropylene case with built-in slide rails and the ability to open the door to change wire with feeder in vertical position.
• Potted and trayed main printed circuit board for the harshest environments adds exceptional reliability. Board has full-trigger isolation so a shorted gun trigger will not affect feeder operation.
• Improved contactor for high-amperage, high duty cycle applications (8VS: 330 A at 60%).
• Trigger hold, wire jog, and gas purge are all located on front panel (
• Wider voltage range for small and large wires with no contactor chatter or arc outages.
• Double-filtered gas valve helps keep dirt from clogging and affecting gas flow.
• Excellent starts and improved superior arc performance for all types and sizes of wires whether using CV or CC power supply.
• Digital meters with SunVision technology can display voltage and wire speed, and also amperage if desired. Meters can be seen clearly even in direct sunlight.
• 28 lbs
| MPN: | MIL951582 |
|---|---|
| UPC: | 715959575522 |
