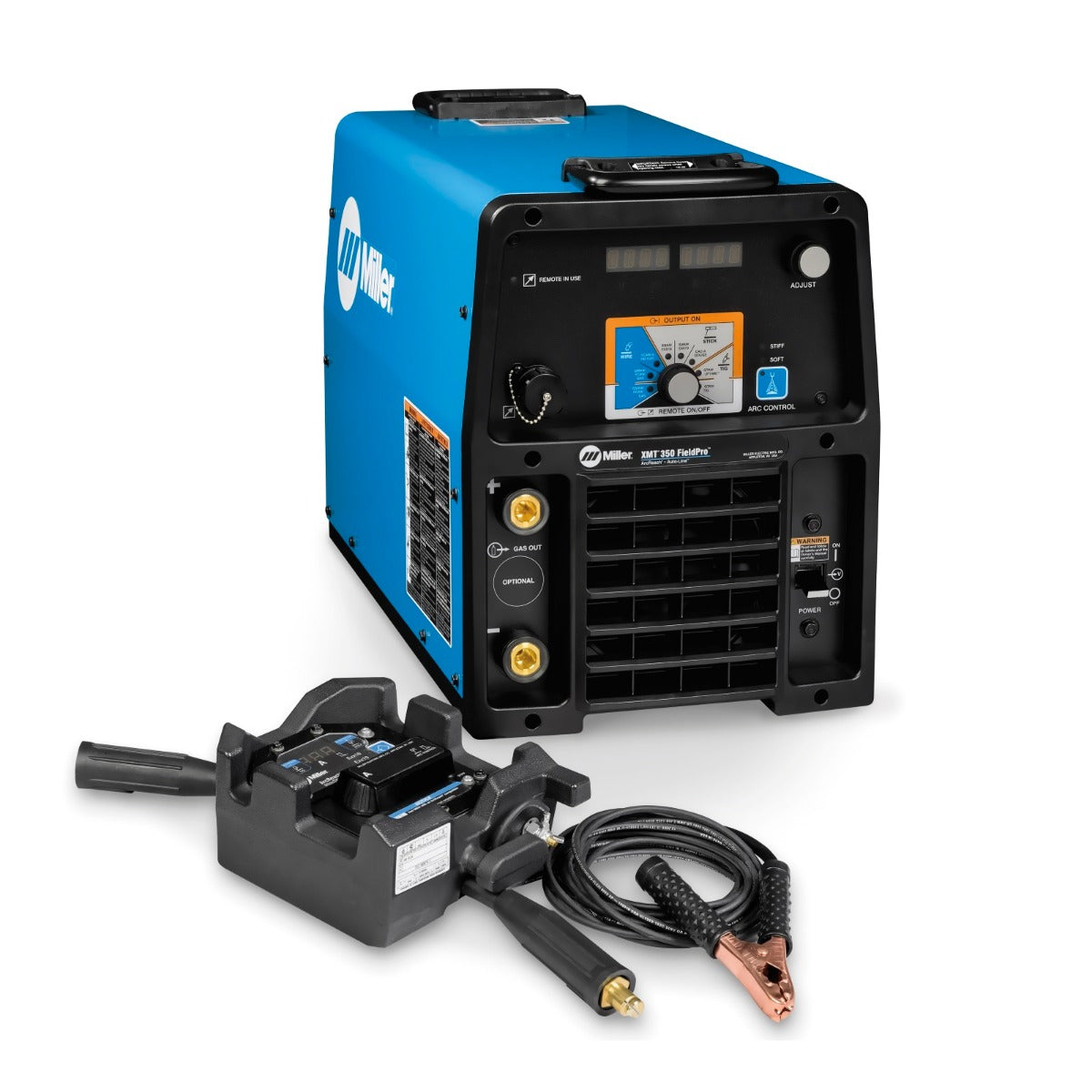

Miller XMT 350 FieldPro ArcReach Stick/Tig Remote Pkg (951736)
Download Product Spec Sheet
The XMT 350 FieldPro multi-process welders offer portability, auto-line technology, and excellent arc performance. These welders feature Miller's ArcReach technology which allows full control at the feeder rather than making a trip back to the power source to change output settings.
This particular model XMT comes equipped with Tweco Style Connectors.

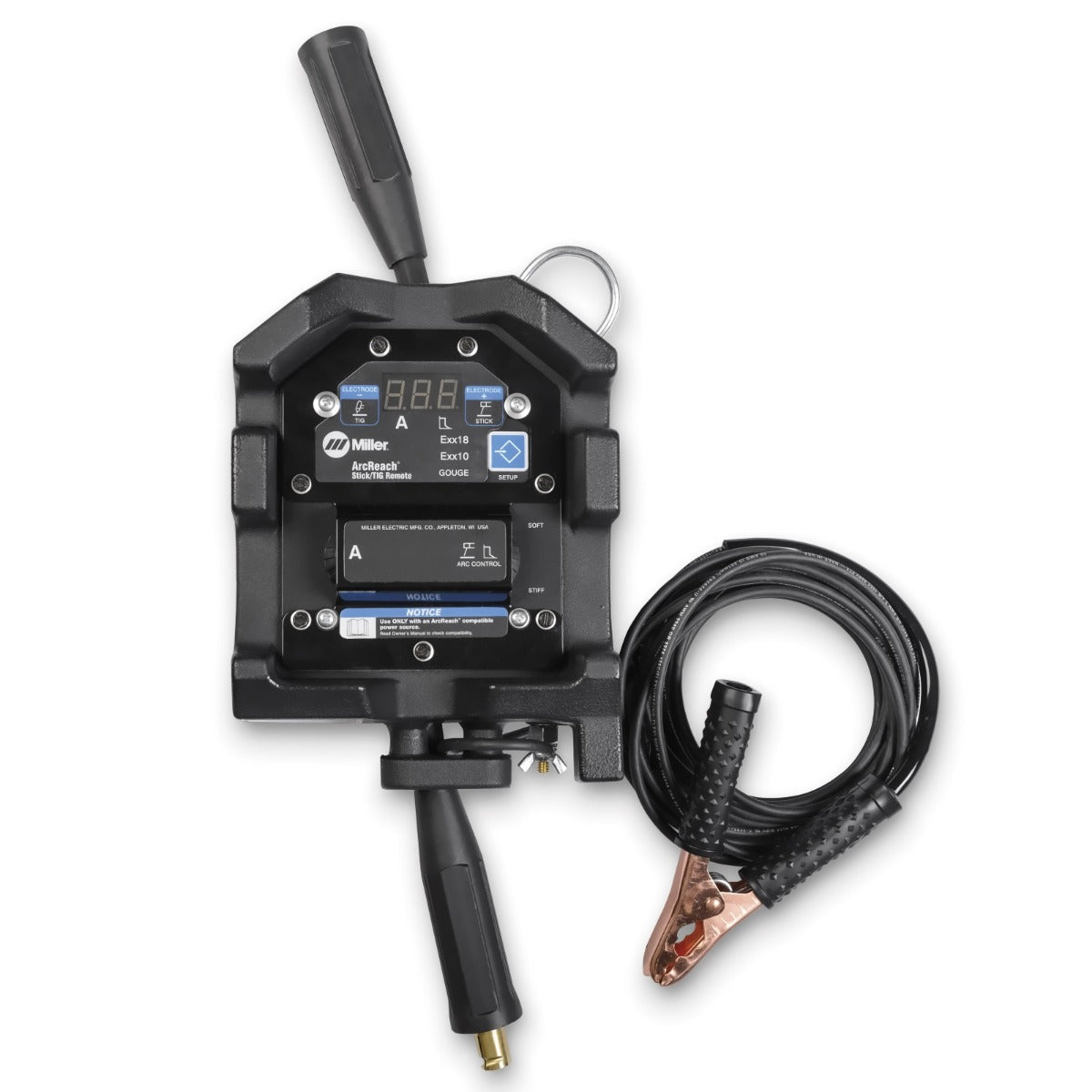

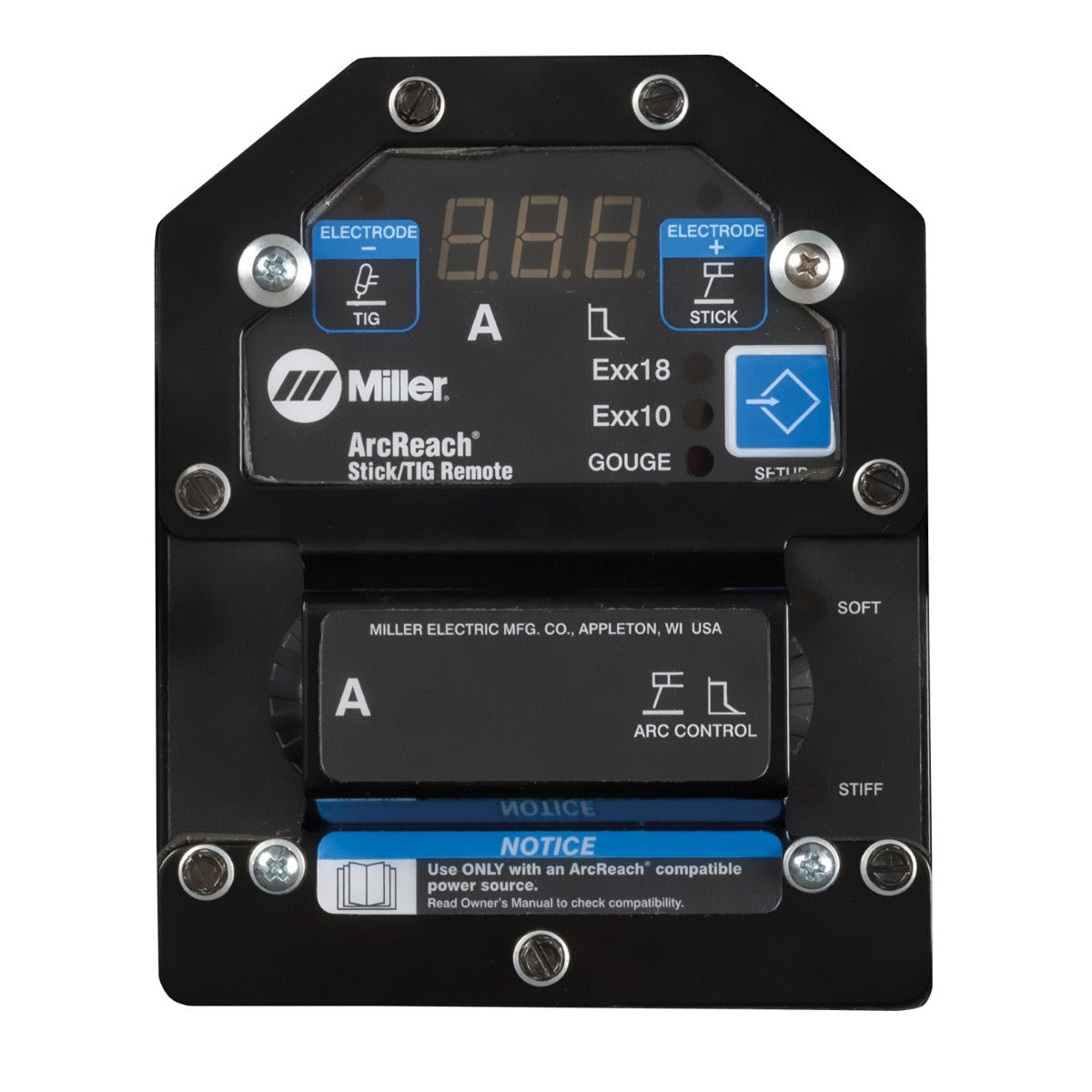

Tig/Stick Remote Features
• Remote override of power source
• More arc-on time and reduced exposure to workplace hazards
• Easy to adjust
• Precise weld settings
• Impact-resistant case
• Toolless connection
• Auto-process select

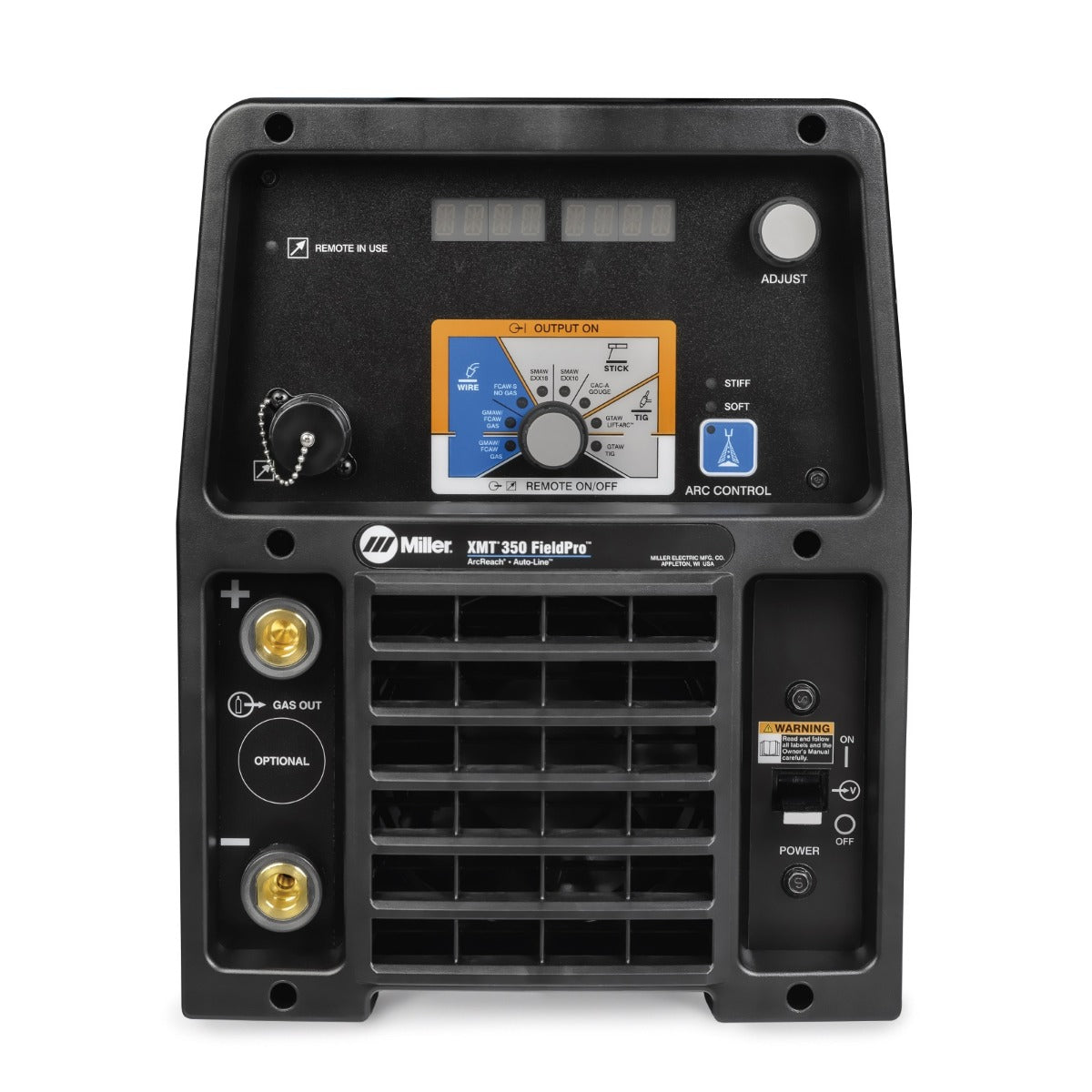

XMT Features
• Auto-Line voltage hookup (208-575V)
• 1 or 3-Phase Capable
• Adaptive Hot Start
• Infinite Arc Control
• Lift-Arc
• Fan-on-Demand
• Lightweight, Aerospace-Grade Aluminum Case
• Large, Dual Digital Meters
• Process Selector Switch
ArcReach Benefits
• Cable Length Compensation (CLC)
• No Expensive Control Cords
• Improved Jobsite Safety
• Maximize Fleet Compatibility with ArcReach Power Sources
• More Operator Control
The Auto Remote Sense enables the unit to automatically use remote control if connected to remote control receptacle.
Quick Specs
• Voltage Range: 10-38V
• Amperage Range: 5-425A
• Duty Cycle: 60% @ 350A 3-Phase | 60% @ 300A 1-Phase
• Weight: 93 lbs
• Dims: 17" H x 12.5" W x 24" D
This particular model XMT comes equipped with Tweco Style Connectors.
Tig/Stick Remote Features
• Remote override of power source
• More arc-on time and reduced exposure to workplace hazards
• Easy to adjust
• Precise weld settings
• Impact-resistant case
• Toolless connection
• Auto-process select
XMT Features
• Auto-Line voltage hookup (208-575V)
• 1 or 3-Phase Capable
• Adaptive Hot Start
• Infinite Arc Control
• Lift-Arc
• Fan-on-Demand
• Lightweight, Aerospace-Grade Aluminum Case
• Large, Dual Digital Meters
• Process Selector Switch
ArcReach Benefits
• Cable Length Compensation (CLC)
• No Expensive Control Cords
• Improved Jobsite Safety
• Maximize Fleet Compatibility with ArcReach Power Sources
• More Operator Control
The Auto Remote Sense enables the unit to automatically use remote control if connected to remote control receptacle.
Quick Specs
• Voltage Range: 10-38V
• Amperage Range: 5-425A
• Duty Cycle: 60% @ 350A 3-Phase | 60% @ 300A 1-Phase
• Weight: 93 lbs
• Dims: 17" H x 12.5" W x 24" D
| MPN: | MIL951736 |
|---|---|
| UPC: | 715959657792 |
| Processes | Air Carbon Arc Cutting and Gouging (CAC-A)Flux Cored (FCAW)MIG (GMAW)MultiprocessStick (SMAW)TIG DC (GTAW-DC) |
| Designed For | Shipbuilding Manufacturing Welding Education and Training Heavy Equipment Railcar Aerospace Construction and Fabrication |
| Amperage | 1- and 3-Phase |
| Weldable Metals | Aluminum Specialty Metals Stainless Steel Steel |
| Input Voltage | 208 V 220/230/240 V 380/400/440 V 460/480 V 575 V |
| Input Phase | 1- and 3-Phase |
| Input Hz | 50/60 Hz |
| Input Phase | DC |
| Portability | Handle(s) Running Gear / Cart (Optional) |
| Weld Output | CC / CV |
| Weight | 80 lbs |
| Warranty | 3 Years Miller's True Blue Warranty |
