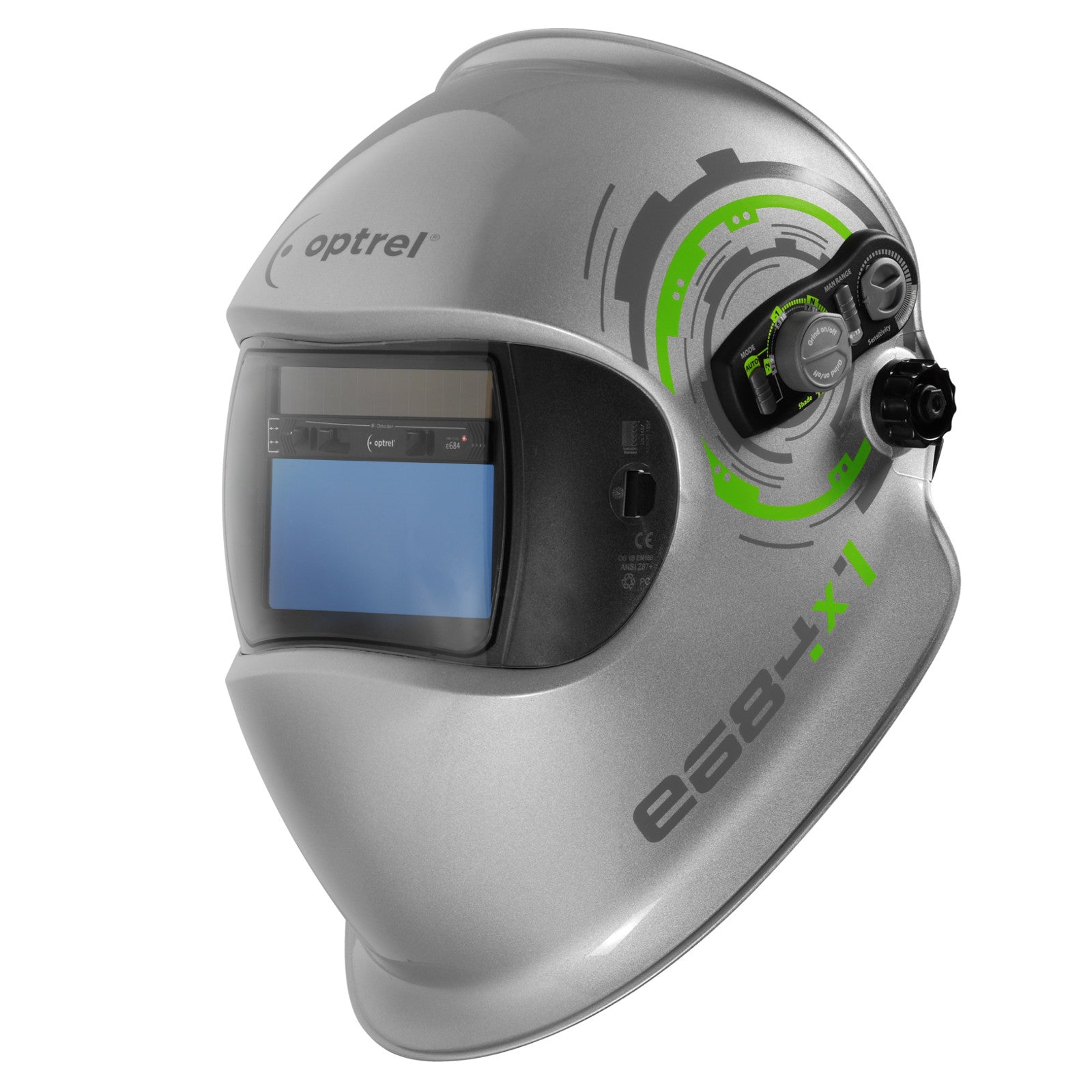

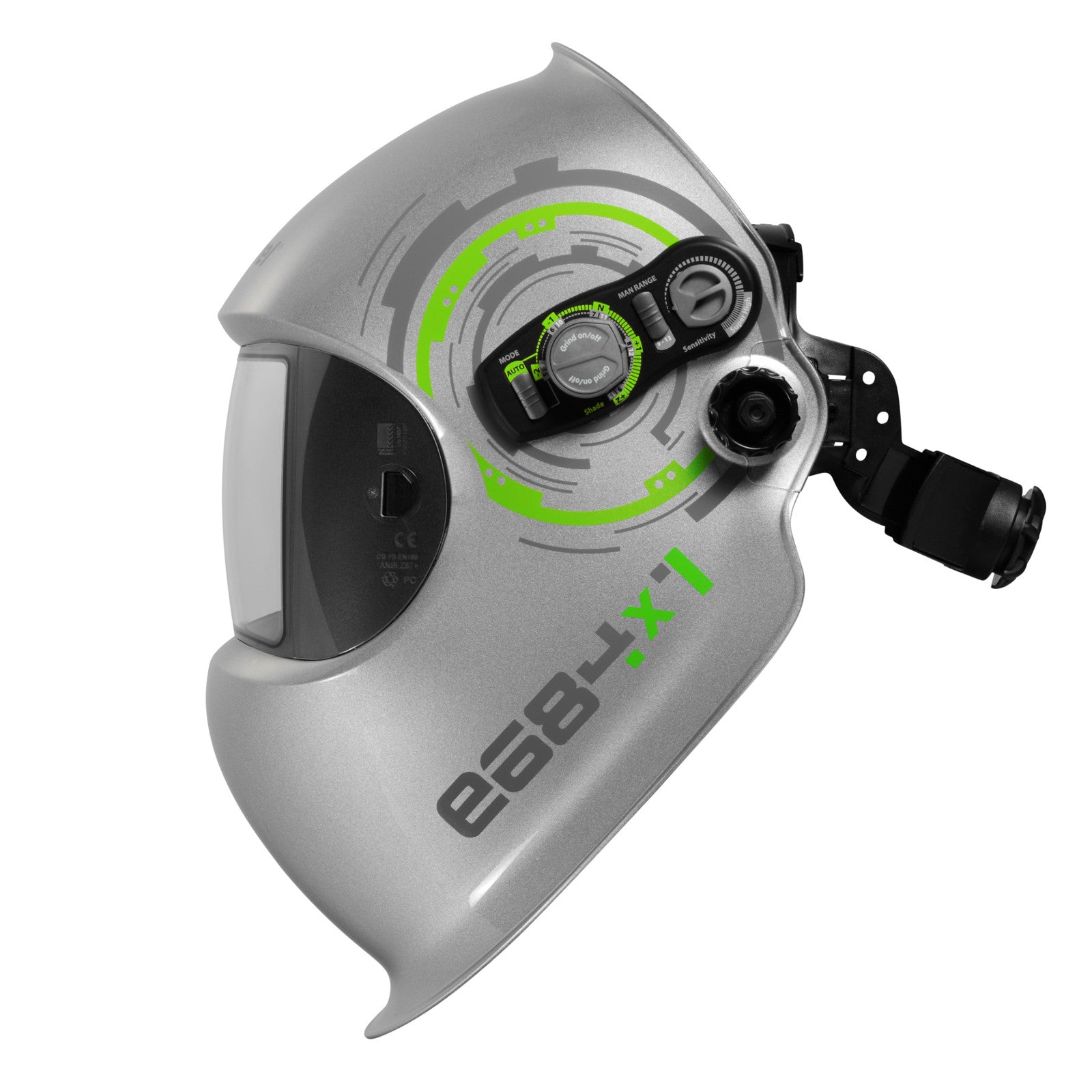

Optrel e684 Series Silver Welding Helmet (1006.500)
Download Product Spec Sheet
The Optrel e684 Silver Welding Helmet was designed especially for welding experts with varying job requirements and a need for an extensive range of individual adjustment options. It is the only helmet that features an autopilot feature, that automatically adjusts the shade level as your arc intensity changes. The Optrel e684 has a special "HD lens" which gives the welder a truer color and lets you see the clearest, most crisp view possible.
Adaptive Shade Autopilot
The adaptive shade level control automatically adjusts to the perfect shade level. Let me say that again so it sinks in. The Optrel e684 has an autopilot feature that automatically detects the amperage settings you're using and automatically adjusts the shade of the lens so you don't have to stop and manually make the adjustments. Going from grinding to MIG to TIG is no problem and no manual adjustments are needed. The Optrel e684 has an additional sensor that measures arc intensity and will automatically adjust the shade as the arc changes. This is a groundbreaking, unique feature that you will absolutely love.
High Definition Viewing
Similar to your new high definition television, the e684's special HD lens provides the truest color on the market. Its Class 1 angular dependency allows welders to see the clearest, crispest view possible, enabling you to better concentrate and make your weld wiht more precision.
Twilight Technology
Unlike other adaptive lenses that rapidly return to light, the Optrel e684 uses a twilight feature that restores light more naturally after you're done with your weld, presenting a smooth transition to your eyes. This unique, Optrel-exclusive feature will reduce your eye fatigue and help you work longer and safer.
Other Highlights:
• Shade level 2 ranges: 4/5-9 and 4/9-13
• Control unit outside the helmet
• Comfortable headband
• Ability to adapt the detection angle (60° or 120°)
• Sensitivity control
• Opening delay
• Grinding mode (shade level 4)
• Overhead welding
• Color true filter
• Hard hat can also be worn
Adaptive Shade Autopilot
The adaptive shade level control automatically adjusts to the perfect shade level. Let me say that again so it sinks in. The Optrel e684 has an autopilot feature that automatically detects the amperage settings you're using and automatically adjusts the shade of the lens so you don't have to stop and manually make the adjustments. Going from grinding to MIG to TIG is no problem and no manual adjustments are needed. The Optrel e684 has an additional sensor that measures arc intensity and will automatically adjust the shade as the arc changes. This is a groundbreaking, unique feature that you will absolutely love.
High Definition Viewing
Similar to your new high definition television, the e684's special HD lens provides the truest color on the market. Its Class 1 angular dependency allows welders to see the clearest, crispest view possible, enabling you to better concentrate and make your weld wiht more precision.
Twilight Technology
Unlike other adaptive lenses that rapidly return to light, the Optrel e684 uses a twilight feature that restores light more naturally after you're done with your weld, presenting a smooth transition to your eyes. This unique, Optrel-exclusive feature will reduce your eye fatigue and help you work longer and safer.
Other Highlights:
• Shade level 2 ranges: 4/5-9 and 4/9-13
• Control unit outside the helmet
• Comfortable headband
• Ability to adapt the detection angle (60° or 120°)
• Sensitivity control
• Opening delay
• Grinding mode (shade level 4)
• Overhead welding
• Color true filter
• Hard hat can also be worn
| MPN: | OPT1006.500 |
|---|---|
| UPC: | 640127614976 |
| Warranty | 2 years with additional 1 year warranty extension (excluding battery) if the product is registered within the first 6 months |
| Arc Sensors | solar cells and 2 batteries, exchangeable |
| Delay Control | Switching time light to dark 0.170 ms at room temperature, 0.110 ms at 55 °C Switching time dark to light 0.1 – 2.0 s with patented twilight function |
| Digital | maximum UV- & IR-protection on all shade levels |
| Grind Mode | Optical Class: 1 Stray Light Class: 1 Homogeneity Class: 1 Angle Dependency Class: 1 |
| Modes | maximum UV- & IR-protection on all shade levels |
| Reaction Time | 0.170 ms at room temperature, 0.110 ms at 55 °C |
| Sensitivity Control | 0.1 – 2.0 s with patented twilight function |
| Viewing Field | 90 x 110 x 7 mm / 50 x 100 mm |
