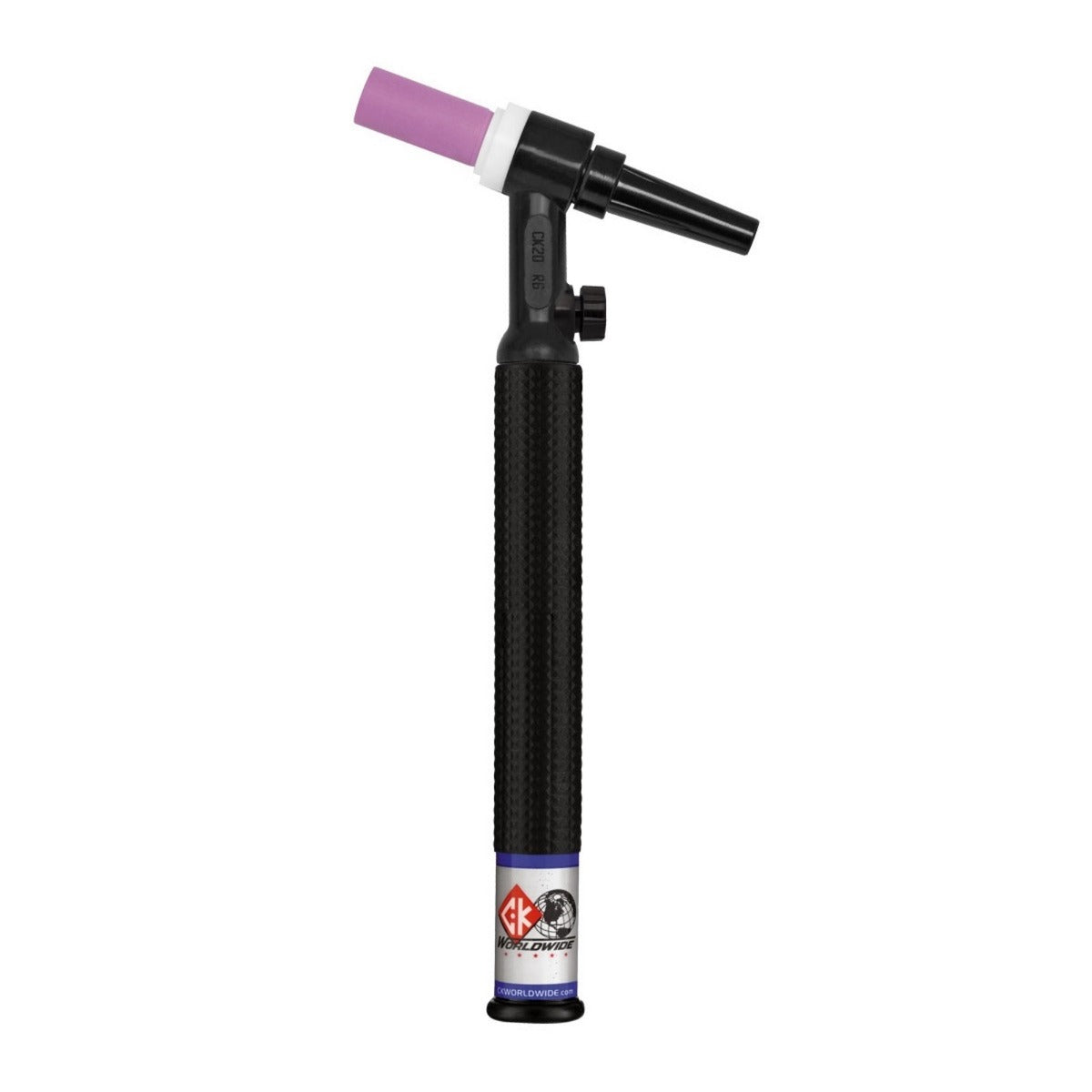

CK Worldwide 20 Series Superflex TIG Torch w/Rigid Head and Valve (CK20V-XXSF)
Select Size (Parts & Accessories):
Select Size (Parts & Accessories)

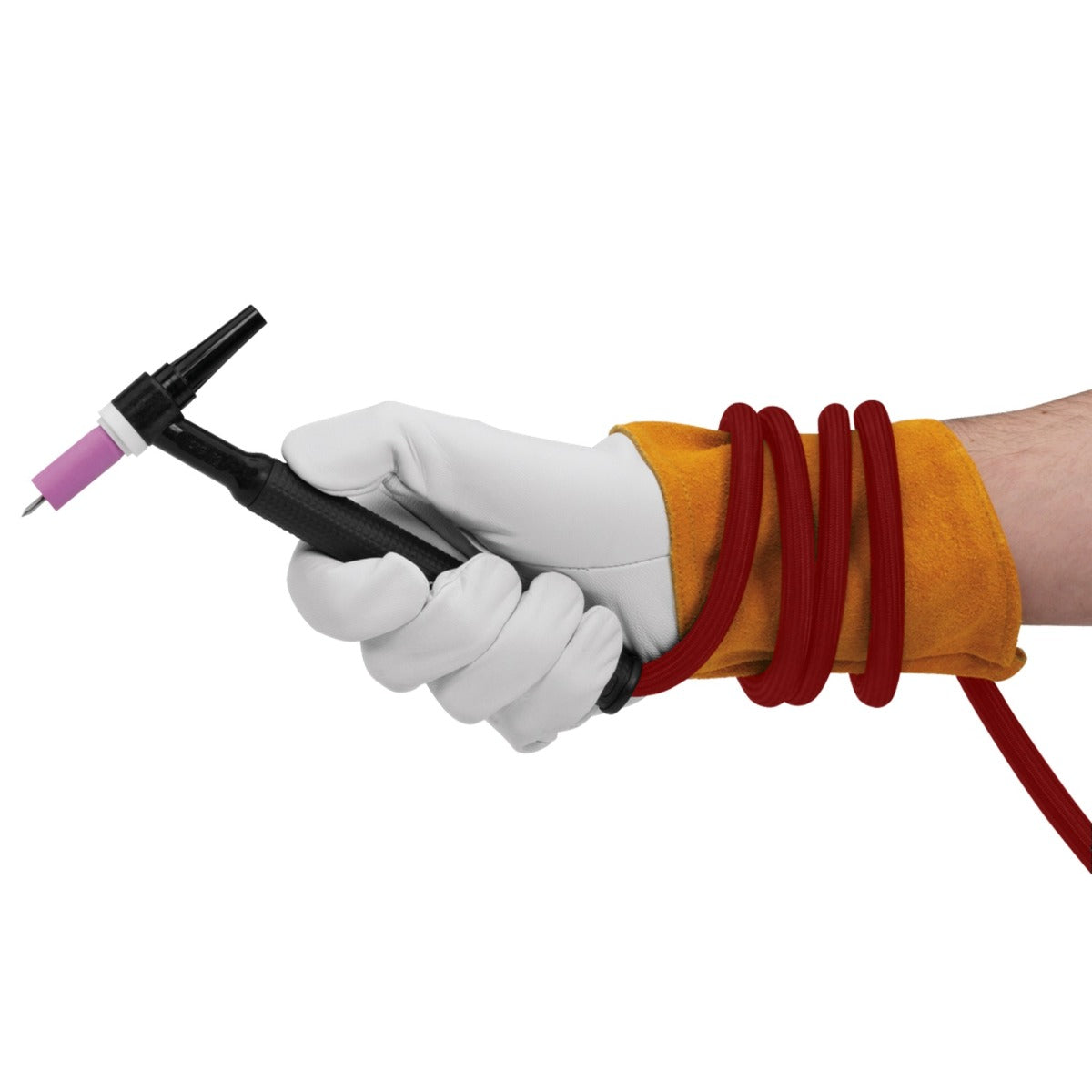

The CK 20 series torches are the most popular water-cooled torches and feature Max-Flo cooling technology. These torches have the largest water jacket available which creates 300% more cooling over competitors'. More mass in the head of these torches equals more efficient heat dissipation. These torches are constructed with a hardened brass alloy head to reduce thread damage which also helps prevent galling and seizing of the collet body. The CK torches equipped with the Superflex cables are the lightest, most flexible cable assemblies available on the market. The silicon rubber hose connection with a nylon over-braid resists abrasion and stays flexible even in cold environments. The 20 series torches are rated up to 250 amps and accept CK 2 series (13N) consumables.
Max-Flo Benefits
• Up to 4 times the surface area for maximum heat transfer
• Cooler running torch
• Increased amperage capacity
• Longer consumable life
• Less down time
• Will hook-up to standard cables and hoses
Features
• 100% duty cycle at 250 amps
• Gas Shut-Off Valve
• Superflex power cable
• 3-Piece torch (power cable, gas hose, water return hose)
• Power cable connection - 1/4 in X 28 RH
• Made in USA
Max-Flo Benefits
• Up to 4 times the surface area for maximum heat transfer
• Cooler running torch
• Increased amperage capacity
• Longer consumable life
• Less down time
• Will hook-up to standard cables and hoses
Features
• 100% duty cycle at 250 amps
• Gas Shut-Off Valve
• Superflex power cable
• 3-Piece torch (power cable, gas hose, water return hose)
• Power cable connection - 1/4 in X 28 RH
• Made in USA
