CK Worldwide 3 Series Large Diameter Pyrex Gas Saver Kit (D4GSXXXLD)
Select Size (Consumables):
Select Size (Consumables)
Lead time: 3-5 Days
Quantity:
The CK Worldwide large diameter gas saver kits are great for titanium alloy applications that require extra shielding gas coverage. Standard and large diameter gas lenses are not adequate to insure larger surface area of shield gas coverage. These kits contain a clear pyrex glass cup to insure full visibility of the weld puddle and directs a uniform gas flow pattern over a very large surface area.
The 3 series consumables are designed to fit 17, 18, and 26 series torches. Please select your desired tungsten diameter.
Features
• Improved visibility allows odd-angle welding
• Tungsten stick-out can extend 1-1/2" beyond edge of gas cup
• Less expensive replacement parts than standard gas lenses
• Fits most standard silicone rubber insulated torch bodies
• Replaceable screen adapter

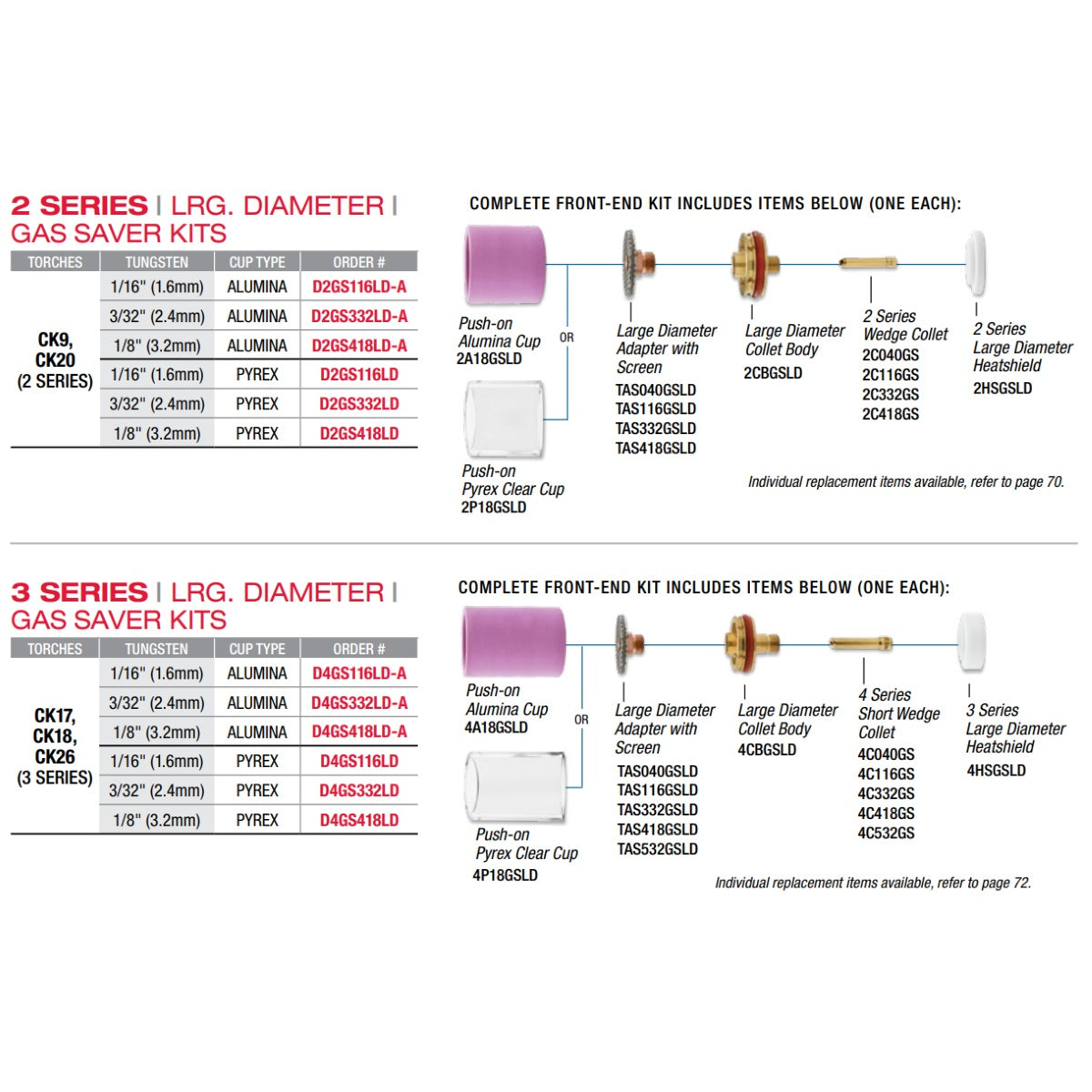

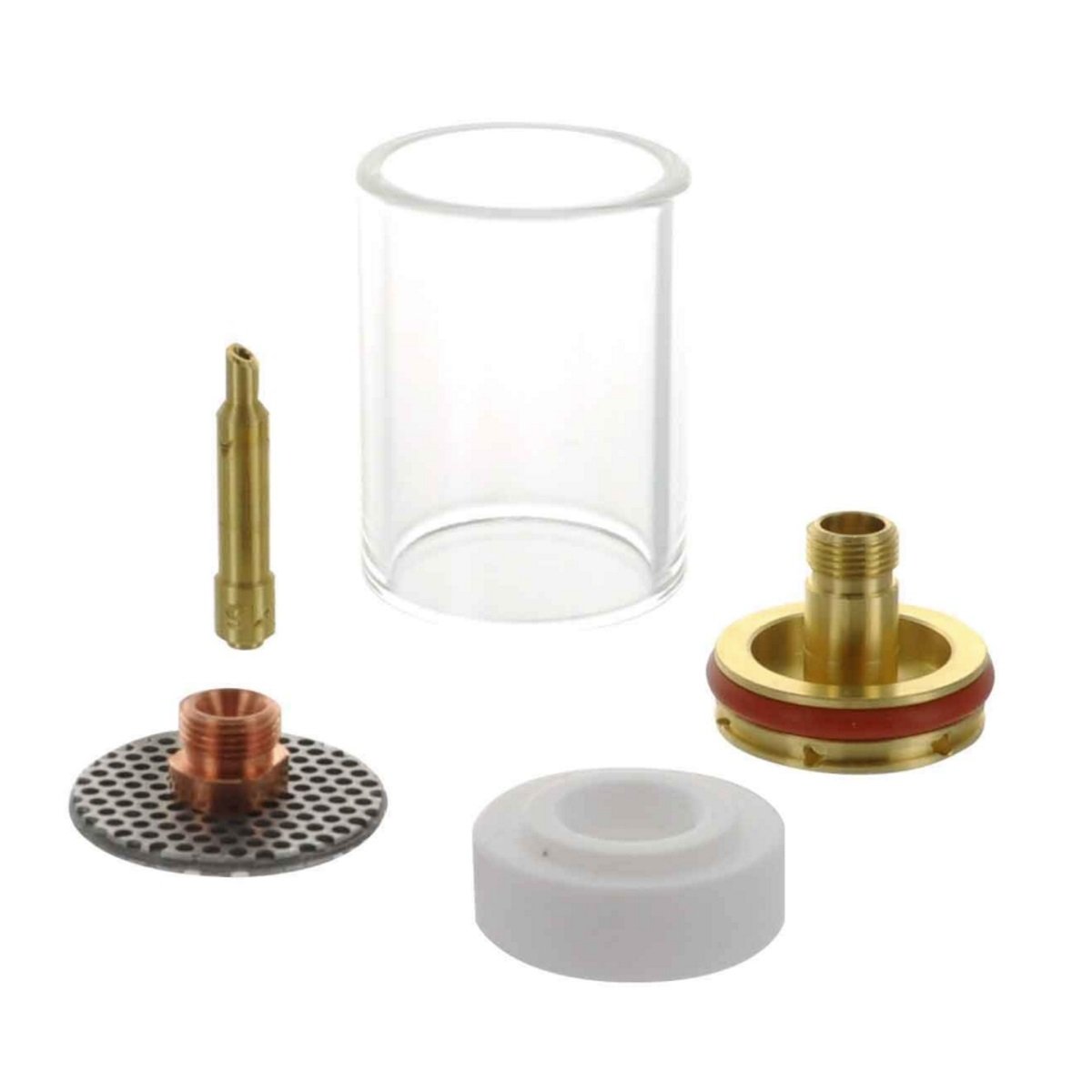

Kit Contains
• Push-On Pyrex Clear Cup
• Large Diameter Adapter with Screen
• Large Diameter Collet Body
• 4 Series Short Wedge Collet
• 3 Series Large Diameter Heatshield
The 3 series consumables are designed to fit 17, 18, and 26 series torches. Please select your desired tungsten diameter.
Features
• Improved visibility allows odd-angle welding
• Tungsten stick-out can extend 1-1/2" beyond edge of gas cup
• Less expensive replacement parts than standard gas lenses
• Fits most standard silicone rubber insulated torch bodies
• Replaceable screen adapter
Kit Contains
• Push-On Pyrex Clear Cup
• Large Diameter Adapter with Screen
• Large Diameter Collet Body
• 4 Series Short Wedge Collet
• 3 Series Large Diameter Heatshield
| MPN: | CKSD4GS116LD |
|---|
MPN: CKSD4GS116LD
