ESAB Fabricator 252I MIG, TIG & Stick Welder Pkg. With TIG Torch (W1004401 & W4013600)
ESAB Fabricator 252I MIG, TIG, Stick Welder Pkg. With TIG Torch (W1004401, W4013600)
ESAB Fabricator 252I MIG, TIG, Stick Welder Pkg. With TIG Torch (W1004401, W4013600)
ESAB Fabricator 252I MIG, TIG, Stick Welder Pkg. With TIG Torch (W1004401, W4013600)

ESAB Fabricator 252I MIG, TIG, Stick Welder Pkg. With TIG Torch (W1004401, W4013600)

Sale price$1,995.00 Regular price$2,585.00
Sold out

Earn
Rewards points when you’re a Rewards member. Sign up or Login here
warning WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Esab has discontinued the Fabricator 252i. The suggested replacement is the Esab Rebel 285.

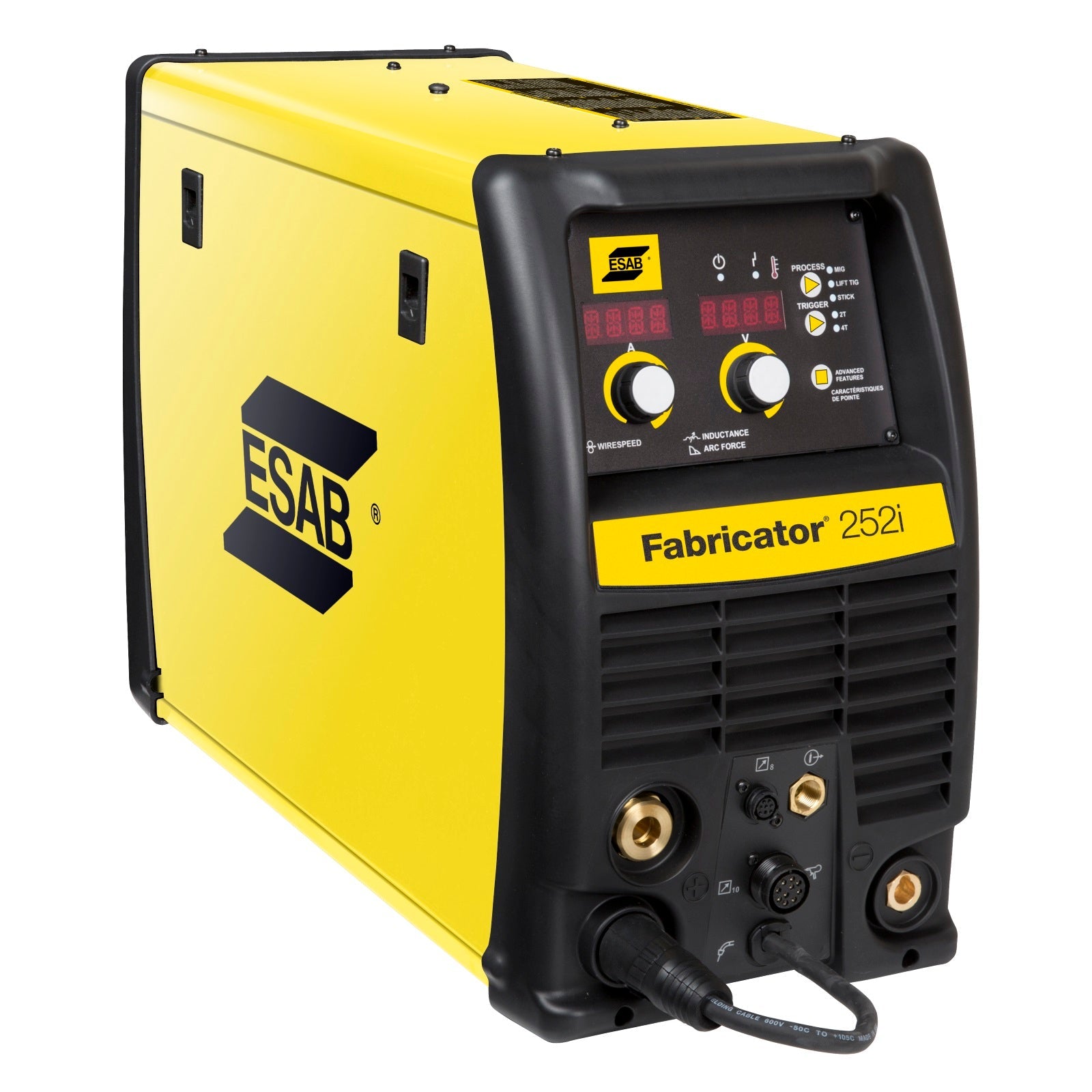

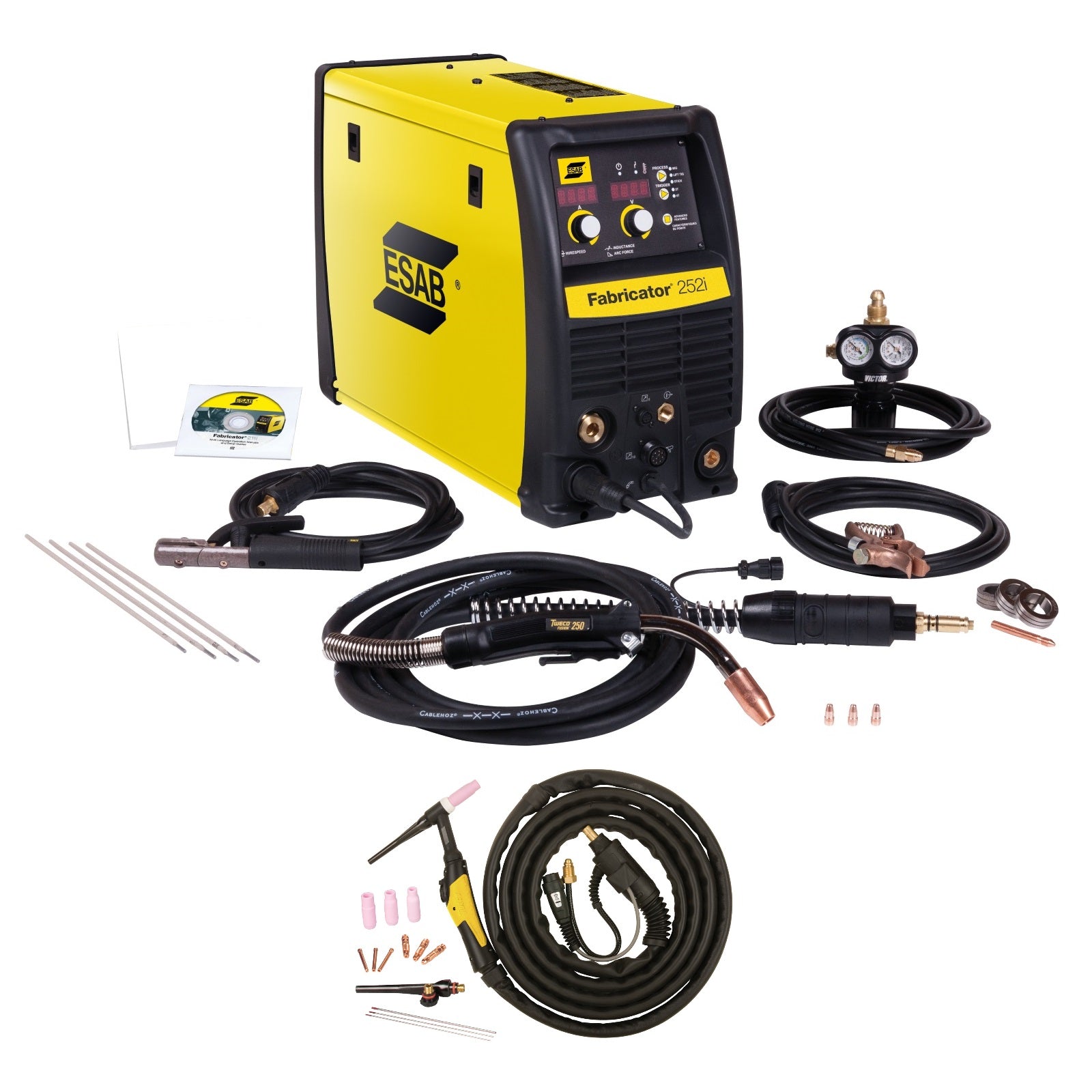

The ESAB Fabricator 3-in-1 252i Welding System (W1004403) has an included TIG Torch (W4013600) giving you MIG, Stick, and TIG welding capabilities; all in a portable package. Weighing in at only 65 lbs, this integrated platform has automatic input voltage selection from 208-230 VAC and an operating range of 187 - 276 VAC.

This power source comes with the New Esab Yellow Trade Dressing

MIG:
• Infinite Voltage Control with optimized starting performance.
• Inductance Control for arc stability and spatter control.
• ESAB MIG Gun w/15 ft. cable and industry standard Tweco #4 connection.
• Durable Metal Feed Plate features 2 roll drive system, quick change reversible drive rolls and easy-to-set single scaled wire tension knob.
• 4", 8", or 12" Spool capacity allows easy installation of wire spool sizes.
• Spool Gun ready

STICK:
• Adjustable Arc Force Control for optimum STICK electrode performance.
• Excellent 6010 welding electrode performance.

TIG:
• Lift TIG Start: Provides TIG arc starting without use of high frequency.

Other Features:
• PFC Power Factor Correction: Up to 40% more electrically efficient than conventional MIG Welders.
• Digital Meters: Voltage and Amperage; Preview and Hold capability.
• Excellent Portability: Lightweight, less than 66 lbs.
• Comprehensive Setup Chart: Weld set up guide for optimum welding performance over a wide range of materials and shielding gases.
• Trigger Control: 4T (Latch) eliminates operator fatigue.
• Remote Receptacle: Enables connection of remote control devices and Spool Gun.
• Quick Change Polarity: Simple quick change polarity (no tools required) from the front of the power source.
• Overload Protection: Shuts down the power source to protect the internal electrical components from overheating.
• IP23S: Suitable for outdoor use.
• Advanced Features: Includes Pre & Post Flow, Down Slope, Hot Start, Spot, Stitch, Burn Back, Wire Sharp, Arc Hour

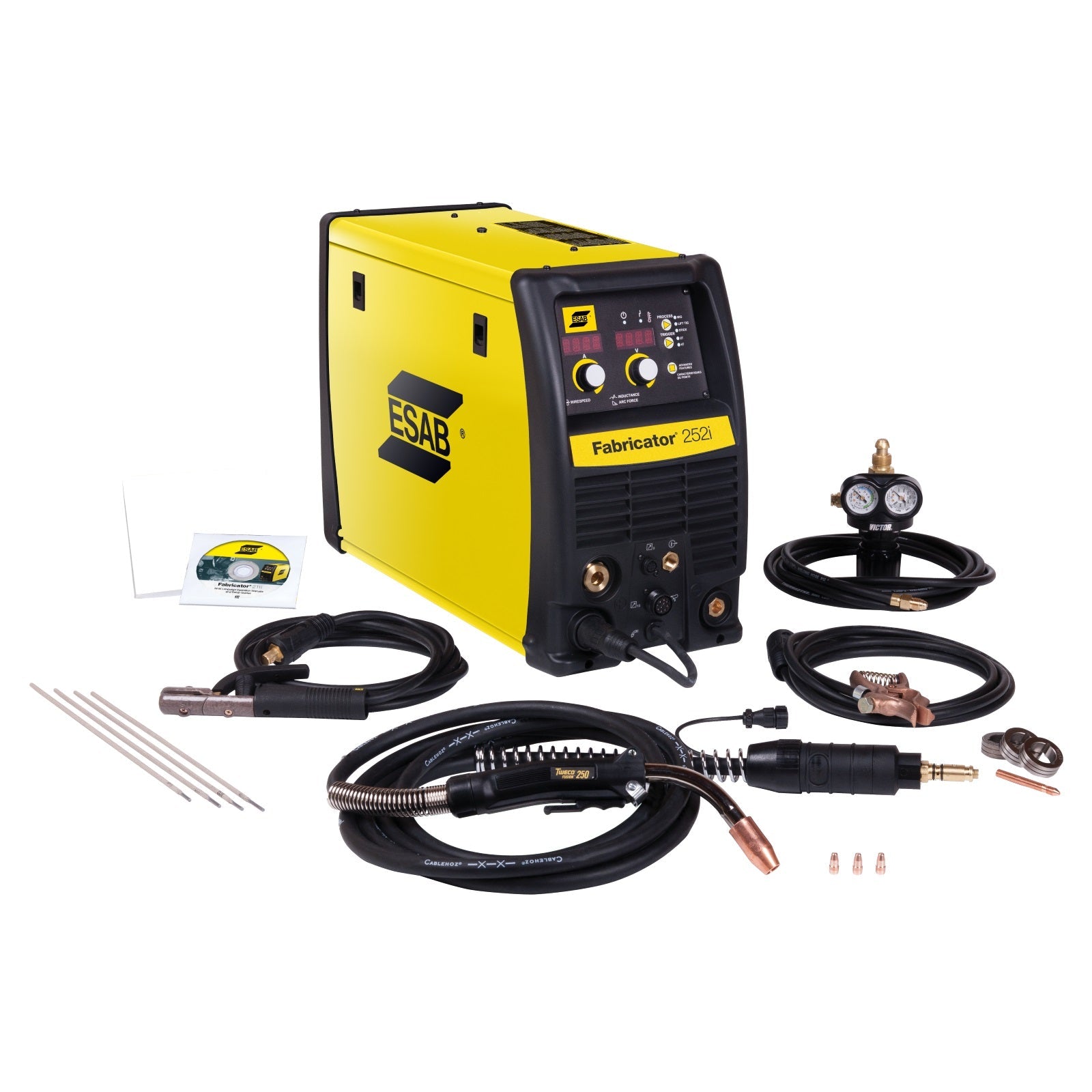

Includes:
• Fabricator 252i Power Supply

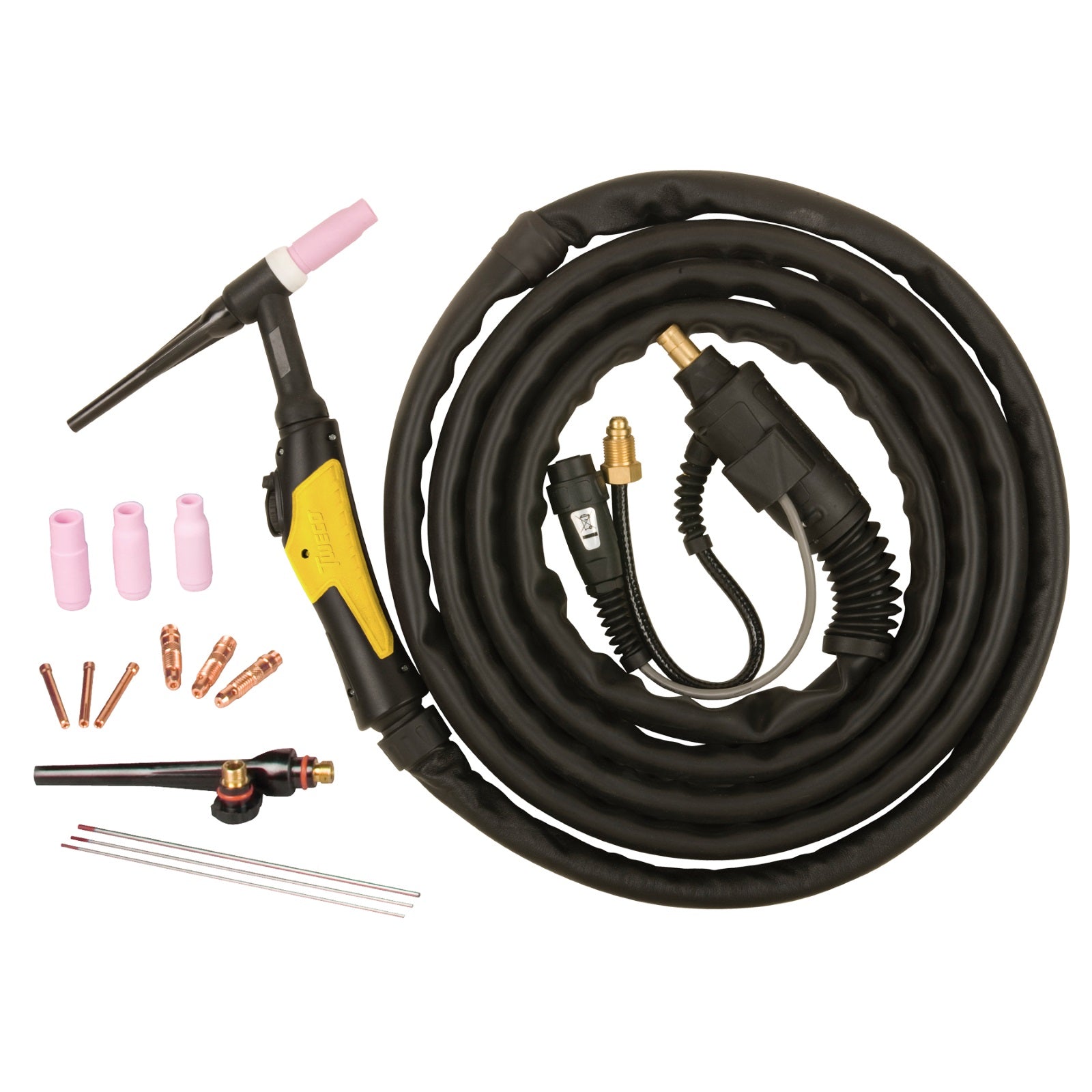

• 12.5ft 26 Series Air-Cooled Tig Torch w/Fingertip Amperage Control (W4013600)
• 15 ft (4.6 m) ESAB Fusion 250 Amp MIG Gun
• ESAB WeldSkill 200 Amp Ground Clamp with 10ft (3 m) Lead
• ESAB WeldSkill 200 Amp Electrode Holder with 13 ft (4 m) Lead
• Victor Argon Regulator - Flow Gauge with 12.5ft Hose
• 9 ft (2.7 m) Power Cord and NEMA 6-50P 230V AC Plug
• Operator’s Manual

Drive Rolls:
• .035" / .045" V Groove Lower & Flat Upper (Fitted)
• .045" Flux Cored Roll
• .023/.030/.035 V-Groove

Contact Tips (1 each):
• .030 (0.8 mm), .035 (0.9 mm), .045 (1.2 mm)
