ESAB Rogue EM 140 MIG Welder (0700301082)
Download Product Spec Sheet
The ESAB Rogue EM 140 operatres on 120 volts, provides 140 amp output, and weighs just under 29 pounds. The Rogue 140 is undoubtedly the most quality, cost efficient 140 amp MIG welder on the market. The digital user interface is easy to understand, and features two push buttons to change all of the machine settings.
Features
• Rugged industrial design supports multiple lift points and cable management
• Arc dynamics allows fine tuning arc characteristics
• Adjustable pre and post flow, burn back control, creep start, and 2T/4T trigger latch
• Spool gun ready (accepts the 1027-1397 spoolgun)
• Weld up to 1/4" steel
• Energy save mode activates after 2 minutes of inactivity
• IP23S rated for indoor and outdoor use
Quick Specs
• Amperage Range: 30-140 Amps
• Maximum Plate Thickness: 3/16"
• Wire Feed Speed: 75-450 ipm
• Weight: 28.8 lbs
• Dimensions: 23.2" L x 8.7" W x 15.2" H
• Duty Cycle: 30% @ 90A | 100% @ 49A
• Warranty: 3 years

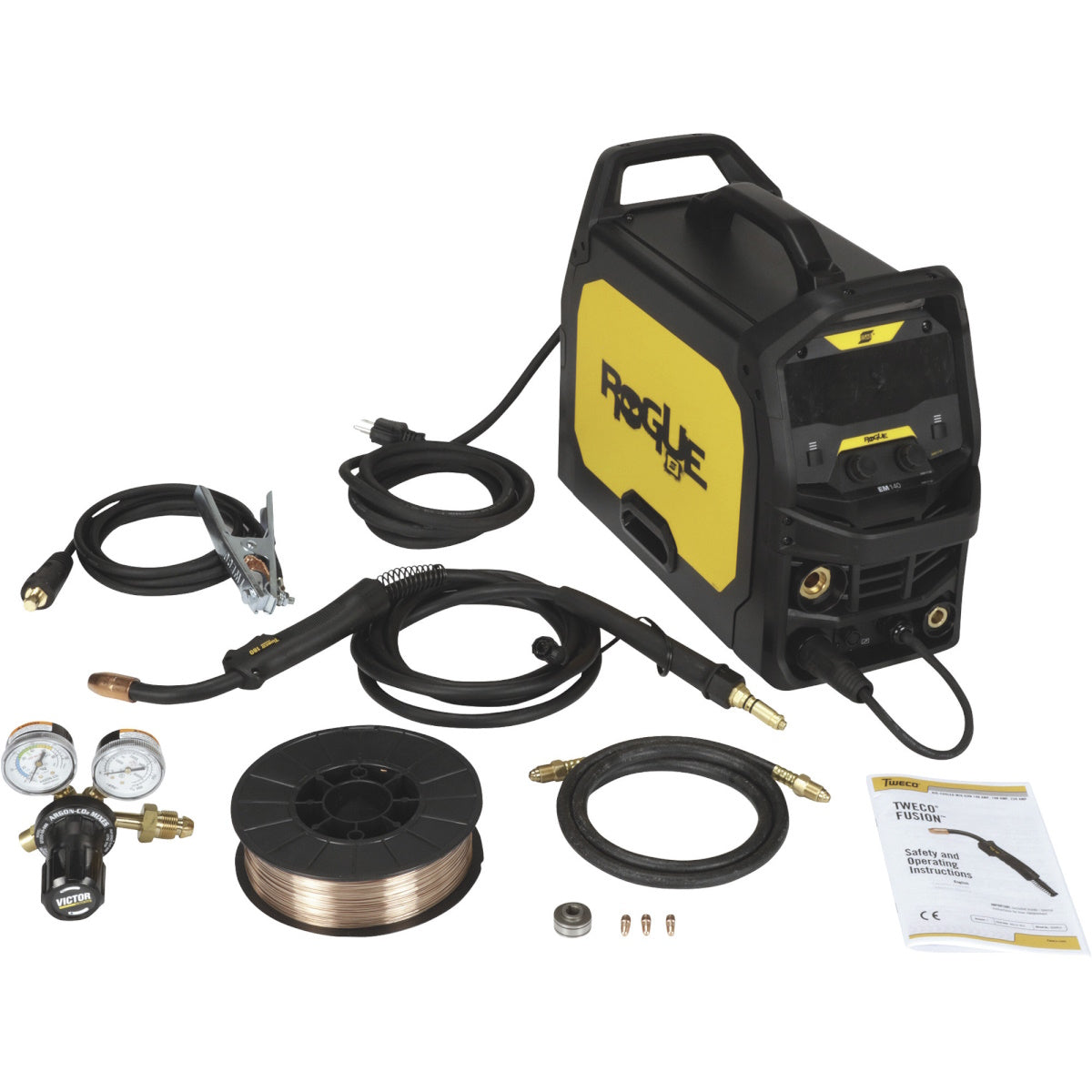

Includes
• EM 140 Power Source (MIG Only)
• 10 Ft Fusion 180 MIG Gun (Accepts Velocity Consumables)
• 10 Ft Ground Clamp
• Argon/CO2 Regulator with Gas Hose
• 2 lb Spool of 70S6 Wire
• 024/.030 and .030/.035 Drive Rolls for Steel
• .030/.035 V-Knurled Drive Rolls for Flux Cored Wire
| MPN: | ESB0700301082 |
|---|---|
| UPC: | 7330725079993 |
| Amperage | 140 Amps |
| Material Thickness | 3/16" |
| Weldable Metals | Steel Stainless |
| Input Voltage | 110 115 120 |
| Input Phase | 1-Phase |
| Input Hz | 50/60 Hz |
| Input Phase | DC |
| Max Open Circuit Voltage | 50 VDC |
| Wire Feed Speed | 75-450 IPM |
| Wire Diameter | .023 - .035 |
| Spool Size | 8 Inch |
| Weld Output | 140 Amps |
| Weight | 29 lbs |
| Warranty | 3 Years |
