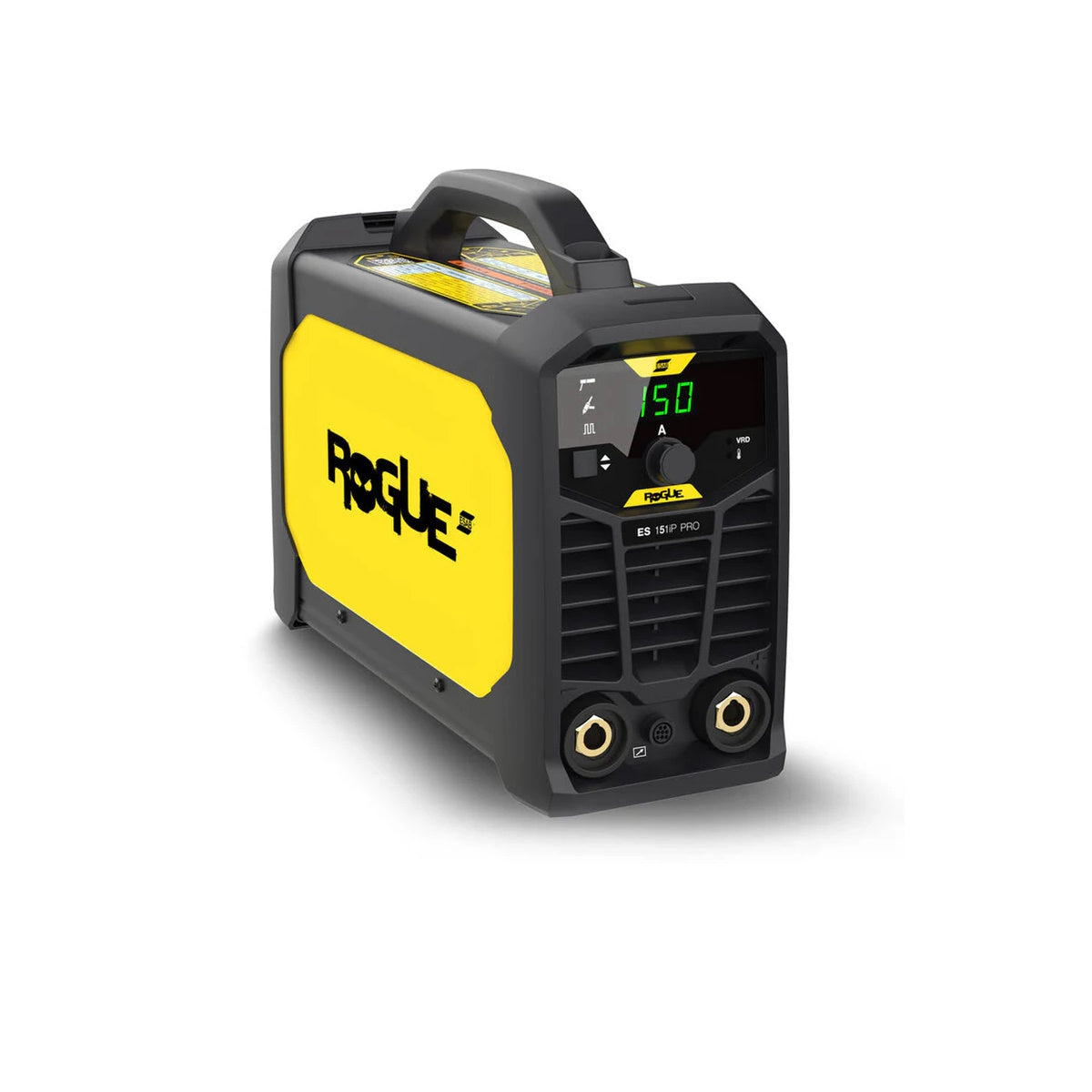

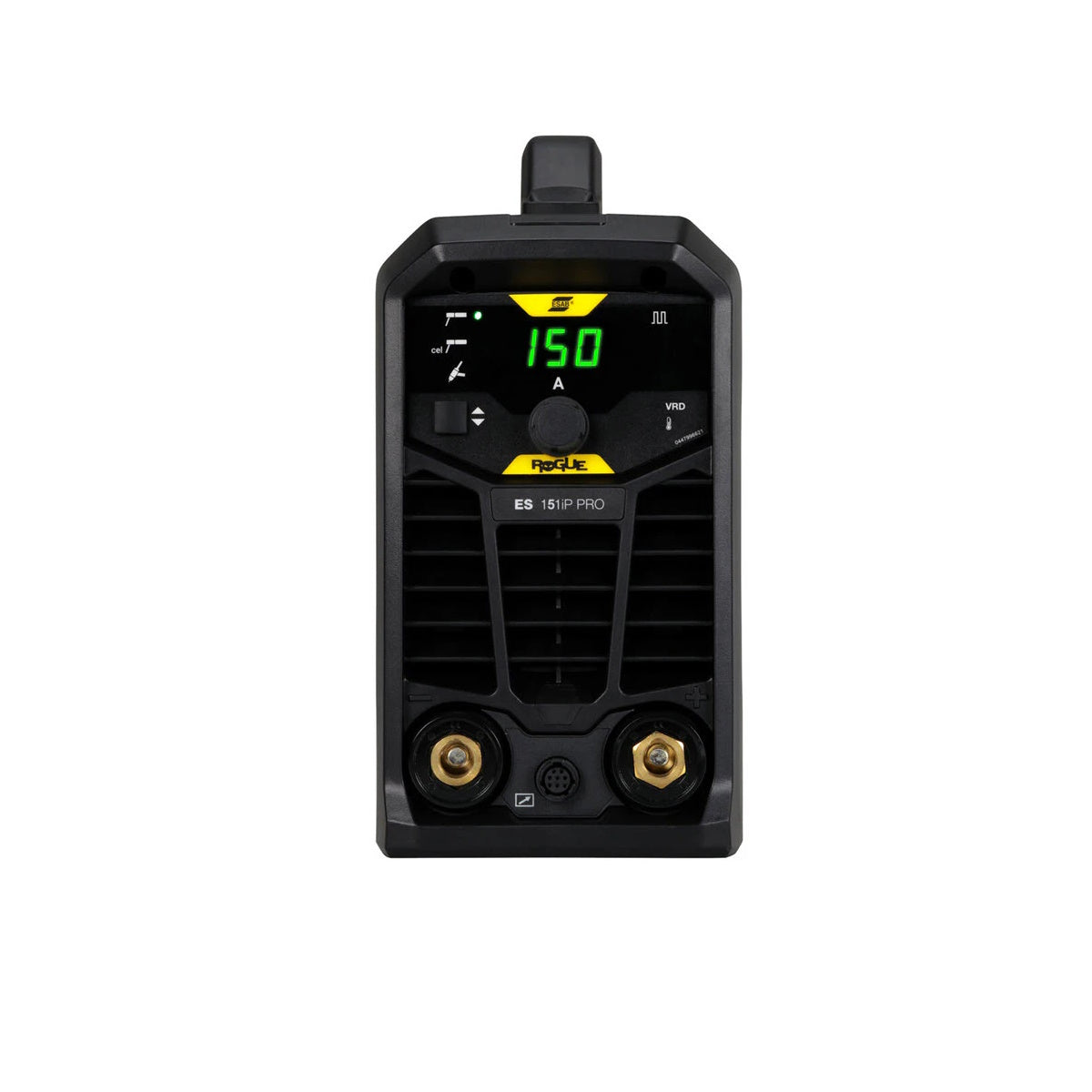

ESAB Rogue ES 151iP PRO DC Stick/TIG Welder (0705002021)
Download Product Spec Sheet
The ESAB Rogue ES 151iP Pro weighs under 19 pounds and offers 150 amp output using 230V power. This welder is a dual voltage, single phase unit, with arc force and hot start settings to help the user find the exact arc for the job. Being digital, the microprocessor precisely controls all functions and provides best-in-class welding performance across the amperage range of the machine. The Rogue 151iP is capable of using 1/8" electrodes (6000 series electrodes).
The Rogue 151iP features a New Pulse SMAW functionality that enhances Rogue's performance and improves the heat input control, to minimize thin gauge materials distortion , facilitate out-of-position welding with no undercuts and reducing spatter, thus helping to effectively avoid a number of welding defects.
The Rogue is DC TIG capable, however it will not TIG weld aluminum. Simply add a 9 or 17 series TIG torch with built in gas valve (50 mm) connection and you're ready to TIG weld. This unit accepts the w4014450 foot control if you would like variable TIG amperage control.
Features
• Dual Voltage Input
• Pulse Stick Mode
• Superior Arc Characteristics
• Generator Compliant
• Easy to Use
• Practical Design
• Robust Design
• PFC Ensures Stable Arc
Quick Specs
• Voltage: 120/230V | Single-Phase
• Current Range: 10-150A (230V) | 10-130 (120V)
• Stick Duty Cycle: 120V - 60% @ 58A | 230V - 60% @ 84A
• TIG Duty Cycle: 120V - 60% @ 58A | 230V - 60% @ 84A
• Dimensions: 15.8" L x 6" W x 10.4" H
• Weight: 18.2 lbs
Includes
• Rogue ES 151iP Power Source
• 10 Ft Electrode Holder
• 10 Ft Ground Clamp
• 120-230V Adapter Plug
• Shoulder Strap
| MPN: | ESB0705002021 |
|---|---|
| Processes | Stick, Tig |
| Designed For | Repair and Maintenance Civil Construction Agricultural Equipment Industrial and General Fabrication |
| Amperage | 10-150 on 230VAC 10-130 on 120VAC, depending on process |
| Weldable Metals | o weld mild steel or stainless steel, with or without filler material. |
| Input Voltage | 120 –230 VAC +/-15%, 50/60 Hz |
MPN: ESB0705002021
