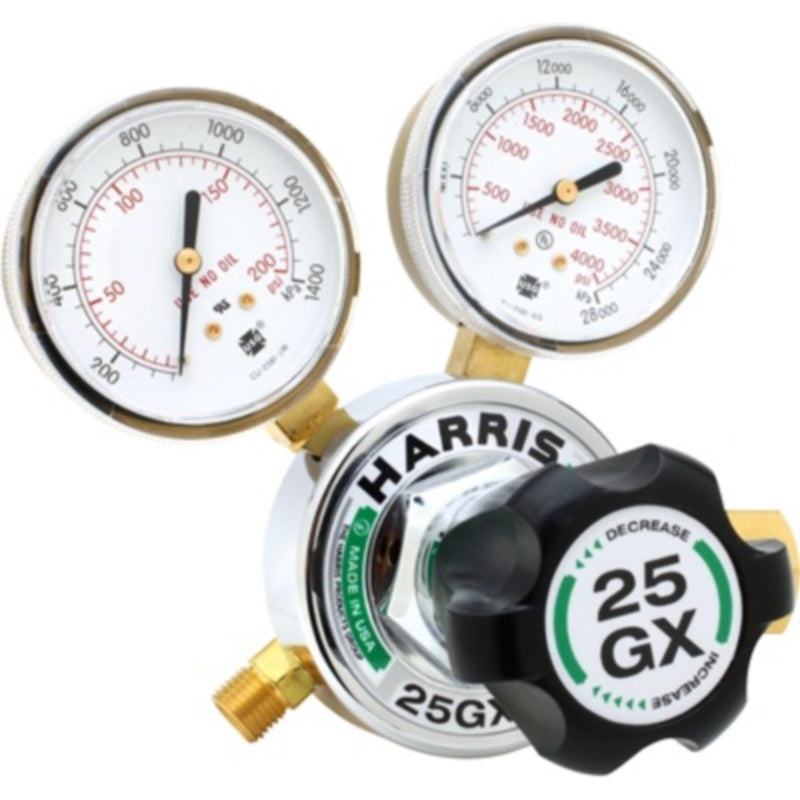

Harris 25GX-145-540 Medium Duty Oxygen Regulator CGA-540 (3000510)

Harris Model 25GX-145-540 Medium Duty Oxygen Regulator Cga-540 3000510

Brand new Harris Model 25GX Medium Duty Oxygen Regulator 25-145-540 3000510, Model 25GX Description: Single Stage Regulator This medium regulator is the traditional workhorse of the Harris regulator line. A time proven design for those who want an economical, high performance regulator. Features: One-piece encapsulated seat design with an internal filter and a Ptfe Teflon&reg seat Chrome-plated bonnet with forged brass body Regulator designed for propane service can be used with any of the other welding-grade liquid petroleum gases, but it is not for use with acetylene Featured in the Steelworker&reg Classic Outfits Part Number Model Number Capacity Stage Gauges Gas Inlet Outlet Certifications 3000350 25-15C-300 Medium Duty Single 2&quot Brass Acetylene Cga 300 9/16&quot - 18 Lh Ul Cga E-4 3000380 25-15C-510 Medium Duty Single 2&quot Brass Acetylene Cga 510 9/16&quot - 18 Lh Ul Cga E-4 3000606 25-500C-580 Medium Duty Single 2&quot Steel Argon Helium Nitrogen Cga 580 1/4 x 1/4 Flare Ul Cga E-4 3000615 25-500C-580 Medium Duty Single 2&quot Steel Argon Helium Nitrogen Cga 580 1/4&quot x 1/4&quot Flare Ul Cga E-4 3000540 25-100C-580 Medium Duty Single 2&quot Steel Argon Nitrogen Helium Cga 580 9/16&quot - 18 Rh Ul Cga E-4 3000550 25-100C-590 Medium Duty Single 2&quot Steel Industrial Air Cga 590 9/16&quot - 18 Rh Ul Cga E-4 3000806 25-200C-580 Medium Duty Single 2&quot Steel Nitrogen Cga 580 9/16&quot-18 Rh Ul Cga E-4 3000510 25-100C-540 Medium Duty Single 2&quot Steel Oxygen Cga 540 9/16&quot - 18 Rh Ul Cga E-4 3000450 25-50C-510P Medium Duty Single 2&quot Steel Propane Lpg Cga 510P 9/16&quot - 18 Lh Ul Cga E-4 Part Number Max Inlet Pressure Delivery Pressure Range Delivery Pressure Gauge Supply Pressure Gauge Height Width Length Weight Pressure Cv 3000510 3000 Psig 0-100 Psig 150 Psig 4000 Psig 5.75&quot 6.50&quot 4.75&quot 2.9 lbs. 0.2 Psig/100 Psig 0.17 Cv 3000540 3000 Psig 0-100 Psig 150 Psig 4000 Psig 5.75&quot 6.50&quot 4.75&quot 2.9 lbs. 0.2 Psig/100 Psig 0.17 Cv 3000550 3000 Psig 0-100 Psig 150 Psig 4000 Psig 5.75&quot 6.50&quot 4.75&quot 2.9 lbs. 0.2 Psig/100 Psig 0.17 Cv 3000350 500 Psig 0-15 Psig 30 Psig 400 Psig 5.75&quot 6.50&quot 4.75&quot 2.9 lbs. 0.2 Psig/100 Psig 0.17 Cv 3000380 500 Psig 0-15 Psig 30 Psig 400 Psig 5.75&quot 6.50&quot 4.75&quot 2.9 lbs. 0.2 Psig/100 Psig 0.17 Cv 3000806 3000 Psig 0-200 Psig 400 Psig 4000 Psig 5.75&quot 6.50&quot 4.75&quot 2.9 lbs. 0.2 Psig/100 Psig 0.17 Cv 3000450 500 Psig 0-50 Psig 100 Psig 400 Psig 5.75&quot 6.50&quot 4.75&quot 2.9 lbs. 0.2 Psig/100 Psig 0.17 Cv 3000606 3000 Psig 0-500 Psig 1000 Psig 4000 Psig 5.75&quot 6.50&quot 4.75&quot 3.4 lbs. 0.2 Psig/100 Psig 0.17 Cv 3000615 3000 Psig 0-500 Psig 1000 Psig 4000 Psig 5.75&quot 6.50&quot 4.75&quot 2.09 lbs 0.2 Psig/100 Psig 0.17 Cv Free Ground Shipping To Any Of The Continental 48 States.
