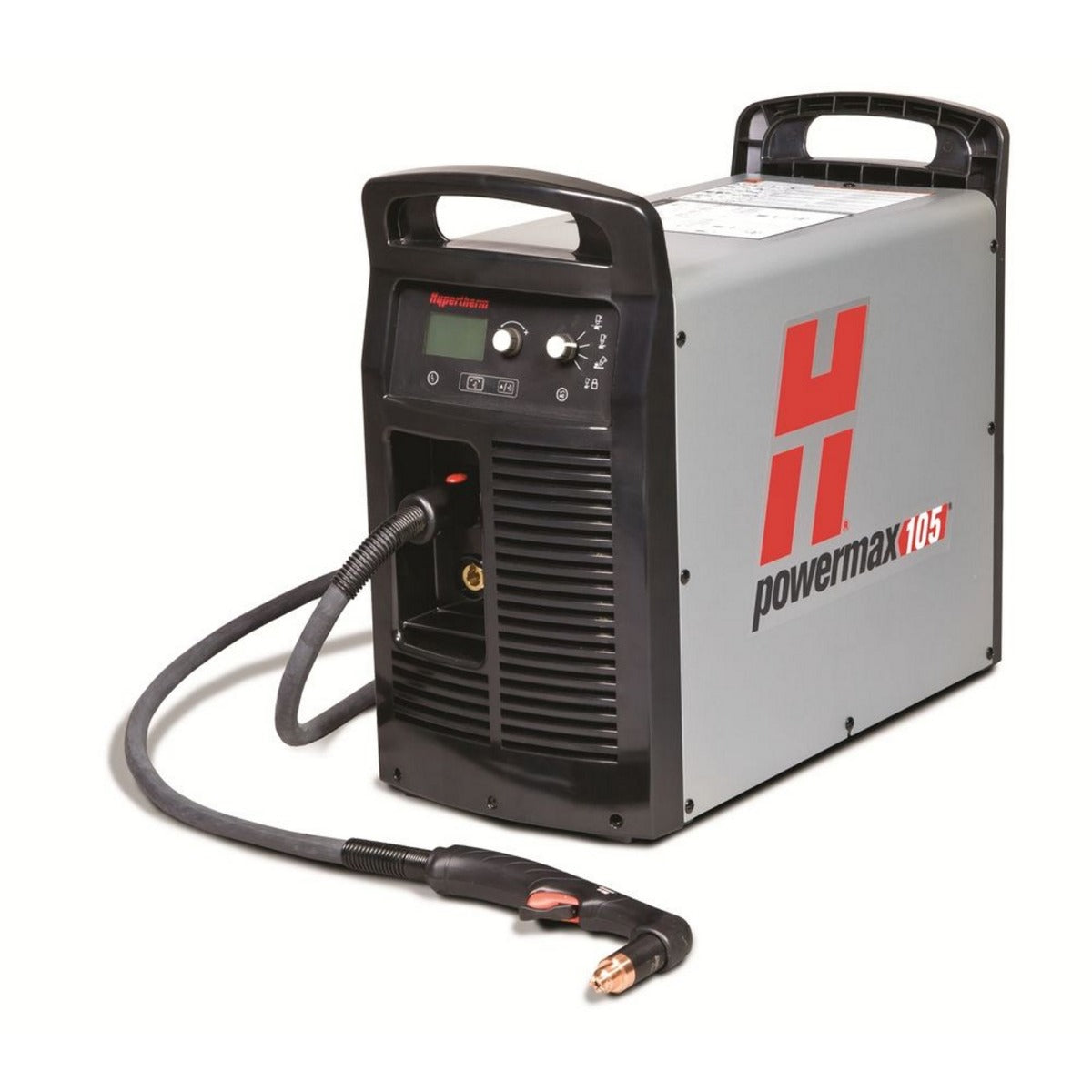

Hypertherm Powermax 105 w/CPC 25ft Mech and Hand Torch Pkg (059384)
Download Product Spec Sheet
This system is no longer available. The suggested replacement is the Powermax 105 Sync (059687).
Hypertherm is experiencing extraordinary backlogs on multiple components at this time. We are taking backorders, however your order may not ship for 6-10 weeks.
You've been looking for the best 1-1/4 inch plasma cutter on the market - here it is! Hypertherm's Powermax 105 is field-tested and proven to be the most effective plasma cutter in its class. The Powermax 105 features "smart sense" technology where the unit automatically adjusts gas pressure. This unit comes equipped with a 25 foot Duramax hand torch, and Hypertherm offers several alternate torches depending on the job requirements. This plasma cutter offers 340% greater cut speeds on 1/2" material compared to oxy-fuel methods.
This particular model includes CPC port, voltage divider, and remote pendant for automated hook-up.
Key Features
• Smart sense technology
• Boost conditioner technology
• Spring start technology
• Drag cut at full output with reduced dross buildup
• Duramax torches are designed for high-impact and heat resistance
Quick Specs
• Rated cut - 1-1/4" | Sever cut - 2"
• Operating voltage - 200-600V 3-phase
• Output current - 30-105A
• Duty cycle - 80% @ 105A
• Dims - 23.3" L x 10.8" W x 20" H
• Weight with 25' torch - 100 lbs
• Required pressure - 460 scfh @ 5.9 Bar (85 PSI)
• Power cord length - 10' (no plug)
• Engine drive requirements - 30kW for full 105A output | 15kW for limited 65A output

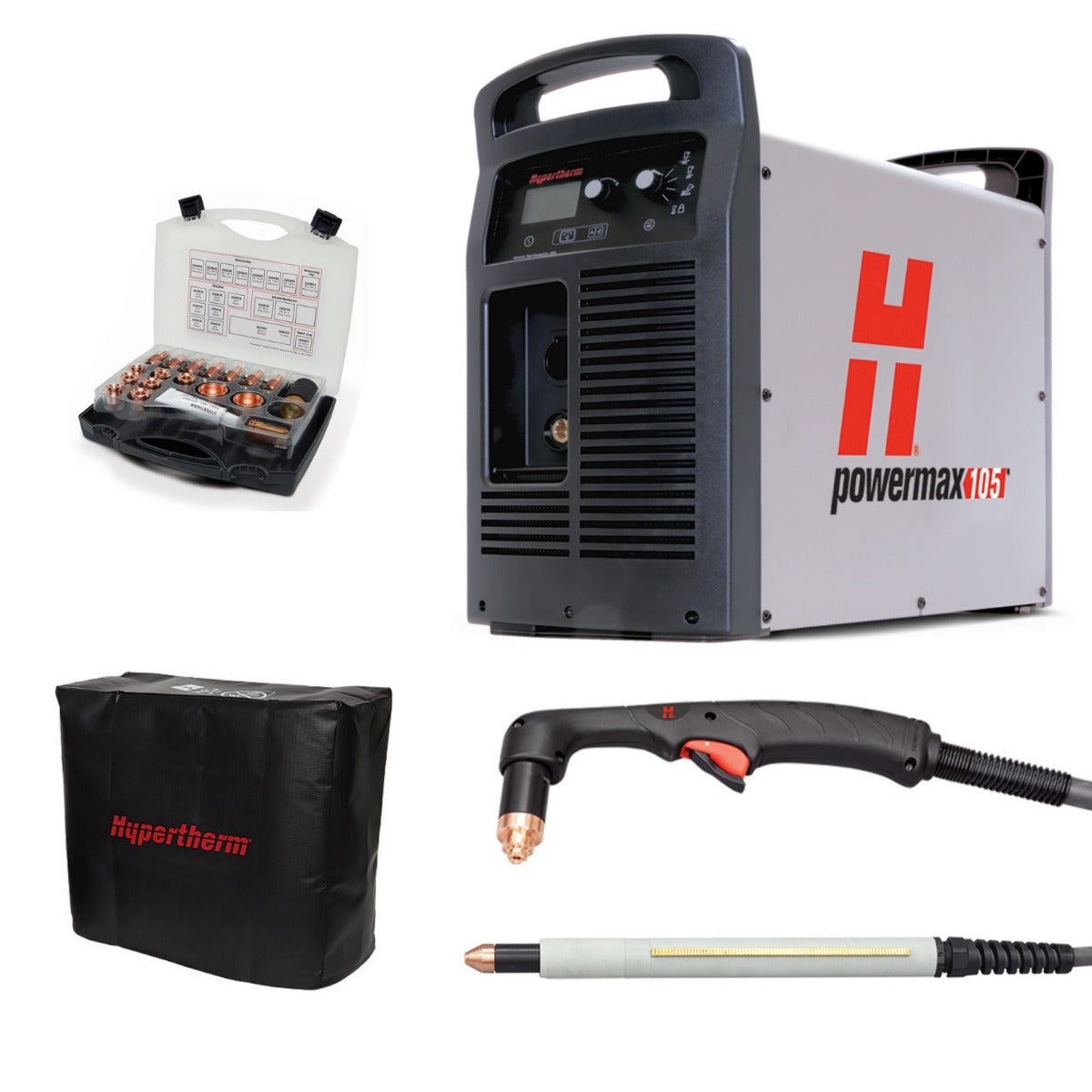

Includes
• Powermax 105
• 25' 180° Duramax mechanized torch
• 25' 75° Duramax hand torch
• 25' Ground lead
• 25' Remote pendant

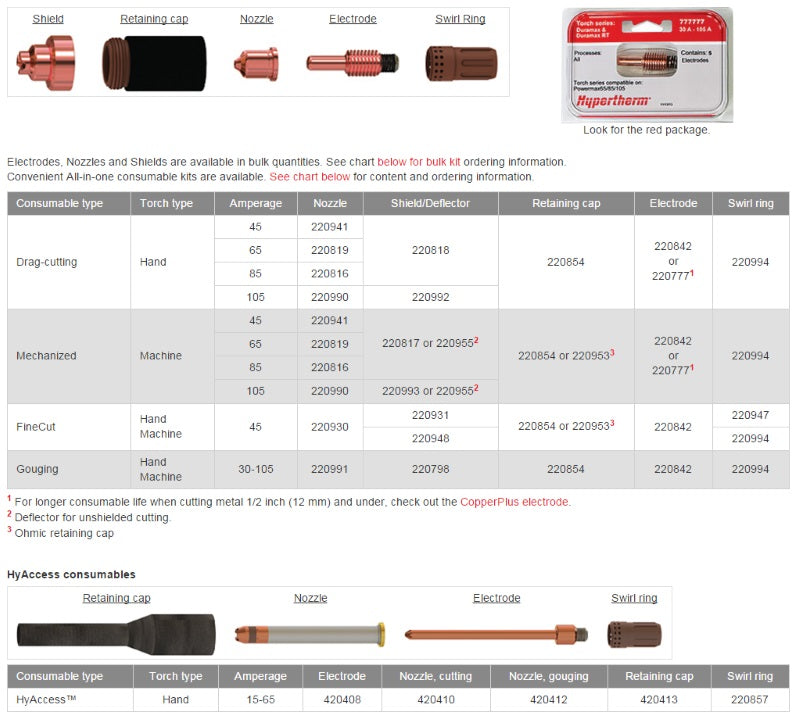

• Handheld consumables kit (851471)
• Dust cover (127360)
• User manual
| MPN: | HYP059384_851471_127360 |
|---|---|
| UPC: | 662310329563 |
