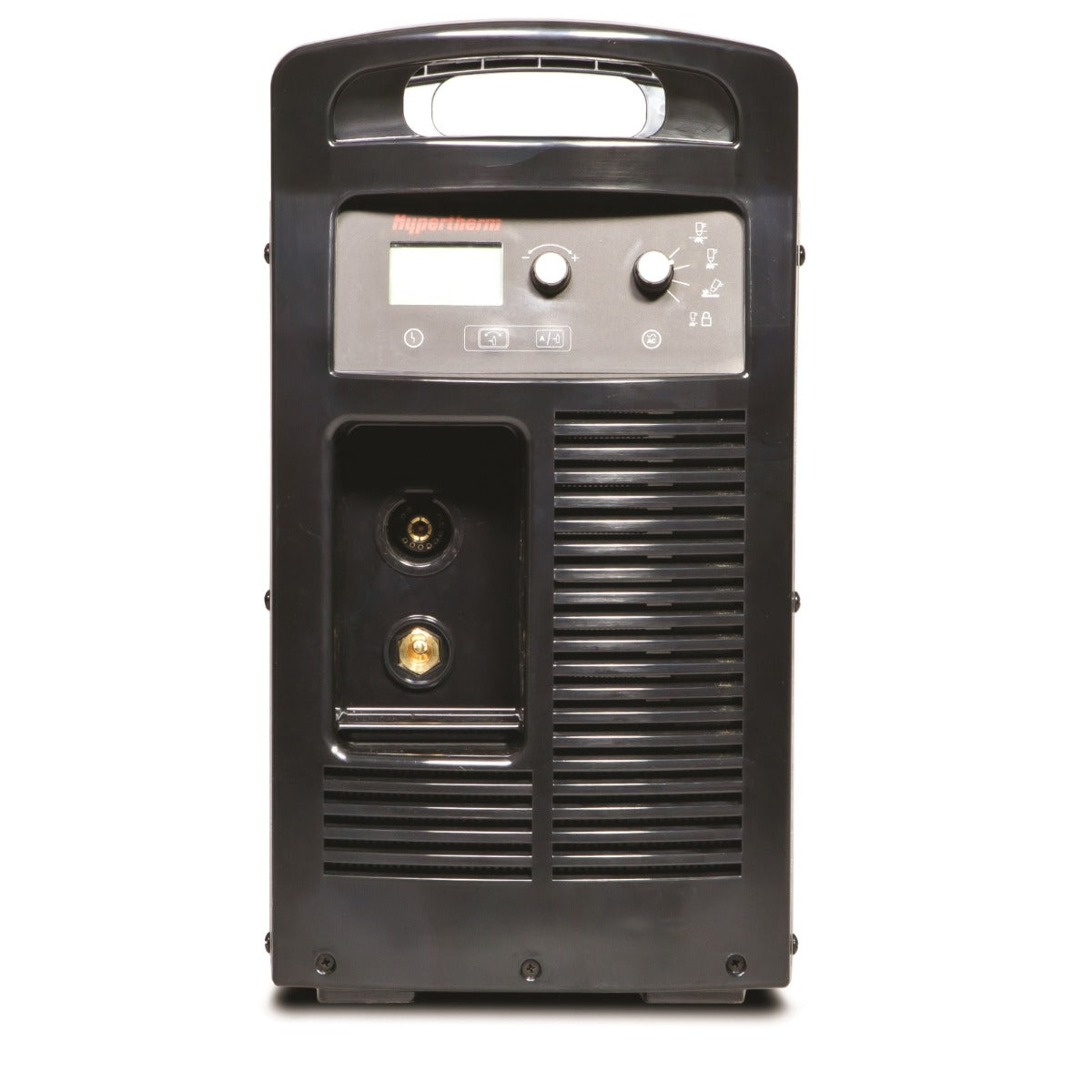

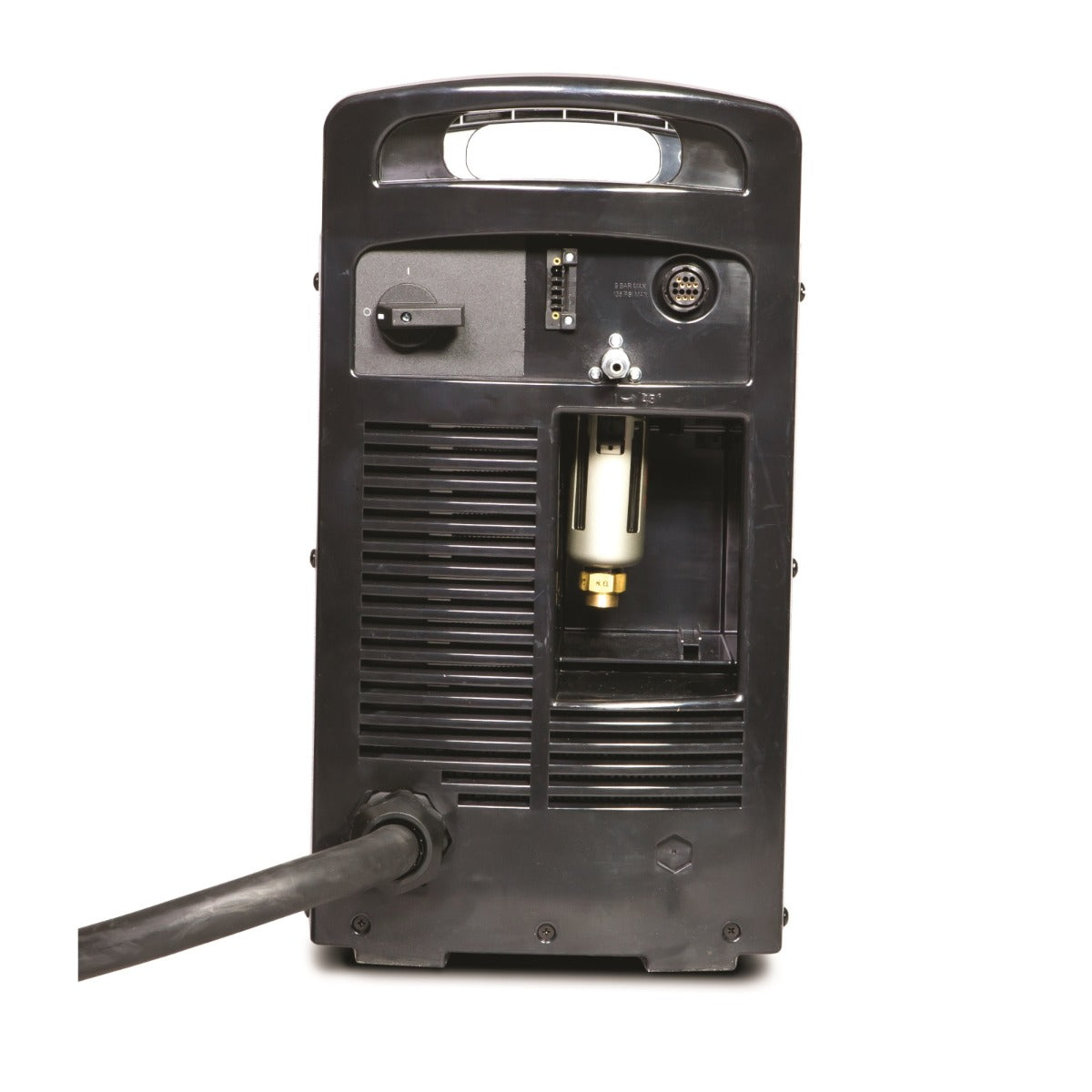

Hypertherm Powermax 105 w/CPC 25ft Mechanized Torch Pkg (059378)
Hypertherm Powermax 105 w/CPC 25ft Mechanized Torch Pkg (059378)
Hypertherm Powermax 105 w/CPC 25ft Mechanized Torch Pkg (059378)
Hypertherm Powermax 105 w/CPC 25ft Mechanized Torch Pkg (059378)

Hypertherm Powermax 105 w/CPC 25ft Mechanized Torch Pkg (059378)

$6,137.50 $6,580.00
Sold out

Earn
Rewards points when you’re a Rewards member. Sign up or Login here
warning WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

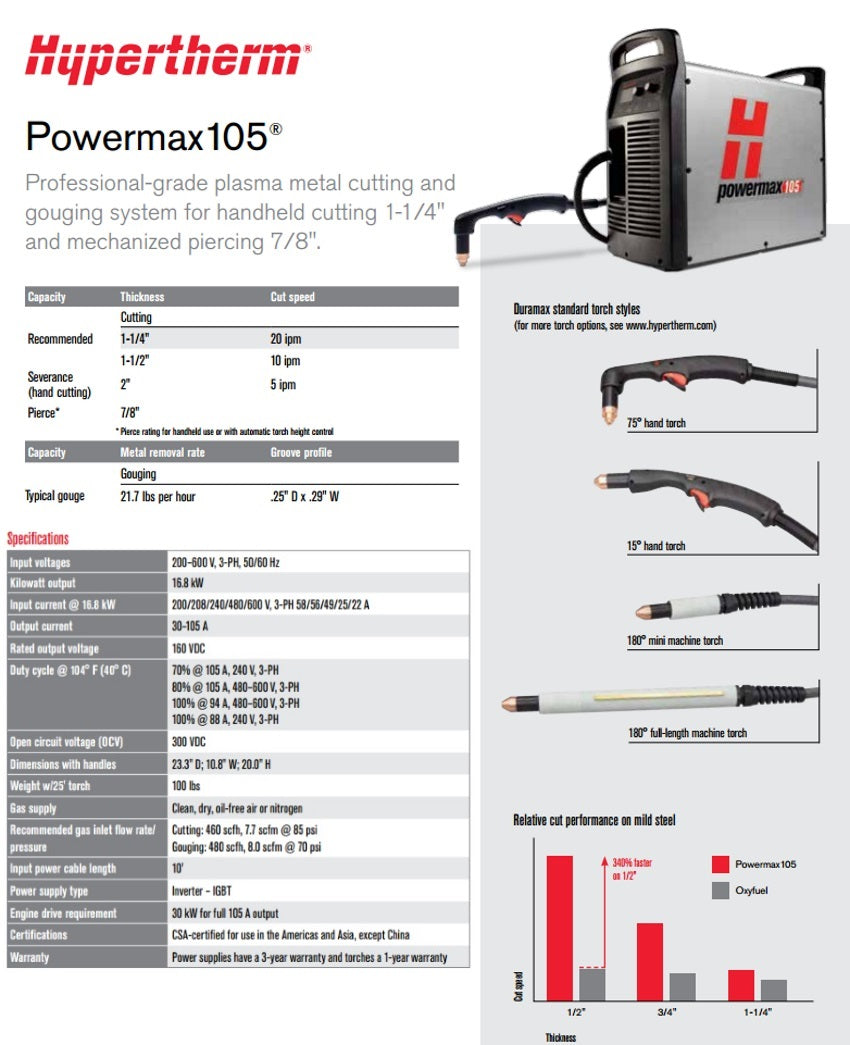

PDF icon Download Product Spec Sheet

This system is no longer available. The suggested replacement is the Powermax 105 Sync (059636).

You've been looking for the best 1-1/4 inch plasma cutter on the market - here it is! Hypertherm's Powermax 105 is field-tested and proven to be the most effective plasma cutter in its class. The Powermax 105 features "smart sense" technology where the unit automatically adjusts gas pressure. This unit comes equipped with a CPC port for hookup to a CNC table, a 25 foot Duramax mechanized torch, and Hypertherm offers several alternate torches depending on the job requirements. This plasma cutter offers 340% greater cut speeds on 1/2" material compared to oxy-fuel methods.

This particular model includes CPC port, voltage divider, and remote pendant for automated hook-up.

Key Features
• Smart sense technology
• Boost conditioner technology
• Spring start technology
• Drag cut at full output with reduced dross buildup
• Duramax torches are designed for high-impact and heat resistance

Quick Specs
• Rated cut - 1-1/4" | Sever cut - 2"
• Operating voltage - 200-600V 3-phase
• Output current - 30-105A
• Duty cycle - 80% @ 105A
• Dims - 23.3" L x 10.8" W x 20" H
• Weight with 25' torch - 100 lbs
• Required pressure - 460 scfh @ 5.9 Bar (85 PSI)
• Power cord length - 10' (no plug)
• Engine drive requirements - 30kW for full 105A output | 15kW for limited 65A output

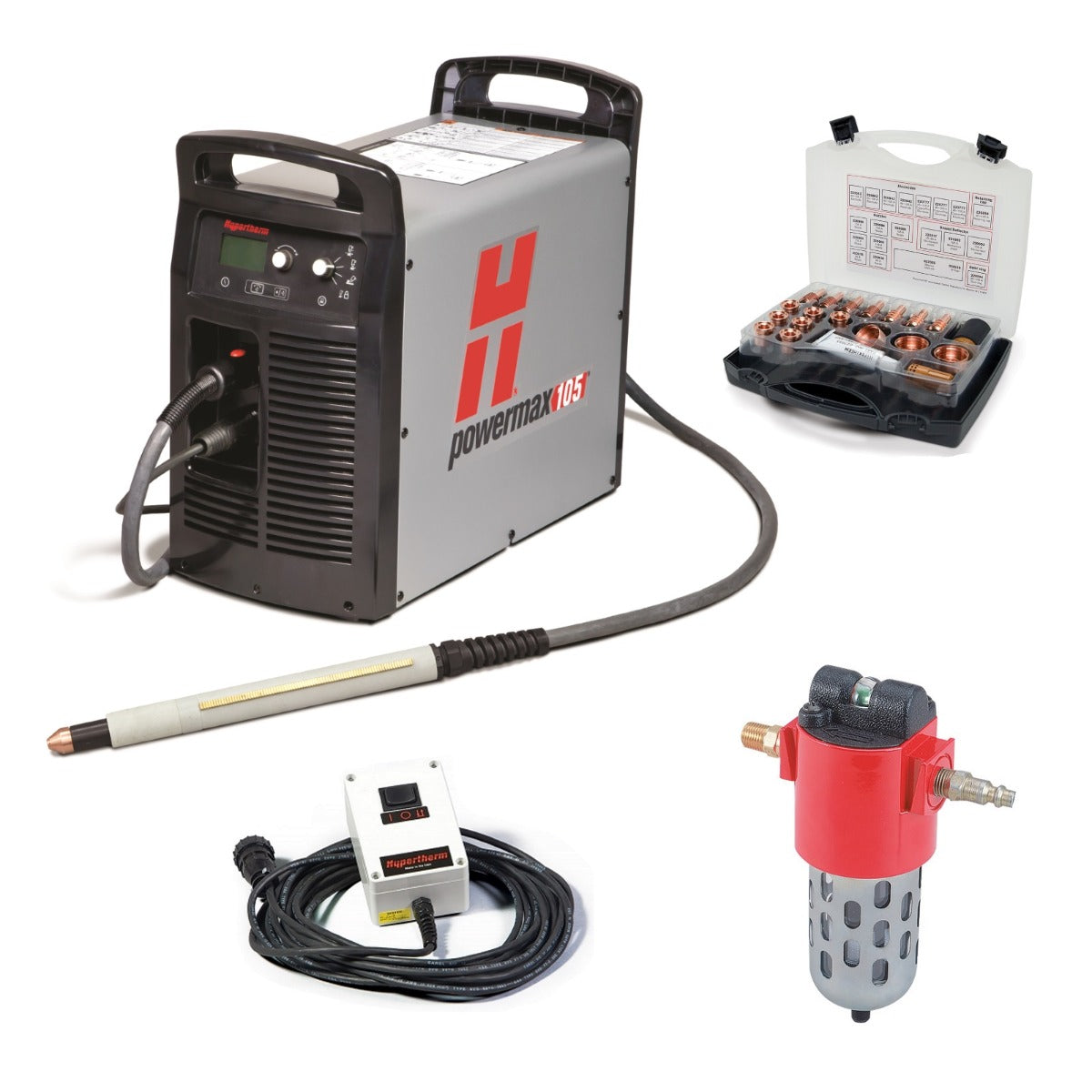

Includes
• Powermax 105
• 25' 180° Duramax mechanized torch
• 25' Ground lead
• 25' On/Off Remote pendant (128650)
• Mechanized consumables kit (851472)
• Air Filter (128647)
• User manual

Please allow 5-7 business days to ship.
