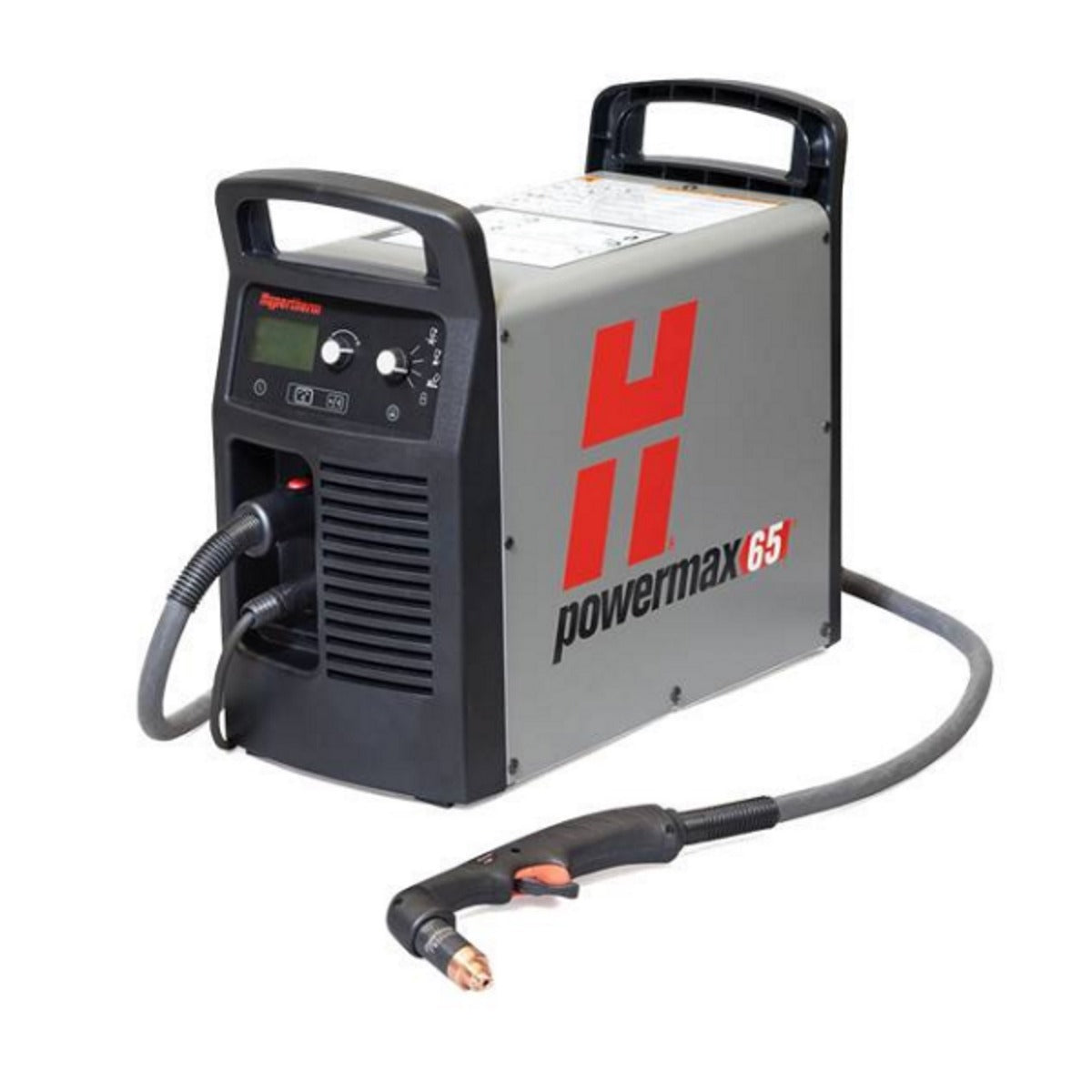

Hypertherm Powermax 65 Plasma Cutter w/50' Hand Torch Pkg (083271)
Hypertherm Powermax 65 Plasma Cutter w/50' Hand Torch Pkg (083271)
Hypertherm Powermax 65 Plasma Cutter w/50' Hand Torch Pkg (083271)
Hypertherm Powermax 65 Plasma Cutter w/50' Hand Torch Pkg (083271)

Hypertherm Powermax 65 Plasma Cutter w/50' Hand Torch Pkg (083271)

$3,375.00 $3,857.00
Sold out

Earn
Rewards points when you’re a Rewards member. Sign up or Login here
warning WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

This system is no longer available. The suggested replacement is the Powermax 65 Sync (083344).

Offering the latest technological innovations, like Smart Sense™ technology to automatically adjust the gas pressure, the Powermax65 helps you do more than ever before. Seven Duramax™ torch styles provide greater versatility and enable operators to select the right tool for the job. The Powermax 65 has a recommended cut rating of 3/4".

This particular model does NOT have a CPC port for automated hookup.

Quick Specs
• Weight: 64 lbs (with torch)
• Dimensions with Handles: 19.7"D x 9.2"W x 17.9"H
• Input Voltages: 200-480 V, 1-PH, 50/60 Hz | 200-600 V, 3-PH 50/60 Hz
• Input Current: 200/208/240/480 1-PH - 52/50/44/22 A | 200/208/240/600 3-PH - 32/31/27/13/13 A
• Output Current: 20-65A
• Duty Cycle: 40% @ 65A, 100% @ 46A
• Recommended Air Flow: Cutting - 85 psi (5.9 bar) | Gouging - 70 psi (4.8 bar)
• Input Power Cable Length: 10' (no plug)
• Engine Drive Requirement: 15 kW for full 65A Output | 12 kW for full 40A Output
• 3-year Warranty on Power Supply, 1-year Warranty on Torch

Includes:
• Power Supply
• 75 degree Duramax hand torch with 50' lead & 50' work clamp
• 1 Nozzle & 1 Electrode
• Operator & Safety Manuals
• Powermax 65 Dust Cover (127301)

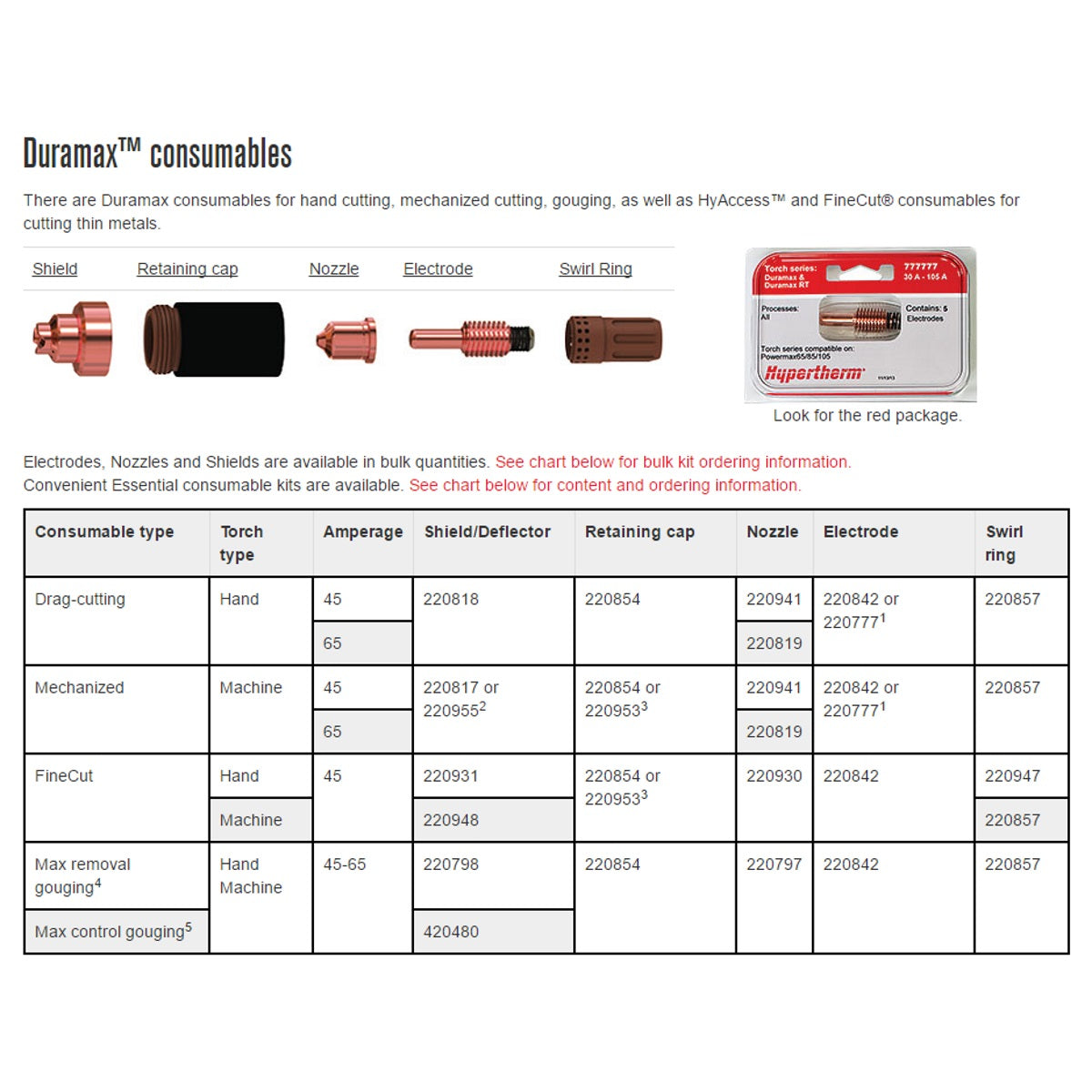

• Handheld Consumables Kit (851465)
