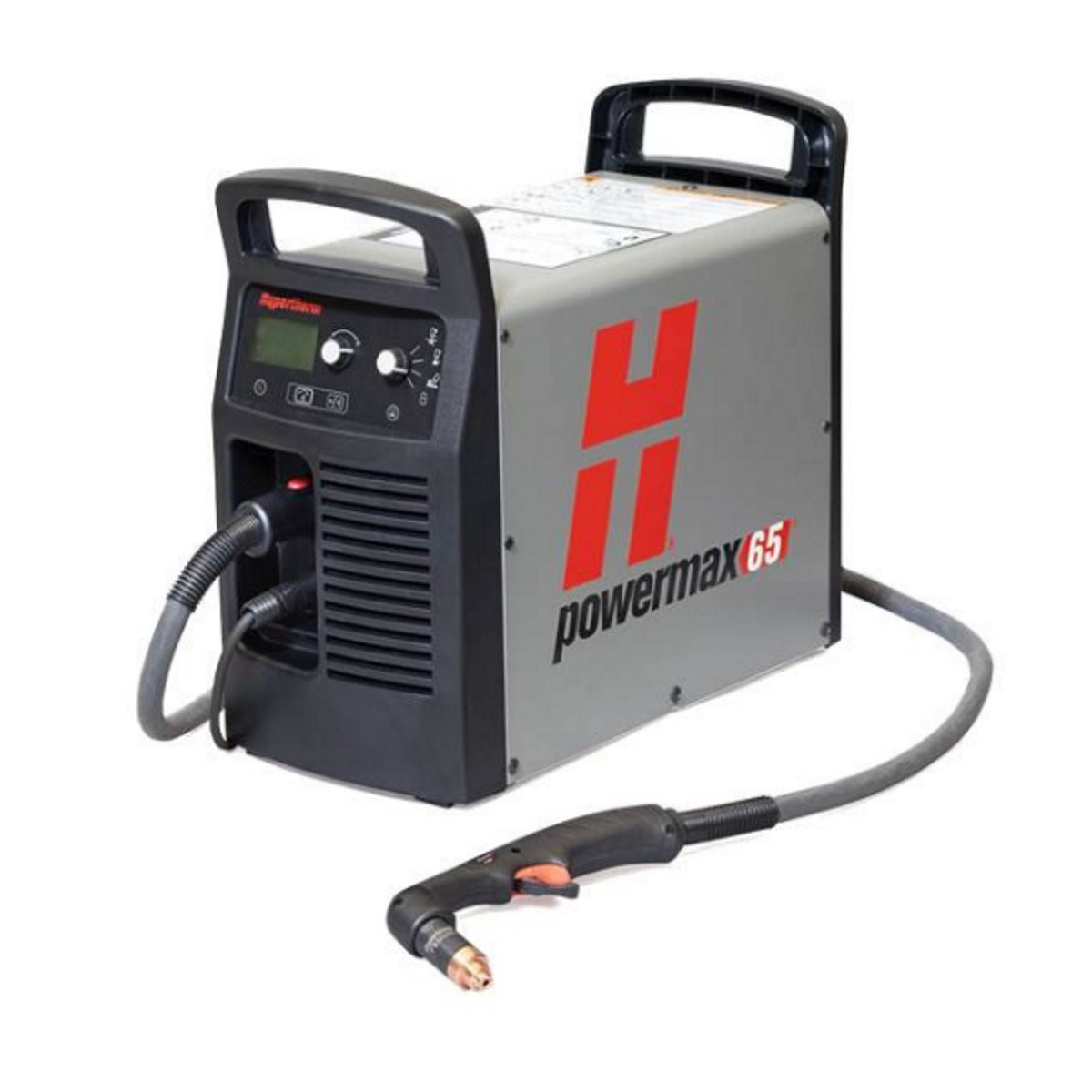

Hypertherm Powermax 65 w/CPC 25ft 75° and 15° Hand Torch Pkg (083307)

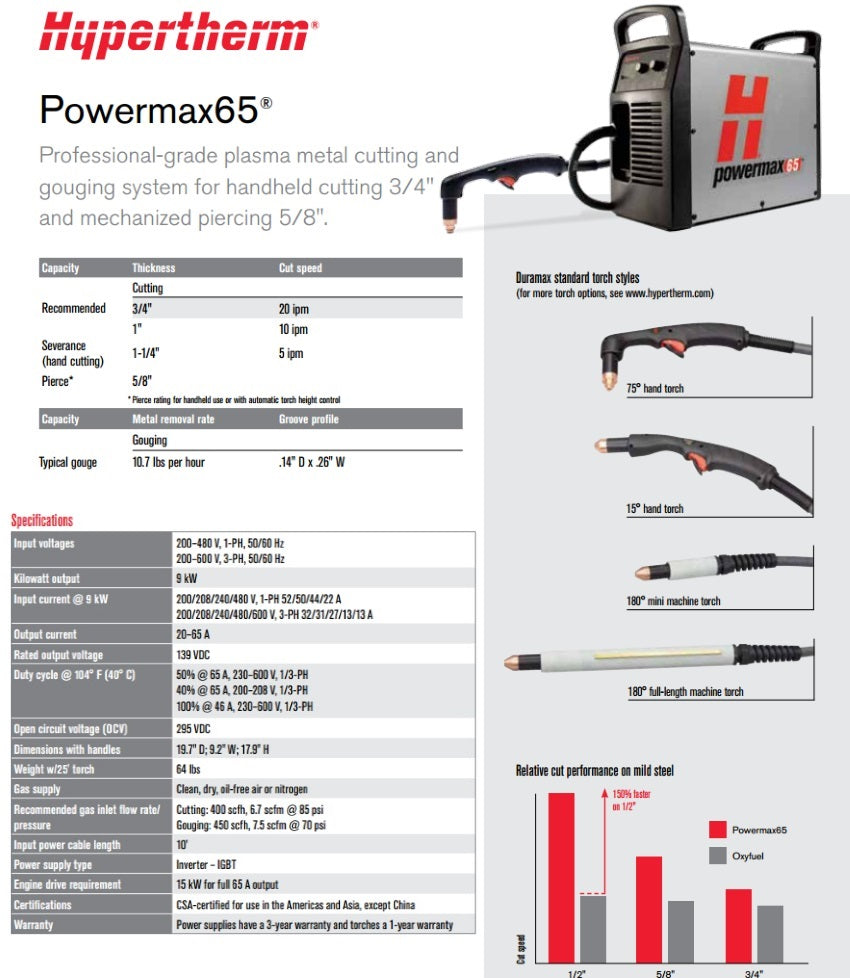

Download Product Spec Sheet
This system is no longer available. The suggested replacement is the Powermax 65 Sync (083347).
Offering the latest technological innovations, like Smart Sense™ technology to automatically adjust the gas pressure, the Powermax65 helps you do more than ever before. Seven Duramax™ torch styles provide greater versatility and enable operators to select the right tool for the job. The Powermax 65 has a recommended cut rating of 3/4".
This particular model includes a CPC port and voltage divider for automated hookup.
Quick Specs
• Weight: 64 lbs
• Dimensions with Handles: 19.7"D x 9.2"W x 17.9"H
• Input Voltages: 200-480 V, 1-PH, 50/60 Hz | 200-600 V, 3-PH 50/60 Hz
• Input Current: 200/208/240/480 1-PH - 52/50/44/22 A | 200/208/240/600 3-PH - 32/31/27/13/13 A
• Output Current: 20-65A
• Duty Cycle: 40% @ 65A, 100% @ 46A
• Recommended Air Flow: Cutting - 85 psi (5.9 bar) | Gouging - 70 psi (4.8 bar)
• Input Power Cable Length: 10' (no plug)
• Engine Drive Requirement: 15 kW for full 65A Output | 12 kW for full 40A Output
• 3-year Warranty on Power Supply, 1-year Warranty on Torch

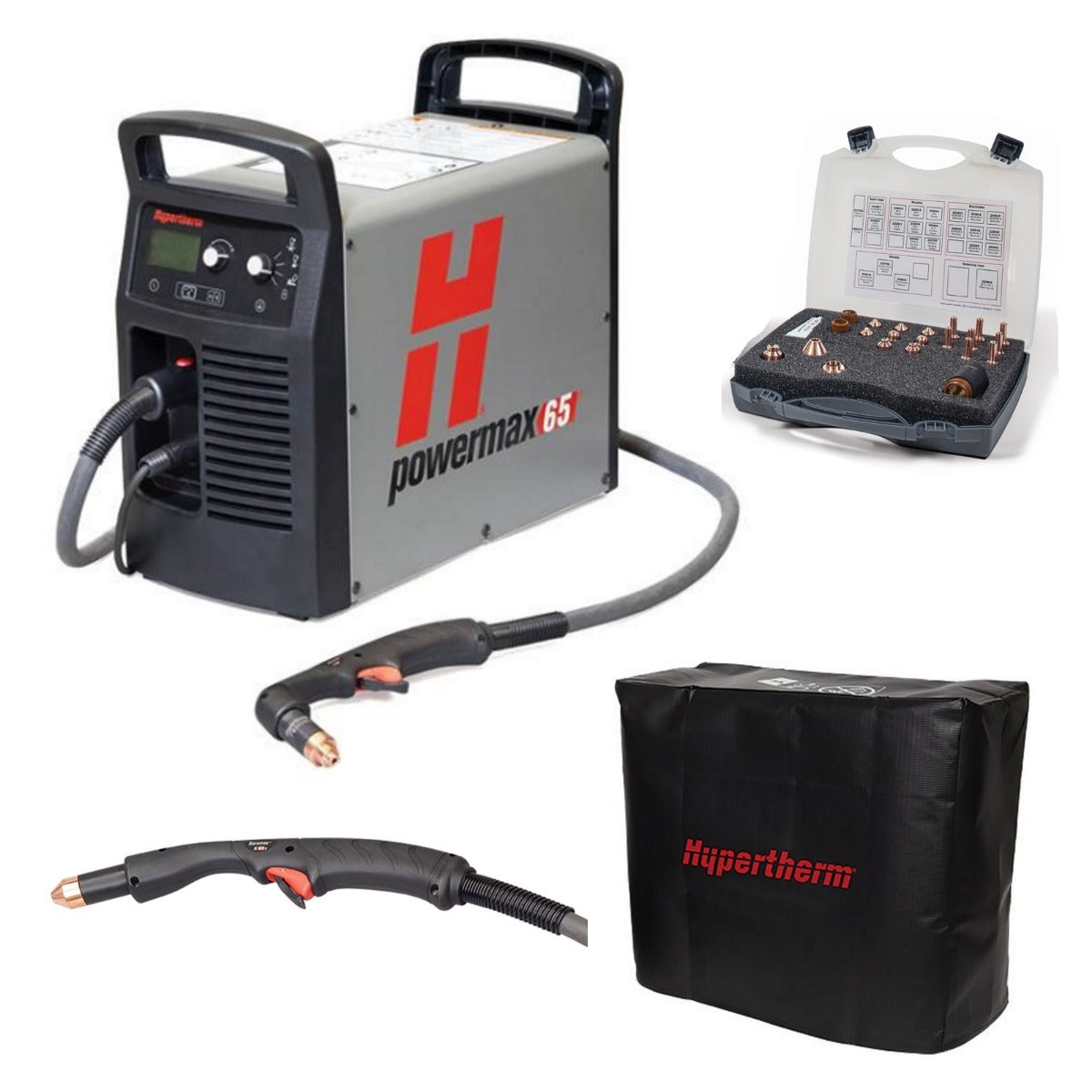

Includes:
• Power Supply
• 25ft 75° and 15° Duramax hand torches & 25ft work clamp
• 1 Nozzle & 1 Electrode
• Operator & Safety Manuals
• Powermax 65 Dust Cover (127301)
• Handheld Consumables Kit (851465)
