Hypertherm Powermax30 Air "Building America" w/15' Torch Pkg (088096)
Download Product Spec Sheet

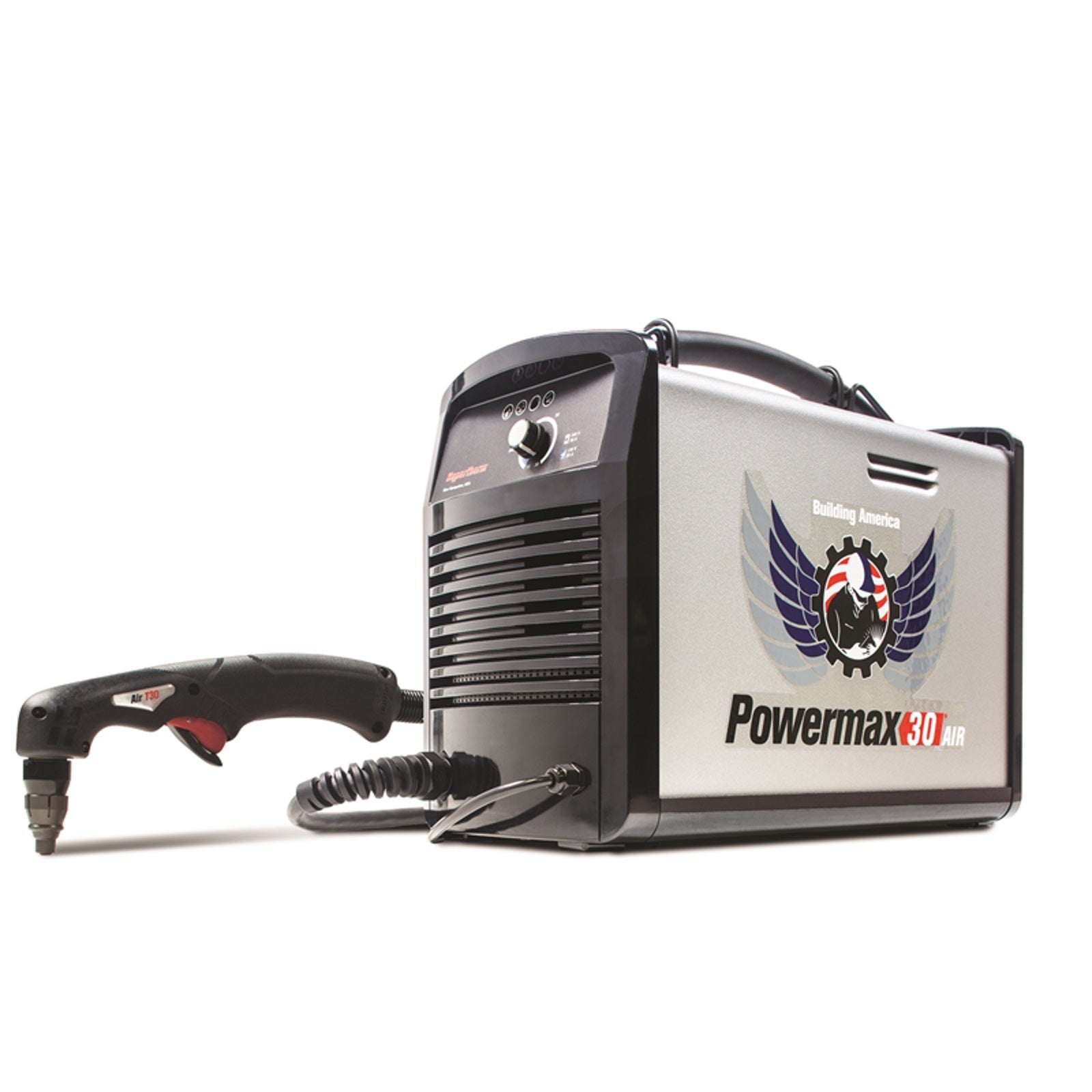

The small size and light weight of the new Powermax30® AIR, with an internal compressor, make it a highly portable system enabling metal cutting just about anywhere there is single phase power. Simply plug it in, attach the work clamp and you are ready to cut. The internal compressor eliminates the need for an external air compressor and filter to operate the plasma system. The fast cutting speeds and superior cut quality of Powermax plasma enable you to finish jobs quicker.
Quick Specs
• Weight: 29.8 lbs (with torch)
• Dimensions: 16.5"D x 7.7"W x 13.1"H
• Input Voltages: 120-240 V, 1-PH, 50/60 Hz
• Output Current: 15-30A
• Duty Cycle: 35% on 240V, 20% on 120V
• Input Power Cable Length: 10'
• Engine Drive Requirement: 5.5 kW for full 30A Output
• 3-year Warranty on Power Supply, 1-year Warranty on Torch
Includes:
• Power Supply

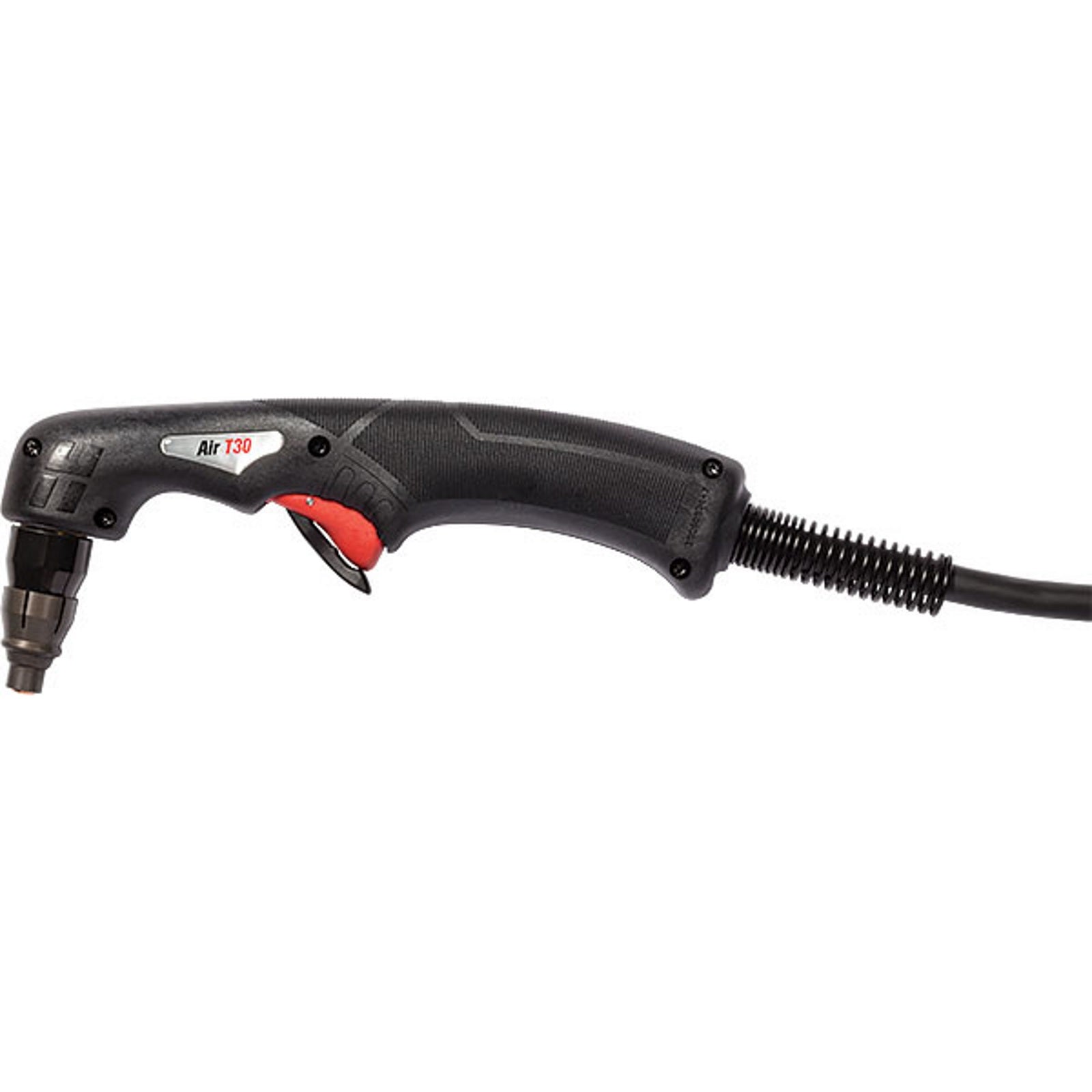

• Air T30 hand torch with 15' lead & 15' work clamp
• 240V / 20A plug with adapters for 120V / 15A & 240V / 20A circuits
• 1 Nozzle & 1 Electrode
• Carrying Strap
• Operator & Safety Manuals

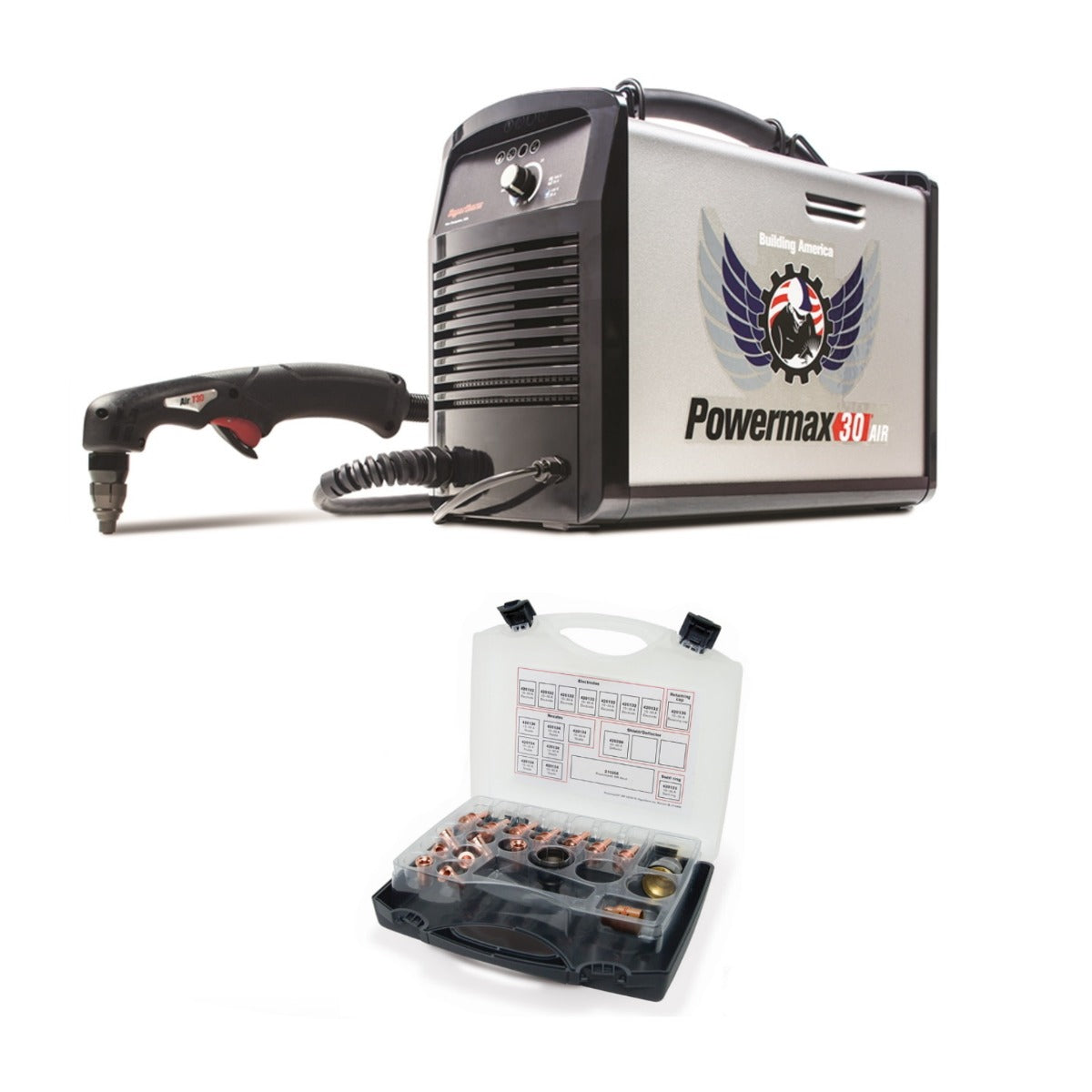

• Consumables Kit (851462)
| MPN: | HYP088096_851462 |
|---|---|
| UPC: | 00662310357191 |
| Input Phase | 120-240 V, 1-PH, 50/60 Hz |
| Rated Output | 15-30 A |
| Weight | 13.5 kg (29.8 lbs) |
| Warranty | Power supplies have a 3-year warranty and torches a 1-year warranty. |
