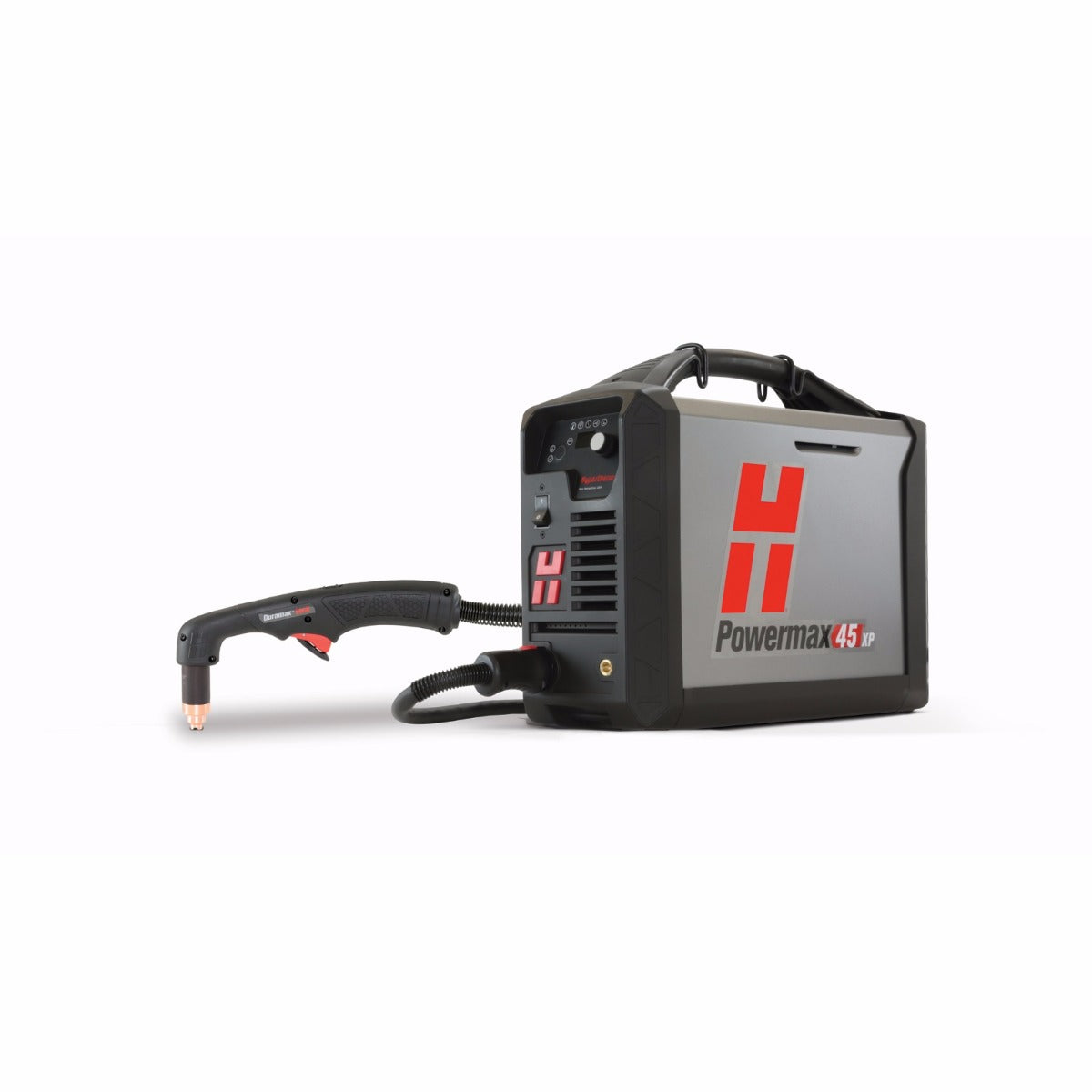

Hypertherm Powermax45 XP Plasma Cutter with 50ft Hand Torch Pkg (088114)
Download Product Spec Sheet
Hypertherm's best selling system is getting an overhaul. The new Powermax45 XP system is designed to give the user more precision, performance, and productivity. The Powermax45 XP is the most versatile and portable 5/8" (16 mm) machine on the market, with a broad set of application capabilities that make it a truly multi-purpose tool. This new model comes with the Duramax Lock Torch. The Duramax Lock torches utilize the same consumable platform as the Duramax torch series for the Powermax65/85/105 systems. The Powermax45 XP cuts or gouges faster, easier and better than any other product in its class. Hypertherm's Smart Sense technology ensures that air pressure is always set correctly.
This particular model does NOT include a CPC port for CNC hook-up.
Quick Specs
• Cutting Capacity: 5/8" recommended | 1-1/8" severance
• Weight: 31 lbs (with torch)
• Dimensions: 17.4"D x 6.8"W x 14.1"H
• Input Voltages: 200-240 V, 1-PH, 50/60 Hz
• Input Current: 200/240V - 39/32A
• Output Current: 20-45A
• Duty Cycle: 50% @ 45A, 100% @ 32A
• Recommended Air Flow: Cutting - 90 psi (5.9 bar) | Gouging - 60 psi (4.1 bar)
• Input Power Cable Length: 10'
• Engine Drive Requirement: 10 kW for full 45A Output
• 3-year Warranty on Power Supply, 1-year Warranty on Torch

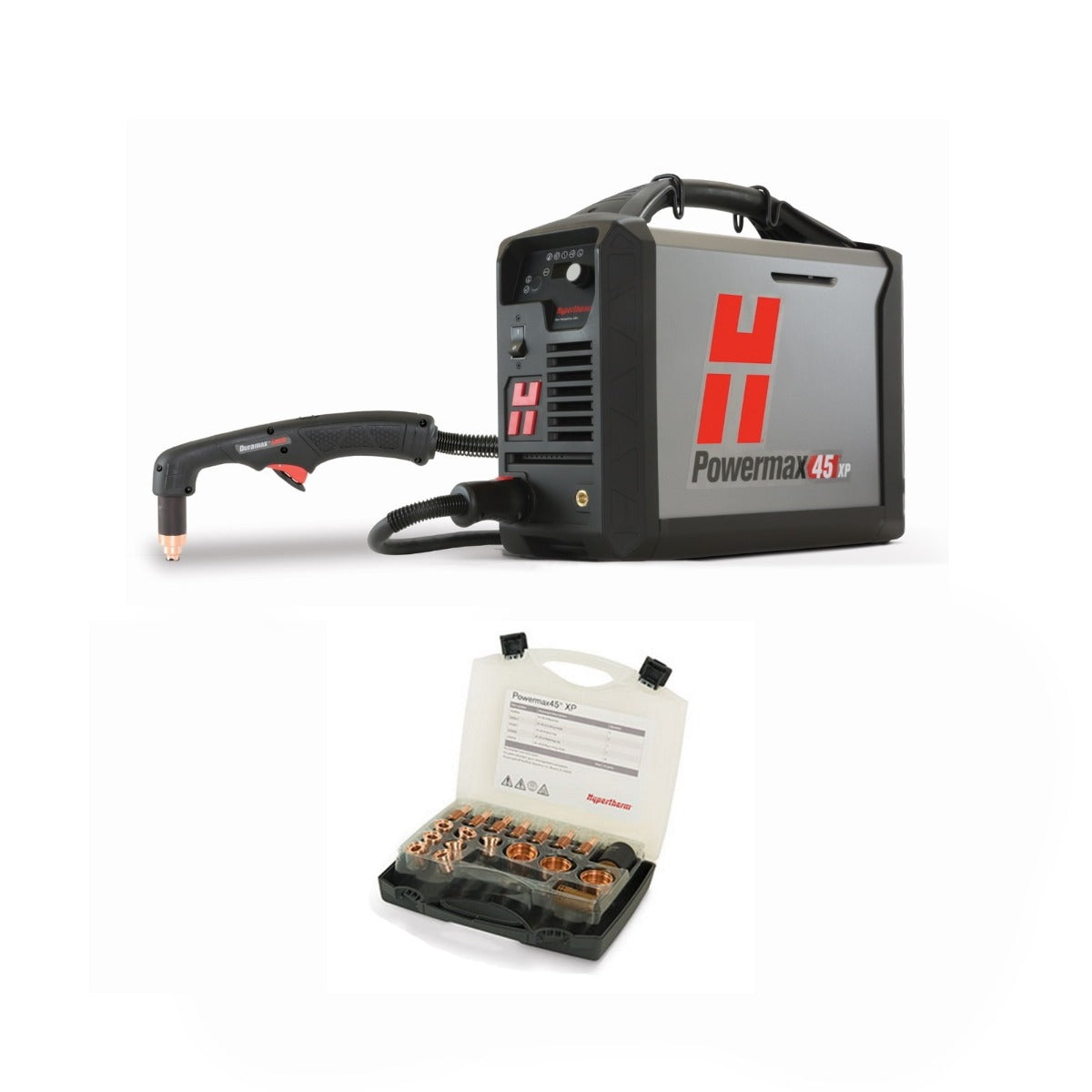

Includes
• Power Supply
• Duramax Lock hand torch with 50' lead & 50' work clamp
• 2 Electrodes, 2 45A Nozzles, 45A Shield, Gouging Shield, Gouging Nozzle, Retaining Cap, Swirl Ring
• Operator & Safety Manuals
• Handheld Consumables Kit (851510)
This particular model does NOT include a CPC port for CNC hook-up.
Quick Specs
• Cutting Capacity: 5/8" recommended | 1-1/8" severance
• Weight: 31 lbs (with torch)
• Dimensions: 17.4"D x 6.8"W x 14.1"H
• Input Voltages: 200-240 V, 1-PH, 50/60 Hz
• Input Current: 200/240V - 39/32A
• Output Current: 20-45A
• Duty Cycle: 50% @ 45A, 100% @ 32A
• Recommended Air Flow: Cutting - 90 psi (5.9 bar) | Gouging - 60 psi (4.1 bar)
• Input Power Cable Length: 10'
• Engine Drive Requirement: 10 kW for full 45A Output
• 3-year Warranty on Power Supply, 1-year Warranty on Torch
Includes
• Power Supply
• Duramax Lock hand torch with 50' lead & 50' work clamp
• 2 Electrodes, 2 45A Nozzles, 45A Shield, Gouging Shield, Gouging Nozzle, Retaining Cap, Swirl Ring
• Operator & Safety Manuals
• Handheld Consumables Kit (851510)
| MPN: | HYP088114_851510 |
|---|---|
| UPC: | 662310367770 |
