Lincoln Flextec 350X (Standard Model) with LF-72 Feeder One Pak (K3438-1)
Download Product Spec Sheet
The Lincoln Flextec 350X multi process welder is easy to setup and simple to operate, yet rugged enough to withstand temperatures up to 131 degrees fahrenheit.
Processes
• Stick
• Flux-Cored
• MIG
• TIG
• Gouging
Features
• Easy process selection
• Fully encapsulated and environmentally protected electronics

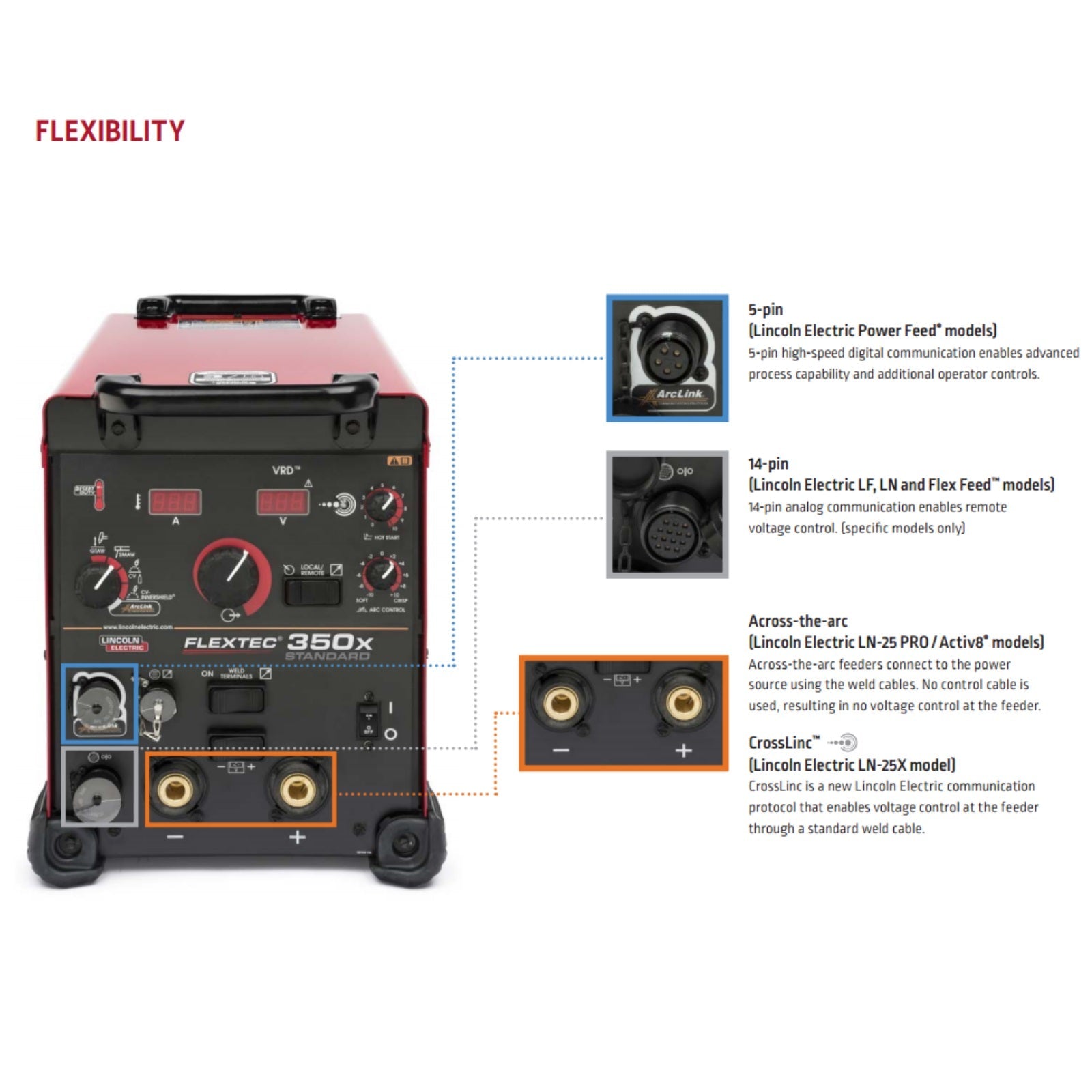

• Compatible with across-the-arc, analog, digital, or crosslinc feeders
• Lightweight and portable
• Full functionality without control cables
• Enables remote procedure setting at the feeder
• Voltage reduction device reduces open circuit voltage for added safety
• Capable of arc gouging with 3/16 inch carbons
Power Source Quick Specs
• 380-600 Volt 3 phase power
• Weight - 82lbs (Standard Model) | 77lbs (Construction Model)
• Duty Cycle - 100% at 300 amps | 60% at 350 amps
• Output Range - 5-425 amps
• Dims - 17 in H x 13 in W x 23 L
LF-72 Feeder Quick Specs
• Solid wire range - .023 - 1/16 in
• Cored wire range - .030 - 5/64 in
• Wire speed range - 50 - 800 ipm
• Dims - 12.5 in x 10.0 in x 22.5 in
• Weight - 48.5 lbs
Includes
• Flextec 350X power source (standard model) (K4272-1)
• 8.5 ft power cord (no plug)
• LF-72 bench model feeder (K2327-7)
• 15 ft Magnum pro curve 300 gun (K2951-2-10-45)
• 2 drive roll and wire guide .035-.045 solid wire (K1696-1)
• 10 ft work cable with clamp and 10 ft electrode holder (K1803-2)
• 10 ft Harris flowmeter regulator and hose
Processes
• Stick
• Flux-Cored
• MIG
• TIG
• Gouging
Features
• Easy process selection
• Fully encapsulated and environmentally protected electronics
• Compatible with across-the-arc, analog, digital, or crosslinc feeders
• Lightweight and portable
• Full functionality without control cables
• Enables remote procedure setting at the feeder
• Voltage reduction device reduces open circuit voltage for added safety
• Capable of arc gouging with 3/16 inch carbons
Power Source Quick Specs
• 380-600 Volt 3 phase power
• Weight - 82lbs (Standard Model) | 77lbs (Construction Model)
• Duty Cycle - 100% at 300 amps | 60% at 350 amps
• Output Range - 5-425 amps
• Dims - 17 in H x 13 in W x 23 L
LF-72 Feeder Quick Specs
• Solid wire range - .023 - 1/16 in
• Cored wire range - .030 - 5/64 in
• Wire speed range - 50 - 800 ipm
• Dims - 12.5 in x 10.0 in x 22.5 in
• Weight - 48.5 lbs
Includes
• Flextec 350X power source (standard model) (K4272-1)
• 8.5 ft power cord (no plug)
• LF-72 bench model feeder (K2327-7)
• 15 ft Magnum pro curve 300 gun (K2951-2-10-45)
• 2 drive roll and wire guide .035-.045 solid wire (K1696-1)
• 10 ft work cable with clamp and 10 ft electrode holder (K1803-2)
• 10 ft Harris flowmeter regulator and hose
| MPN: | LINK3438-1 |
|---|---|
| UPC: | 15082823362 |
