Lincoln Ranger 305 LPG Engine Driven Welder (Kohler) One-Pak (K3430-2)

FOR SPECIALIZED ENVIRONMENTS

Choose the Ranger 305 LPG for those environments where gasoline and diesel emissions are not acceptable. Includes a liquid propane gas supply hose with coupler for easy connection to the liquid draw outlet of an LP-gas cylinder. The 10,000-watt peak single-phase AC generator powers motor starting, tools and inverter welders for extended range and process capability.

• Top-of-the-line Kohler overhead valve (OHV) 25 HP Command LPG engine
• Digital weld meters monitor actual welding output
• Built-in “hot” start for easier starts and restrikes

Multi-Process Welding
· Excellent DC multi-process welding for general purpose stick, downhill pipe (stick), TIG, cored-wire and MIG (CO2 and mixed gas).
· It's the only compact LPG welder in North America rated at 25V for 300 amps of stick or CV welding.
· CV wire welding with up to 5/64 in. (2.0 mm) diameter electrodes.

Digital Weld Meters
· Digital weld meters for amps and volts makes it easy to precisely pre-set your procedures and monitor actual welding output.

Superior Arc Performance
· Lincoln Electric Chopper Technology® provides easy starts, a smooth arc, low spatter and excellent bead appearance.

10,000 Watts Peak Single-Phase AC Generator Power
· 10,000 watts peak for motor starting.
· 9,000 watts continuous for high capacity needs such as a back-up generator, powering a Lincoln Electric Invertec® inverter welder. Also can be used for lights, a grinder or other power tools.
· AC generator voltage is constant at 120V or 240V at any weld dial setting.

Rugged Reliability
· Welding and AC Generator Outputs rated at 104ºF (40ºC).

25 HP Kohler LPG Engine
· LPG (Liquid Propane Gas) engine has plenty of horsepower.



• Multi-Process Welding
• Digital Weld Meters
• Superior Arc Performance
• 10,000 Watts Peak Single-Phase AC Generator Power
• 25 HP Kohler LPG Engine

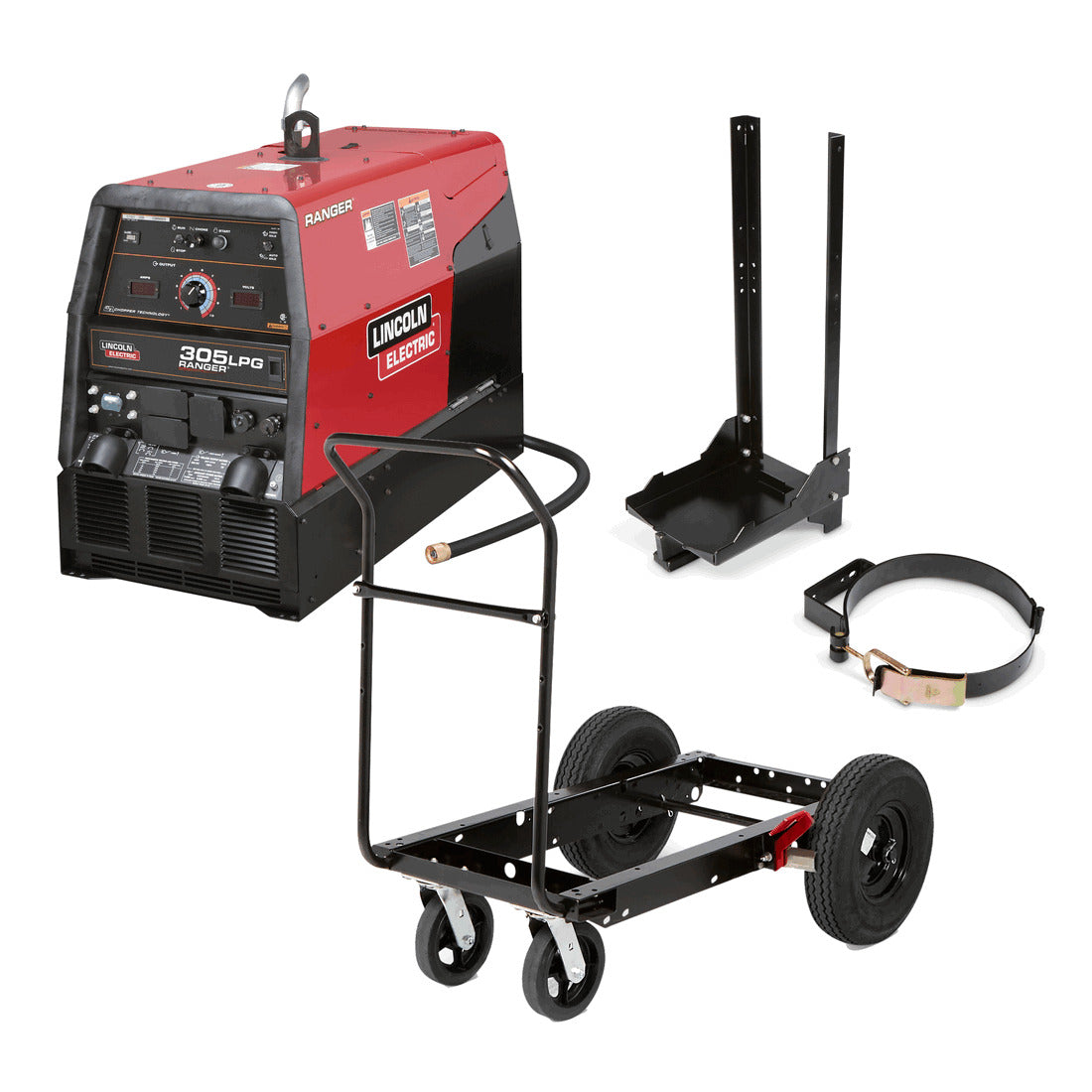

• Order a Lincoln Electric One-Pak and get everything you need to complete a welding package - all with one order number. (Package is not assembled.)

MPN: LINK3430-2

UPC: 15082964409

Download Product Spec Sheet
