Lincoln Ranger 330MPX EFI Welder/Generator w/GFCI (K4779-1)
Download Product Spec Sheet

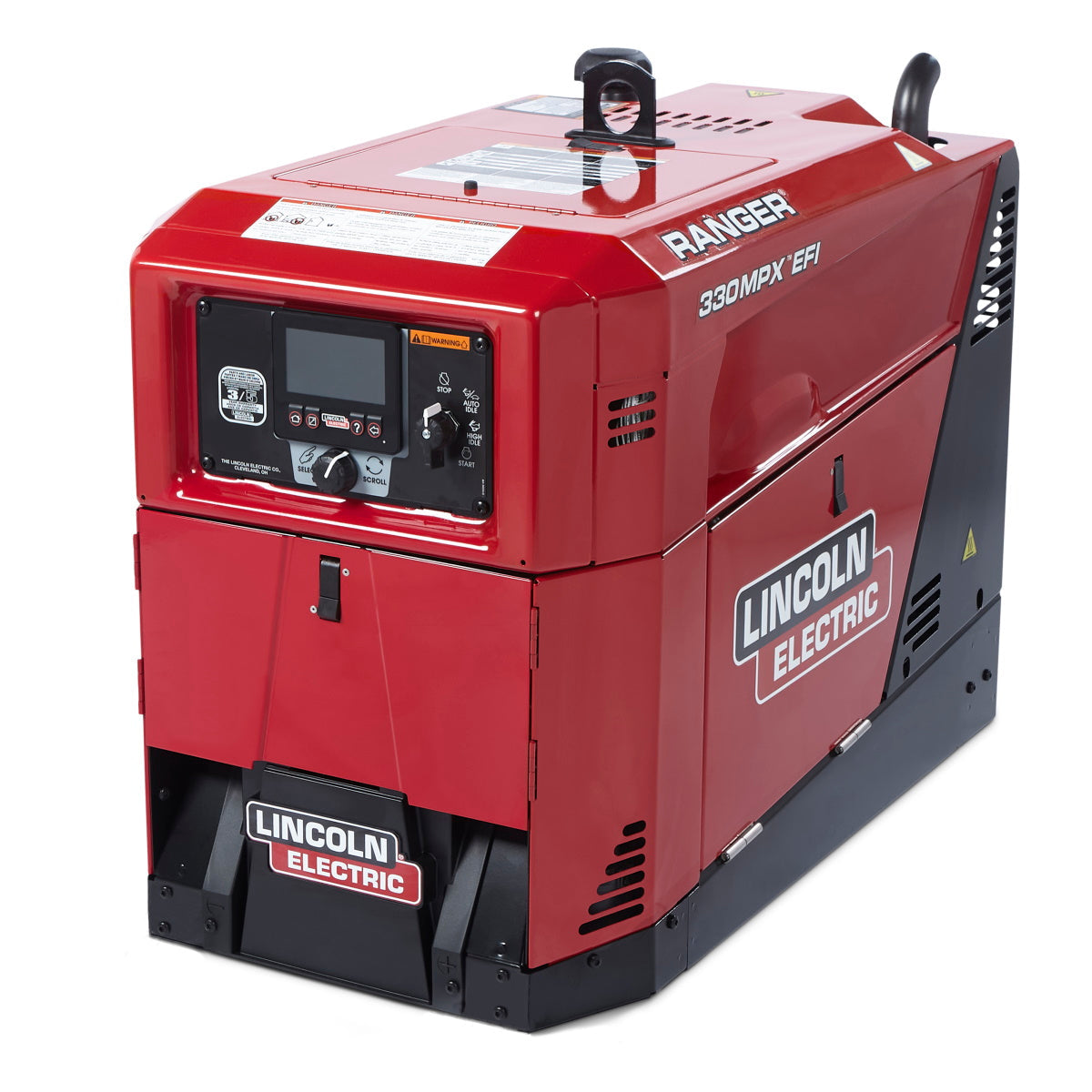

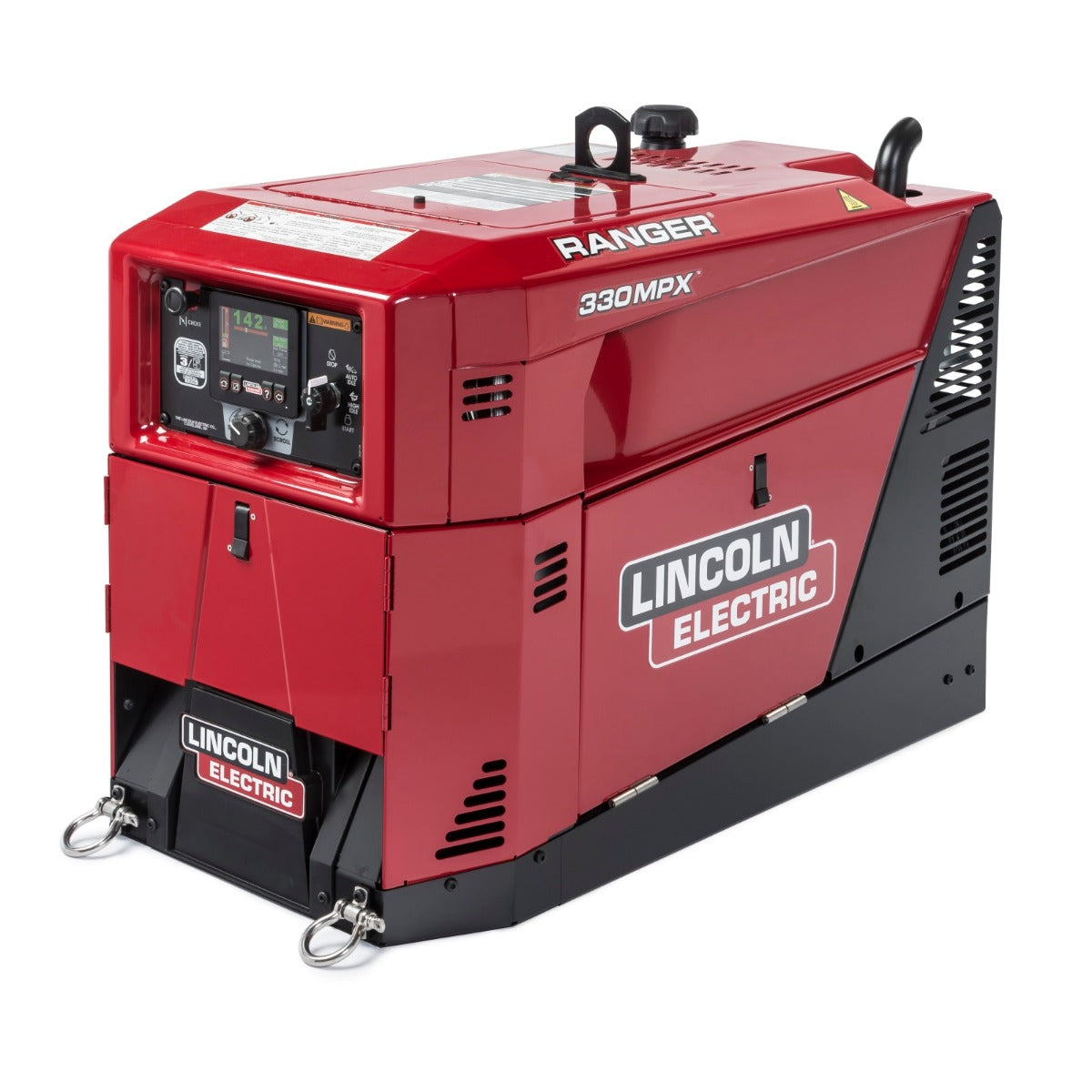

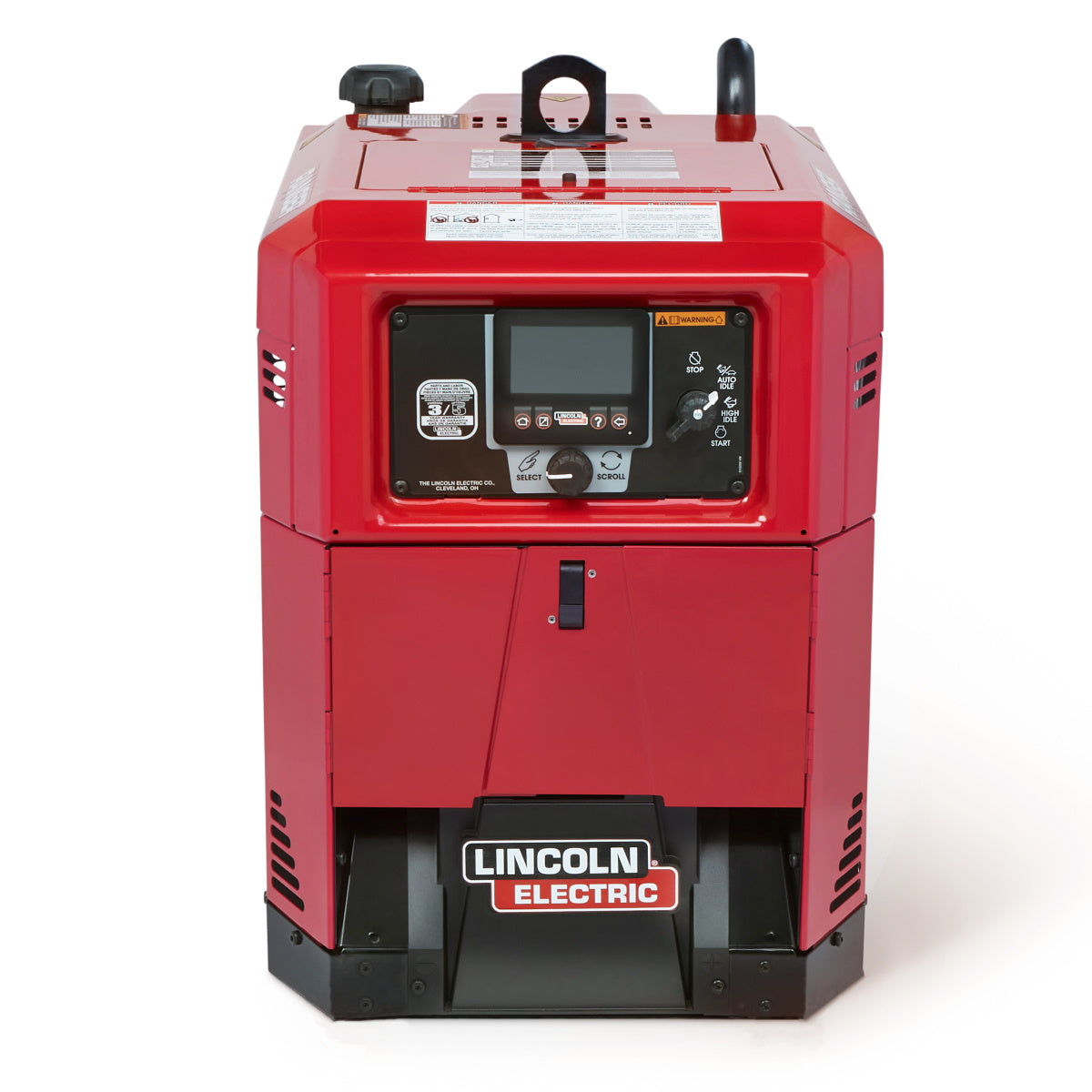

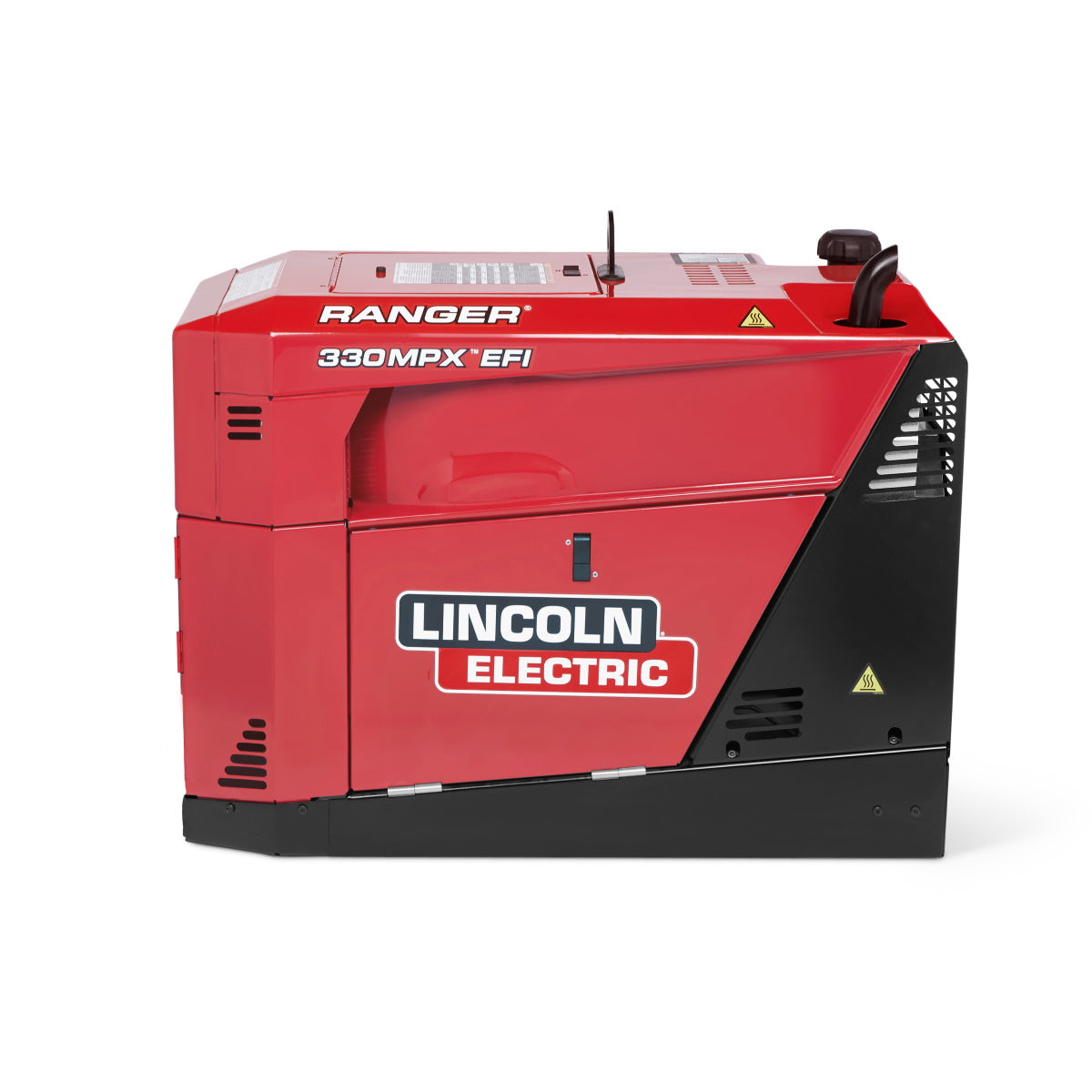

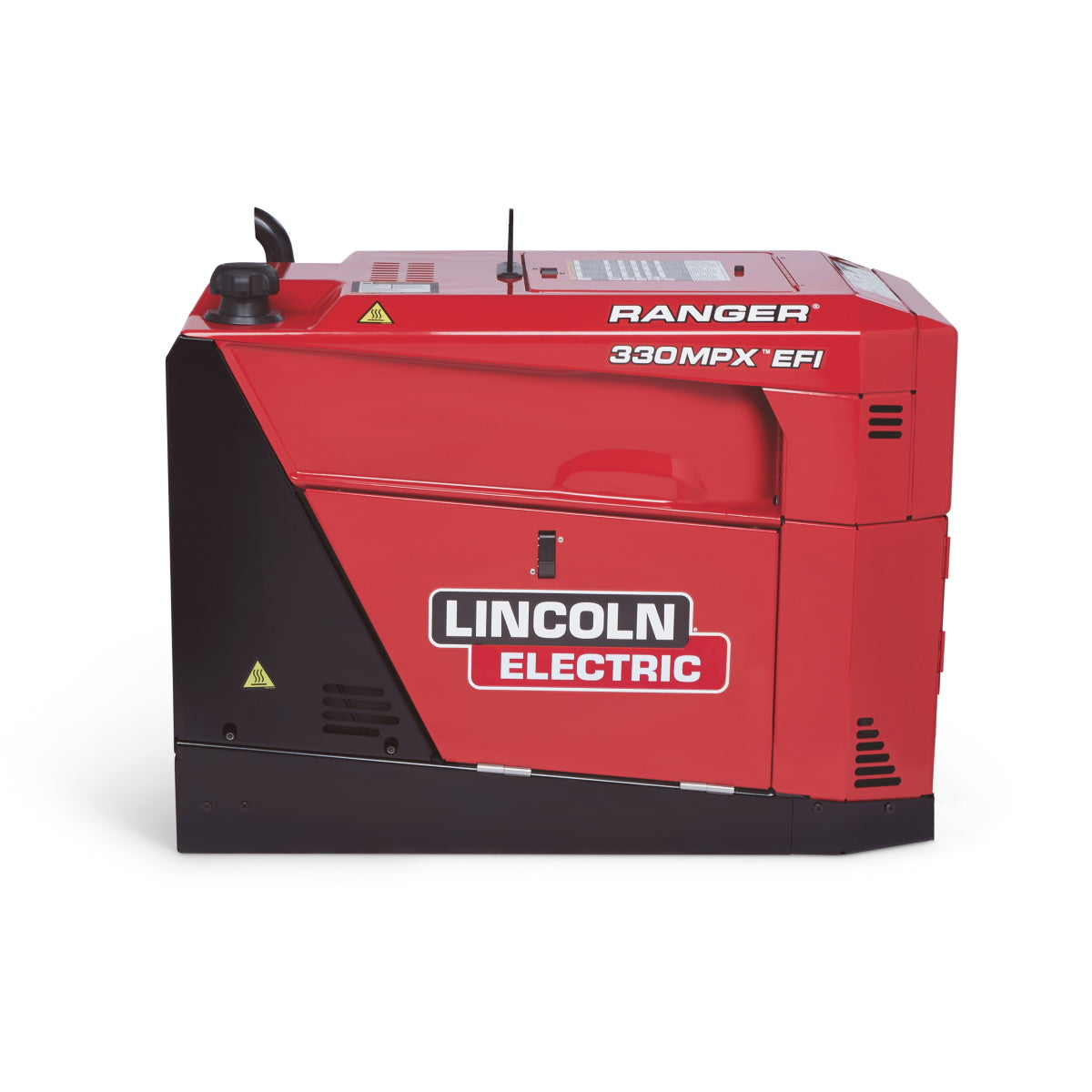

Smaller. Smarter. Quieter! The Lincoln Ranger 330MPX EFI Welder/Generator w/GFCI (K4779-1) breaks the mold of what we expect in an engine driven welder/generator. Lincoln has found a way to pack more innovative features in a smaller footprint (20% smaller footprint and 25% lighter than other machines in its class). The Lincoln Ranger 330MPX features a digital control panel for ease of use and 330 amps of output for smooth welding.
Key Features
• EFI Model - provides more reliable starts at high altitude or extreme temperatures
• Smaller Size - 20% smaller than in-class competition
• Quieter Sound - up to 60% quieter than in-class competition
• Smarter Machine - intuitive push and turn digital controls
• ArcFX Technology - provides instant graphical feedback on how settings affect the weld outcome
• Chopper Technology - provides easy starts, smooth and consistent arc, and low spatter
• CrossLinc Technology - remote technology communicates voltage control to power source through one weld cable
• Fine Tune Adjustments - for hot start, arc force, and pinch controls

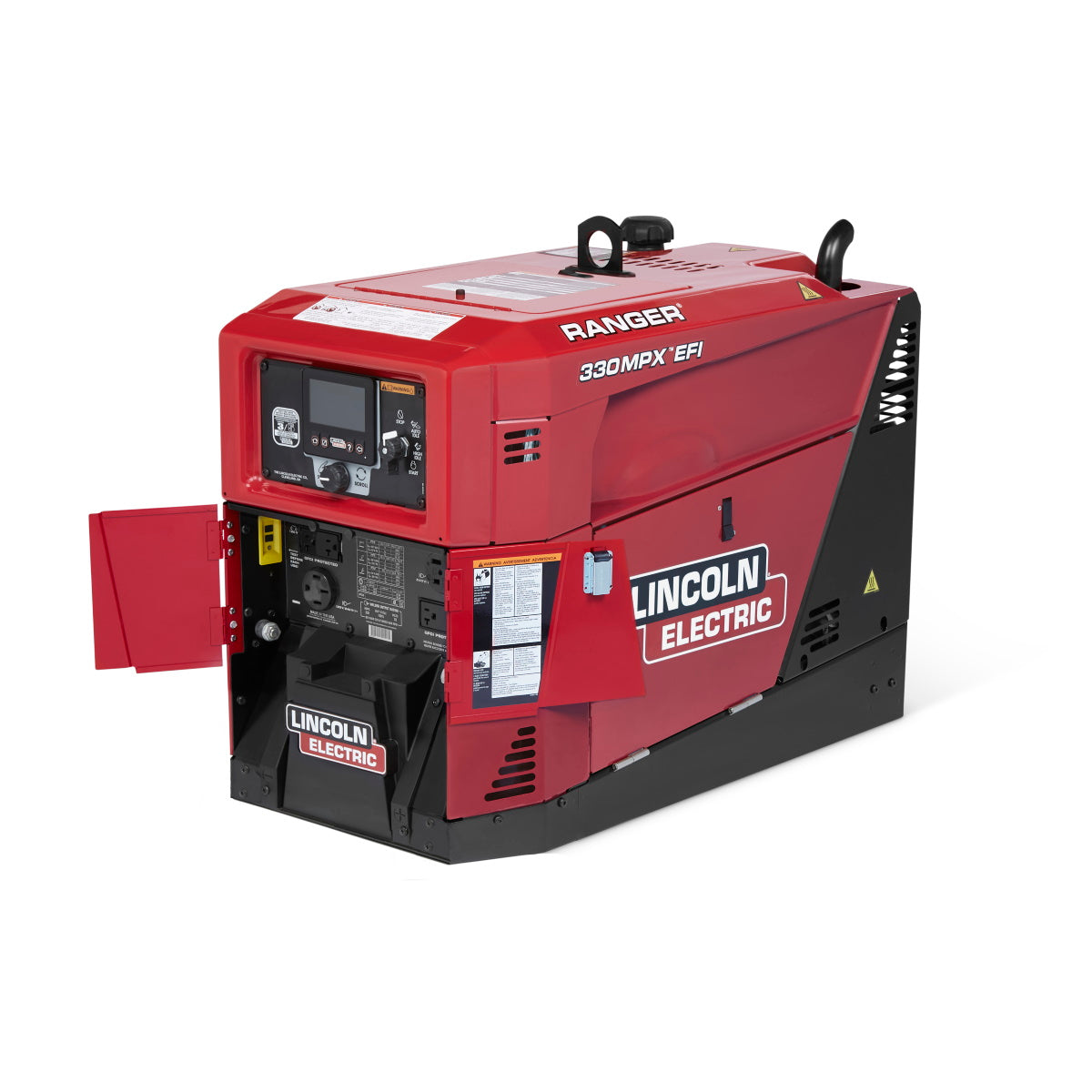

• Open/Close Front Panels - protect the receptacles and weld lead connections
• Arc Gouging - up to 3/64" carbon electrode
• 6-Pin Connector - for remote control operations or foot/hand amptrol
• First In-Class Direct Connect Spool Gun (K3569-2) - no additional control box or accessories
Advanced Features
• Enhanced Remote Control Capabilities - offer the ability to select preferred remote amperage scale without additional cables
• Lock Settings - enable the supervisor and operator passcode protection to lock settings and weld mode
• Intuitive Maintenance Indicators - oil level, air filter, spark plug, fuel filter, brushes
• New Weld Modes - downhill pipe, touch-start pulse TIG, pulse spool gun
Machine Quick Specs
• Amperage Output: 330A
• Duty Cycle: 100% @ 330A DC CC | 100% @ 312A DC CV
• Generator Output: 11,500 W Peak | 10,000 W Continuous
• Dimensions: 26" H x 20" W x 36" L
• Weight: 446 lbs
Engine Quick Specs
• Engine: Kohler OHV Command CH740 Gasoline (Electric Fuel Pump)
• 2 Cyl, 4 Cycle, Air Cooled
• Horsepower: 25 HP @ 3600 RPM
• Ignition: Electric Start w/Choke
• Fuel Capacity: 11 Gallons | 2.0 Qts Oil
• Noise Level: 74.7 Decibels @ Full Load
Key Features
• EFI Model - provides more reliable starts at high altitude or extreme temperatures
• Smaller Size - 20% smaller than in-class competition
• Quieter Sound - up to 60% quieter than in-class competition
• Smarter Machine - intuitive push and turn digital controls
• ArcFX Technology - provides instant graphical feedback on how settings affect the weld outcome
• Chopper Technology - provides easy starts, smooth and consistent arc, and low spatter
• CrossLinc Technology - remote technology communicates voltage control to power source through one weld cable
• Fine Tune Adjustments - for hot start, arc force, and pinch controls
• Open/Close Front Panels - protect the receptacles and weld lead connections
• Arc Gouging - up to 3/64" carbon electrode
• 6-Pin Connector - for remote control operations or foot/hand amptrol
• First In-Class Direct Connect Spool Gun (K3569-2) - no additional control box or accessories
Advanced Features
• Enhanced Remote Control Capabilities - offer the ability to select preferred remote amperage scale without additional cables
• Lock Settings - enable the supervisor and operator passcode protection to lock settings and weld mode
• Intuitive Maintenance Indicators - oil level, air filter, spark plug, fuel filter, brushes
• New Weld Modes - downhill pipe, touch-start pulse TIG, pulse spool gun
Machine Quick Specs
• Amperage Output: 330A
• Duty Cycle: 100% @ 330A DC CC | 100% @ 312A DC CV
• Generator Output: 11,500 W Peak | 10,000 W Continuous
• Dimensions: 26" H x 20" W x 36" L
• Weight: 446 lbs
Engine Quick Specs
• Engine: Kohler OHV Command CH740 Gasoline (Electric Fuel Pump)
• 2 Cyl, 4 Cycle, Air Cooled
• Horsepower: 25 HP @ 3600 RPM
• Ignition: Electric Start w/Choke
• Fuel Capacity: 11 Gallons | 2.0 Qts Oil
• Noise Level: 74.7 Decibels @ Full Load
| MPN: | LINK4779-1 |
|---|---|
| UPC: | 15082957005 |
| Processes | Stick (SMAW) Gouging (CAC-A) TIG (GTAW) MIG (GMAW) Flux-Cored Self-Shielded (FCAW-S) Flux-Cored Gas-Shielded (FCAW-G) |
| Designed For | Construction Construction & Field Erection General Fabrication Structural Fabrication Structural Welding |
| Amperage | CC-Stick: 35 – 330 A Downhill Pipe (CC): 25-330 A Touch Start TIG: 25 – 330 A CV-Wire: 14 – 40 V Arc Gouging: 90 – 330 A |
| Weldable Metals | Aluminum Stainless Steel Steel |
| Input Phase | DC |
| Portability | Lift Eye (Standard) Running Gear / Cart (Optional) |
| Weld Output | CC / CV |
| Weight | 446 lbs (202 kg) |
| Warranty | 3 Years Parts and Labor - Engine warranted separately by engine manufacturer |
