Lincoln Sprinter 180Si Stick/Tig Welder TIG One-Pak w/Case (K5585-1)
Download Product Spec Sheet

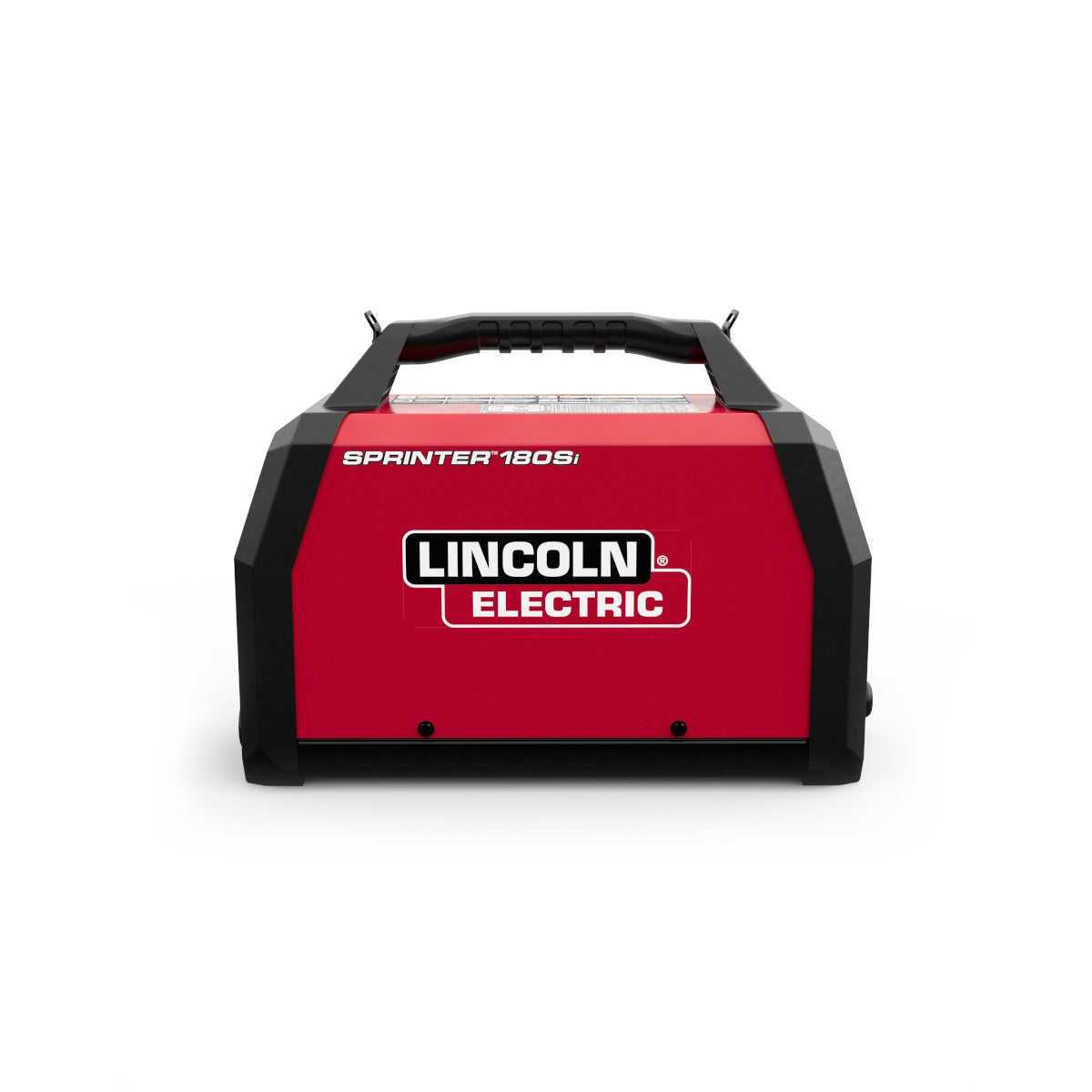

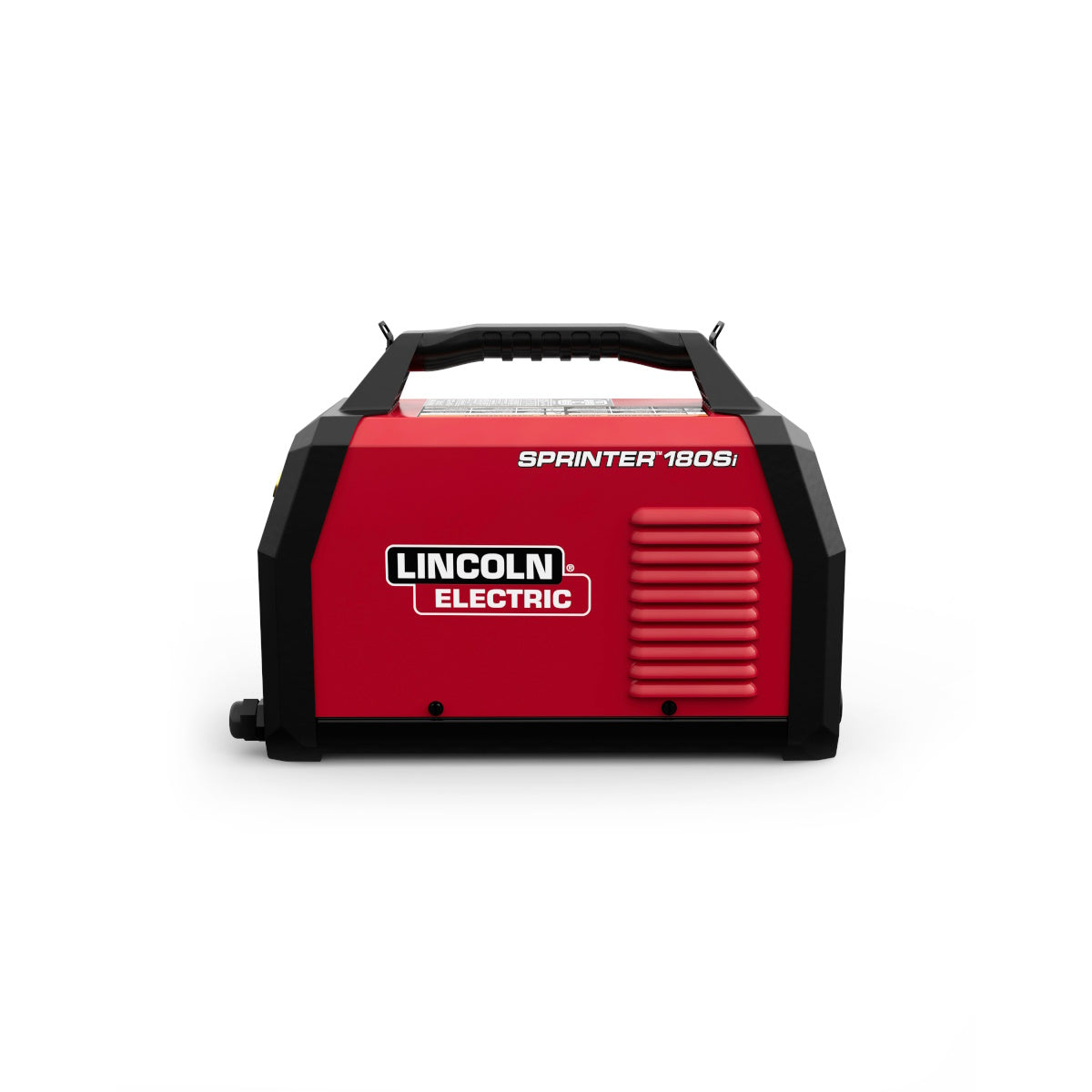

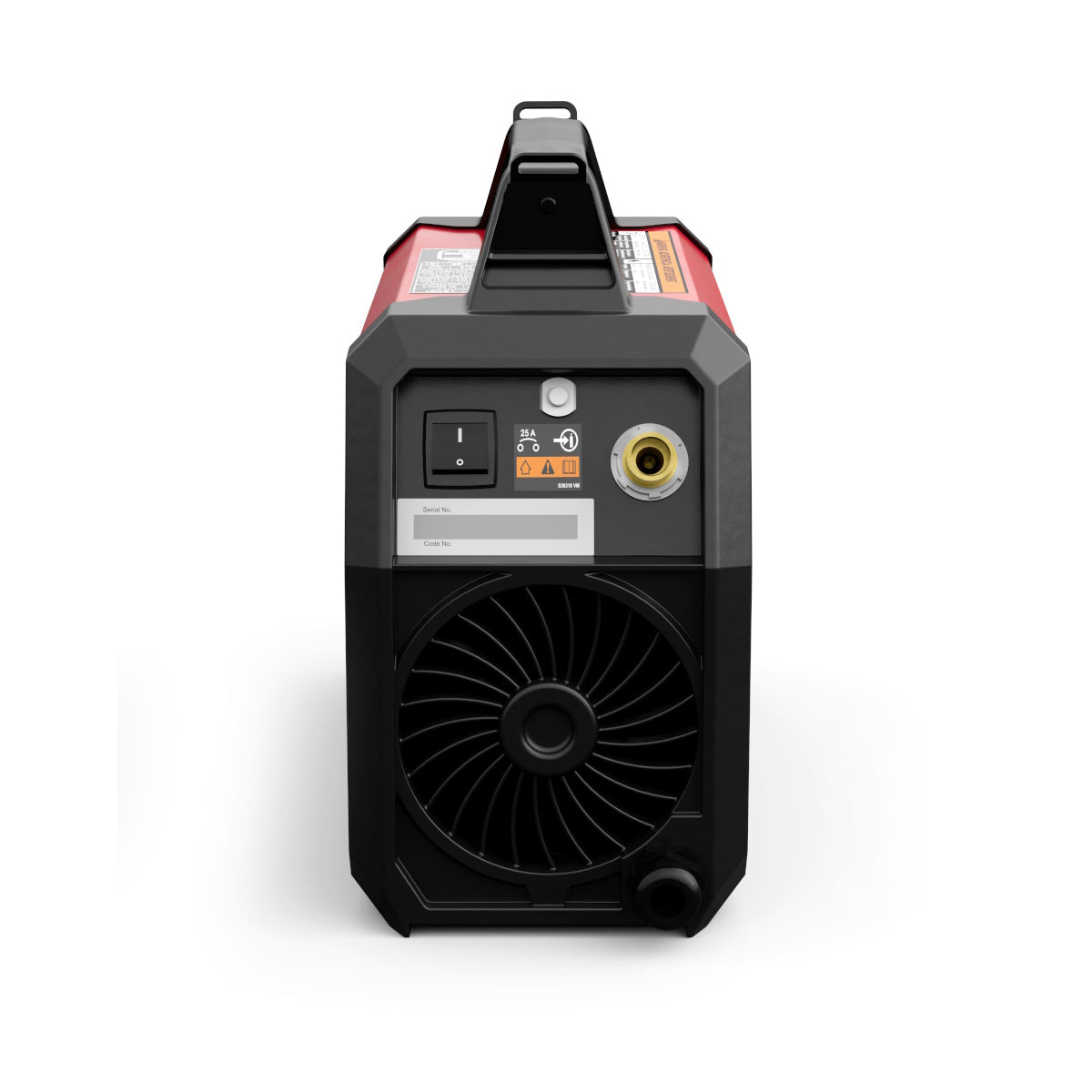

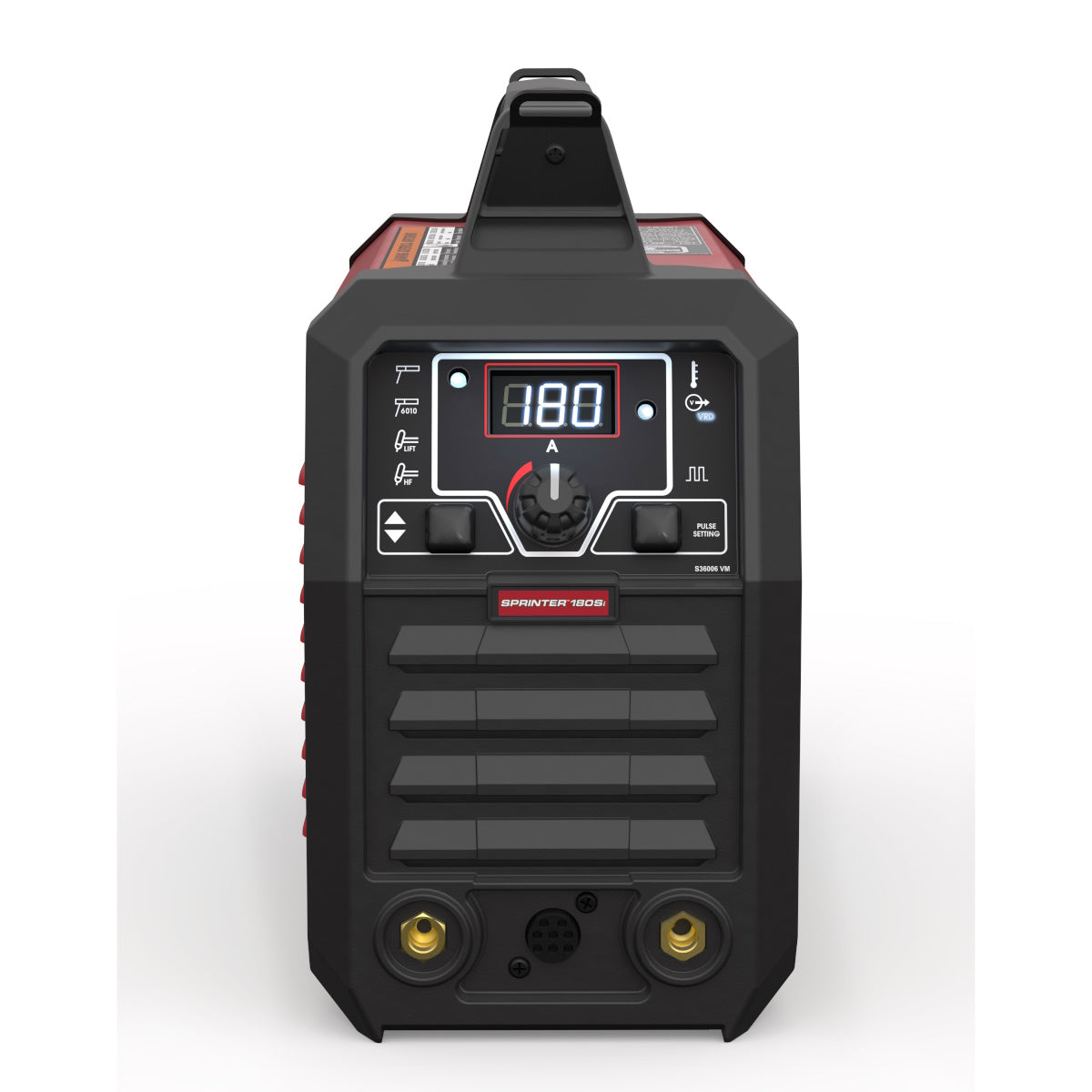

The Lincoln Sprinter 180Si is a lightweight, portable dual voltage stick/tig welder that features HF TIG, pulsed TIG, and a dedicated 6010 stick mode. With 180 amps of output, the Sprinter 180Si is capable of using up to 5/32 electrodes. The simple display allows for easy weld setup so you can get started quickly on the jobsite.
The Sprinter 180Si is DC TIG only, so you can NOT weld aluminum.
Standard Features
Two Stick Modes - dedicated 6010 and 7018
High Frequency Start - precise arc striking
Pulsed TIG - heat management and enhanced control
Dual Input - 120 and 230 volt
Advanced Features
Crisp Arc - ideal for 6010, 6011, and 6013 electrodes
Soft Arc - ideal for 7018 electrodes
HF TIG - for use with start button or foot control
Select Hz - for pulsed TIG on thinner materials
Quick Specs
Input Power: 120/230V | Single Phase
Output Power: Stick: 85A @ 40% (120V) | 180A @ 25% (230V)
Output Range: Stick: 10-110A (120V) | 20-180A (230V)
Dimensions: 11.8" H x 6.25" W x 16" L
Weight: 20 lbs

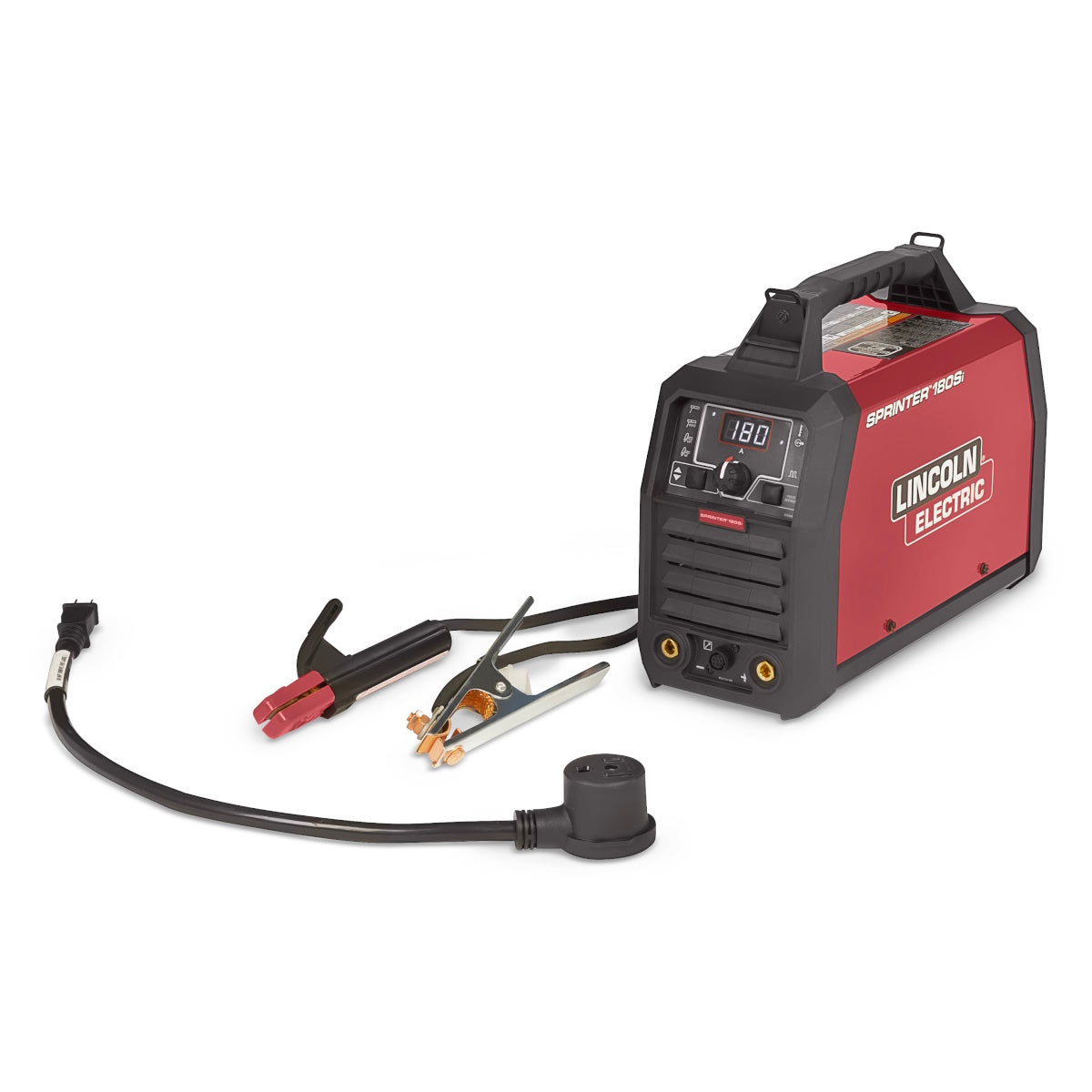

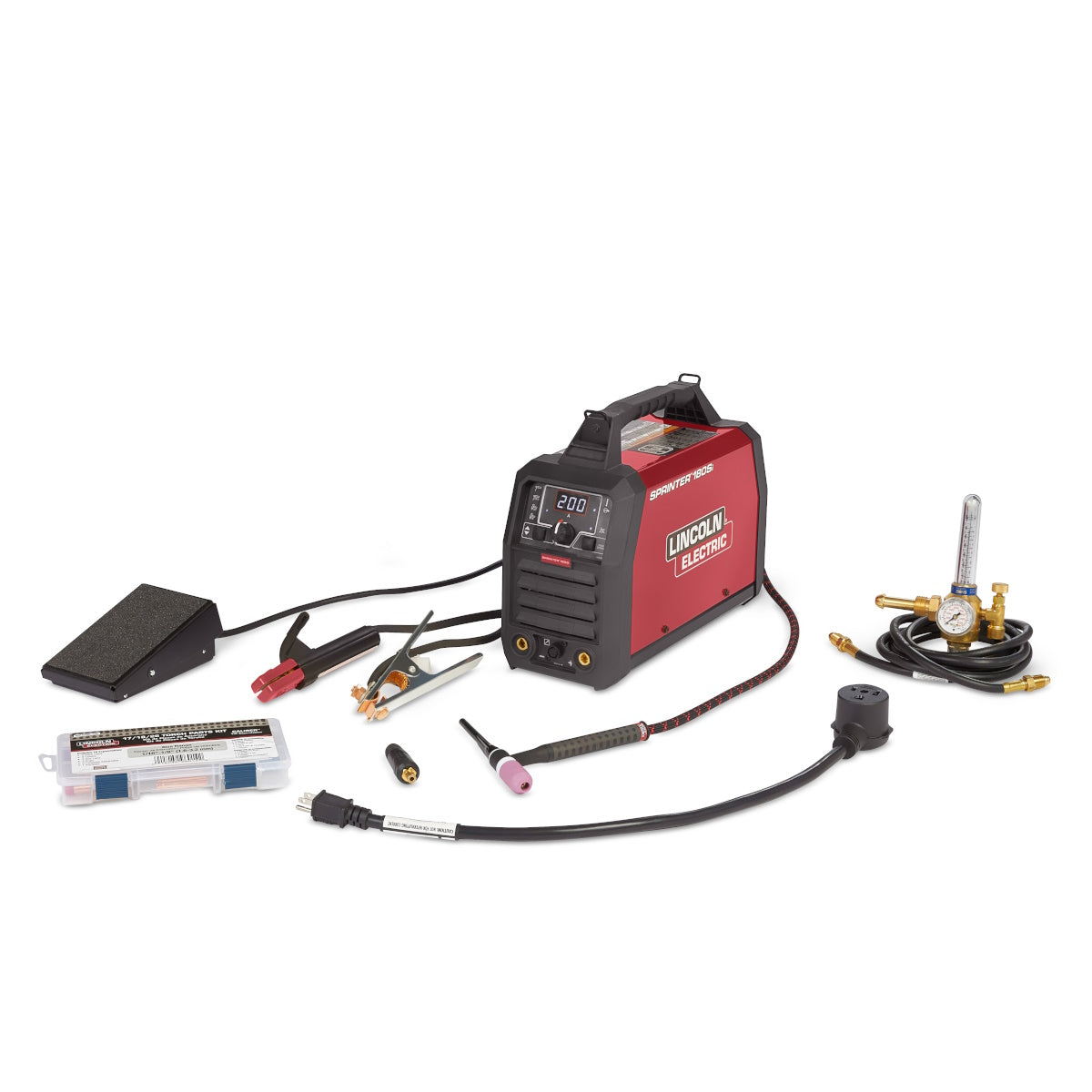

Includes
Sprinter 180Si Welder
Carrying Case
Electrode Holder and Cable
Work Clamp and Cable
120V to 230V Power Cord Adapter
17 Series TIG Torch
TIG Torch Adapter
Parts Kit for TIG Torch
Foot Pedal
Gas Regulator/Hose
| MPN: | LINK5585-1 |
|---|---|
| Processes | DC Stick DC TIG |
| Designed For | Light Duty Fabrication, Maintenance, Farm, Auto Body, Aerospace, Light structural, Shipbuilding |
| Amperage | 10-200A TIG 20-180A Stick |
| Material Thickness | 5/32" |
| Weldable Metals | Steel Mild Steel 6010 7018 |
| Input Voltage | 120/230 |
| Input Phase | 1 |
| Input Hz | 60 |
| Input Phase | DC |
| Rated Output | 110A/14.6V/40% TIG 85A/23.2V/40% STICK 200A/16.4V/25% TIG 180A/26.4V/25% STICK |
| Max Open Circuit Voltage | Average OCV - 65V Peak OCV - 110V VRD OCV (Peak) - 14V |
| Portability | 20 lbs |
| Warranty | 3 Years |
MPN: LINK5585-1
