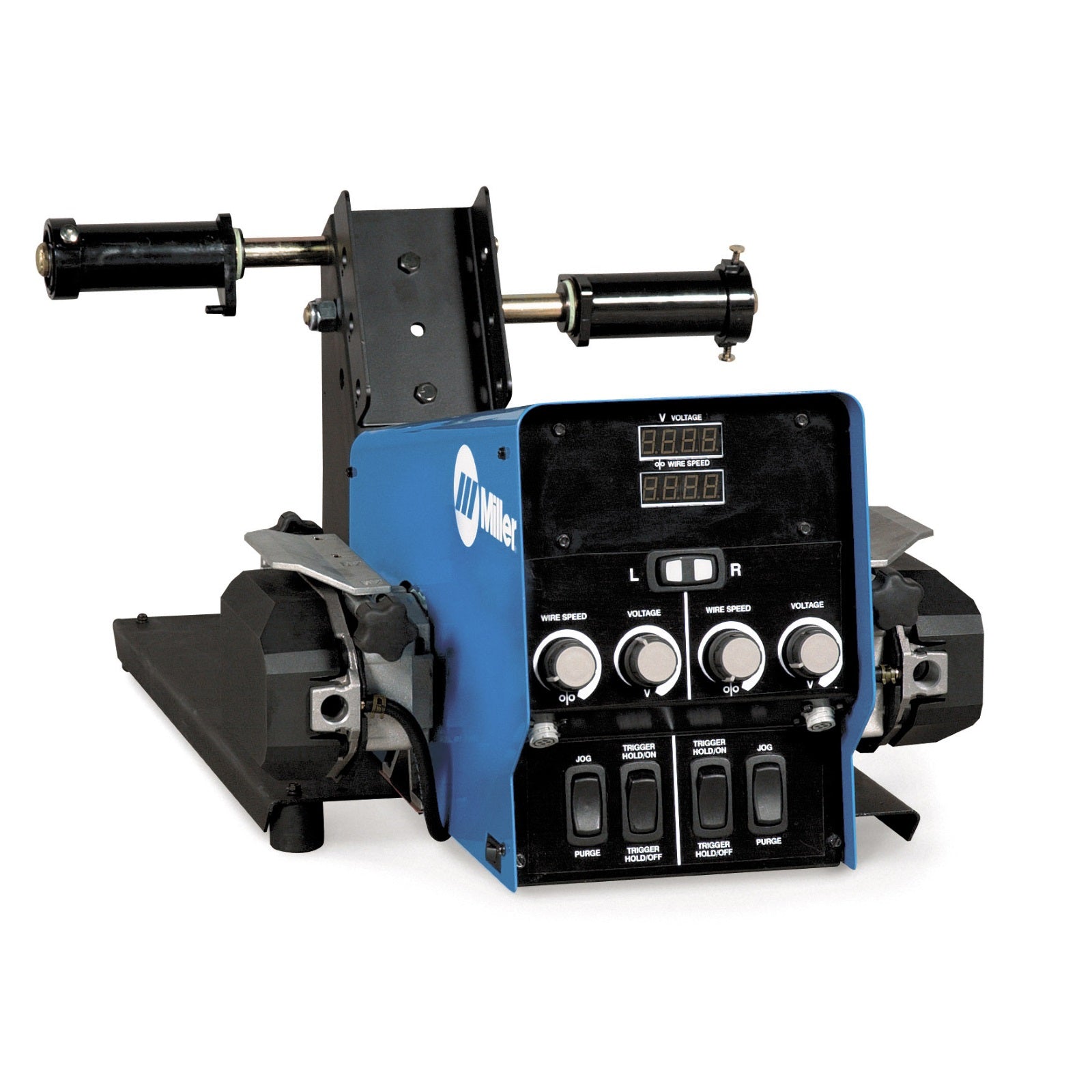

Miller 70 Series Dual Wire Feeder Package D-74D (951204)

Miller 70 Series Dual Wire Feeder Package D-74D (951204)

Sale price$9,838.00 Regular price$11,360.00
Sold out

Rewards points when you’re a Rewards member. Sign up or Login here
warning WARNING: Cancer and Reproductive Harm -

This item is no longer available.

Miller's 70 series wire feeders are standard, simple feeders for most heavy-industrial applications, with the 74D providing increased accuracy and control of the most common weld parameters.

• MIG & Flux-Cored
• Pulsed MIG (with MPa Plus feeder and optional MPa power source)

70 Series Features:
• Wire feed speed range is 50 –780 IPM -- This offers a wider operating range than the competition
• Trigger hold control allows operator to make long extended welds without having to hold gun trigger
• On-board burnback and motor ramp control offers unmatched starting and stopping performance on a variety of power sources. This helps to ensure positive arc starting performance
• 16-gauge sheet metal housing is robust in rough service applications and less prone to damage
• Toolless rotatable drive assembly allows operator to rotate the drive housing, allowing a straight path for wire flow
• Trigger dual schedule for easily changing weld parameters while welding (DX & MPa models only)

D Model Features
• Wire speed control
• Factory-set run-in control
• 24 VDC high torque, permanent-magnet motor
• Quick-change drive rolls
• Quick-release, drive-roll pressure adjustment arm
• Solid-state speed control & brake circuit
Digital Meters - helps ensure accuracy when presetting & reading actual parameters
Remote Voltage Control - allow you to set both voltage & wire feed speed at the feeder

Quick Specs:
• Input Power: 24 VAC, 10 A, 50/60 Hz
• Wire Diameter Capacity: .023-5/64"
• Wire Feed Speed: 50-780 IPM
• Weight: Dual Feeder: 87lbs
• Dimensions: Dual Feeder - 14" H x 21" W x 35" D
• Max Spool Size Capacity: 60 lb coil * with optional wire reel assembly (108008)

• D-74D Dual Feeder
• (2) 15-foot Bernard Q400 MIG Guns
• 10-foot 14-pin interconnecting cord
• .035/.045 Drive Rolls
• (3) .035 & (2) .045 Centerfire Contact Tips
