Miller Filtair SWX Add-On ZoneFlow Extraction Arm (951762-951763)
Lead time: 1-2 Weeks
Select Size (Parts & Accessories):
Select Size (Parts & Accessories)
Quantity:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

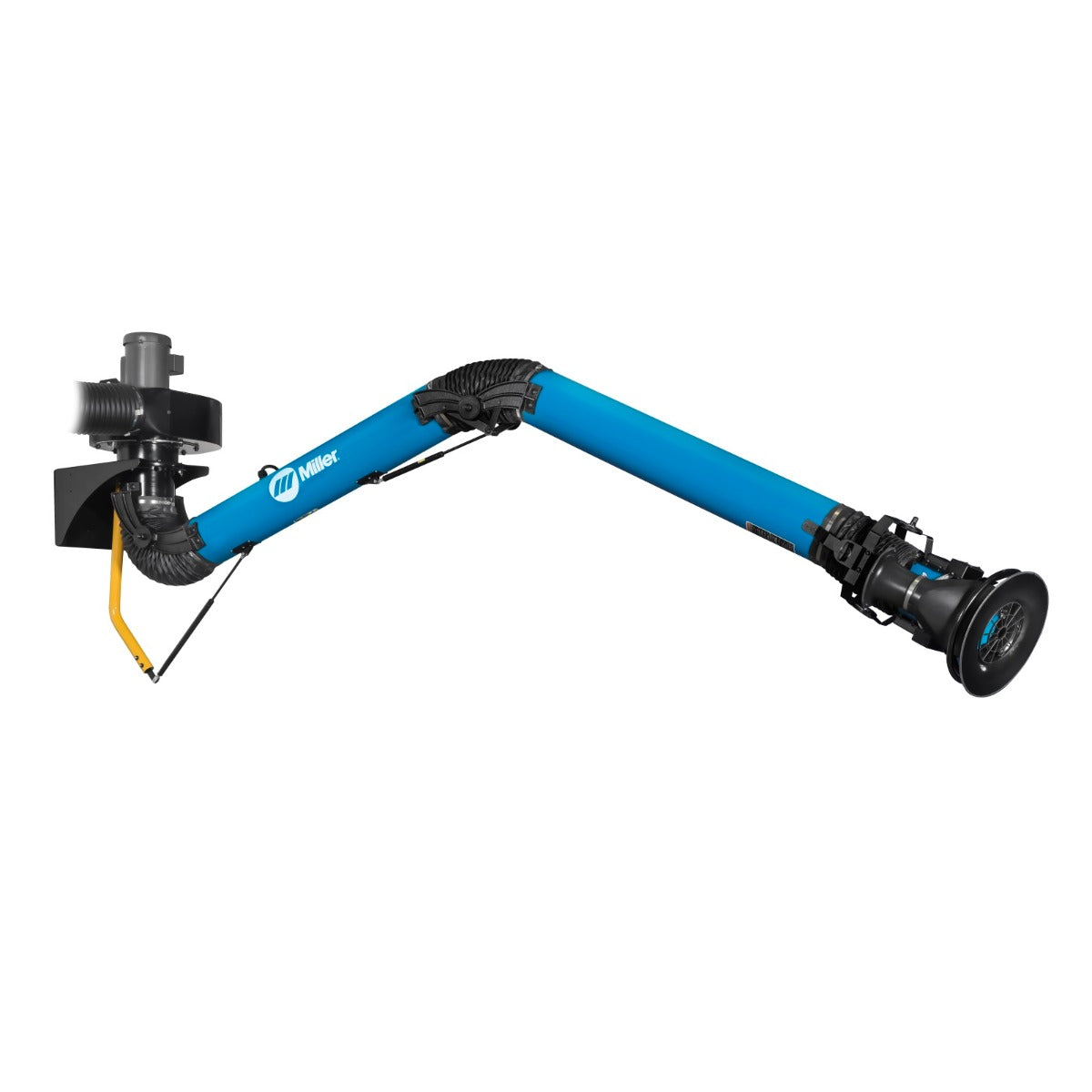

The Filtair SWX add-on ZoneFlow extraction arm comes in 10 or 12 foot lengths. These items include a blower, mounting bracket, duct and dampers, and an on/off control box. This item does not include the fume extractor cabinet, simply an add-on arm for a dual-arm setup.

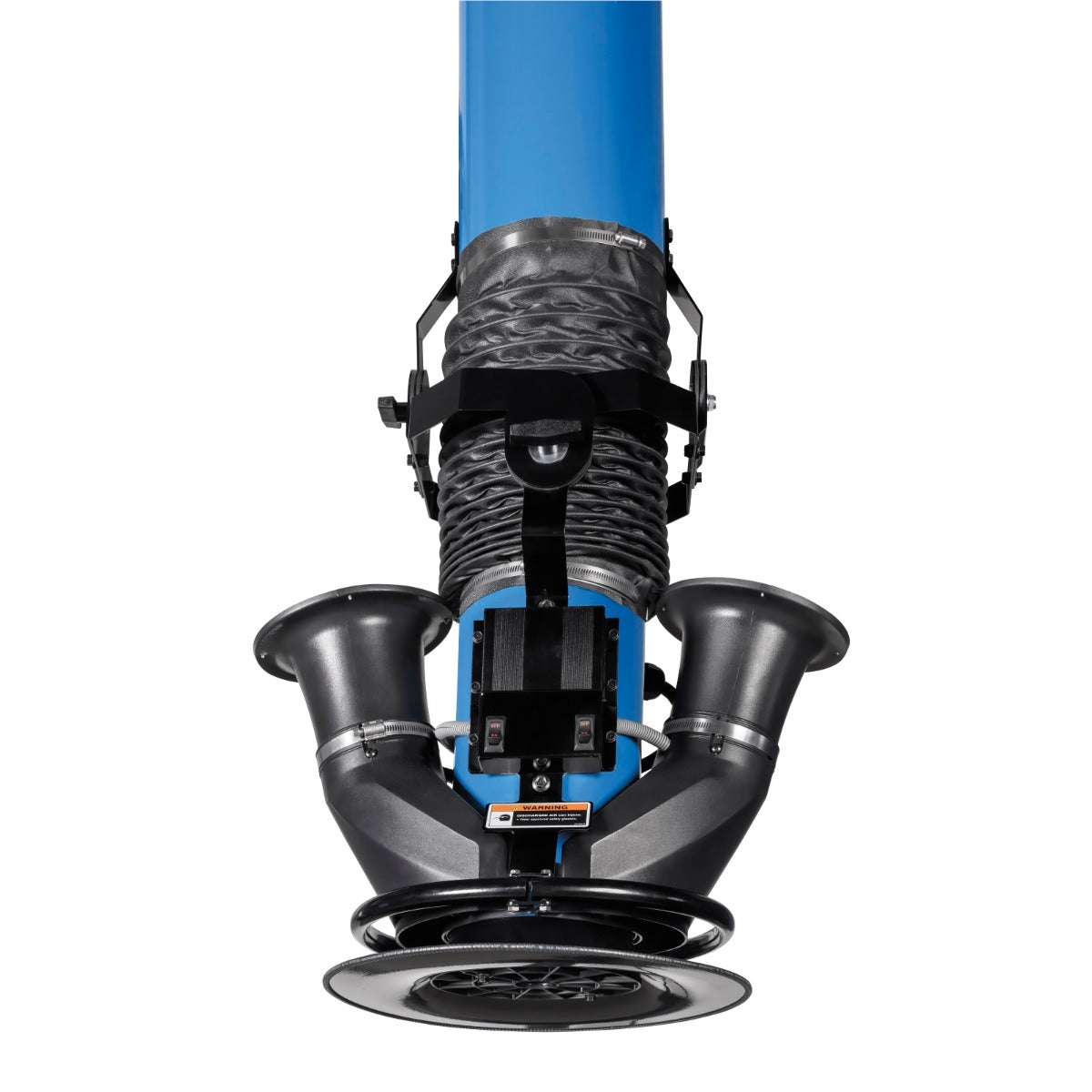

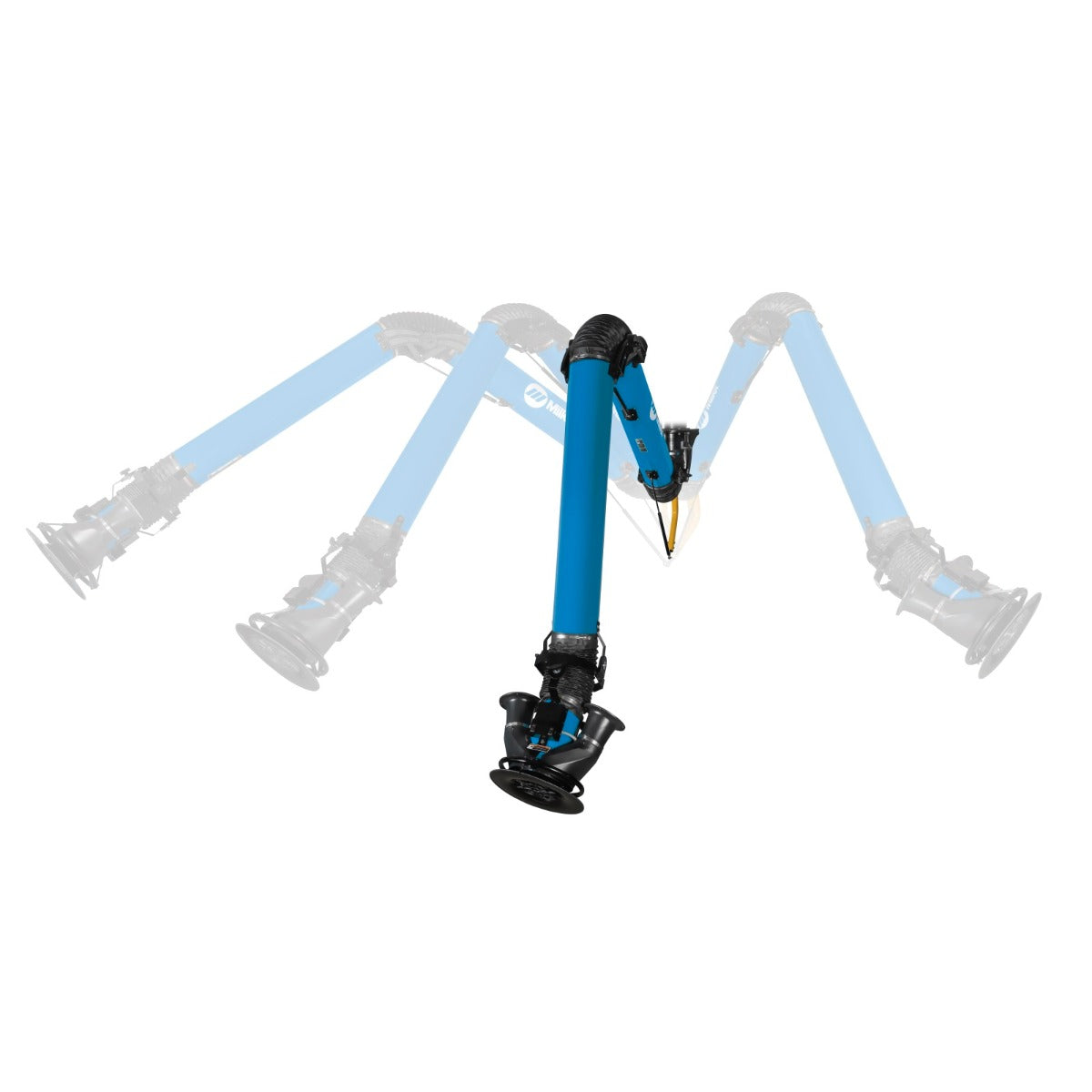

These models come with a completely new and exclusive ZoneFlow™ technology, which creates a much larger capture area than existing source-capture products and minimizes arm interactions. ZoneFlow is far more effective than ambient fume extraction systems as the suction head creates a negative pressure zone that funnels air to the center of the arm from greater distances. The arm features a 360-degree rotation for unlimited positioning, which means fewer hood adjustments and extended welding time.
Miller's high-performance blower fan generates a class leading 1,200 CFM and creates an accu-rated minimum of 875 CFM extraction at the hood to better capture weld fumes and provide a cleaner environment.
Quick Specs:
• Air Flow: 875 CFM
• Sound Level: Aprox. 75 dBA at 5 feet
• Motor Specs: 1HP, 3450 RPM
• Input Power: 115V, 1-Phase, 60 Hz at approximately 11.9A
• Extractor Arm Dims: 8-inch diameter (10 or 12 foot lengths)

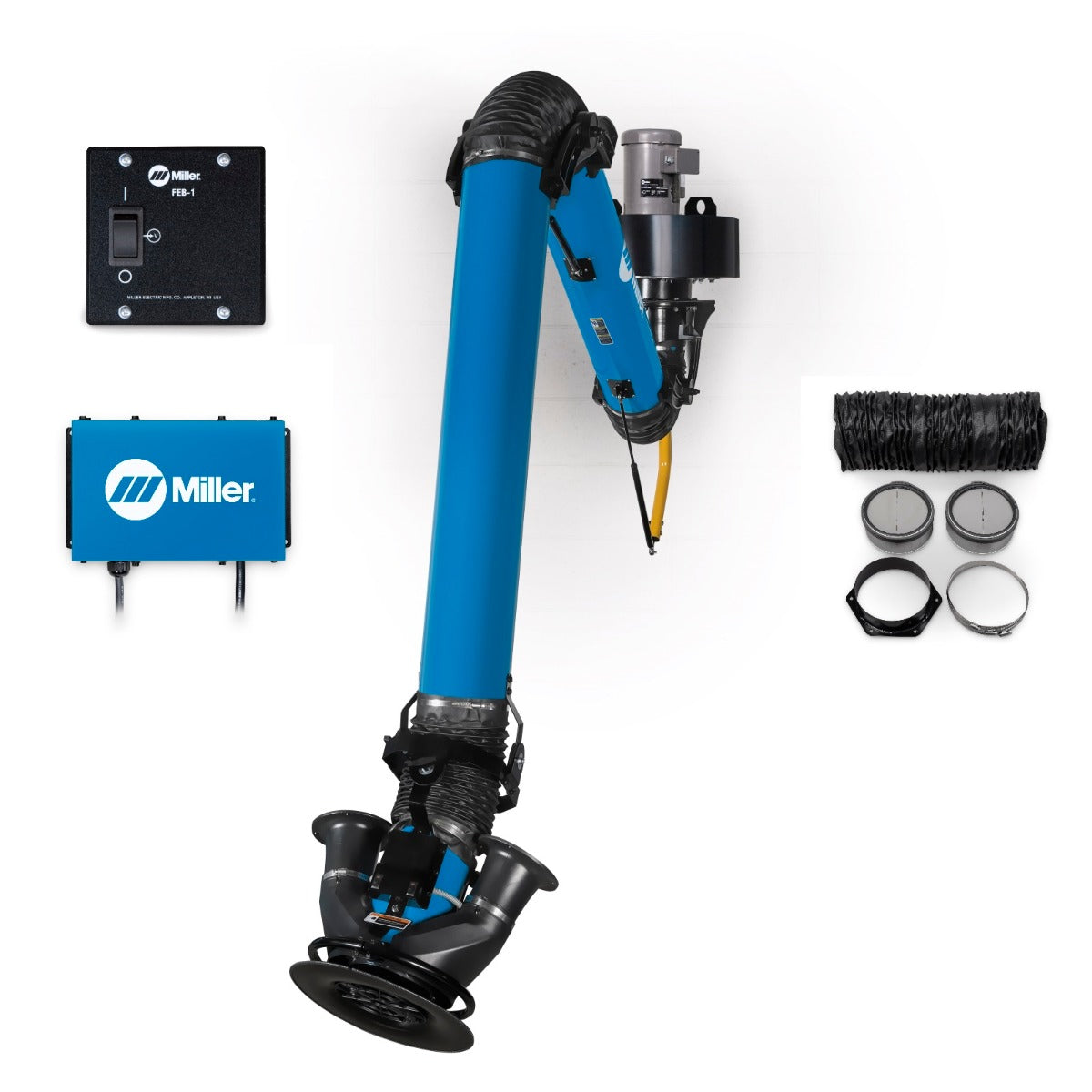

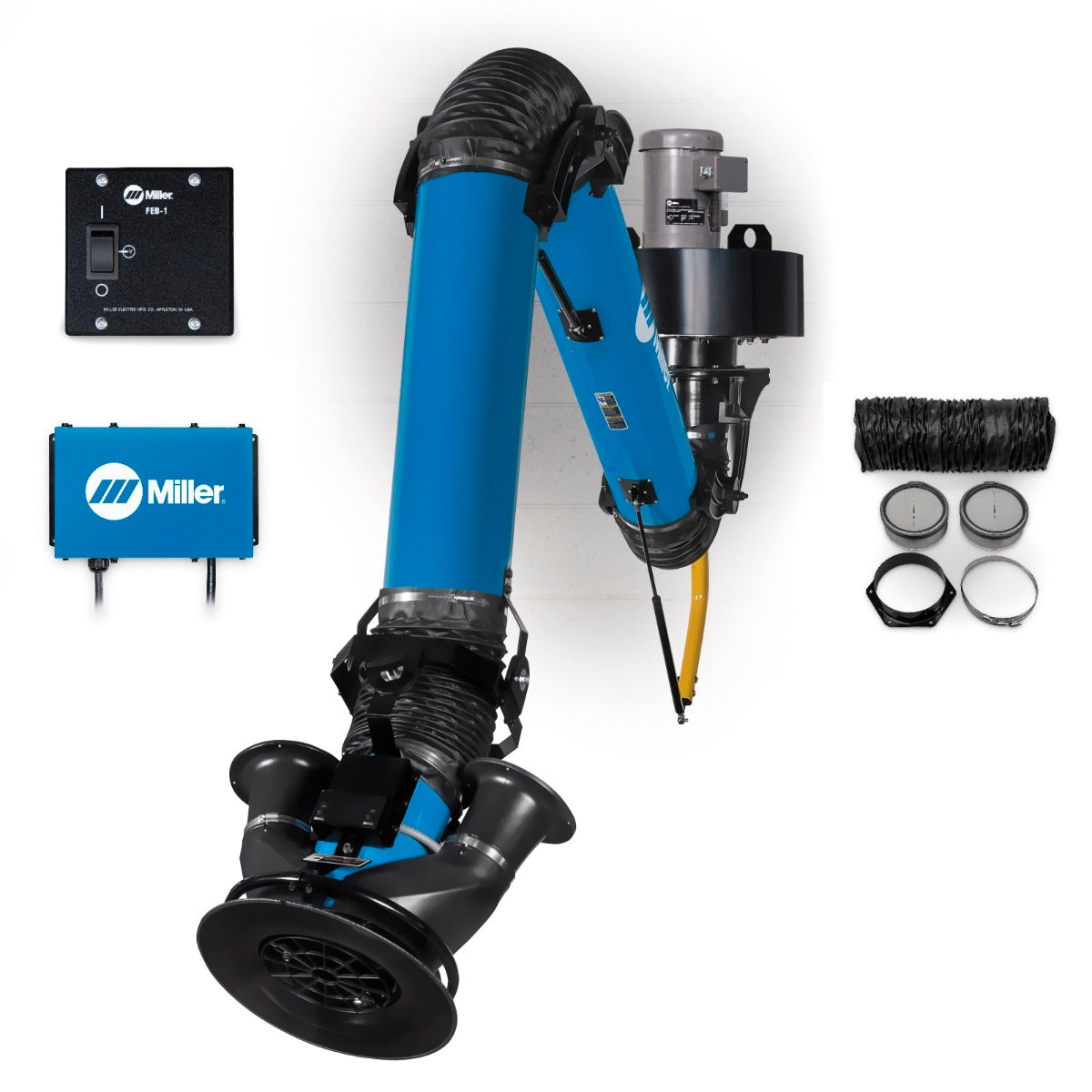

Comes With:
• ZoneFlow Extraction arm (8-inch diameter) (Chosen Length)

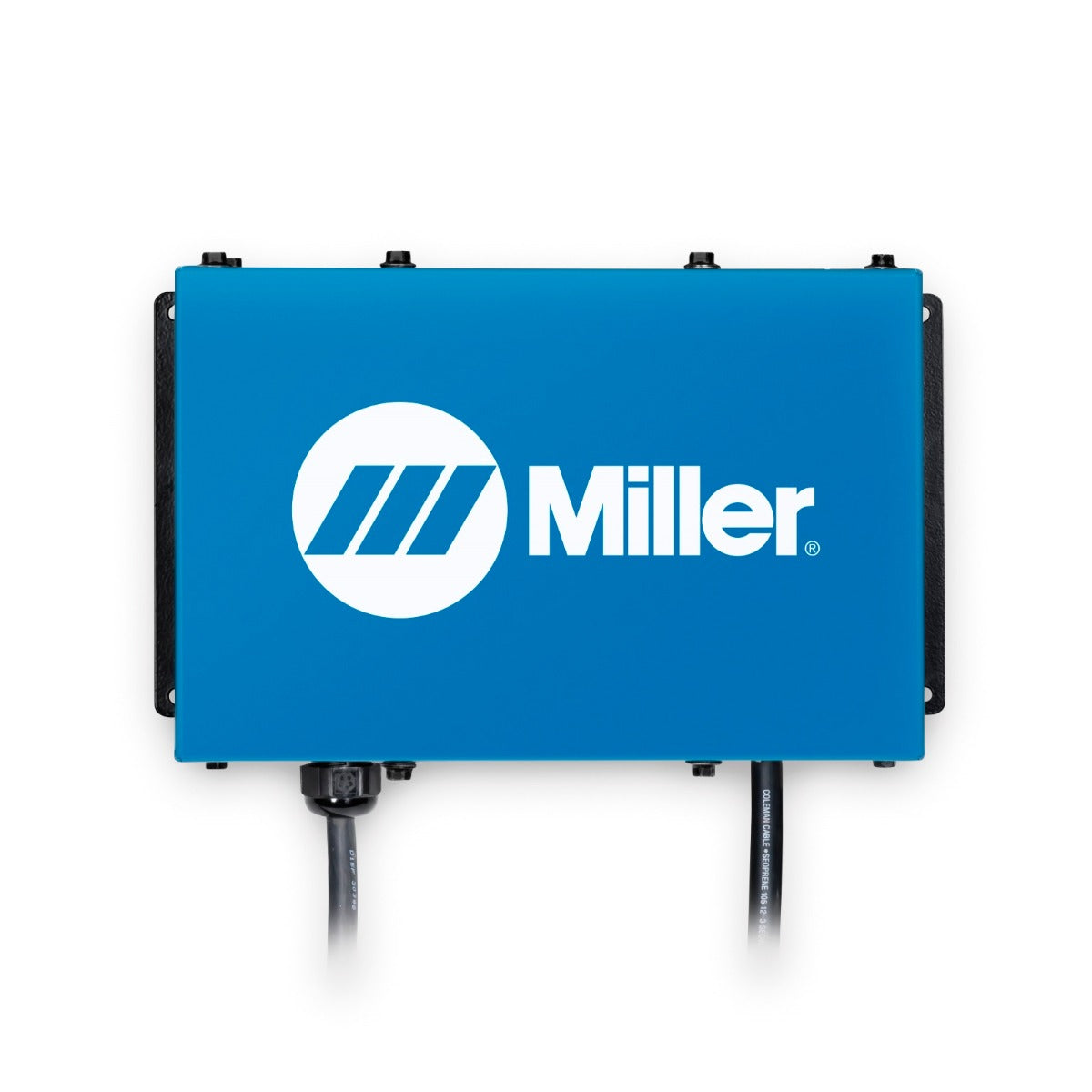

• ZoneFlow motor control box
• Mounting bracket for blower/arm
• Duct and Backdraft dampers
• 115V Blower

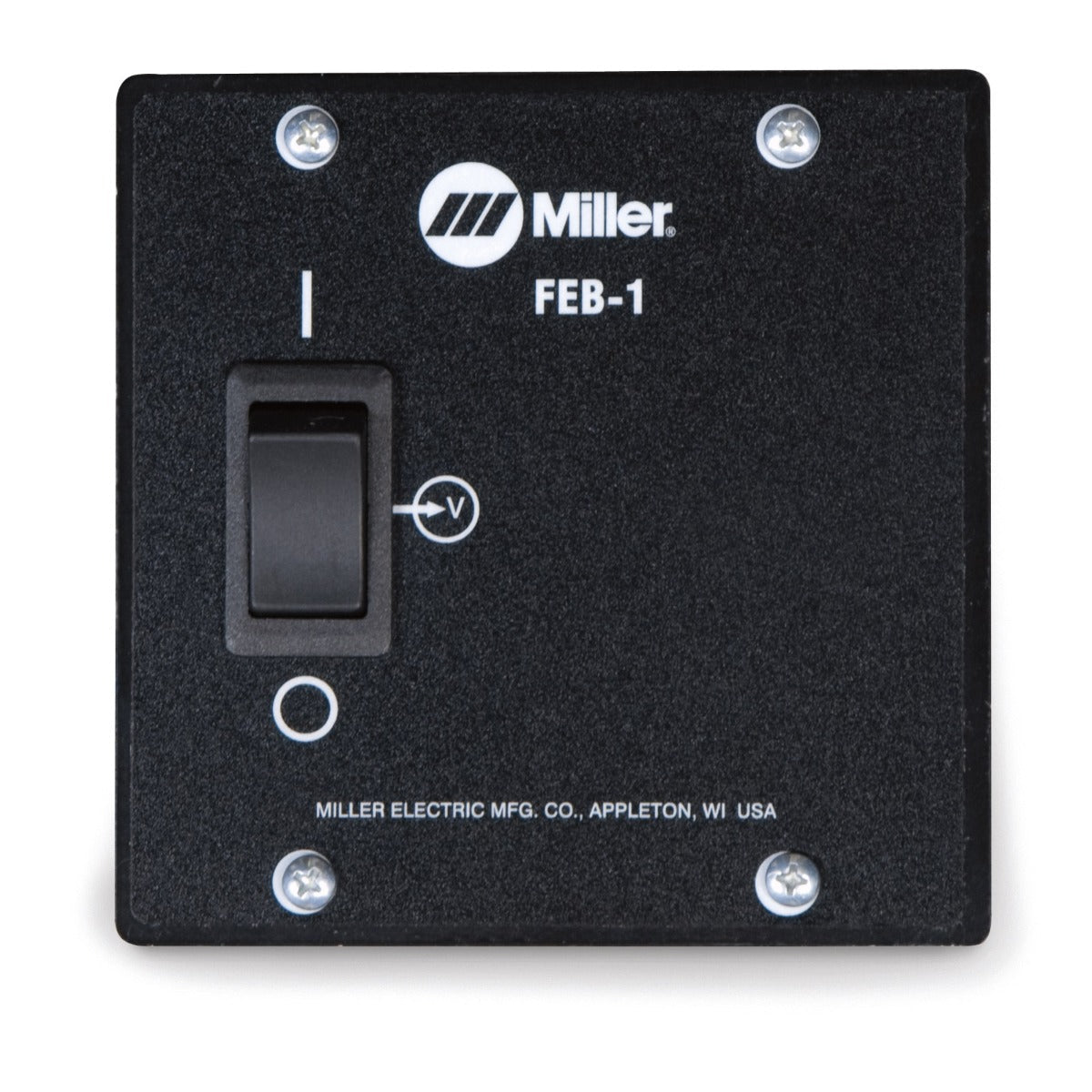

• 115V On/Off control box
• 115V Wiring Not Included
These models come with a completely new and exclusive ZoneFlow™ technology, which creates a much larger capture area than existing source-capture products and minimizes arm interactions. ZoneFlow is far more effective than ambient fume extraction systems as the suction head creates a negative pressure zone that funnels air to the center of the arm from greater distances. The arm features a 360-degree rotation for unlimited positioning, which means fewer hood adjustments and extended welding time.
Miller's high-performance blower fan generates a class leading 1,200 CFM and creates an accu-rated minimum of 875 CFM extraction at the hood to better capture weld fumes and provide a cleaner environment.
Quick Specs:
• Air Flow: 875 CFM
• Sound Level: Aprox. 75 dBA at 5 feet
• Motor Specs: 1HP, 3450 RPM
• Input Power: 115V, 1-Phase, 60 Hz at approximately 11.9A
• Extractor Arm Dims: 8-inch diameter (10 or 12 foot lengths)
Comes With:
• ZoneFlow Extraction arm (8-inch diameter) (Chosen Length)
• ZoneFlow motor control box
• Mounting bracket for blower/arm
• Duct and Backdraft dampers
• 115V Blower
• 115V On/Off control box
• 115V Wiring Not Included
