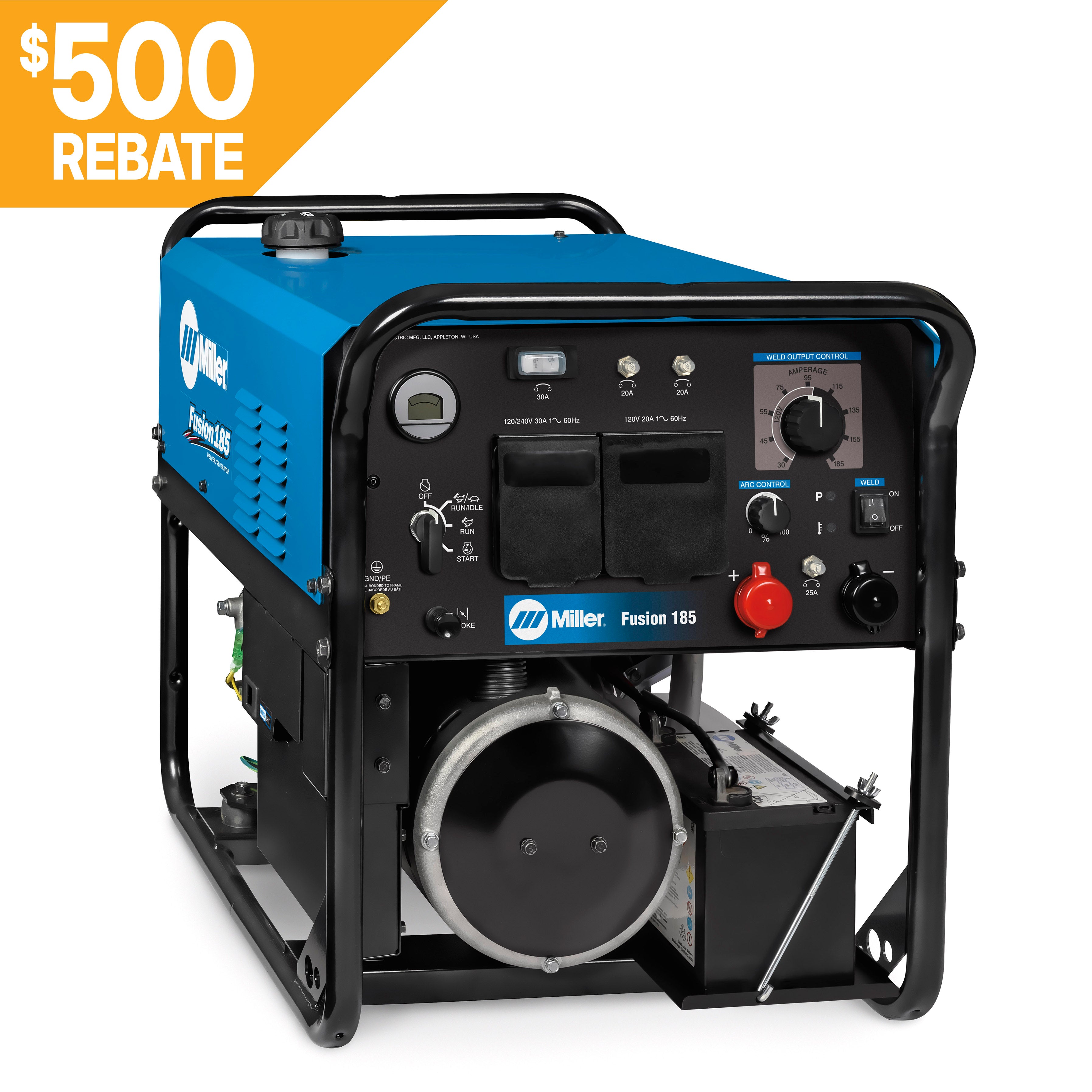

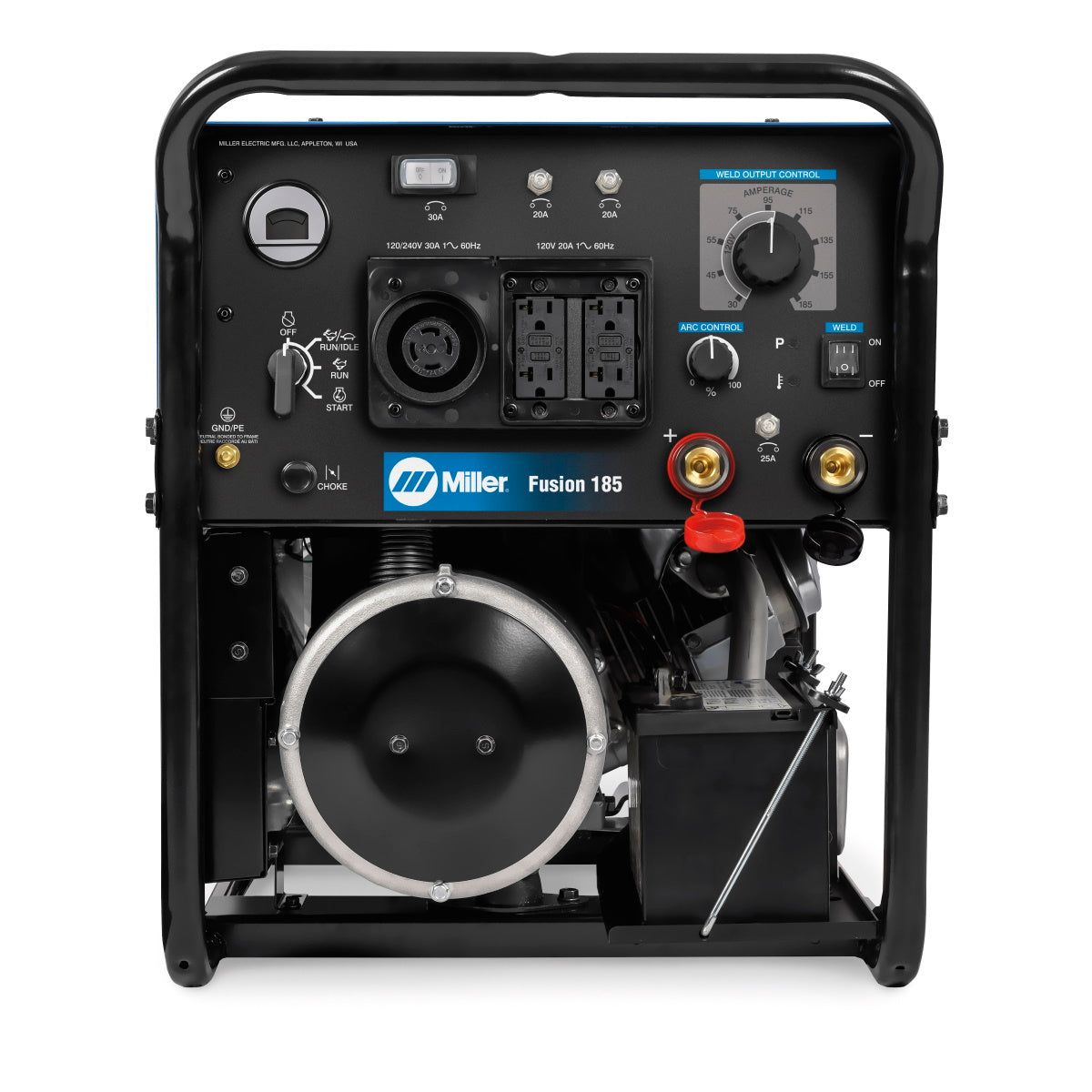

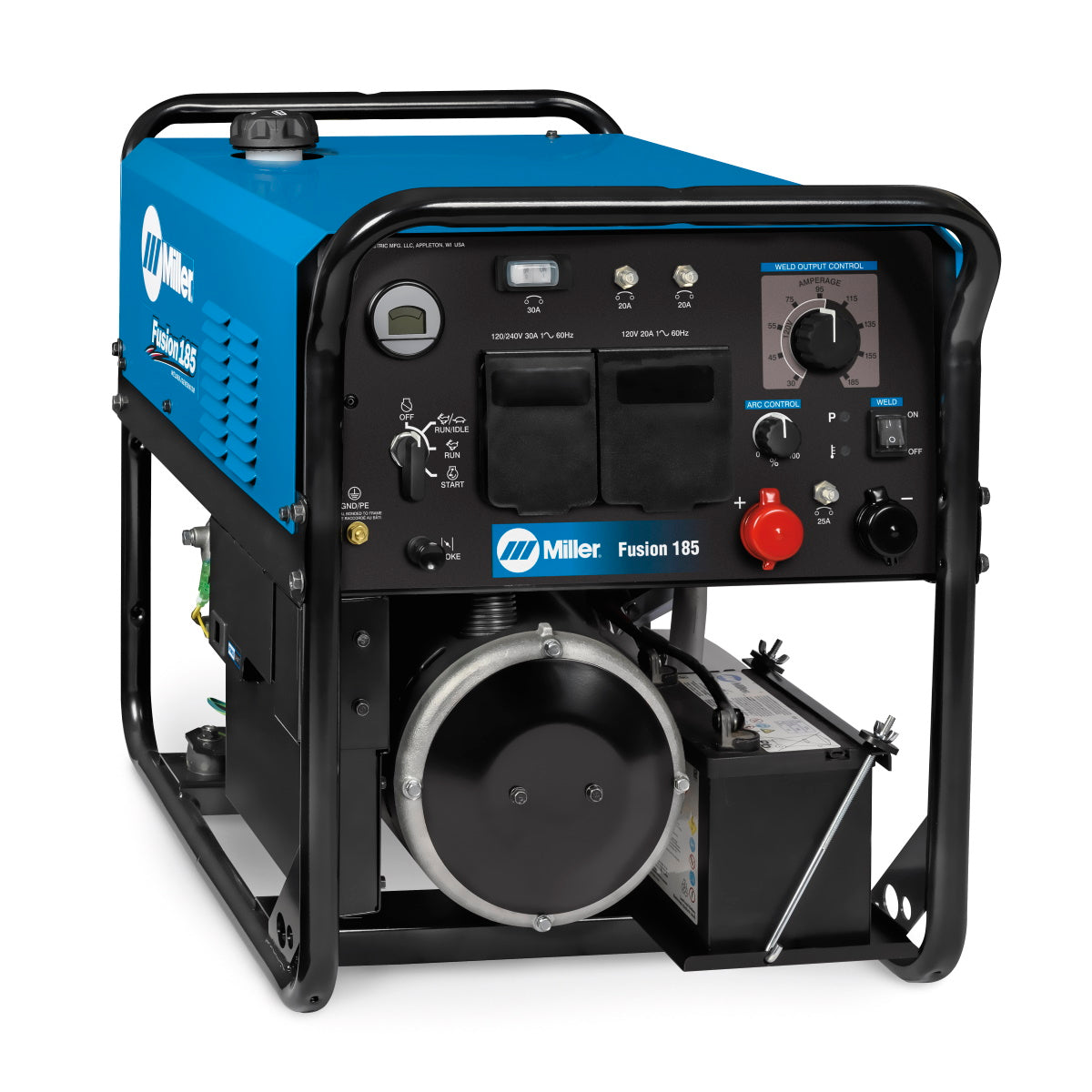

Miller Fusion 185 Welder/Generator w/Electric Start (907781)
Download Product Spec Sheet

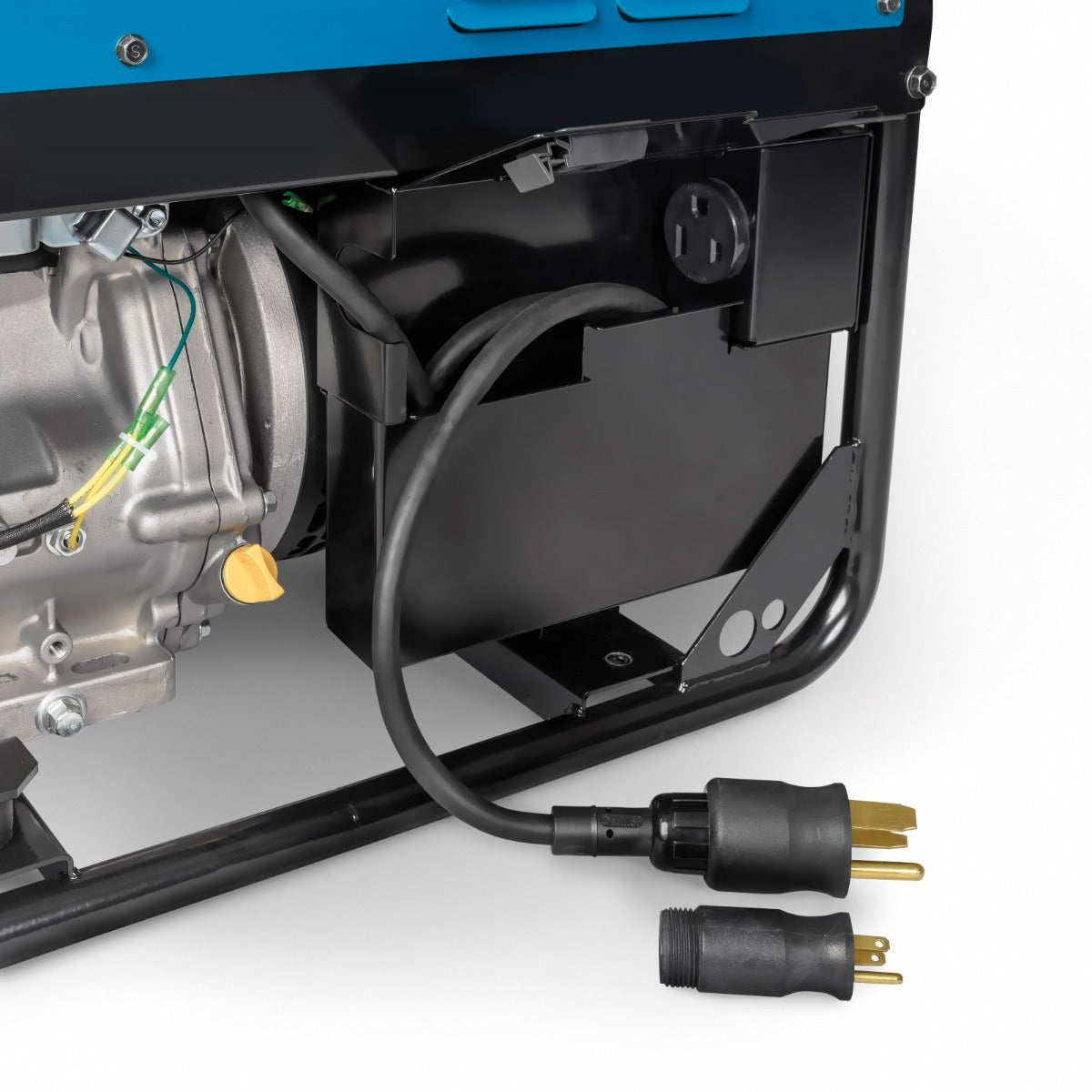

The Miller Fusion 185 offers the revolutionary "Power Shift" technology whereby the generator can be used on gasoline or 120/240V utility power. Power Shift allows the user to virtually weld anywhere - gasoline powered in the field or switch to outlet power when moving indoors. The MVP (multi-voltage plug) allows the generator to plug into 120V or 240V outlet power.
The Fusion 185 is capable of stick welding and air plasma cutting with the Spectrum 375. This generator features a 6,500 peak watt output, weighs only 222lbs, and electric starting method. This model also includes the recoil start as a backup to the electric start. The Fusion uses inverter technology to deliver a smooth, stable stick arc that's forgiving of variations in arc length and travel speed.
Features
• Power Shift Technology
• Lightweight (242 lbs)
• 185A DC Output
• Gasoline or 120V/240V Input Power
Quick Specs
• Amperage Range: 30-185A DC
• Duty Cycle: 20% @ 185A, 100% @ 110A
• Engine: Kohler CH440 | 3.4 HP @ 3,600 RPM
• Fuel Capacity: 6.25 Gallons
The Fusion 185 is capable of stick welding and air plasma cutting with the Spectrum 375. This generator features a 6,500 peak watt output, weighs only 222lbs, and electric starting method. This model also includes the recoil start as a backup to the electric start. The Fusion uses inverter technology to deliver a smooth, stable stick arc that's forgiving of variations in arc length and travel speed.
Features
• Power Shift Technology
• Lightweight (242 lbs)
• 185A DC Output
• Gasoline or 120V/240V Input Power
Quick Specs
• Amperage Range: 30-185A DC
• Duty Cycle: 20% @ 185A, 100% @ 110A
• Engine: Kohler CH440 | 3.4 HP @ 3,600 RPM
• Fuel Capacity: 6.25 Gallons
| MPN: | MIL907781 |
|---|---|
| UPC: | 715959700818 |
| Processes | Stick (SMAW) Air plasma cutting and gouging with optional Spectrum® models |
| Designed For | Farm and Ranch Construction and Fabrication Construction Maintenance and repair Farm/ranch applications Service trucks |
| Amperage | 30 A - 185 A |
| Weldable Metals | Steel |
| Input Voltage | 110/115/120 V 220/230/240 V |
| Input Phase | Peak: 6,500 watts Continuous: 6,200 watts 120/240 VAC, 40/26 A |
| Input Phase | DC |
| Rated Output | 185 A at 26.4 V, 20% duty cycle 110 A at 24.4 V, 100% duty cycle |
| Max Open Circuit Voltage | 185 A at 26.4 V, 20% duty cycle 110 A at 24.4 V, 100% duty cycle |
| Portability | Lift Eye (Optional) Running Gear / Cart (Optional) |
| Weld Output | CC |
| Weight | 242 lb. (110 kg) |
| Warranty | 3 Years Miller's True Blue Warranty |
