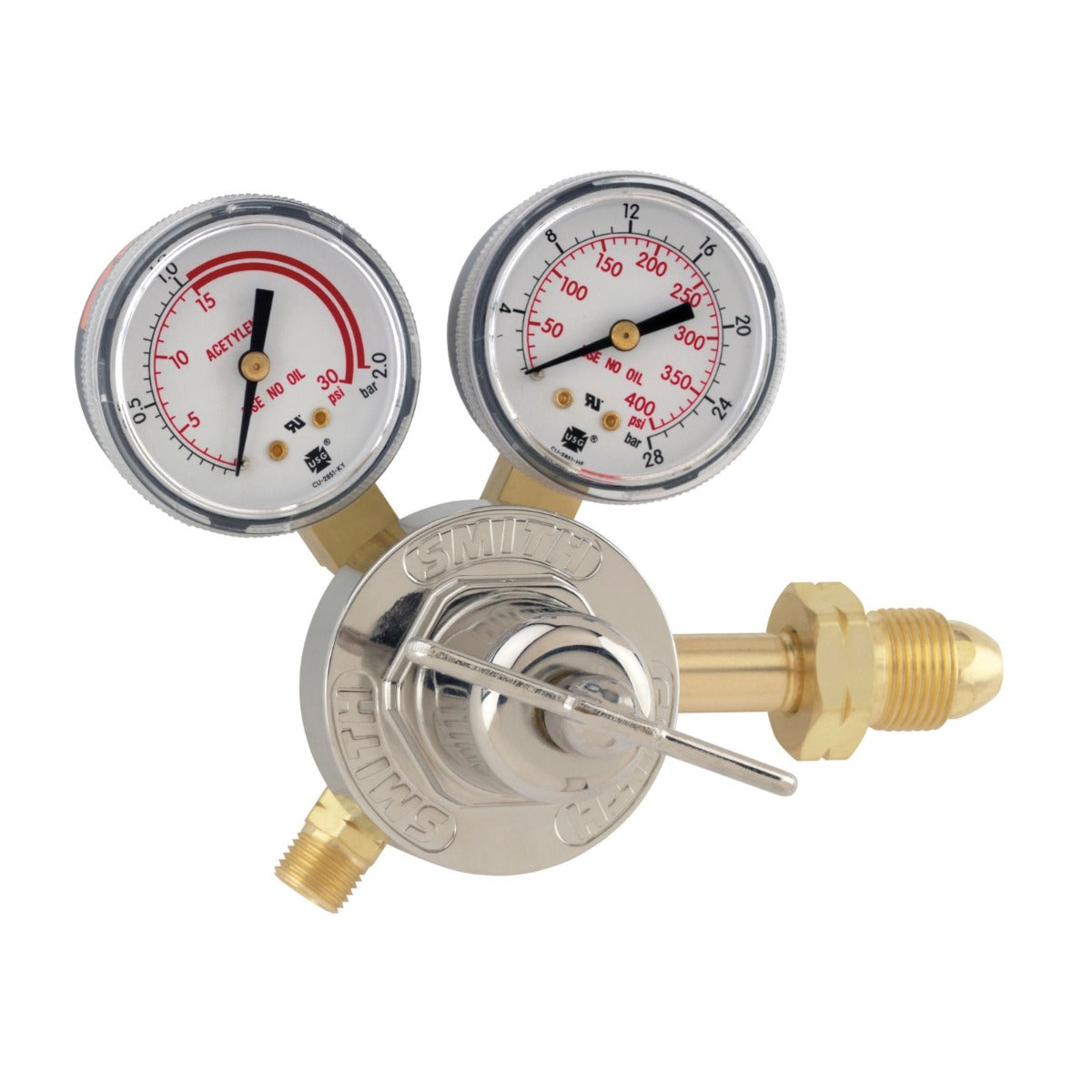

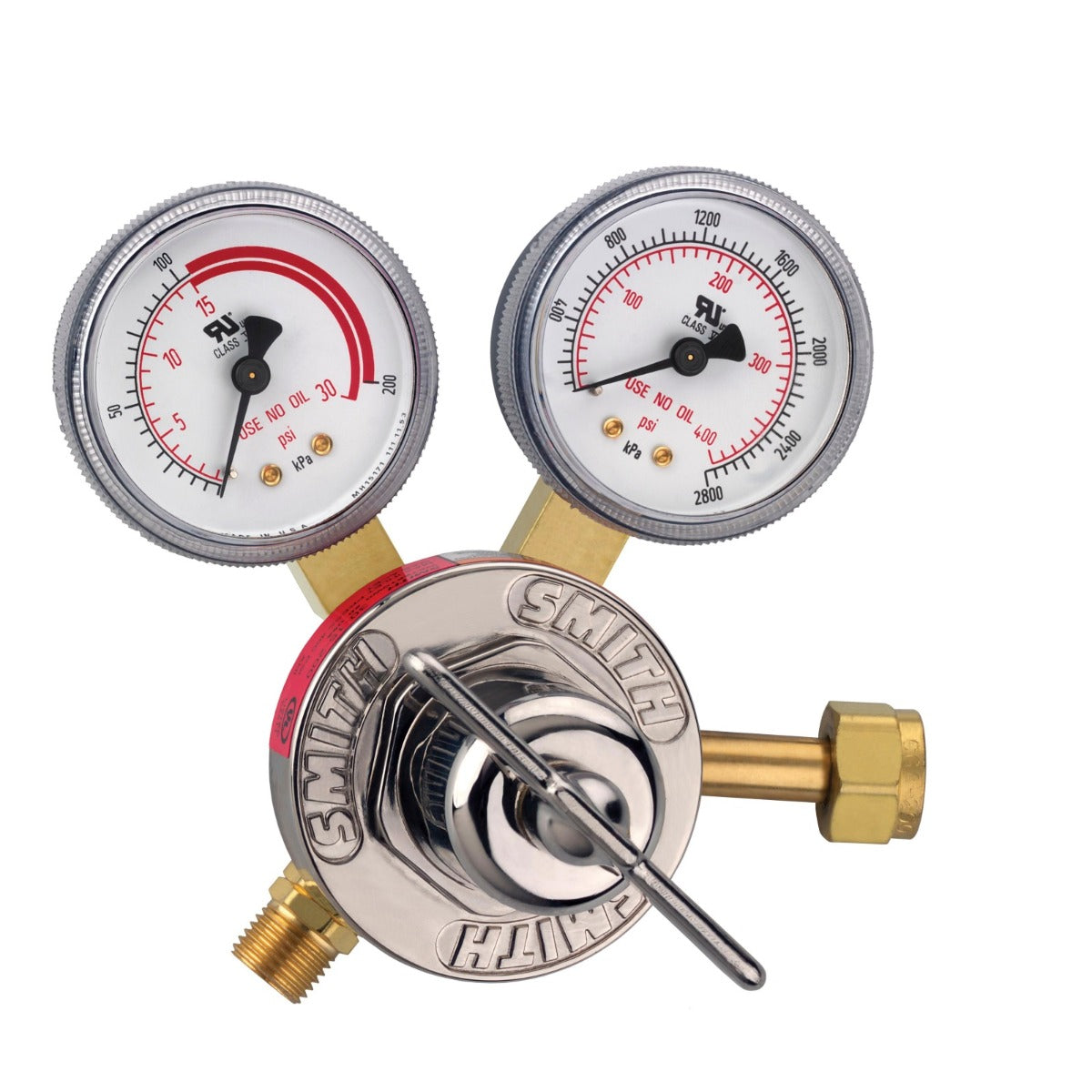

Miller | Smith MD Single Stage Series 30 Acetylene Regulator (30-15-XXX)

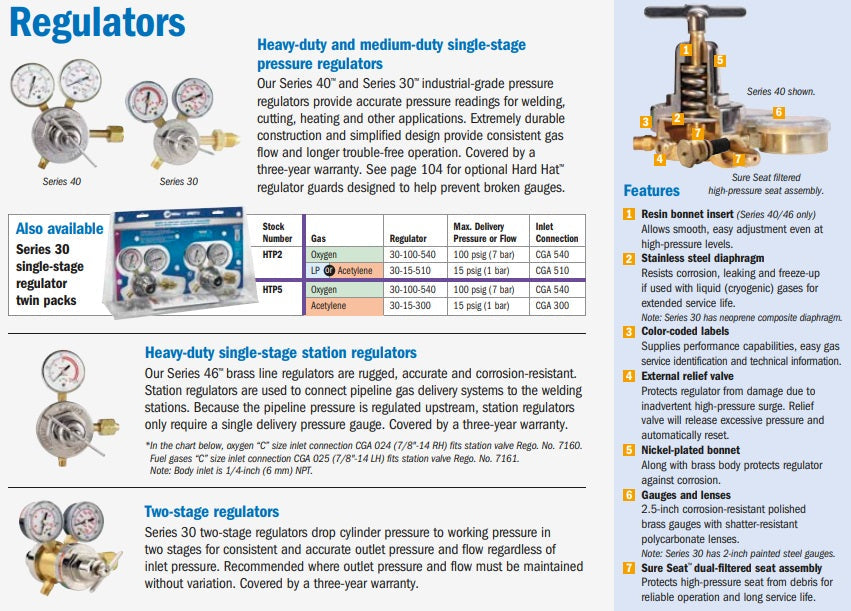

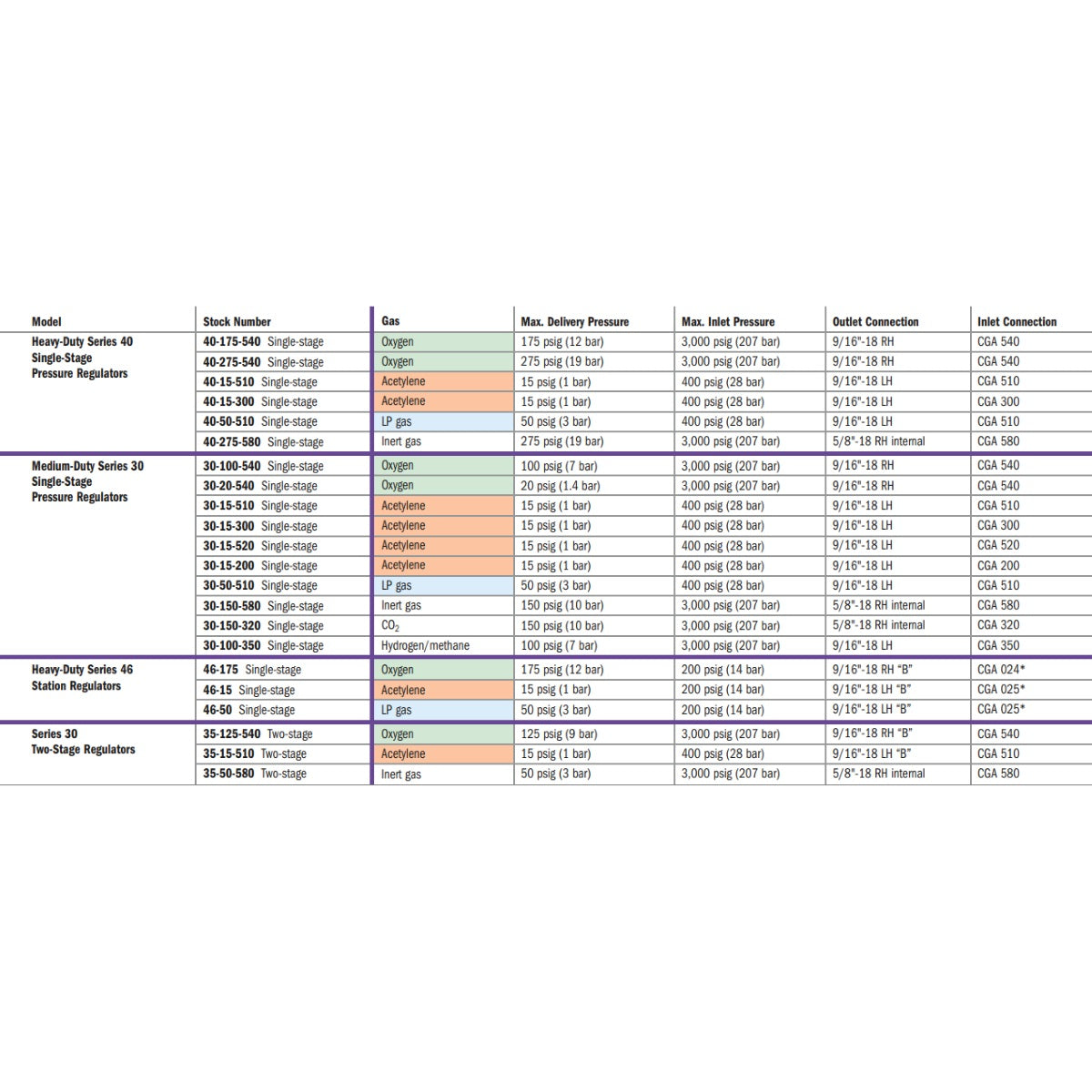

Download Product Spec Sheet
Select Size (Parts & Accessories):
Select Size (Parts & Accessories)
Lead time: 1-2 Weeks
Quantity:
The Miller Smith medium-duty series 30 regulators offer industrial grade quality, providing accurate pressure readings for welding, cutting, heating, and other applications. These regulators come with a 3-year warranty and provide consistent gas flow due to the durable construction.
Please choose your CGA connection. MC Tank -CGA 200 | B Tank - CGA 520 | 75CF and Larger - CGA 510 or 300
Optional Hard Hat Regulator Guards are sold separately (H195).
Features
• Stainless Steel Diaphragm - resists corrosion, leaking and freeze-up if used with liquid gases
• Color-Coded Labels - supplies performance capabilities, easy gas service, and identification
• External Relief Valve - protects regulator from damage due to inadvertent high-pressure surge
• Nickel-Plated Bonnet - along with brass body, these protect against corrosion
• Gauges and Lenses - 2.5 inch corrosion-resistant polished brass gauges with shatter-resistant lenses
• Sure Seat Dual-Filtered Seat Assembly - protects high-pressure seat from debris for reliable operation
Quick Specs
• Max Delivery Pressure: 15 PSI (1 Bar)
• Max Inlet Pressure: 400 PSI (28 Bar)
• Outlet Connection: 9/16"-18 LH
• CGA: 200, 300, 510, or 520
Please choose your CGA connection. MC Tank -CGA 200 | B Tank - CGA 520 | 75CF and Larger - CGA 510 or 300
Optional Hard Hat Regulator Guards are sold separately (H195).
Features
• Stainless Steel Diaphragm - resists corrosion, leaking and freeze-up if used with liquid gases
• Color-Coded Labels - supplies performance capabilities, easy gas service, and identification
• External Relief Valve - protects regulator from damage due to inadvertent high-pressure surge
• Nickel-Plated Bonnet - along with brass body, these protect against corrosion
• Gauges and Lenses - 2.5 inch corrosion-resistant polished brass gauges with shatter-resistant lenses
• Sure Seat Dual-Filtered Seat Assembly - protects high-pressure seat from debris for reliable operation
Quick Specs
• Max Delivery Pressure: 15 PSI (1 Bar)
• Max Inlet Pressure: 400 PSI (28 Bar)
• Outlet Connection: 9/16"-18 LH
• CGA: 200, 300, 510, or 520
| MPN: | MIL30-15-510 |
|---|
MPN: MIL30-15-510
