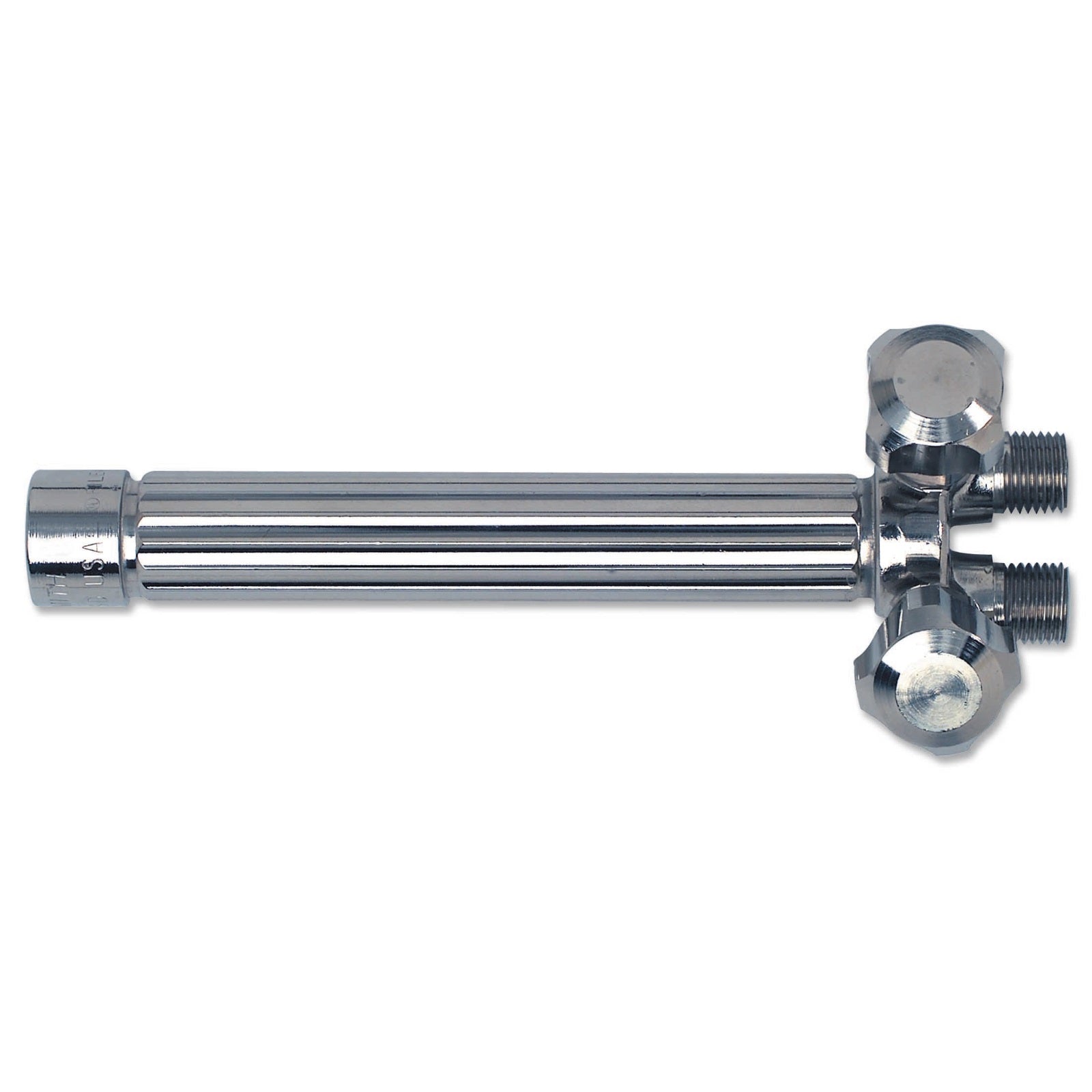

Miller | Smith Medium Duty Torch Handle (WH100)
Download Product Spec Sheet
Easy handling, high-quality mid-size torch handle. Handles all but the highest volume heating and heaviest welding needs. Features rugged silver-brazed construction, forged brass butt and precision machined brass head. Stainless steel ball-type valves reduce uneven valve wear and provide easy flame adjustment. “B”-size inlet connections are 9/16"-18 right and left hand. WH100 torch handle is covered by our lifetime warranty when used with authentic Miller | Smith tips.
Compatible Cutting Attachments
• MC505
• MC509
• DG109A
Compatible Tips
• Welding: MW200 and MW400 Series
• Heating: MT600 and MT800 Series
Valve Assembly Replacement
• LW17 (also for MW5 and MW5A)
Quick Specs
• Length: 7 inches (178 mm)
• Weight: 0.86 lb. (0.39 kg)
• Handle diameter: 15/16 inch (24 mm)
Compatible Cutting Attachments
• MC505
• MC509
• DG109A
Compatible Tips
• Welding: MW200 and MW400 Series
• Heating: MT600 and MT800 Series
Valve Assembly Replacement
• LW17 (also for MW5 and MW5A)
Quick Specs
• Length: 7 inches (178 mm)
• Weight: 0.86 lb. (0.39 kg)
• Handle diameter: 15/16 inch (24 mm)
| MPN: | MILWH100 |
|---|---|
| UPC: | 014495253001 |
