Miller Spectrum 625 X-Treme Plasma Cutter with 25 ft. Machine Torch (907579002)
Download Product Spec Sheet
This unit is no longer available.
The Miller Spectrum 625 X-Treme with 25 foot machine torch is rated at 5/8 inch cutting with a 50 percent duty cycle. The Spectrum 625 is lightweight (25 lbs with torch) and works off 120V or 240V power so you can easily transport this plasma unit to different jobsites.
Ultra-Quick Connect XT40 Torch
Connect and disconnect at your leisure. The old Spectrum's were hard-wired so the torch cable was subjected to added wear and tear and storage was a pain. The Ultra-Quick Connect solves that problem; allowing you to quickly disconnect the torch cable for easy storage.
Rated Cutting Capacity
The rated cutting capacity is based on traveling approximately 15 inches per minute to achieve a steady, precise cut. This is the key rating that should meet or exceed your typical cutting thickness requirements.
Auto-Line and MVP (multi-voltage plug)
Auto-Line provides state-of-the-art flexibility to the end user. The Auto-Line circuitry automatically connects to 120–240 VAC, single-phase power, 50/60 Hz, without removing the covers to relink the power source. Miller’s multi-voltage plug (MVP) allows connection to 120 or 240 V receptacles without tools—choose the plug that fits the receptacle and connect it to the power cord.
Automatic Air Regulation
The unit automatically compensates for input pressure variation to provide constant recommended torch pressure for optimum cutting performance.
Protective X-CASE
Miller's X-CASE provides ultimate protection during transport and storage. Additional space is ideal for MVP Plugs, consumable box, as well as gloves, eye protection, etc.
XT40 Torch
Ergonomic handle with unique no-slip grip, thumb guide and finger contours help prevent operator fatigue while the flexible cable makes maneuvering easy.
Auto-Refire Technology
Provides ultimate customer convenience by automatically controlling the pilot arc when cutting expanded metal or multiple pieces of metal. The pilot arc will switch in and out as fast as needed when cutting expanded metal and provides maximum power for cutting thicker metal—all automatically! No need for manual re-triggering which reduces user hand fatigue.
Portability
Portable in the shop or at the job site—at 23 lbs the shoulder strap allows the end user to easily move from location to location.
CNC/Automation Cutting Capable
Factory ready CNC/Automation included for CNC/Automation cutting - This control panel has built-in remote control cable receptacle for remote trigger, ok-to-move signal, and voltage sensing.
Includes
• Spectrum 625 Plasma Cutter
• 25ft XT40M Long Body Machine Torch
• Heavy-Duty Work Clamp with 20ft Cable
• X-Case Carrying Case
• 12ft Power Cord
• 120V and 240V MVP Plugs
• Shoulder Strap
• 20ft Automation Control Cable
• Consumables Storage Box with 2 Electrodes | 2 40A Tips | 1 30A Tip | 1 Deflector
The Miller Spectrum 625 X-Treme with 25 foot machine torch is rated at 5/8 inch cutting with a 50 percent duty cycle. The Spectrum 625 is lightweight (25 lbs with torch) and works off 120V or 240V power so you can easily transport this plasma unit to different jobsites.
Ultra-Quick Connect XT40 Torch
Connect and disconnect at your leisure. The old Spectrum's were hard-wired so the torch cable was subjected to added wear and tear and storage was a pain. The Ultra-Quick Connect solves that problem; allowing you to quickly disconnect the torch cable for easy storage.
Rated Cutting Capacity
The rated cutting capacity is based on traveling approximately 15 inches per minute to achieve a steady, precise cut. This is the key rating that should meet or exceed your typical cutting thickness requirements.
Auto-Line and MVP (multi-voltage plug)
Auto-Line provides state-of-the-art flexibility to the end user. The Auto-Line circuitry automatically connects to 120–240 VAC, single-phase power, 50/60 Hz, without removing the covers to relink the power source. Miller’s multi-voltage plug (MVP) allows connection to 120 or 240 V receptacles without tools—choose the plug that fits the receptacle and connect it to the power cord.
Automatic Air Regulation
The unit automatically compensates for input pressure variation to provide constant recommended torch pressure for optimum cutting performance.
Protective X-CASE
Miller's X-CASE provides ultimate protection during transport and storage. Additional space is ideal for MVP Plugs, consumable box, as well as gloves, eye protection, etc.
XT40 Torch
Ergonomic handle with unique no-slip grip, thumb guide and finger contours help prevent operator fatigue while the flexible cable makes maneuvering easy.
Auto-Refire Technology
Provides ultimate customer convenience by automatically controlling the pilot arc when cutting expanded metal or multiple pieces of metal. The pilot arc will switch in and out as fast as needed when cutting expanded metal and provides maximum power for cutting thicker metal—all automatically! No need for manual re-triggering which reduces user hand fatigue.
Portability
Portable in the shop or at the job site—at 23 lbs the shoulder strap allows the end user to easily move from location to location.
CNC/Automation Cutting Capable
Factory ready CNC/Automation included for CNC/Automation cutting - This control panel has built-in remote control cable receptacle for remote trigger, ok-to-move signal, and voltage sensing.
Includes
• Spectrum 625 Plasma Cutter
• 25ft XT40M Long Body Machine Torch
• Heavy-Duty Work Clamp with 20ft Cable
• X-Case Carrying Case
• 12ft Power Cord
• 120V and 240V MVP Plugs
• Shoulder Strap
• 20ft Automation Control Cable
• Consumables Storage Box with 2 Electrodes | 2 40A Tips | 1 30A Tip | 1 Deflector
| MPN: | MIL907579002 |
|---|---|
| UPC: | 715959601696 |
| Rated Output | 120 (15 A): 20 A at 88 VDC, 60% duty cycle; 120 V (20 A) 27 A at 91 VDC, 35% duty cycle; 240 V: 40 A at 140 VDC, 60% duty cycle |
| Weight | 21 lbs |
| Warranty | 3 Years Miller's True Blue Warranty |

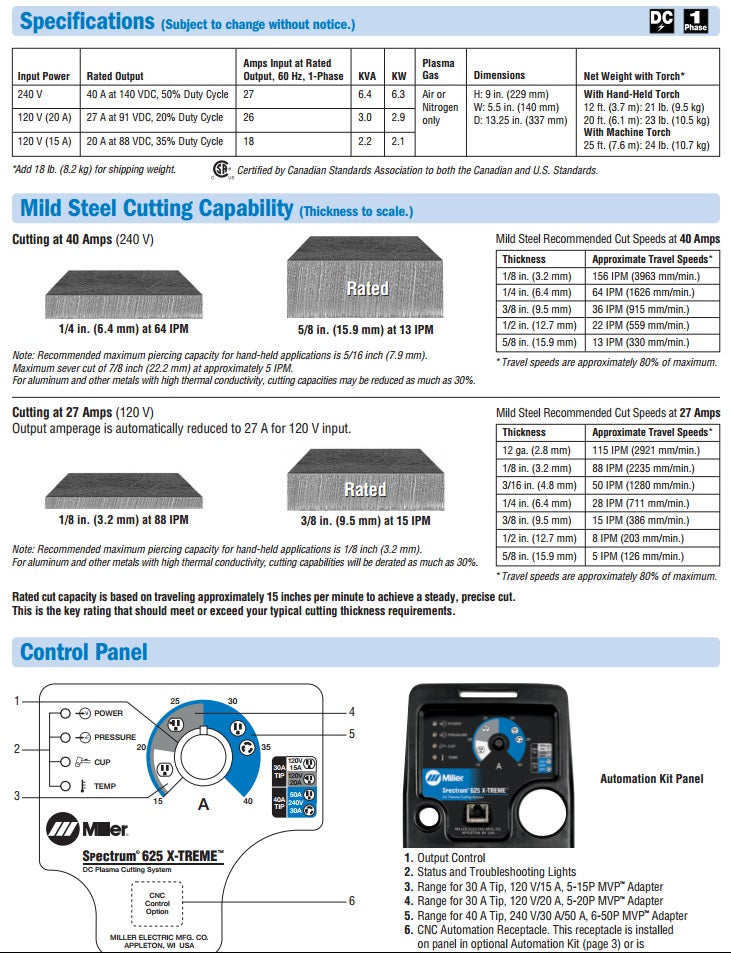

Download Product Spec SheetBrands you trust at prices you can afford!
