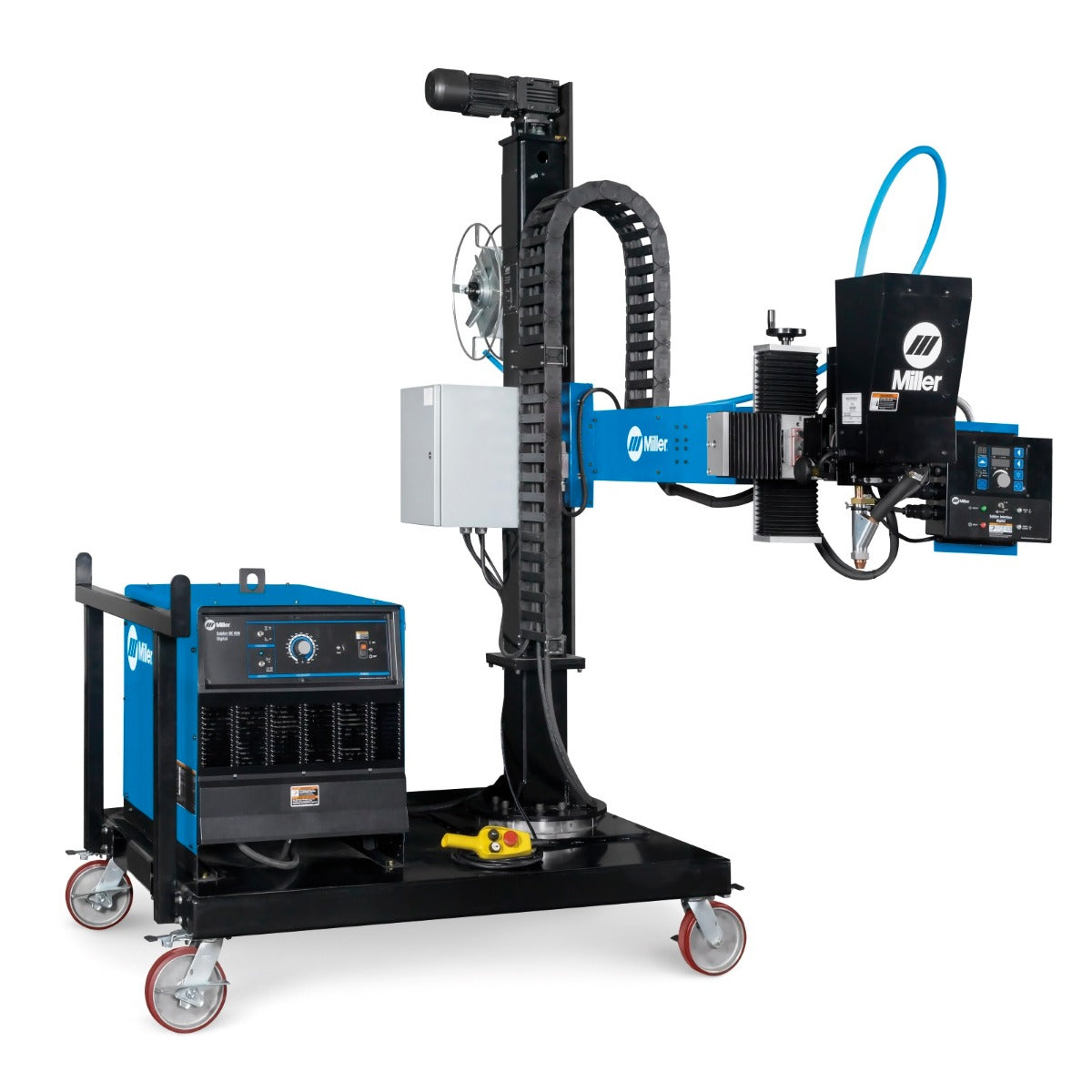

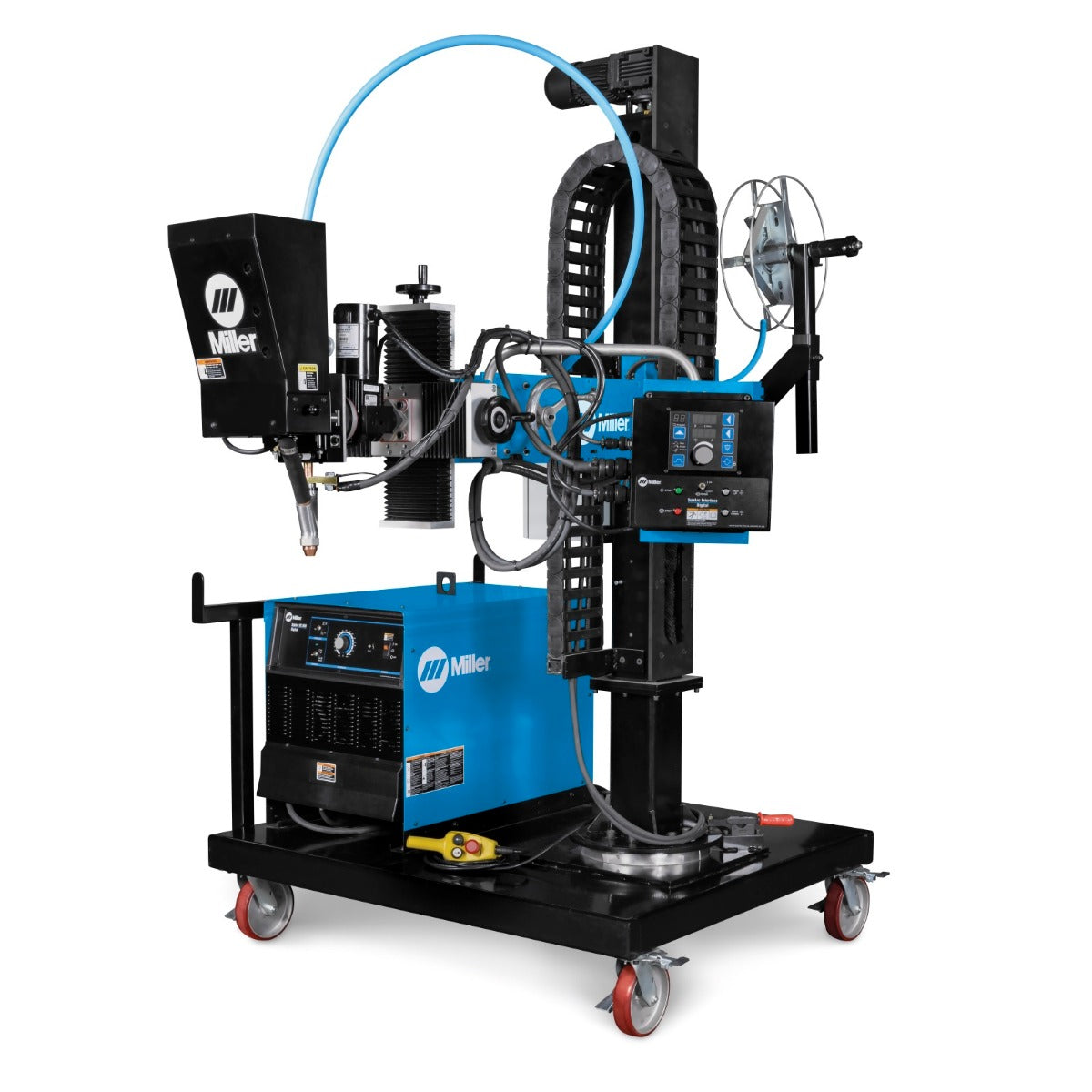

Miller SubArc DC 650 Portable Welding System (951675)

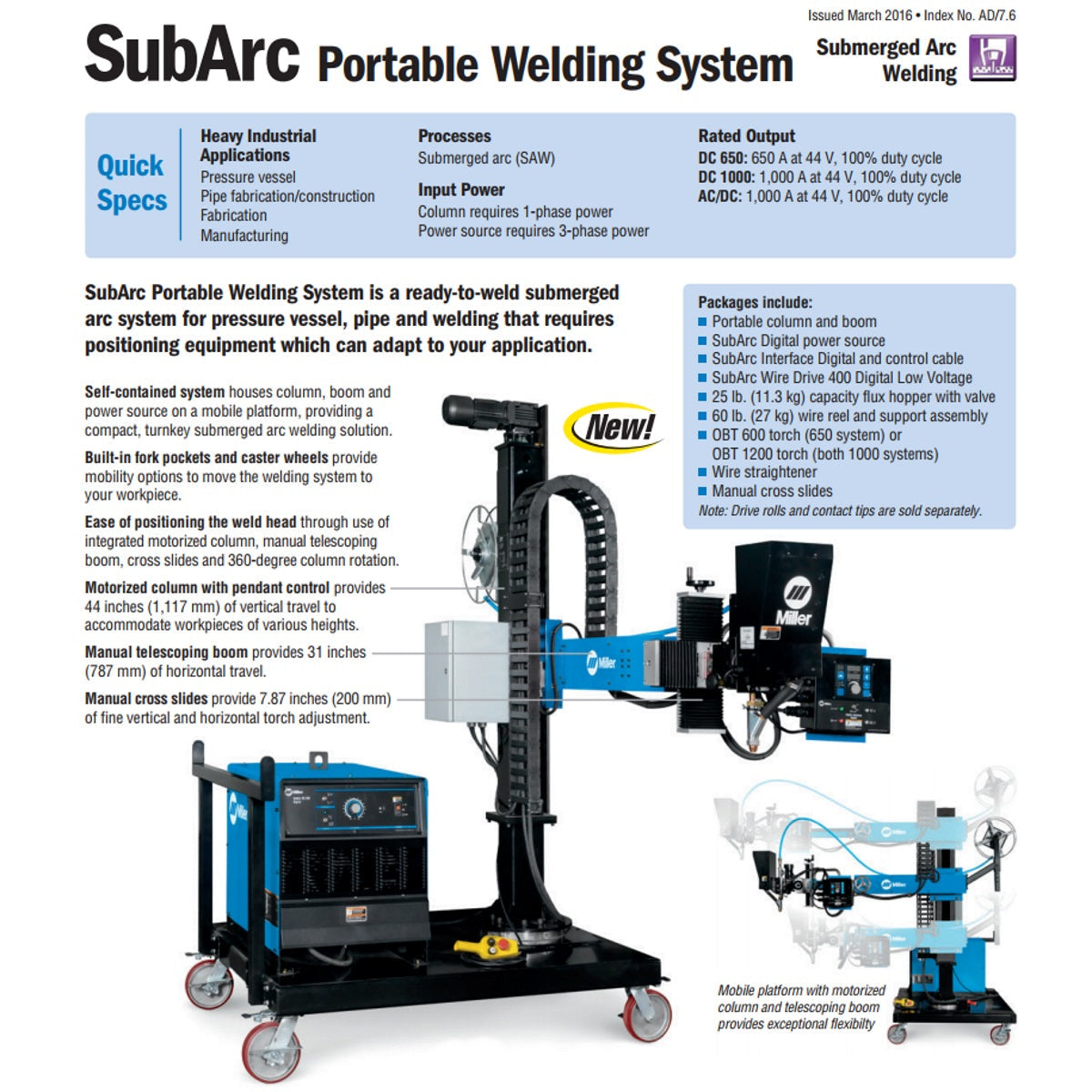

The Miller Subarc DC 650 Digital Portable welding system offers the mobility needed for shipbuilding and pipe applications. The self contained system houses column, boom, and power source on a mobile platform.
Features
• Digital process control technology
• Highly reliable thyristor power regulation
• Digital control improve performance and integration
• Standard Modbus connection
• Thermal overload protection
• Line voltage compensation
• Fan-on demand

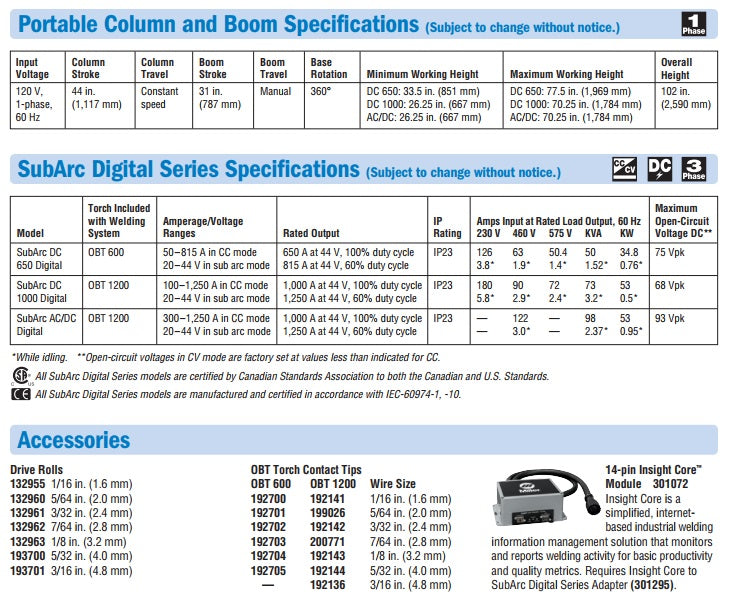

Quick Specs
• 3-Phase Only
• Amperage Range: 50-815A in CC mode
• Rated Output: 650A @ 44V, 100% Duty Cycle
• Amperage Draw for Power Source: 126A @ 230V | 63A @ 460V | 51A @ 575V
• Column Stroke: 44 in
• Column Travel: Constant Speed
• Boom Stroke: 31 in
• Boom Travel: Manual
• Base Rotation: 360°
• Minimum Working Height: 33.5 in
• Maximum Working Height: 77.5 in
• Overall Height: 102 in
• Weight: 2050 lbs
Includes
• Portable column and boom
• SubArc DC 650 Digital power source
• SubArc interface digital and control cable
• SubArc wire drive 400 digital low voltage
• 25lb capacity flux hopper with valve
• 60lb wire reel and support assembly
• OB 600 torch
• Wire straightener
• Manual cross slides
Drive Rolls and Contact Tips are sold Separately
Features
• Digital process control technology
• Highly reliable thyristor power regulation
• Digital control improve performance and integration
• Standard Modbus connection
• Thermal overload protection
• Line voltage compensation
• Fan-on demand
Quick Specs
• 3-Phase Only
• Amperage Range: 50-815A in CC mode
• Rated Output: 650A @ 44V, 100% Duty Cycle
• Amperage Draw for Power Source: 126A @ 230V | 63A @ 460V | 51A @ 575V
• Column Stroke: 44 in
• Column Travel: Constant Speed
• Boom Stroke: 31 in
• Boom Travel: Manual
• Base Rotation: 360°
• Minimum Working Height: 33.5 in
• Maximum Working Height: 77.5 in
• Overall Height: 102 in
• Weight: 2050 lbs
Includes
• Portable column and boom
• SubArc DC 650 Digital power source
• SubArc interface digital and control cable
• SubArc wire drive 400 digital low voltage
• 25lb capacity flux hopper with valve
• 60lb wire reel and support assembly
• OB 600 torch
• Wire straightener
• Manual cross slides
Drive Rolls and Contact Tips are sold Separately
| MPN: | MIL951675 |
|---|---|
| UPC: | 715959636216 |
| Processes | Submerged arc (SAW) |
| Input Voltage | Column requires 1-phase power Power source requires 3-phase power |
| Input Phase | DC |
| Rated Output | 650 A at 44 V, 100% duty cycle |
| Warranty | True Blue Warranty |
MPN: MIL951675
UPC: 715959636216
