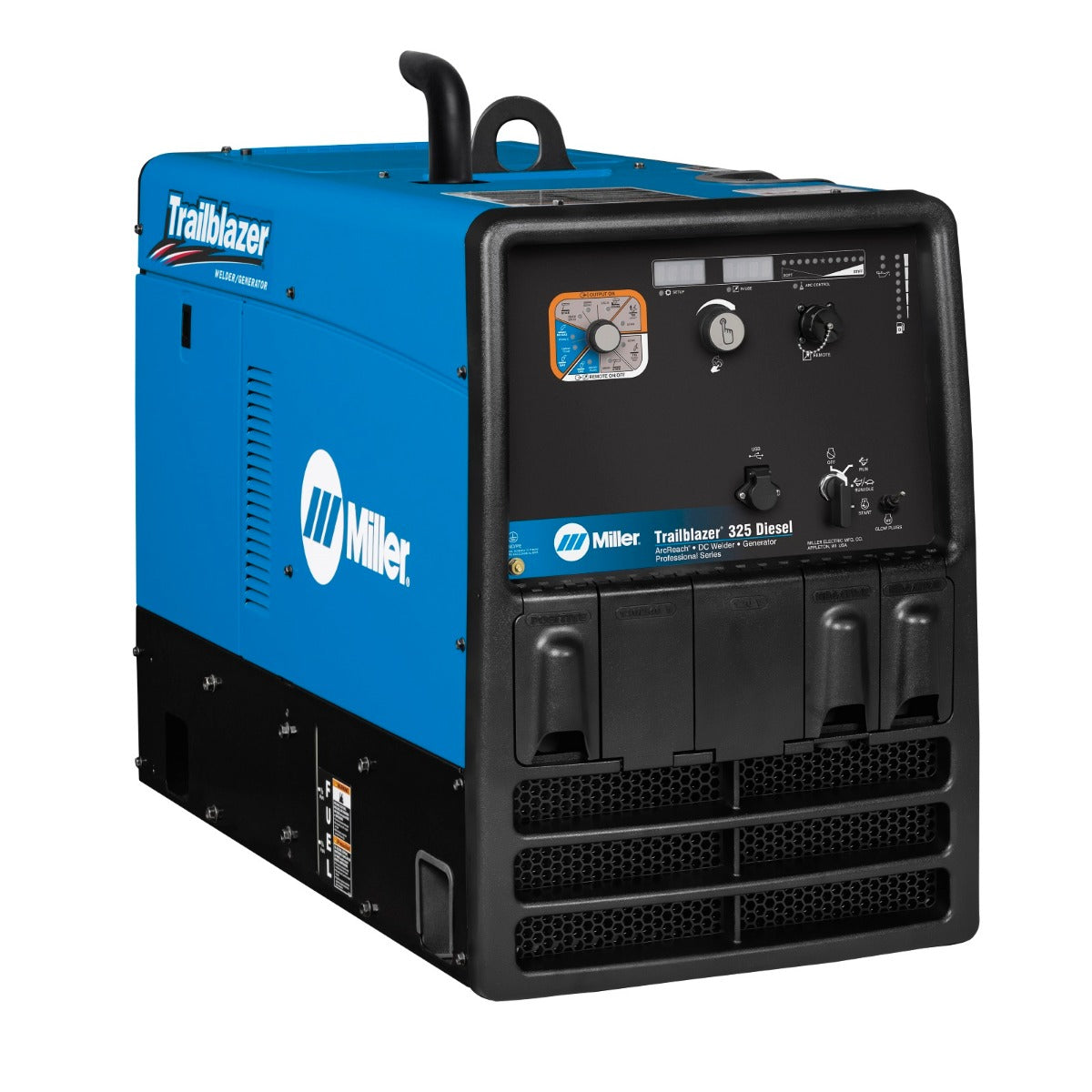

Miller Trailblazer 325 Diesel w/ArcReach, Excel Power, GFCI (907755003)
Miller has discontinued this particular model. The suggested replacements are 907799001 and 907799002.
The Miller 907755003 Trailblazer 325 Kubota diesel engine drive delivers unbeatable arc performance with 325 amps and 12,000 watt peak output. The trailblazers offer an exclusive "Auto-Speed" technology whereby the generator responds to weld requirements by automatically adjusting engine speed to one of four rpm levels so the engine never works harder than necessary.
Excel Power Benefits
• Full 2,400 Watts (20A) of 120-Volt Inverter Based Sine Wave Power at All Speeds
• Operate Jobsite Tools like Grinders at Quiet, Fuel-Saving Speeds
• Up to 52% More Fuel Efficient
• Annual Fuel Savings of Roughly $570 over Competitive Models
ArcReach Benefits (Must be Paired with an ArcReach Compatible Device)
• Remote Control of the Power Source Without a Cord
• Allows User to Change Weld Settings at the Feeder
• Eliminates the Need for Control Cords and Their Associated Costs
Features
• Auto-Speed Technology - Matches Engine Speed to Weld Load
• Excel Power (Optional) - Full 2,400 Watts of 120V Inverter Based Sine Wave Power at All Speed, Including Idle
• ArcReach Technology (Optional) - Remote Control of the Power Source/Feeder Without a Control Cord
• More Portable - Trailblazers are up to 24 Percent Smaller and 10 Percent Lighter than Competitive Machines
• Cleaner and Stronger - 25 HP Kubota Diesel Engine and 12,000 Watts of Accu-Rated Generator Power
Quick Specs
• Processes: Stick, MIG, Flux-Cored, DC TIG, Air Carbon Arc
• Output Range: 30-325A DC Stick | 10-35V MIG | 10-325A DC TIG
• Generator Output: 12,000W Peak | 10,500W Continuous
• Sound Levels: 75 dB @ 150A Load | 81.5 dB @ 325A Load
• Dimensions: 28" H x 20" W x 45.4" L
• Weight: 620 lbs
• Engine: Kubota D902 Diesel (2 Year Warranty)
• Horsepower: 24.8 @ 3,600 RPM
• Fuel Capacity: 12 Gallons
The Miller 907755003 Trailblazer 325 Kubota diesel engine drive delivers unbeatable arc performance with 325 amps and 12,000 watt peak output. The trailblazers offer an exclusive "Auto-Speed" technology whereby the generator responds to weld requirements by automatically adjusting engine speed to one of four rpm levels so the engine never works harder than necessary.
Excel Power Benefits
• Full 2,400 Watts (20A) of 120-Volt Inverter Based Sine Wave Power at All Speeds
• Operate Jobsite Tools like Grinders at Quiet, Fuel-Saving Speeds
• Up to 52% More Fuel Efficient
• Annual Fuel Savings of Roughly $570 over Competitive Models
ArcReach Benefits (Must be Paired with an ArcReach Compatible Device)
• Remote Control of the Power Source Without a Cord
• Allows User to Change Weld Settings at the Feeder
• Eliminates the Need for Control Cords and Their Associated Costs
Features
• Auto-Speed Technology - Matches Engine Speed to Weld Load
• Excel Power (Optional) - Full 2,400 Watts of 120V Inverter Based Sine Wave Power at All Speed, Including Idle
• ArcReach Technology (Optional) - Remote Control of the Power Source/Feeder Without a Control Cord
• More Portable - Trailblazers are up to 24 Percent Smaller and 10 Percent Lighter than Competitive Machines
• Cleaner and Stronger - 25 HP Kubota Diesel Engine and 12,000 Watts of Accu-Rated Generator Power
Quick Specs
• Processes: Stick, MIG, Flux-Cored, DC TIG, Air Carbon Arc
• Output Range: 30-325A DC Stick | 10-35V MIG | 10-325A DC TIG
• Generator Output: 12,000W Peak | 10,500W Continuous
• Sound Levels: 75 dB @ 150A Load | 81.5 dB @ 325A Load
• Dimensions: 28" H x 20" W x 45.4" L
• Weight: 620 lbs
• Engine: Kubota D902 Diesel (2 Year Warranty)
• Horsepower: 24.8 @ 3,600 RPM
• Fuel Capacity: 12 Gallons
| MPN: | MIL907755003 |
|---|---|
| UPC: | 715959657617 |
MPN: MIL907755003
UPC: 715959657617
