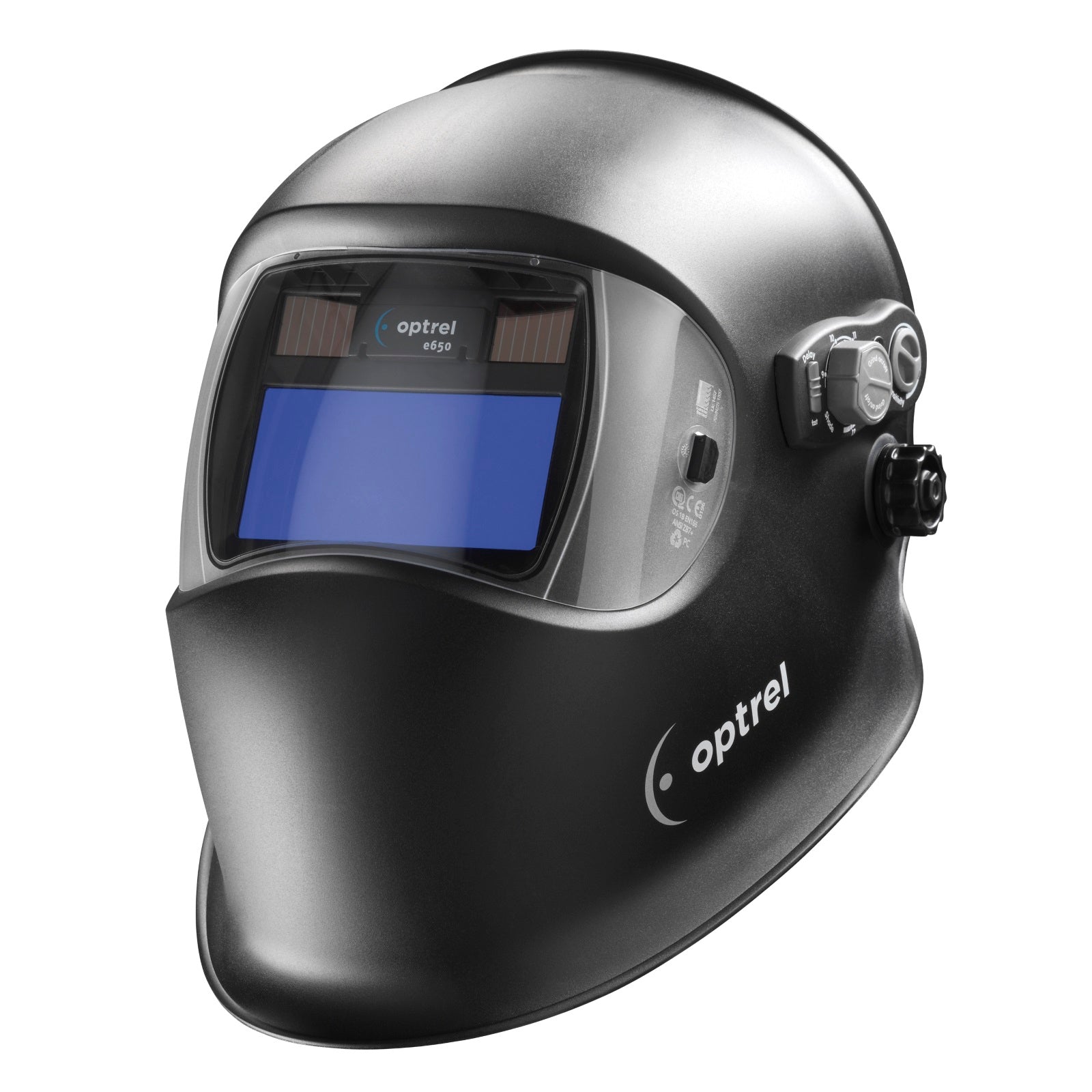

Optrel e650 Series Black Helmet (1006.300)
The Optrel e650 Series Black Helmet (1006.300) combines high-performance with comfortable protection in an affordable package. Ideal for most welding processes, you'll appreciate the continuously variable sensitivity control and delay function, enabling you to customize your settings based on your specific welding applications.

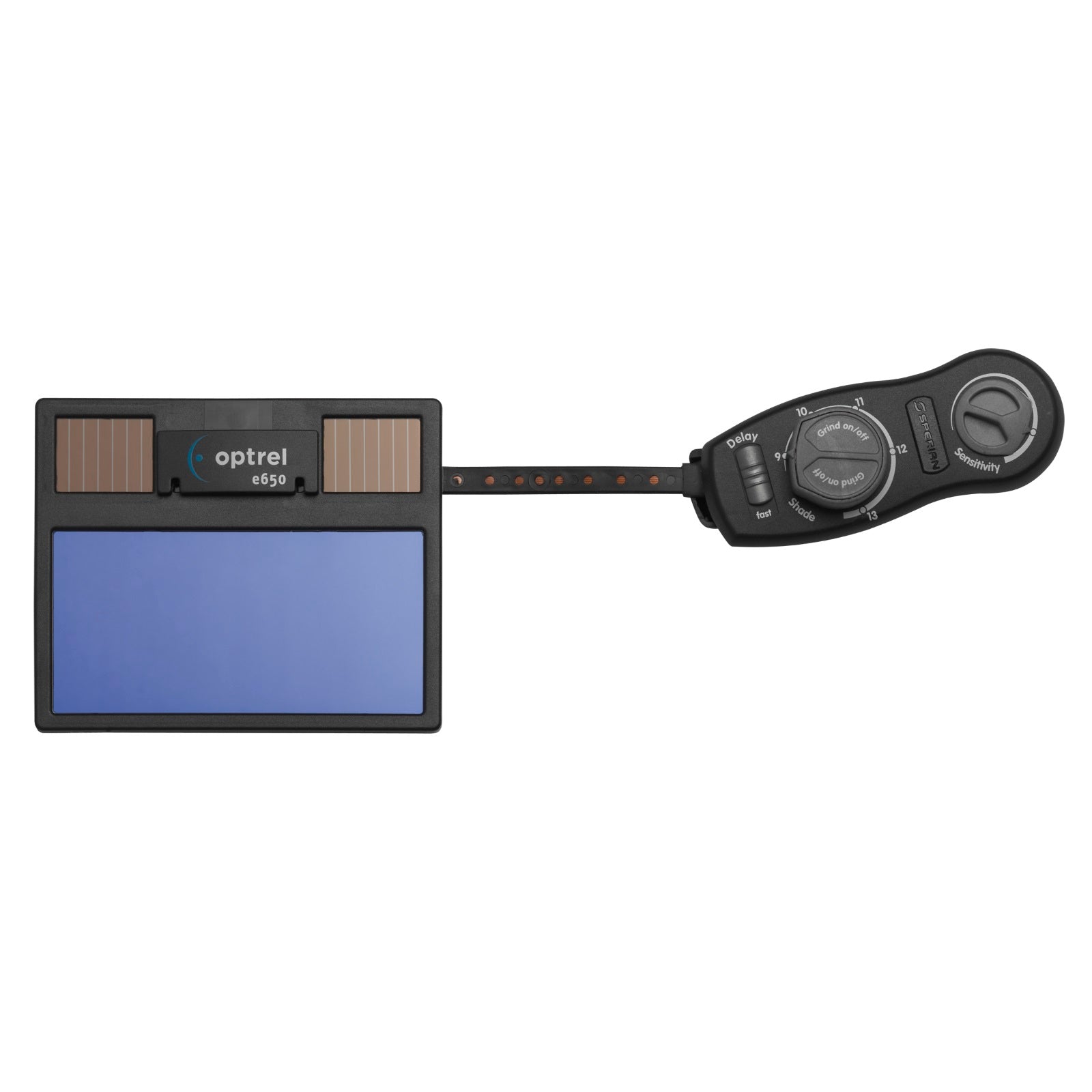

• Sensitivity Control – Welders working in close proximity to one another can adjust the Sensitivity of their ADF, preventing it from responding too soon or not at all to their arc flash. This can also be used when welding at low amperages and the ADF does not darken.
• Opening Delay – The Opening Delay function allows welders to adjust the time it takes to switch from dark to light, making the transition easier on the eyes.
• Sensor Slide – optrel’s patented Sensor Slide allows the detection angle to be reduced from 120 degrees to 60 degrees, preventing the ADF from responding to nearby welders’ arcs.
• Overhead Welding – The optrel expert line’s curved helmet design deflects smoke, particles, and other debris when performing overhead welding.
• Respiratory Protection – Available with e3000 powered air purifying respirator
• Multi-Purpose Use – Appropriate for grinding and overhead welding
• Shade Level – DIN 4/9-13
• Grind Mode – DIN 4
• Power – Solar Cells and 2 CR2032 Batteries
• Sensitivity Control – Welders working in close proximity to one another can adjust the Sensitivity of their ADF, preventing it from responding too soon or not at all to their arc flash. This can also be used when welding at low amperages and the ADF does not darken.
• Opening Delay – The Opening Delay function allows welders to adjust the time it takes to switch from dark to light, making the transition easier on the eyes.
• Sensor Slide – optrel’s patented Sensor Slide allows the detection angle to be reduced from 120 degrees to 60 degrees, preventing the ADF from responding to nearby welders’ arcs.
• Overhead Welding – The optrel expert line’s curved helmet design deflects smoke, particles, and other debris when performing overhead welding.
• Respiratory Protection – Available with e3000 powered air purifying respirator
• Multi-Purpose Use – Appropriate for grinding and overhead welding
• Shade Level – DIN 4/9-13
• Grind Mode – DIN 4
• Power – Solar Cells and 2 CR2032 Batteries
| MPN: | OPT1006.300 |
|---|---|
| UPC: | 640127610251 |
| Warranty | 2 years with additional 1 year warranty extension (excluding battery) if the product is registered within the first 6 months: |
| Delay Control | Switching time light to dark 0.170 ms at room temperature, 0.110 ms at 55 °C Switching time dark to light 0.1 – 2.0 s with patented twilight function |
| Digital | maximum UV- & IR-protection on all shade levels |
| Grind Mode | Optical Class: 1 Stray Light Class: 1 Homogeneity Class: 1 Angle Dependency Class: 1 |
| Modes | solar cells and 2 batteries, exchangeable |
| Reaction Time | Switching time light to dark 0.170 ms at room temperature, 0.110 ms at 55 °C Switching time dark to light 0.1 – 2.0 s with patented twilight function |
| Sensitivity Control | maximum UV- & IR-protection on all shade levels |
| Viewing Field | 90 x 110 x 7 mm / 50 x 100 mm |
MPN: OPT1006.300
UPC: 640127610251
