Steelmax 115V D1-Auto Semi-Automatic Magnetic Drill (SM-D1 Auto)
Download Product Spec Sheet

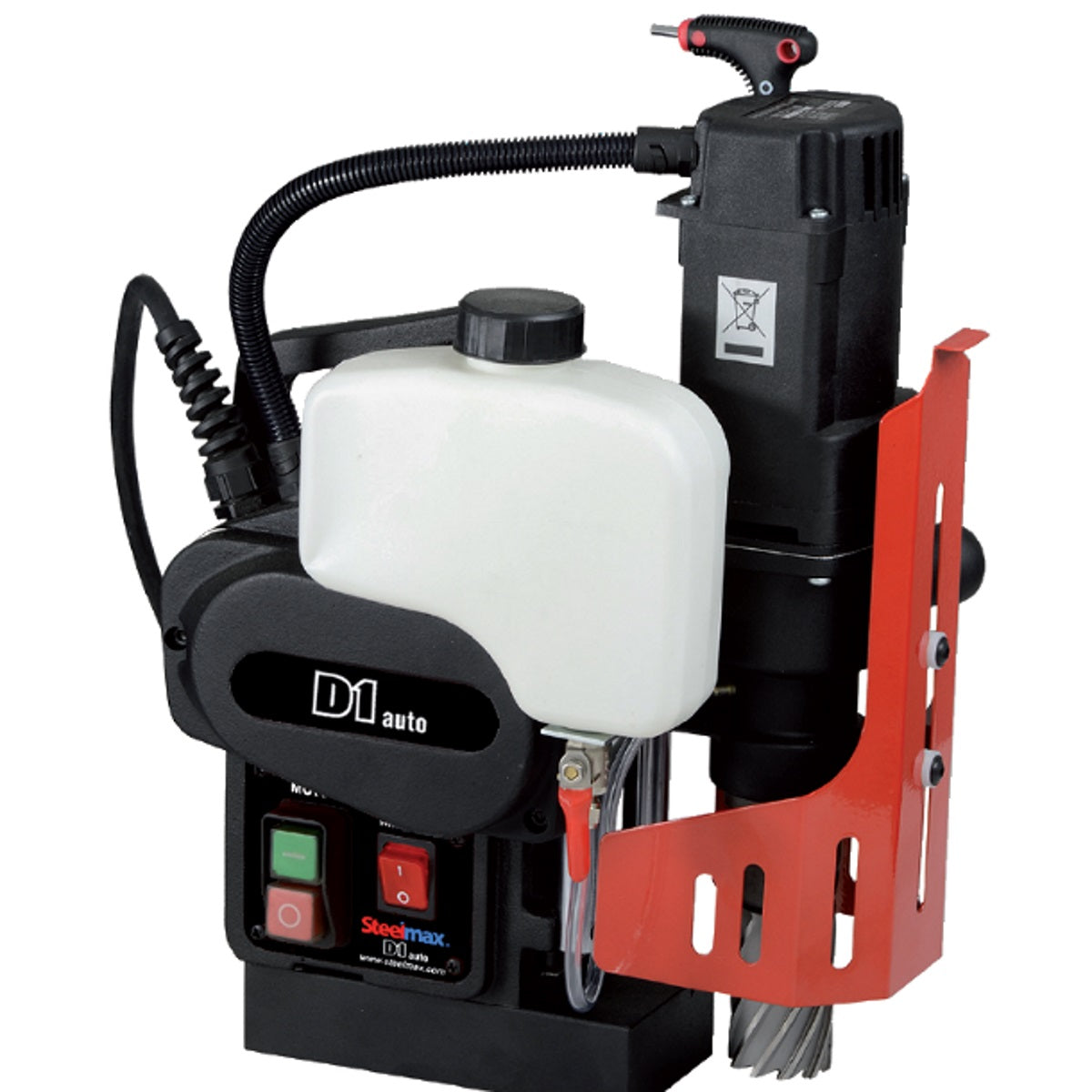

The Steelmax D1 Auto is an ultra-compact magnetic drilling machine with maximum capacity of 1-3/8" diameter in 2" thick material. The D1's ultra-light weight of 30 lbs is the lowest in its class. The maintenance free rail guide system minimizes run-out, maintains accuracy and reduces cutter breakage.
The D1 Auto's auto-feed mechanism is activated by pushing the handles in - creating more operator efficiency. The auto-feed control stops the machine when drilling is complete. The D1 Auto has a Magnetic Power Adhesion Control (MPAC) system which prevents drilling when the electromagnetic holding force is not sufficient. This unit is equipped with an overload control which stops both cutting and feeding motors immediately.
Annual Cutters are Not Included and Must be Ordered Separately. They can be found under the accessories tab.
Features
• 1-3/8" (36mm) Diameter X 2" (51mm) Depth of Cut
• Light Weight: 30 Lbs
• Adjustable Cutter Guard
• Through Spindle Coolant System with Removable Reservoir
• Maintenance Free Rail Guide System
• Safe Magnet Circuitry Recognizes Magnetic Holding Power
• Automatic Slug Ejection System
• Magnet uses Only 50% Power When Not Under Load
• Designed for Easy Field Service and Repair
• All Aluminum Parts are Heat Treated for Rigidity
The D1 Auto's auto-feed mechanism is activated by pushing the handles in - creating more operator efficiency. The auto-feed control stops the machine when drilling is complete. The D1 Auto has a Magnetic Power Adhesion Control (MPAC) system which prevents drilling when the electromagnetic holding force is not sufficient. This unit is equipped with an overload control which stops both cutting and feeding motors immediately.
Annual Cutters are Not Included and Must be Ordered Separately. They can be found under the accessories tab.
Features
• 1-3/8" (36mm) Diameter X 2" (51mm) Depth of Cut
• Light Weight: 30 Lbs
• Adjustable Cutter Guard
• Through Spindle Coolant System with Removable Reservoir
• Maintenance Free Rail Guide System
• Safe Magnet Circuitry Recognizes Magnetic Holding Power
• Automatic Slug Ejection System
• Magnet uses Only 50% Power When Not Under Load
• Designed for Easy Field Service and Repair
• All Aluminum Parts are Heat Treated for Rigidity
| MPN: | SMT-SM-D1 Auto |
|---|---|
| UPC: | 00848118001829 |
