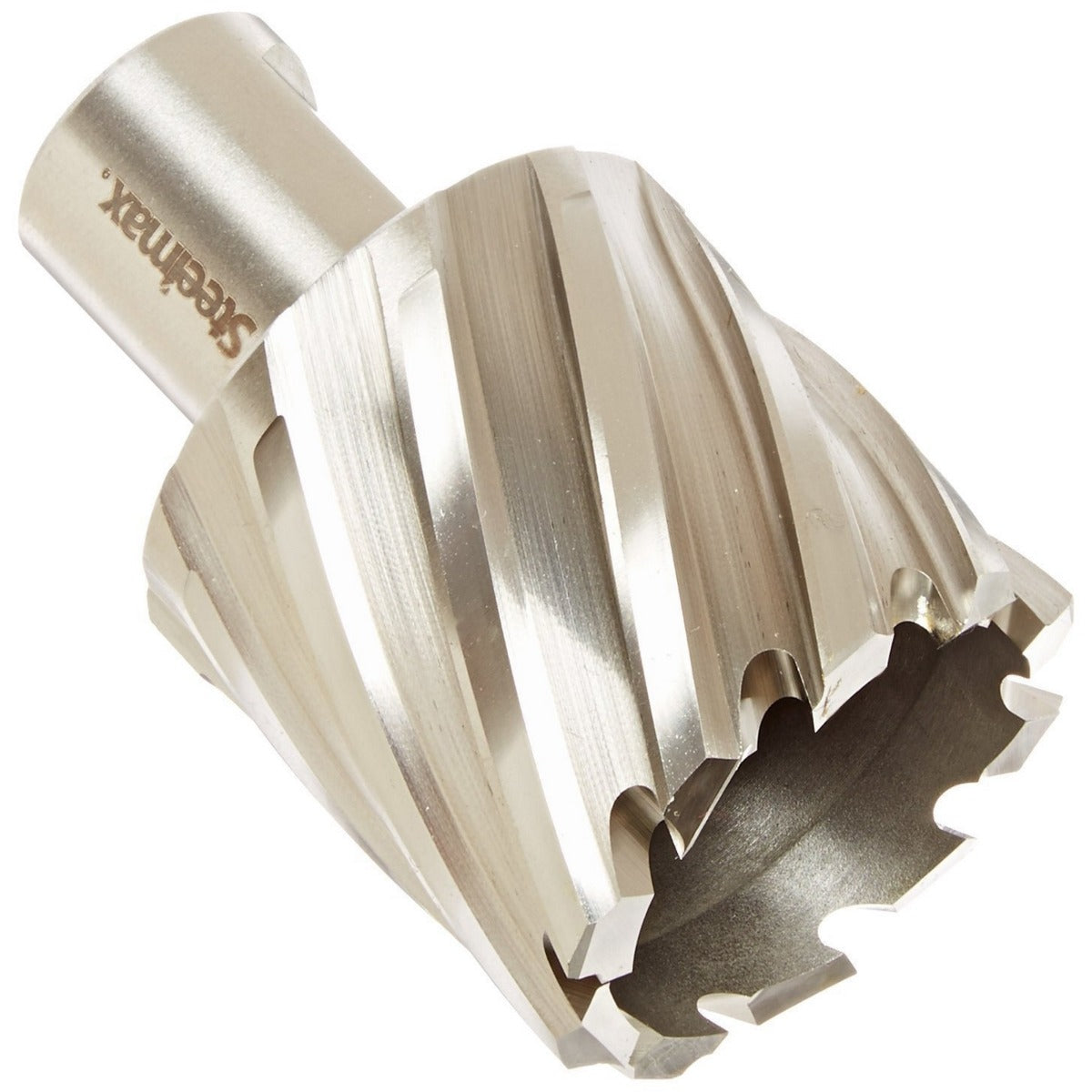

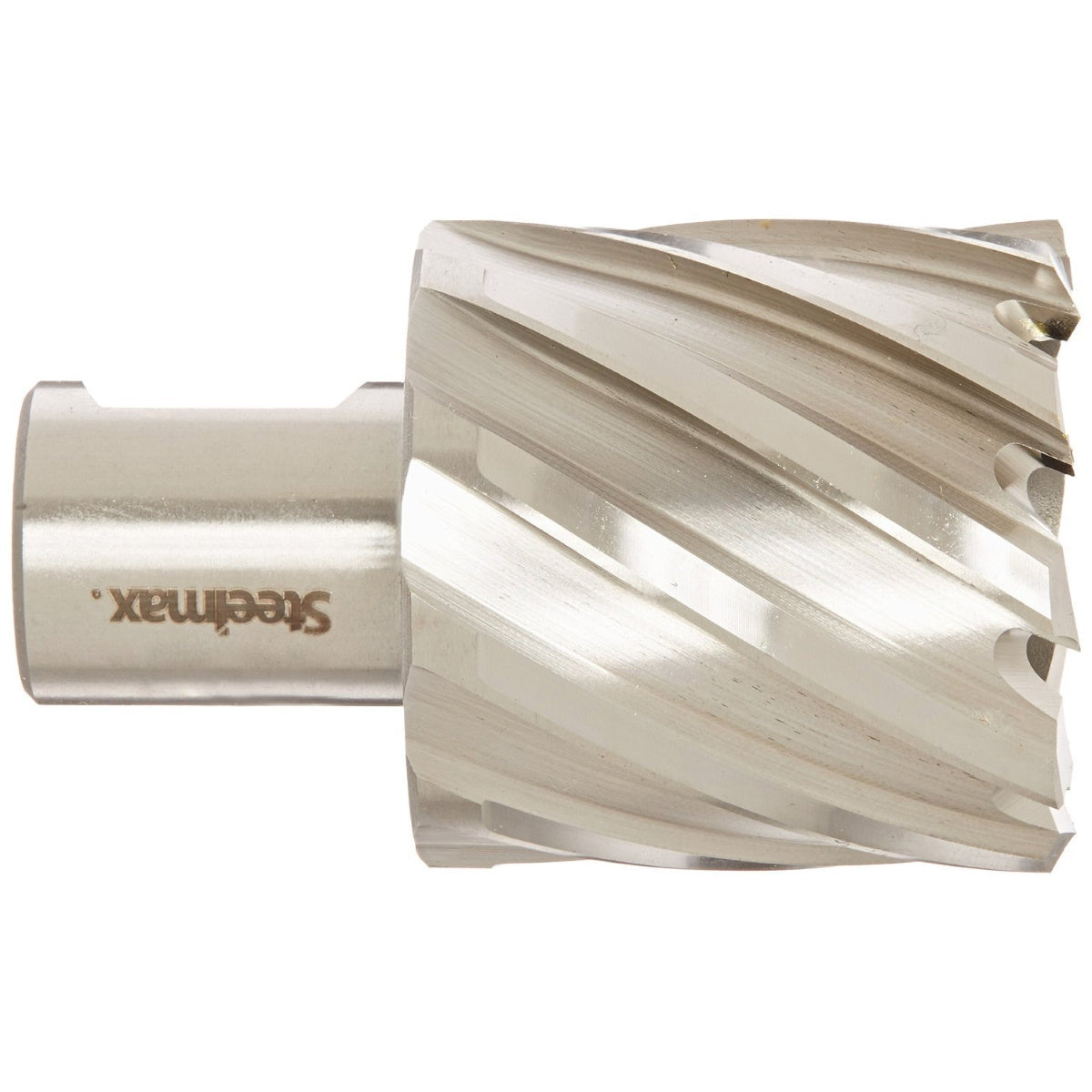

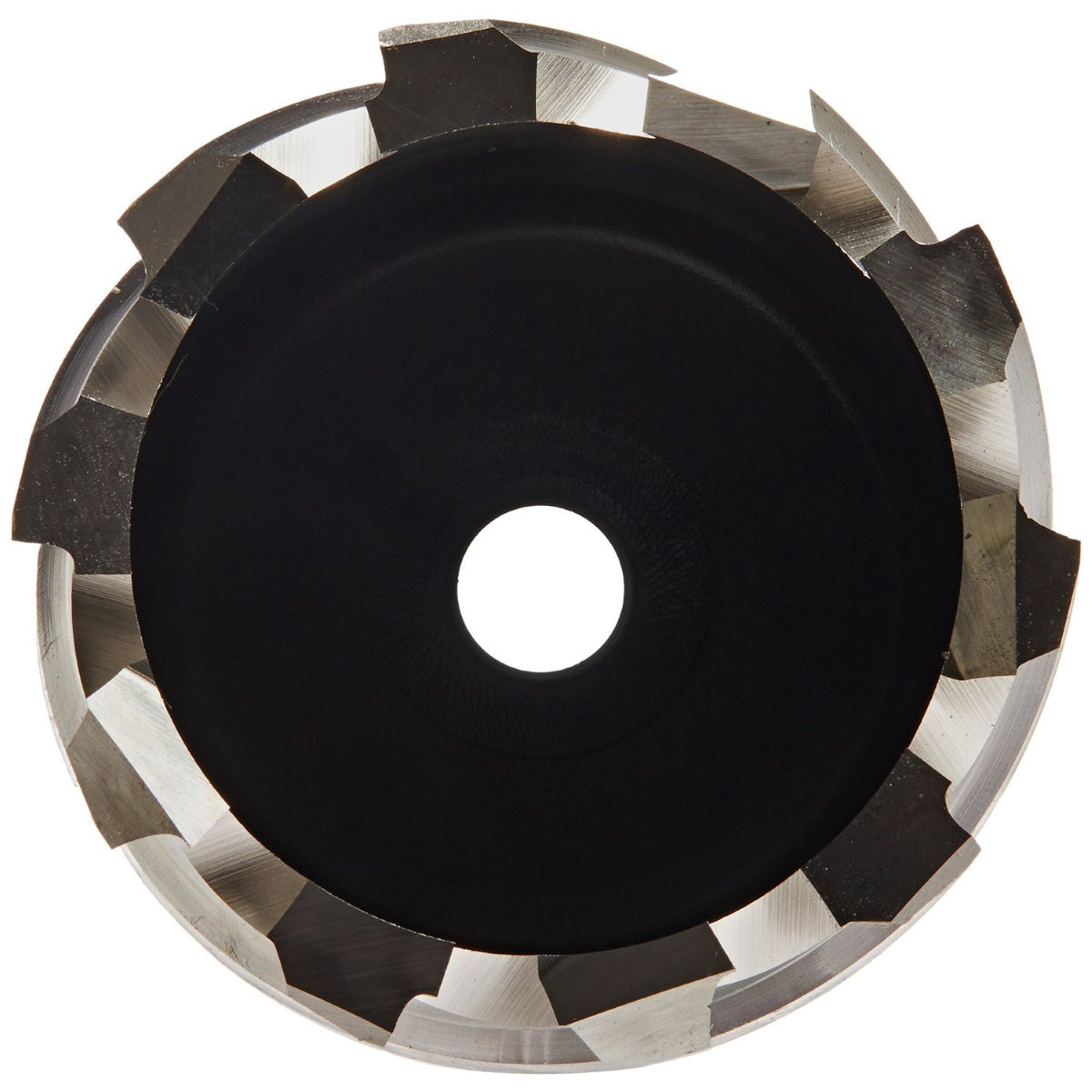

Steelmax M2AL HSS Annular Cutter 1" Depth (SM-AC-XXXXX-1)
Download Product Spec Sheet
Select Size (Parts & Accessories):
Select Size (Parts & Accessories)
Lead Time: 1-2 Weeks
Quantity:
Steelmax offers some of the best quality high speed steel (HSS) annular cutters for all of your hole-making needs. All Steelmax annular cutters have standard Weldon shanks of 3/4" for cutters up to 2-3/8" and 1-1/4" shank for cutter diameters above 2-3/8". As a result, Steelmax cutters will fit and improve the performance of any mag drill.
All Steelmax cutters ship with a pilot pin installed at no extra charge. Please see "specs" tab for all sizing and part number references.
Annular Cutter Advantages Over Twist Drills
• Eliminates costly and time consuming step-drilling
• Significantly less drilling time (3-4 times faster)
• Longer tool life (5-10 times more holes per cutter)
• More accurate and higher quality holes
• Easily drill on curved surfaces like pipe and tubing
• Create overlapping holes
Steelmax HSS cutters utilize an M2AL (aluminum additive) formulation which increases cutter life due to better heat propagation characteristics and is less brittle compared to those using a cobalt additive. HSS cutters are most cost effective for mild steel applications and holes up to 2-3/8" in diameter in material up to 1" thick. HSS cutters can also be re-sharpened to extend cutter life.
Steelmax high-performance cutting fluid should be used with all annular cutters for optimal cutting performance and to extend cutter life. The Steelmax brand cutting fluid is a water-based cutting fluid that is bio-degradeable and does not require time-consuming cleanup prior to welding or assembling parts.
All Steelmax cutters ship with a pilot pin installed at no extra charge. Please see "specs" tab for all sizing and part number references.
Annular Cutter Advantages Over Twist Drills
• Eliminates costly and time consuming step-drilling
• Significantly less drilling time (3-4 times faster)
• Longer tool life (5-10 times more holes per cutter)
• More accurate and higher quality holes
• Easily drill on curved surfaces like pipe and tubing
• Create overlapping holes
Steelmax HSS cutters utilize an M2AL (aluminum additive) formulation which increases cutter life due to better heat propagation characteristics and is less brittle compared to those using a cobalt additive. HSS cutters are most cost effective for mild steel applications and holes up to 2-3/8" in diameter in material up to 1" thick. HSS cutters can also be re-sharpened to extend cutter life.
Steelmax high-performance cutting fluid should be used with all annular cutters for optimal cutting performance and to extend cutter life. The Steelmax brand cutting fluid is a water-based cutting fluid that is bio-degradeable and does not require time-consuming cleanup prior to welding or assembling parts.
| MPN: | SMTSM-AC- |
|---|
MPN: SMTSM-AC-
