Blue Demon True View Pano Welding Helmet (PANO)
Download Product Spec Sheet
This helmet has been replaced by the Pano V2.

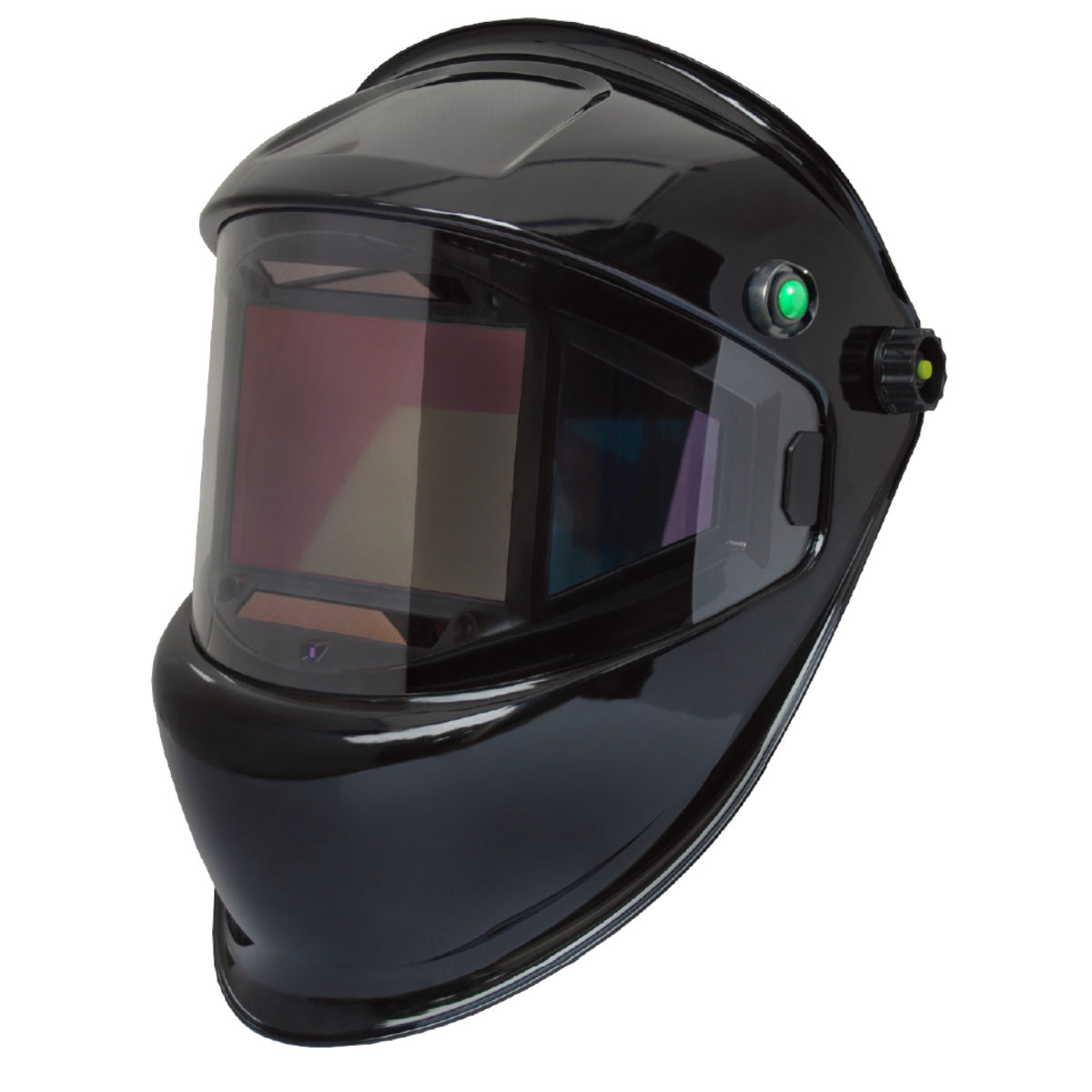

The Blue Demon true view pano welding helmet offers the absolute best optical clarity rating a helmet can receive (1/1/1/1). This helmet features an extra-large 180° viewing area and 5 independent auto-darkening sensors. This Pano helmet offers a weld mode with shades 8-14, a cut mode with shades 4-8, and a shade 3 grind mode. This lightweight helmet (1.36 lbs) also comes with an external grind mode button for easy on/off functionality without raising the hood. This digital, fully automatic helmet is ideal for all welding processes as well as plasma cutting and grinding.
Features
• 1/1/1/1/ Optical Clarity
• 5 Independent Sensors
• Only 1.36 lbs
• Weld Mode - Shade 8-14
• Cut Mode - Shade 4-8
• Grind Mode - Shade 3
• CSA and ANSI Certified
• .06-1.0 Milli Second Switch Speed
• Auto Darkening Across all 3 Filters
• True Color Technology for Realistic Color View
• Main Lens is Auto-Darkened from Shade 4-8 and 8-14
• Side Filters are Auto-Darkened from Shade 3-10
• 2 Year Mfg Lens Warranty

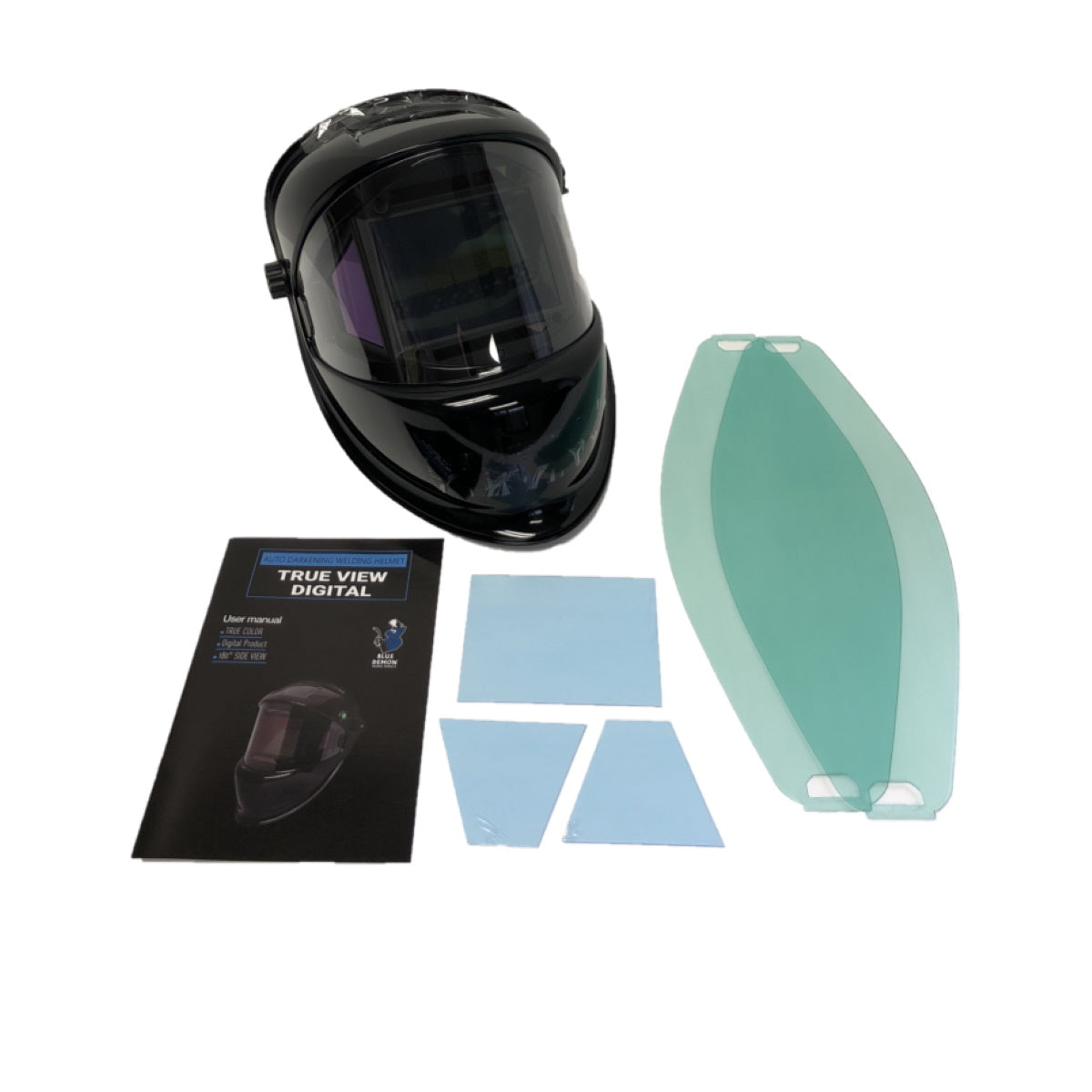

Includes
• Pano Welding Helmet
• (2) Outside Cover Lens
• (1) Set of Inside Cover Lens
• User Manual
| MPN: | BDPBDWH-TRUEVIEW-PANO |
|---|---|
| Warranty | 2 Year Mfg Lens Warranty |
| Arc Sensors | 5 Independent Sensors |
| Delay Control | • True Color Technology for Realistic Color View • Main Lens is Auto-Darkened from Shade 4-8 and 8-14 • Side Filters are Auto-Darkened from Shade 3-10 |
| Digital | • Main Lens is Auto-Darkened from Shade 4-8 and 8-14 • Side Filters are Auto-Darkened from Shade 3-10 |
| Grind Mode | • Weld Mode - Shade 8-14 • Cut Mode - Shade 4-8 • Grind Mode - Shade 3 |
| Modes | • Weld Mode - Shade 8-14 • Cut Mode - Shade 4-8 • Grind Mode - Shade 3 |
| Reaction Time | • .06-1.0 Milli Second Switch Speed • Auto Darkening Across all 3 Filters |
| Sensitivity Control | • .06-1.0 Milli Second Switch Speed • Auto Darkening Across all 3 Filters |
| Viewing Field | • Main Lens is Auto-Darkened from Shade 4-8 and 8-14 • Side Filters are Auto-Darkened from Shade 3-10 |
MPN: BDPBDWH-TRUEVIEW-PANO
