ESAB Rogue ET 230iP AC/DC Tig Welder (0705002026)

The Rogue ET 230iP AC/DC Tig and Stick welder gives you ultimate arc control with four AC waveforms and pulse up to 200 Hz.  Weighing in at 42lbs, the Rogue 230 has a built-in PFC circuit that ensures a stable arc with extended cables up to 300ft.  A new feature is the dual-current mode, which switches between two output current levels to control the heat input and the size of the weld pool.  The TIG torch comes with a trigger to access saved weld settings so you can easily switch back and forth on different welds.

An intuitive graphical user interface with a 5-inch color display brings new functionality for quick and easy adjustments. The machine can tackle a wide range of thicknesses including very thin plates.

Customizable waveshapes (square, soft square, sinusoidal, triangle) enables optimized heat input for high penetration on thicker metals and low distortion on thin sheets. Pulsing
capabilities in both DC and AC TIG offer enhanced weld puddle control allowing the welder to further tailor the arc for multiple applications. TIG arc starts are crafted for optimum performance based on selected tungsten electrode diameter and type.

Features:
• AC/DC TIG and Stick Modes
• 4 Waveforms (Square, Soft Square, Sinusoidal, Triangle)
• Pulse up to 200 Hz
• 5-inch Color TFT Display
• 120V/230V Dual Input Voltage
• Configurable Home Screen
• Visible Tungsten Diameter
• Dual Current Mode controls heat input
• Water Cooler compatible (Coolmini 3 sold separately)

Quick Specs
• Input Power: 120V/230V
• A/C TIG Current Range: 15-125A (120V), 15-230A (230V)
• Weight: 42 lbs
• Dimensions: 18.1"L X 8.3"W X 15"H
• Generator Requirement: 3.3 kVA (120V) | 6 kVA (230V)
• Warranty: 3 years on power source

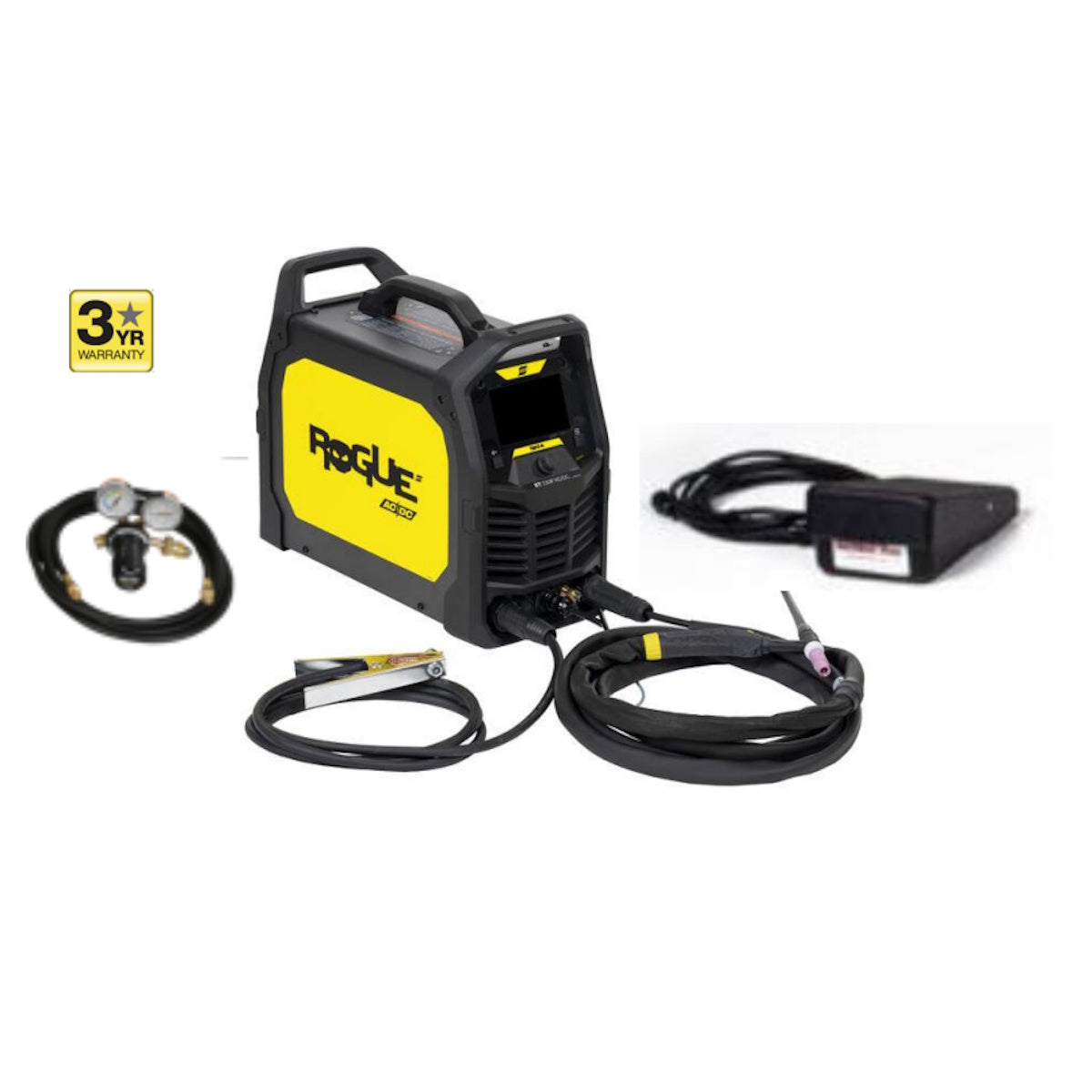

Comes Complete With:
• Power Source w/10 ft Power Cord
• 13ft SR 26 Air Cooled TIG Torch
• 10ft Tweco 200A electrode holder
• 10ft Tweco ground clamp with leads
• Spare TIG torch parts kit
• 15ft Wired Foot Control (W4014450)
• Victor Argon/CO2 Flowmeter Regulator with 6-foot gas hose
• 230V Plug Installed (120V Adapter Plug Included)

MPN: ESB0705002026

Download Product Spec Sheet
