Fume Dog 1200 CFM Mobile Fume Extractor (FD-PT-CW-87S)

Sale price$4,995.00 Regular price$5,997.00
Save $1,002.00

Lead time: 3-5 Days

Quantity:
warning WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

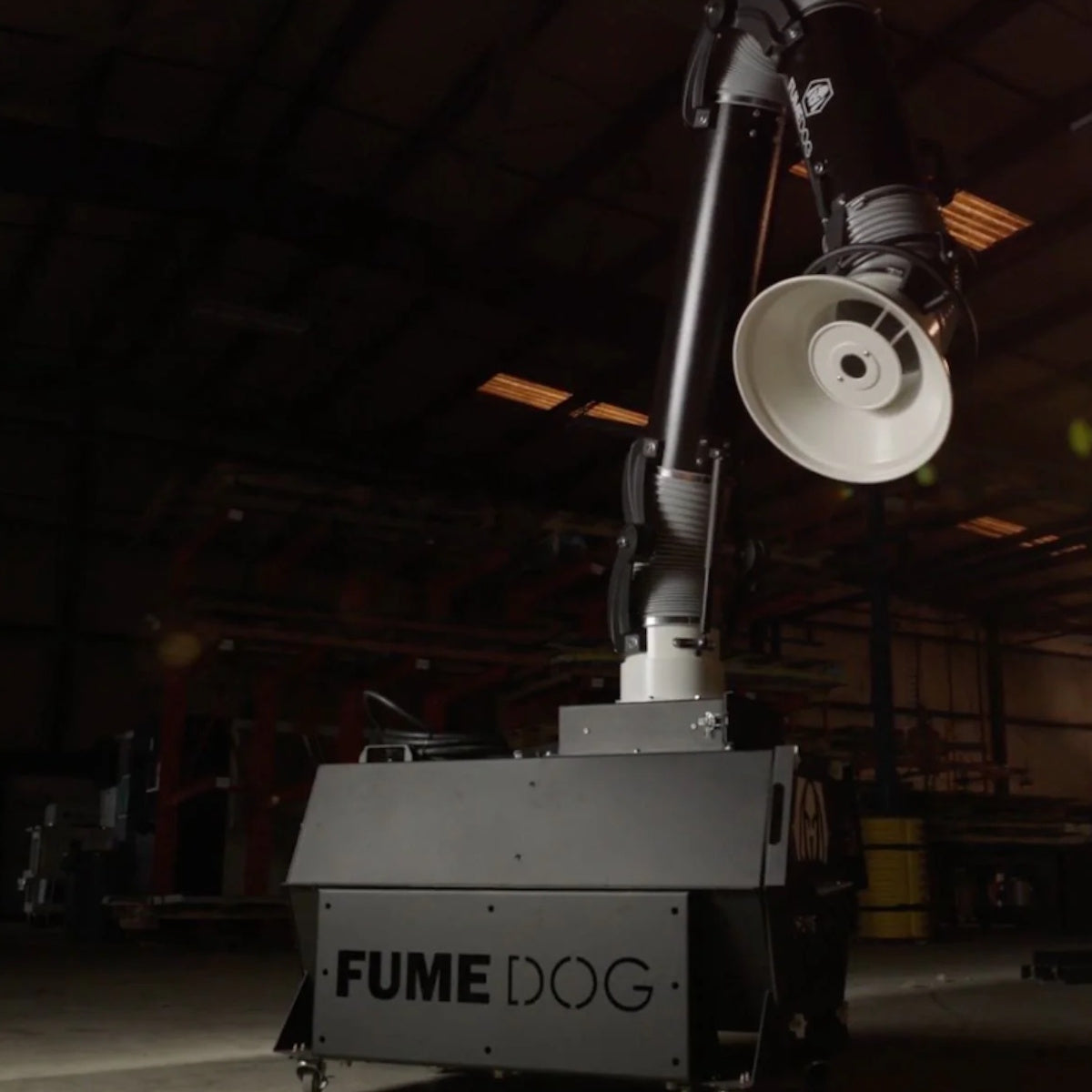

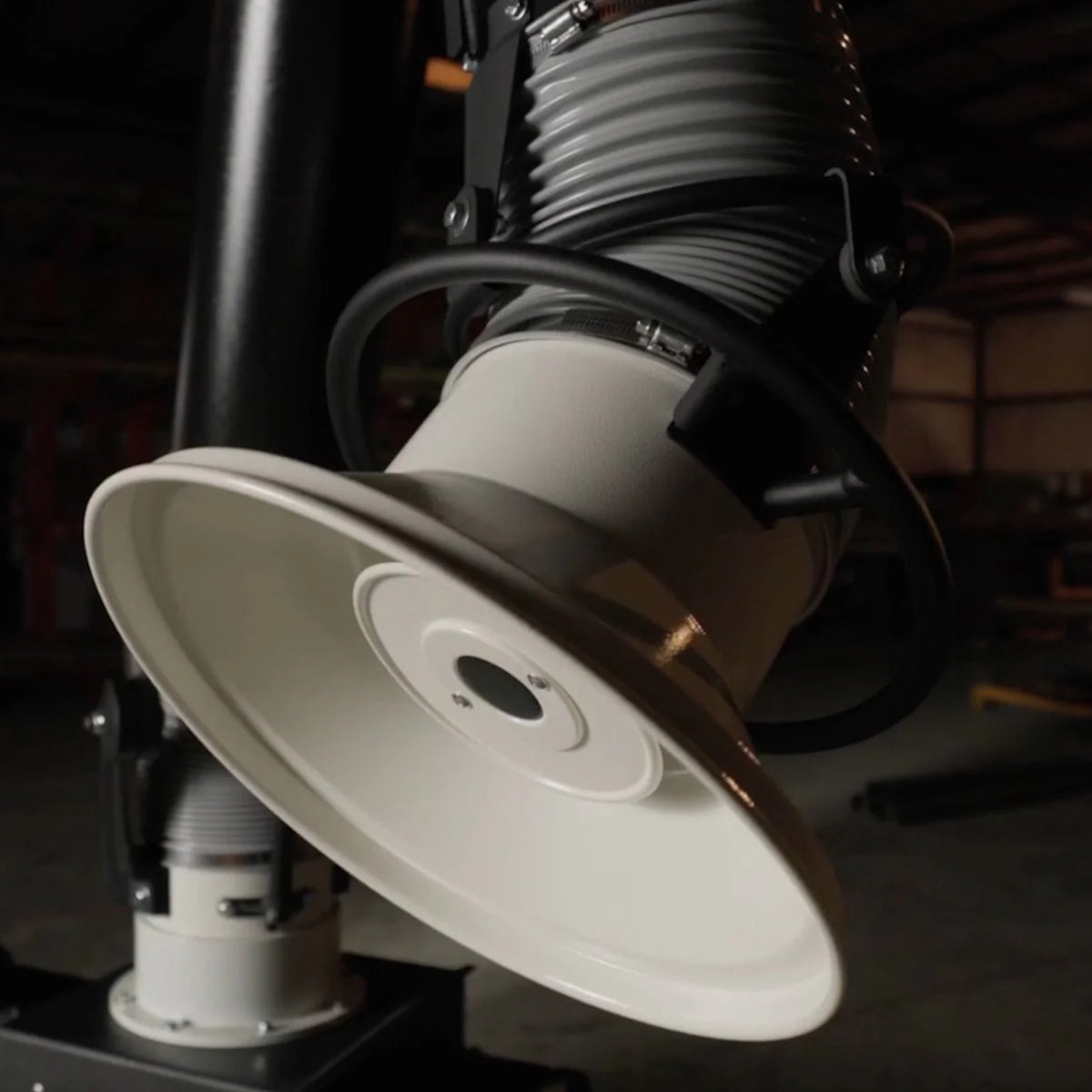

The Fume Dog PT-CW-87S mobile fume extractor is capable of 1200 CFM and comes with 7 foot extraction arm.  This unit weighs 215 lbs without the arm and also converts to a wall mounted unit out of the box.  The extraction arm has an 8 inch diameter and features a 360° swing action.

The sophisticated filtration system utilizes a metal mesh pre-filter/spark trap, then a baffle plate, followed by a fire retardant nanofiber filter.  These extractors come with an air stream filter cleaner that extends filter life-5-6 times (MERV 15 nanofiber filter included).

Download Manual

Features
• 360° Range of Motion
• External Joints for east adjustment
• Internal damper to adjust airflow
• FR MERV 15 Nanofiber filter
• Casters
• 1 Year Mfg Warranty

Quick Specs:
• Airflow: 1200 CFM
• Noise Level: 69 dB
• Motor Specifications: 1.5 HP
• Input Power: 120 VAC, 1-Phase, 60 Hz
• Dimensions without Arm: H: 45" W: 26" D: 31.5"
• Net Weight without Arm: 215 lbs
