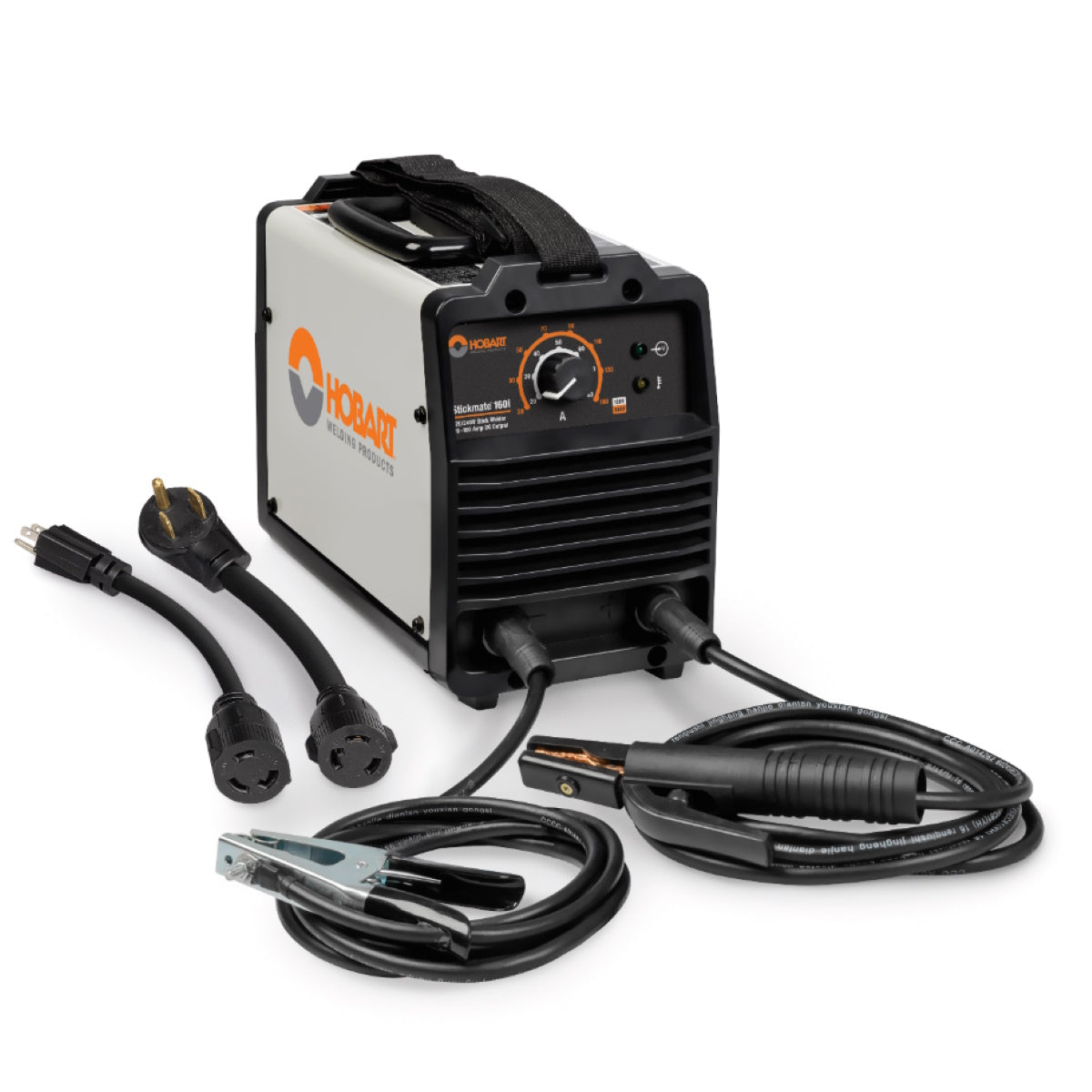

Hobart Stickmate 160i DC Stick Welder (500570)
Download Product Spec Sheet
The Hobart Stickmate 160i weighs only 15 pounds, comes with 120/240 mutli-voltage plugs, and welds up to 3/8" mild steel on 240V. Hobart got it right this time - this welder weighs nearly 100 pounds less than its predecessor and only draws 21 amps on 120 volt usage. This welder features Miller's Hot Start technology which provides easy, quick and reliable starts.
Features
• Hot Start Technology
• Infinite Amperage Control
• Adjustable Shoulder Strap
• Dual Voltage Capability
• Hobart 3 Year Warranty
Quick Specs
• Process: DC Stick Only
• Input Power: 1-Phase
• Max Open Circuit Voltage: 91V
• Amperage Range: 20-80A on 120V | 20-160A on 240V
• Mild Steel Thickness: 1/8 on 120V | 3/8 on 240V
Includes
• 10ft No. 4 electrode cable with stinger
• 10ft work cable with clamp
• 6.5ft power cord with 120/240 MVP plugs
Features
• Hot Start Technology
• Infinite Amperage Control
• Adjustable Shoulder Strap
• Dual Voltage Capability
• Hobart 3 Year Warranty
Quick Specs
• Process: DC Stick Only
• Input Power: 1-Phase
• Max Open Circuit Voltage: 91V
• Amperage Range: 20-80A on 120V | 20-160A on 240V
• Mild Steel Thickness: 1/8 on 120V | 3/8 on 240V
Includes
• 10ft No. 4 electrode cable with stinger
• 10ft work cable with clamp
• 6.5ft power cord with 120/240 MVP plugs
| MPN: | HOB500570 |
|---|---|
| UPC: | 715959666442 |
| Processes | Stick (SMAW) |
| Designed For | Farm and Ranch |
| Amperage | 160 A @ 30% duty cycle |
| Input Voltage | 110/115/120 V 220/230/240 V |
| Weight | 15 lbs |
| Warranty | 3 Years |
