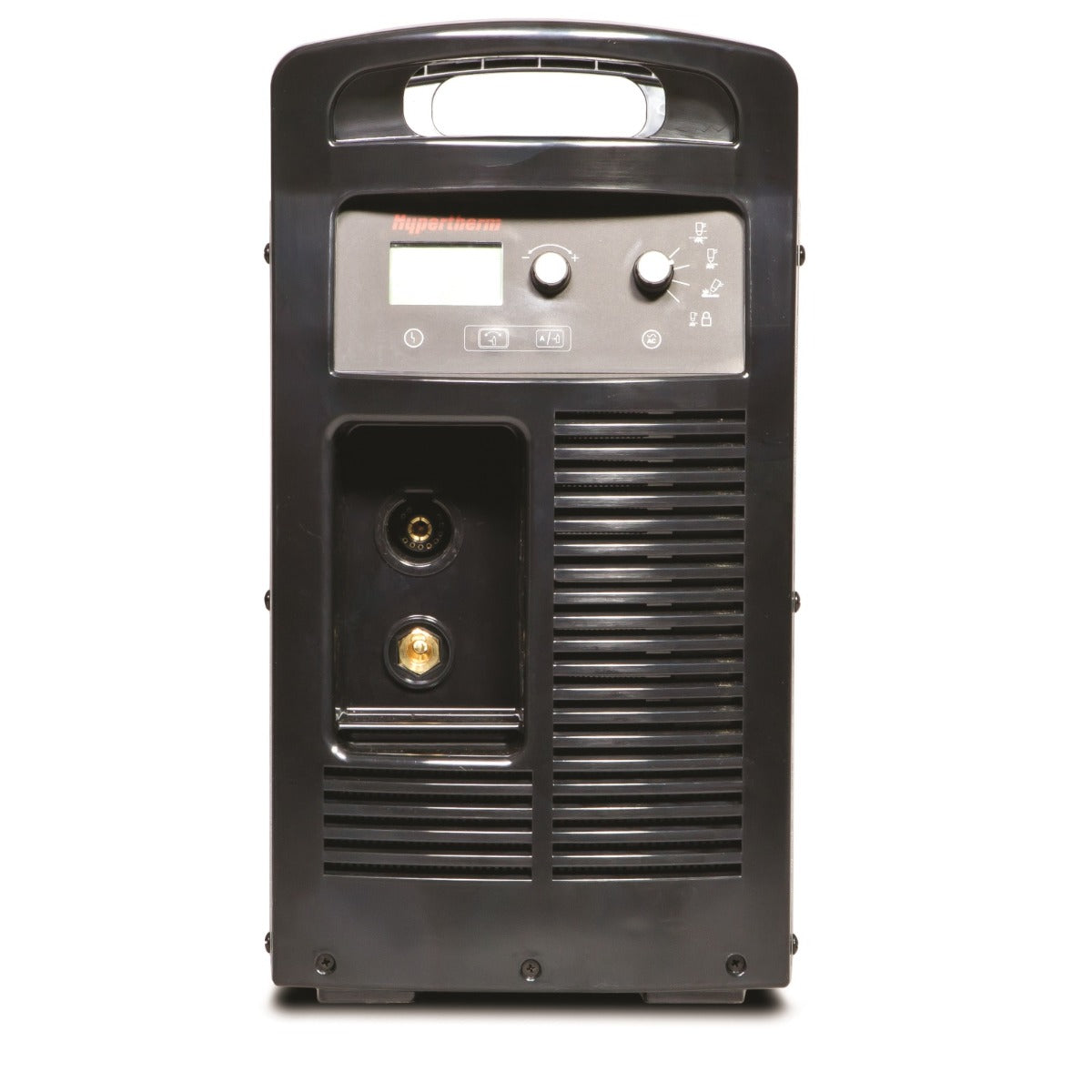

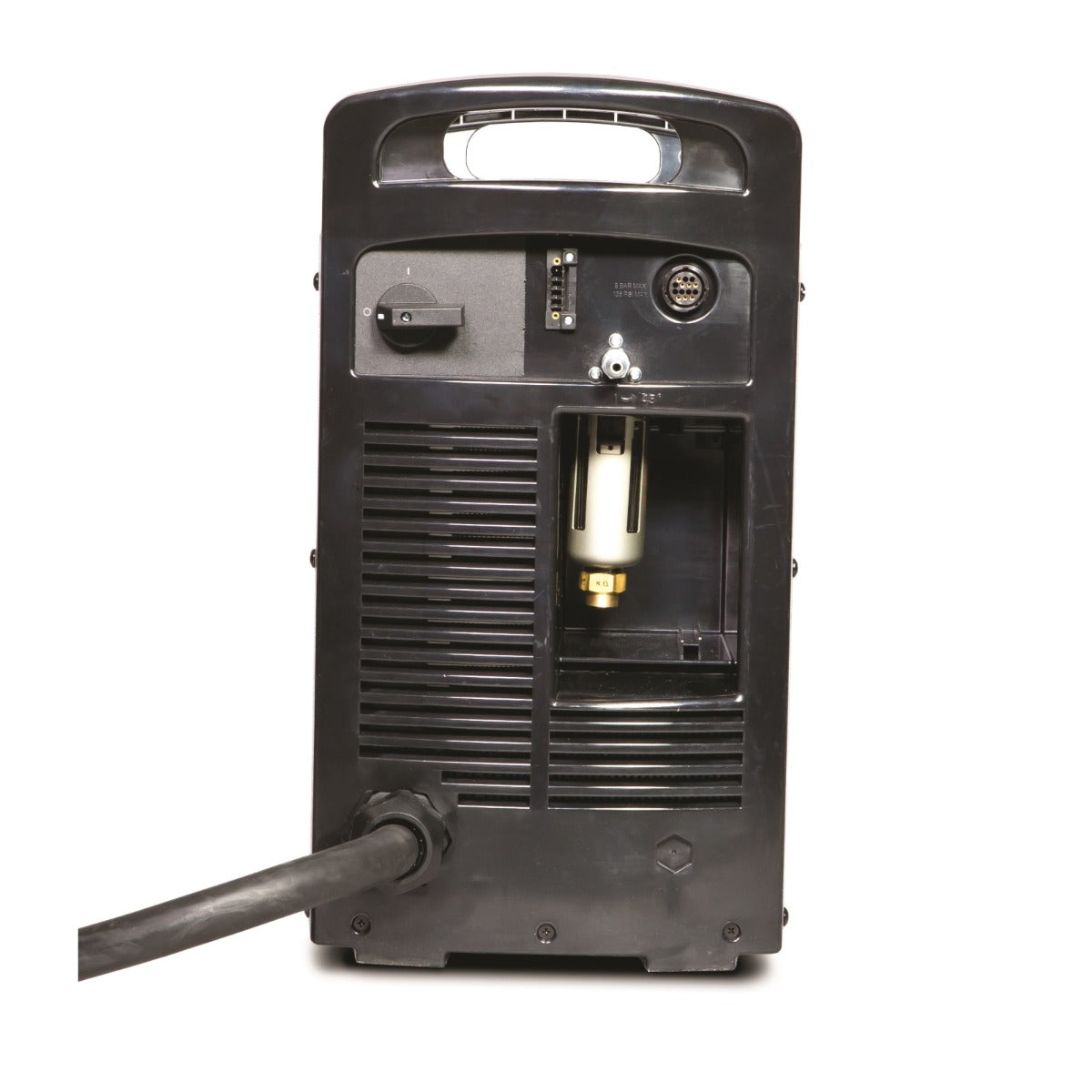

Hypertherm Powermax 105 Plasma Cutter w/50' Hand Torch Pkg (059375)

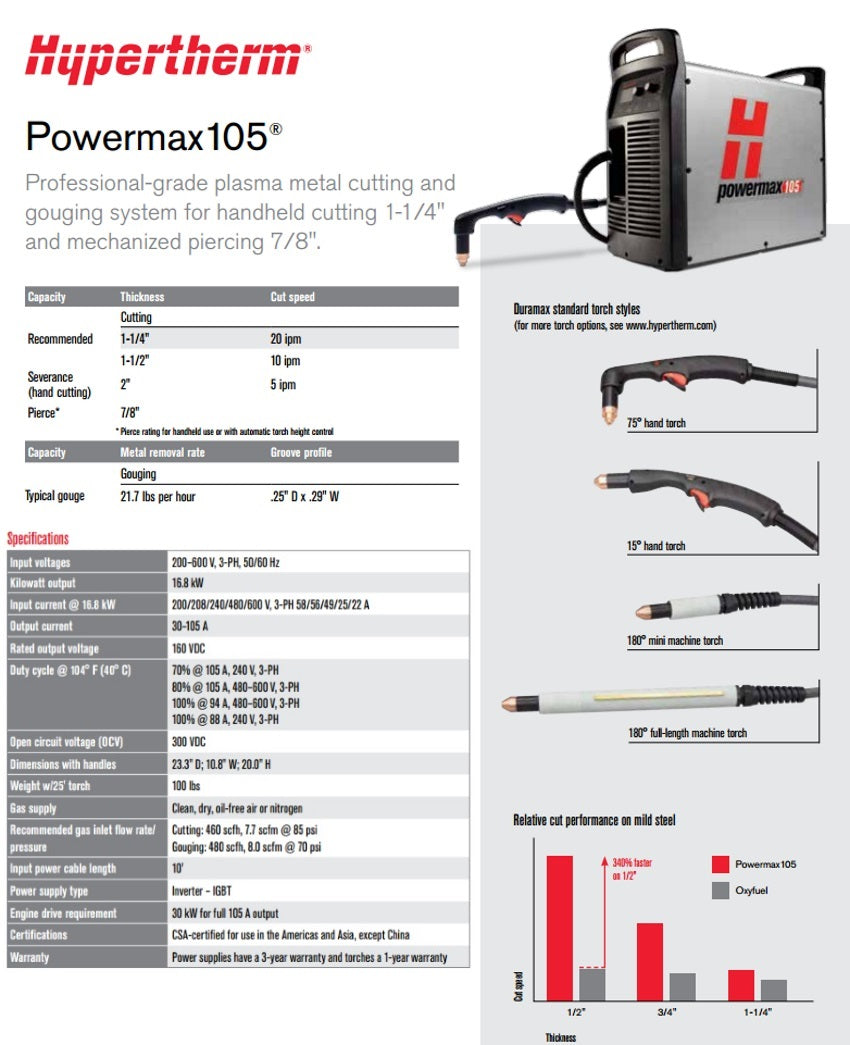

Download Product Spec Sheet
This system is no longer available. The suggested replacement is the Powermax 105 Sync (059626).
You've been looking for the best 1-1/4 inch plasma cutter on the market - here it is! Hypertherm's Powermax 105 is field-tested and proven to be the most effective plasma cutter in its class. The Powermax 105 features "smart sense" technology where the unit automatically adjusts gas pressure. This unit comes equipped with a 50 foot Duramax hand torch, and Hypertherm offers several alternate torches depending on the job requirements. This plasma cutter offers 340% greater cut speeds on 1/2" material compared to oxy-fuel methods.
This particular model is not equipped with CPC port or voltage divider.
Key Features
• Smart sense technology
• Boost conditioner technology
• Spring start technology
• Drag cut at full output with reduced dross buildup
• Duramax torches are designed for high-impact and heat resistance
Quick Specs
• Rated cut - 1-1/4" | Sever cut - 2"
• Operating voltage - 200-600V 3-phase
• Output current - 30-105A
• Duty cycle - 80% @ 105A
• Dims - 23.3" L x 10.8" W x 20" H
• Weight with 50' torch - 100 lbs
• Required pressure - 460 scfh @ 5.9 Bar (85 PSI)
• Power cord length - 10' (no plug)
• Engine drive requirements - 30kW for full 105A output | 15kW for limited 65A output

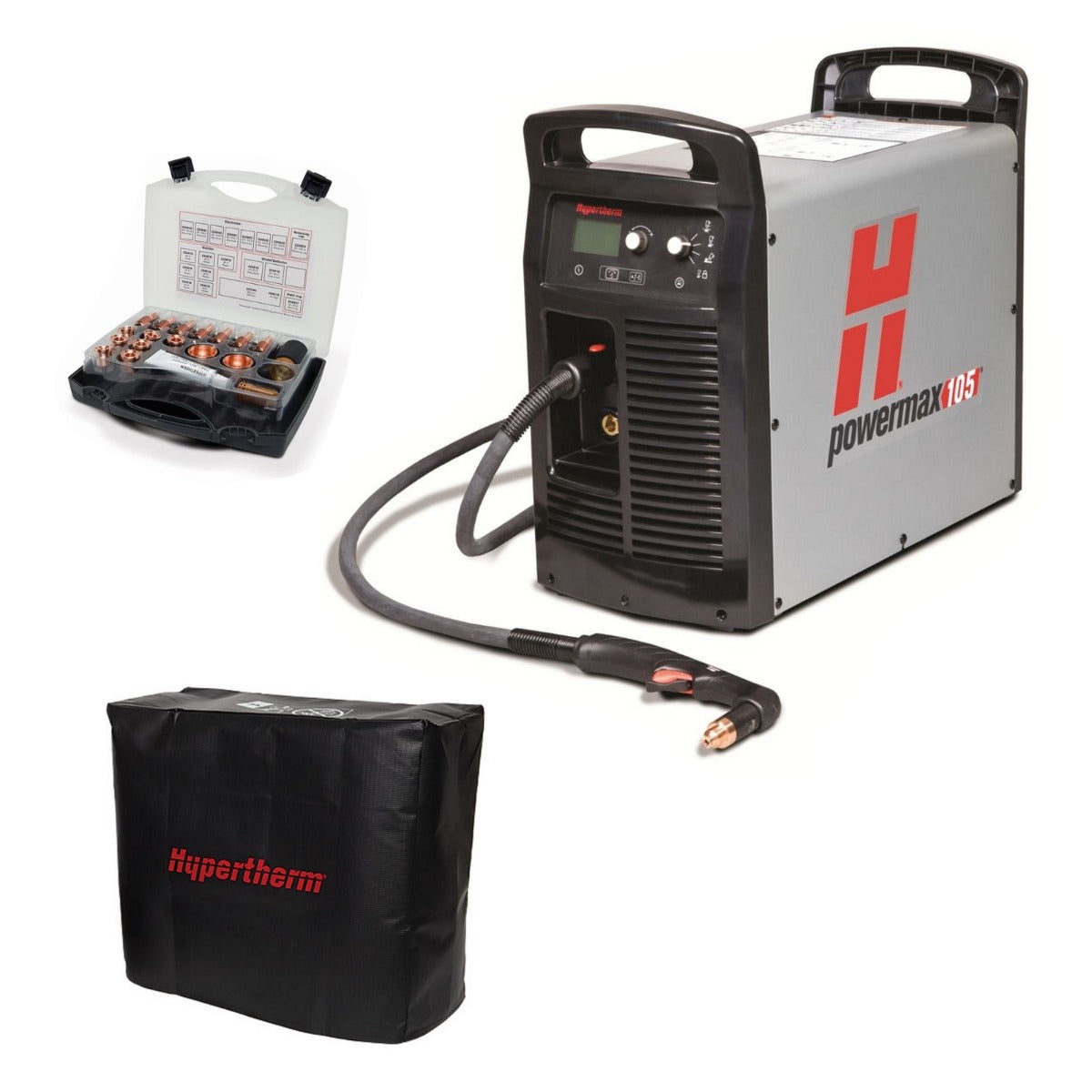

Includes
• Powermax 105
• 50' 75° Duramax hand torch
• 50' Ground lead
• Handheld consumables kit (851471)
• Dust cover (127360)
• User manual
Please allow 5-7 business days to ship.
