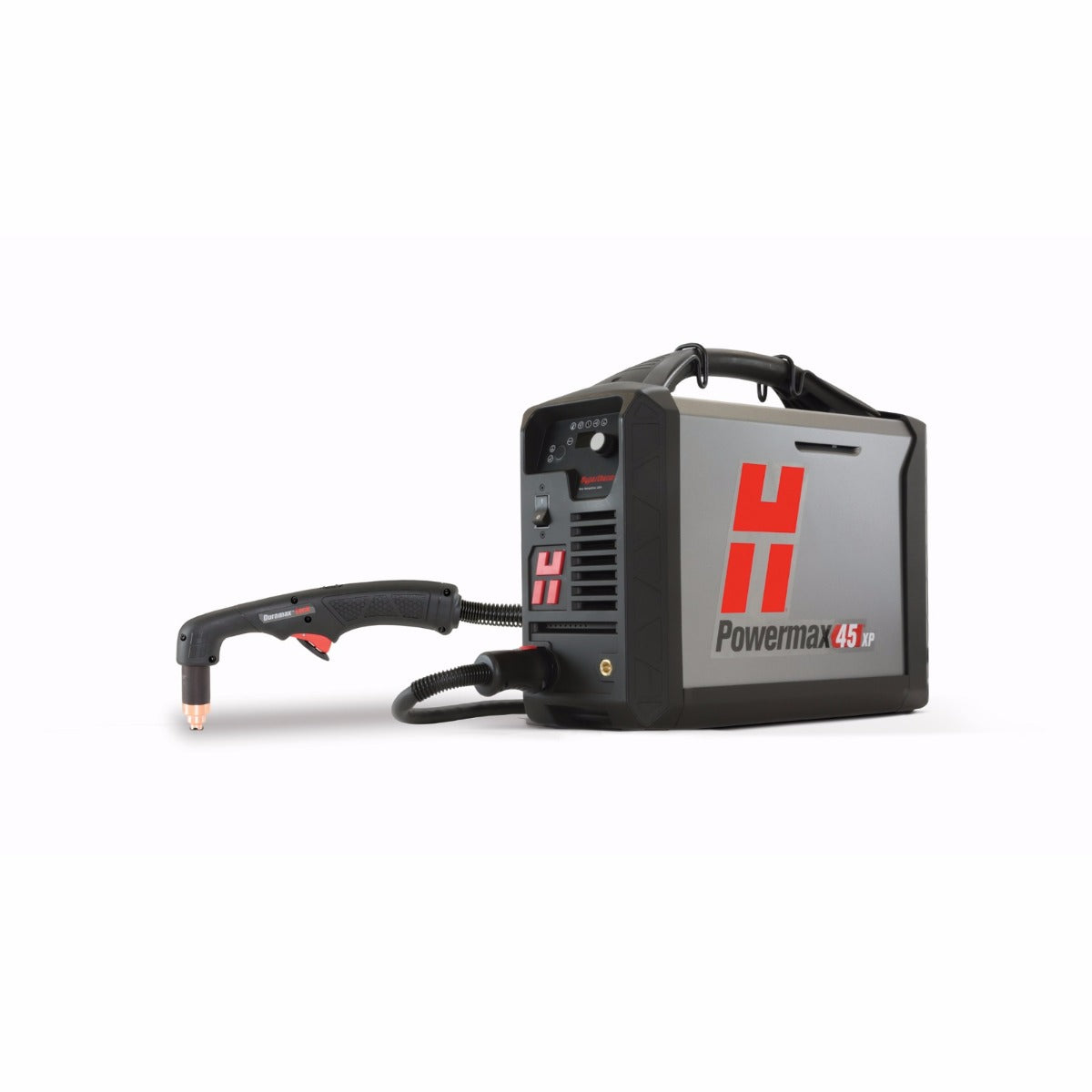

Hypertherm Powermax45 XP Plasma Cutter with 20ft Hand Torch Pkg (088112)
Download Product Spec Sheet
Leading the way in Plasma innovation, the Hypertherm Powermax45 XP Plasma Cutter with 20ft Hand Torch Pkg (088112) is designed to give you more precision, performance, and productivity. You'll appreciate the Powermax45 XP's versatility and portability; it's the most capable 5/8" (16 mm) machine on the market and at only 31 lbs you can take it anywhere. The model 088112 comes with Hypertherms Duramax Lock Torch which conveniently utilize the same consumable platform as the Duramax torch series for the Powermax65/85/105 systems. The Powermax45 XP cuts and gouges faster, easier and better than any other product in its class and thanks to Hypertherm's Smart Sense technology, air pressure is always set correctly.
This particular model does NOT include a CPC port for CNC hook-up. If you're looking for CNC hook-up, click here.
Quick Specs
• Cutting Capacity: 5/8" recommended | 1-1/8" severance
• Weight: 31 lbs (with torch)
• Dimensions: 17.4"D x 6.8"W x 14.1"H
• Input Voltages: 200-240 V, 1-PH, 50/60 Hz
• Input Current: 200/240V - 39/32A
• Output Current: 20-45A
• Duty Cycle: 50% @ 45A, 100% @ 32A
• Recommended Air Flow: Cutting - 90 psi (5.9 bar) | Gouging - 60 psi (4.1 bar)
• Input Power Cable Length: 10'
• Engine Drive Requirement: 10 kW for full 45A Output
• 3-year Warranty on Power Supply, 1-year Warranty on Torch
Includes
• Power Supply
• Duramax Lock hand torch with 20' lead & 20' work clamp
• 2 Electrodes, 2 45A Nozzles, 45A Shield, Gouging Shield, Gouging Nozzle, Retaining Cap, Swirl Ring
• Operator & Safety Manuals
• Handheld Consumables Kit (851510)
