Lincoln Aspect 375 Ready-Pak AC/DC TIG Welder (K3946-2)
Download Product Spec Sheet
This advanced TIG welding machine meets the demanding quality standards of the aerospace, motorsports, shipbuilding, education, and fabrication industries with the widest output range in its class (2-375 amps). The Aspect 375 is the perfect choice for mission critical welds, especially on applications that must stand up to the most rigorous testing requirements. Auto or Manual...the choice is yours. .
Features
• Effortless arc control - Extremely fast arc response and stability for the smoothest and most efficient weld possible
• Simplicity when you want it - Activate Intellistart Technology to automatically provide softer starts and minimal distortion on thinner materials
• Auto Balance technology offers simplicity by automatically providing the optimal mix of cleaning and penetration when welding aluminum
• Customization when you need it - AC Wave Shape control enables you to customize the arc for critical aluminum welding
• Manage AC frequency, balance, and offset to modify arc profile, cleaning action or penetration

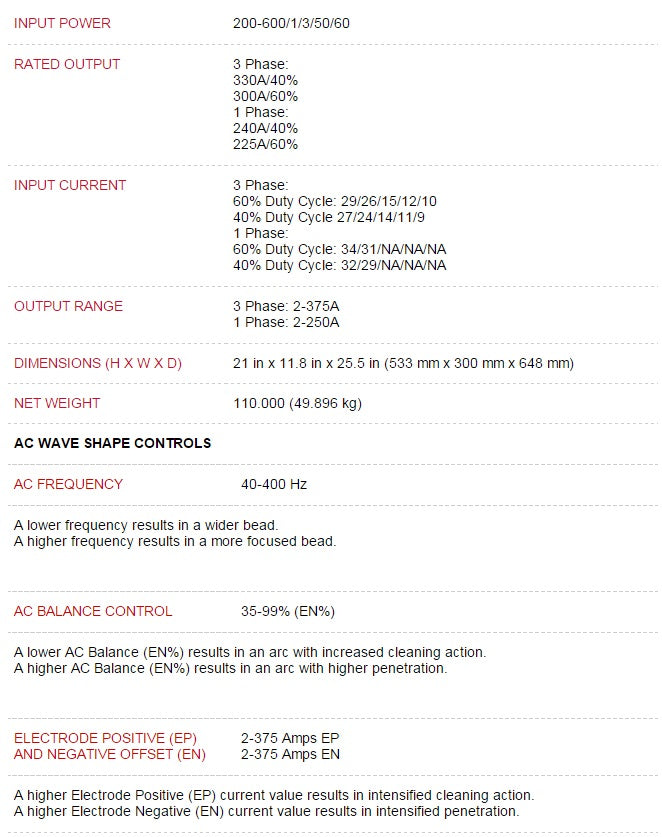

Quick Specs
• Input Power: 200-600V, 1/3 Phase, 50/60 Hertz
• 3 Phase - 60% duty cycle @ 300A, 1 Phase - 60% duty cycle @ 225A
• Output Range: 3-Phase 2-375 Amps, 1-Phase 2-250 Amps
• Weight: 105 lbs
• Dims: 21"H X 11.8"W X 25.5"D

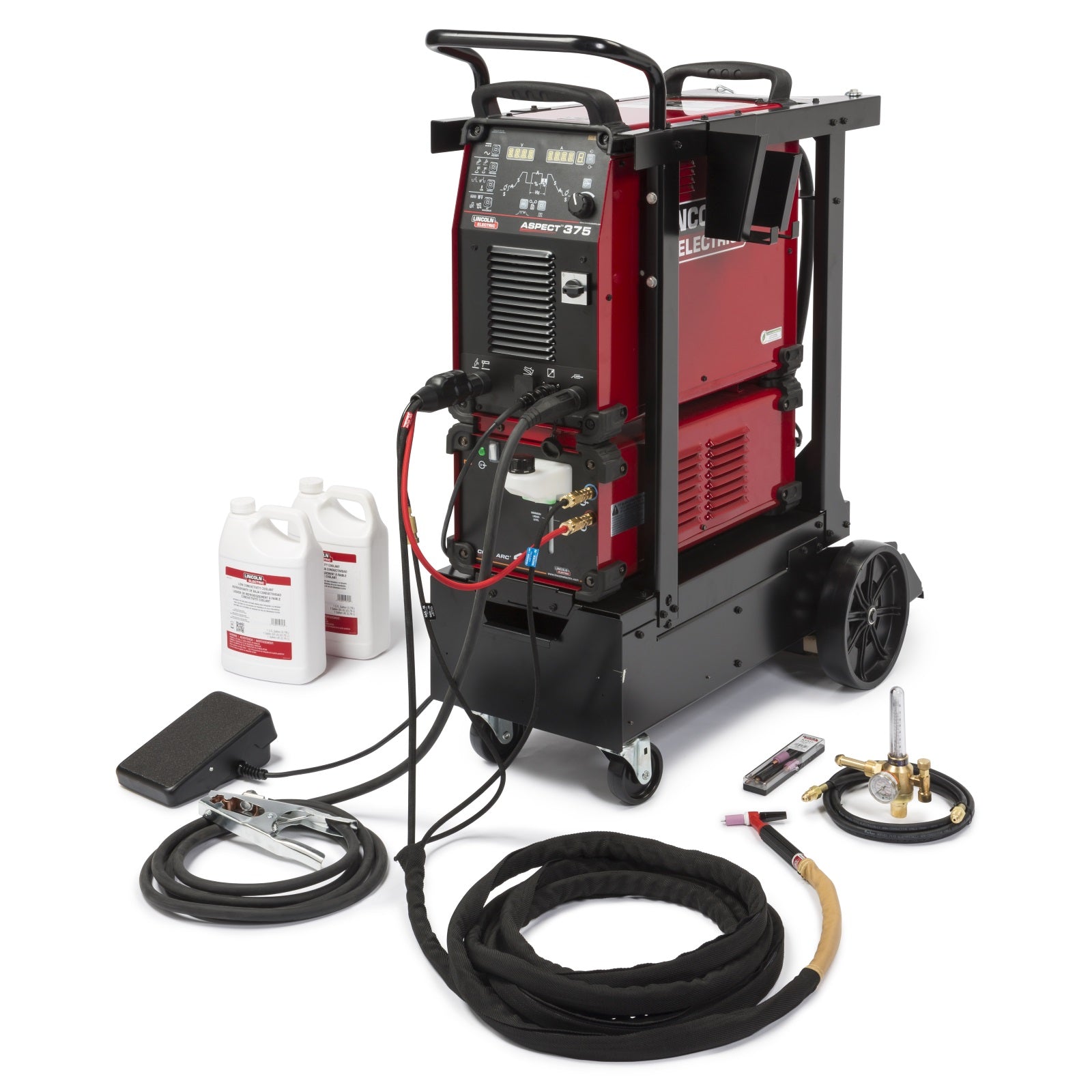

Includes:
• Aspect 375 Power Source (K3945-1)

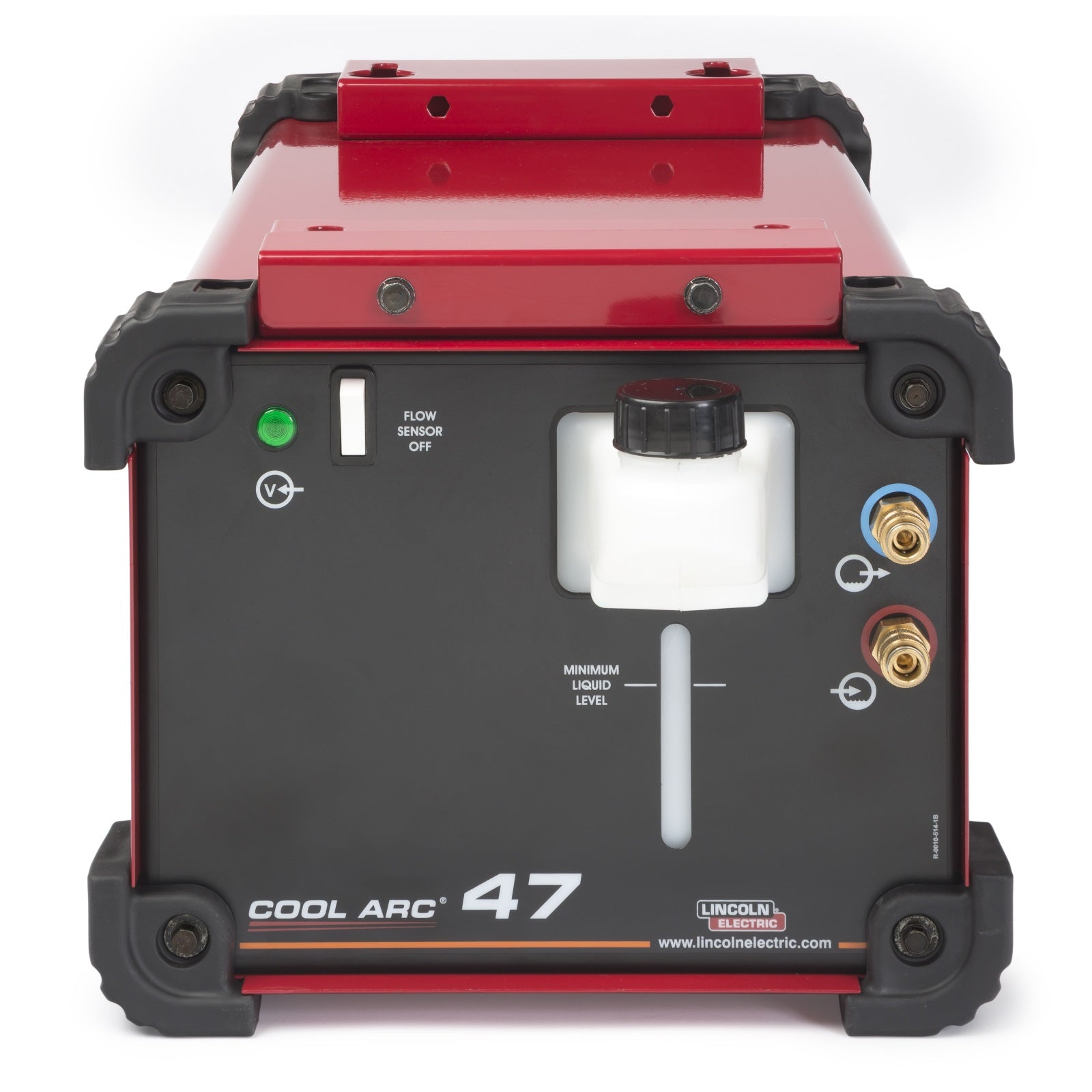

• Cool Arc 47 Water Cooling System (K3950-1)
• TIG Welding Cart (K3949-1)
• 20H-320-25R 320 Amp Water Cooled TIG Torch (K4168-2)
• Twist Mate Torch Cable Adaptor (K1622-5)
• TIG Torch Parts Kit (KP510)
• Foot Amptrol with 25 ft cable assembly (K870)
• 15 ft Work Lead Assembly (K1803-3)
• Gas Regulator with Hose (3100211)
• Low Conductivity Coolant (KP4159-1)
Features
• Effortless arc control - Extremely fast arc response and stability for the smoothest and most efficient weld possible
• Simplicity when you want it - Activate Intellistart Technology to automatically provide softer starts and minimal distortion on thinner materials
• Auto Balance technology offers simplicity by automatically providing the optimal mix of cleaning and penetration when welding aluminum
• Customization when you need it - AC Wave Shape control enables you to customize the arc for critical aluminum welding
• Manage AC frequency, balance, and offset to modify arc profile, cleaning action or penetration
Quick Specs
• Input Power: 200-600V, 1/3 Phase, 50/60 Hertz
• 3 Phase - 60% duty cycle @ 300A, 1 Phase - 60% duty cycle @ 225A
• Output Range: 3-Phase 2-375 Amps, 1-Phase 2-250 Amps
• Weight: 105 lbs
• Dims: 21"H X 11.8"W X 25.5"D
Includes:
• Aspect 375 Power Source (K3945-1)
• Cool Arc 47 Water Cooling System (K3950-1)
• TIG Welding Cart (K3949-1)
• 20H-320-25R 320 Amp Water Cooled TIG Torch (K4168-2)
• Twist Mate Torch Cable Adaptor (K1622-5)
• TIG Torch Parts Kit (KP510)
• Foot Amptrol with 25 ft cable assembly (K870)
• 15 ft Work Lead Assembly (K1803-3)
• Gas Regulator with Hose (3100211)
• Low Conductivity Coolant (KP4159-1)
| MPN: | LINK3946-2 |
|---|---|
| UPC: | 015082592329 |
Download Product Spec Sheet
