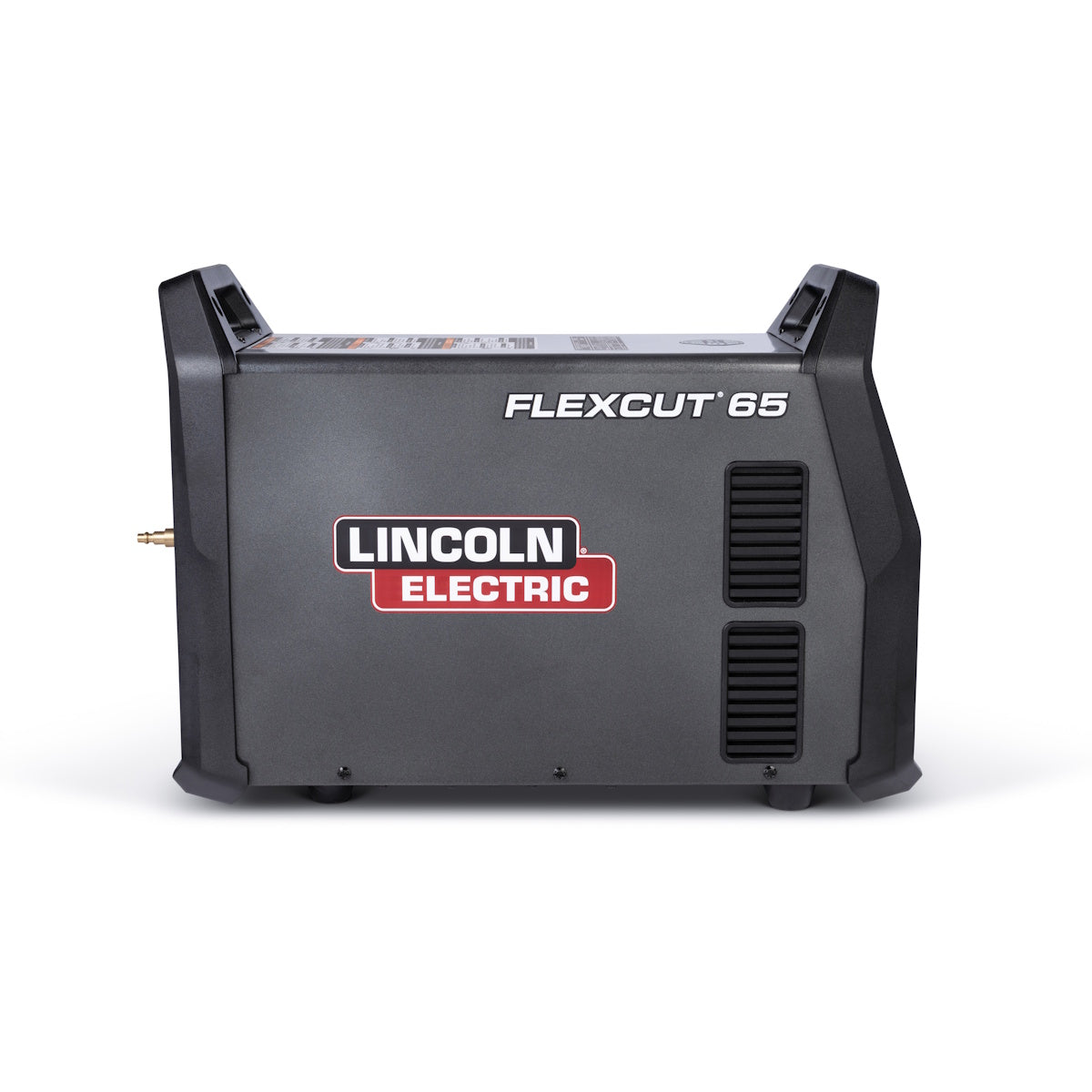

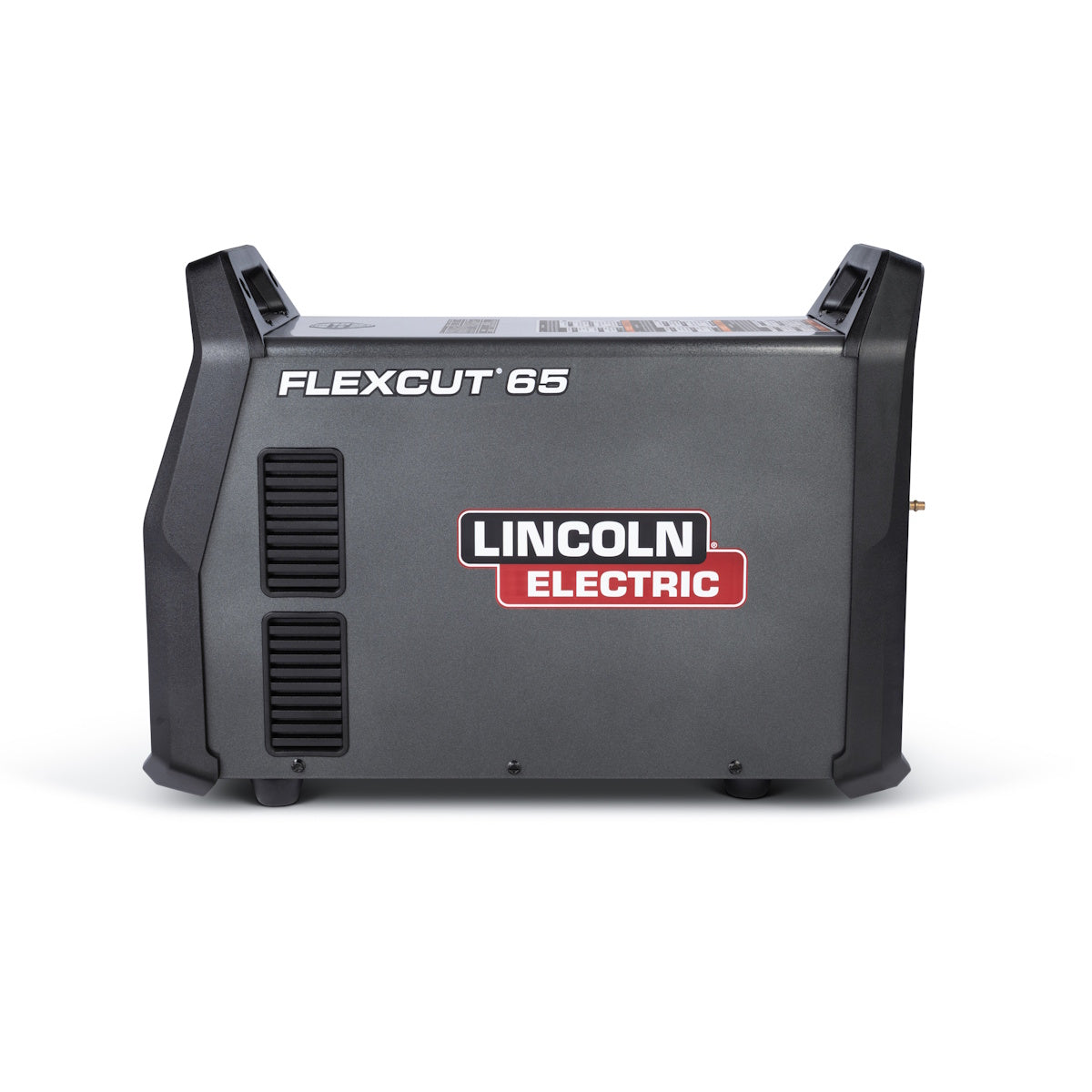

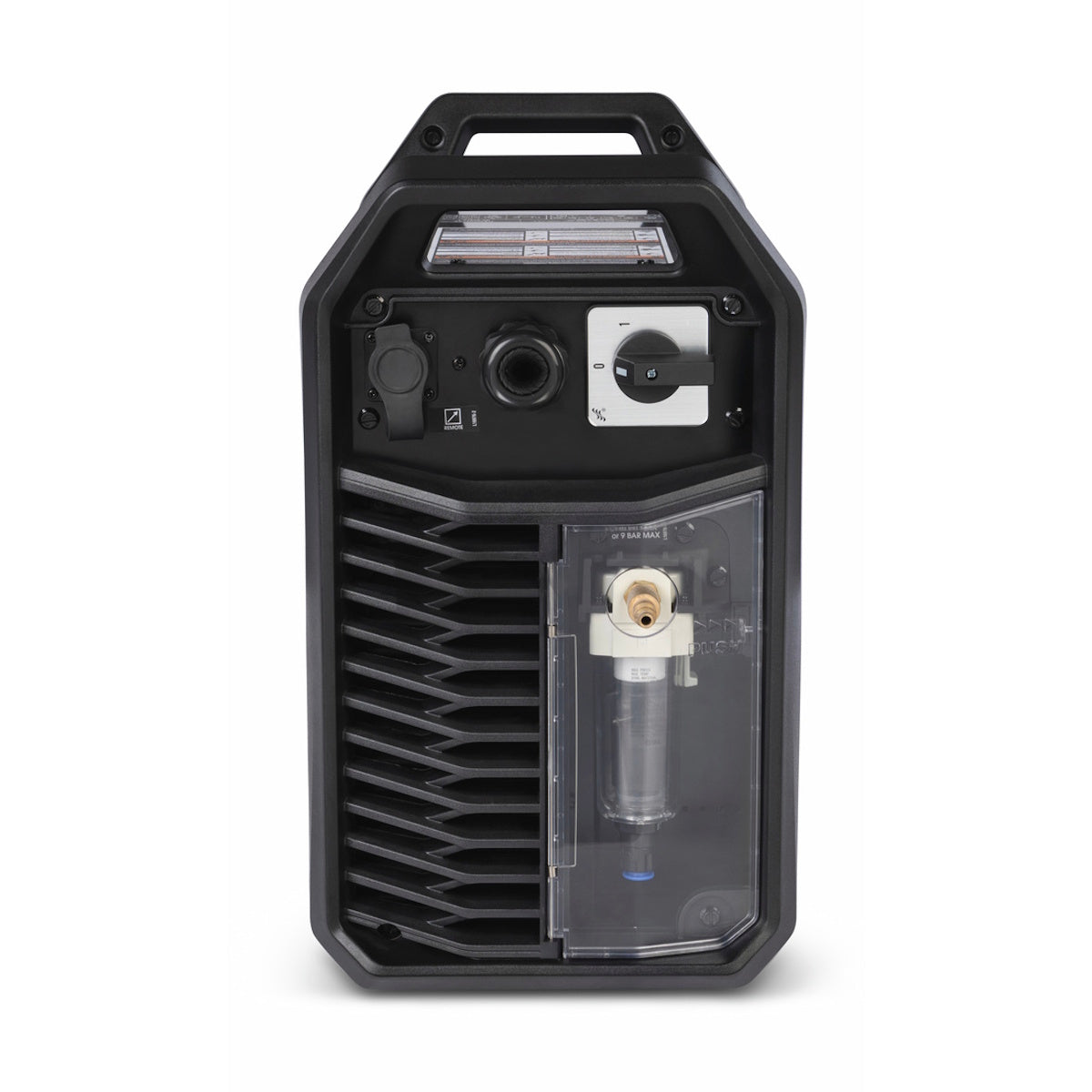

Lincoln FlexCut 65 Plasma Cutter w/25 Ft FlexConnect Hand Torch (K5825-H)

The Lincoln FlexCut 65 has a simple guided setup and a recommended cut capacity of 3/4" at 20ipm.  This beast carries a 50% duty cycle at full 65 amp output, and comes with a 25 foot torch so you don't need to move your power source around the shop.  The FlexCut 65 comes with built-in ports for plug and play CNC integration without any extra kits required.

The FlexCut Pro torches are universal across the entire machine lineup, and the patented FlexConnect torches allow you to replace the head or cables, saving you time and money.  These torches utilize long-life consumables with an advanced electrode design and optimized airflow to deliver more cuts per consumable.  The threadless electrode connection means no more seized threads, and the tool-free design allows you to replace consumables in seconds.

65 Amps of Cutting Power: Tackle thicker materials with confidence and precision.

High Duty Cycle: Built for demanding applications without overheating or slowing down.

LCD Display: Bright, easy-to-read screen with simple controls for quick and precise adjustments.

Input Power Flexibility: Compatible with both 1-phase and 3-phase power.

Plug-and-Play CNC Integration: Built-in ports for easy setup - no extra kits required.

Multi-Process Capability: Drag cutting, fine cutting, gouging, and marking with one machine for maximum versatility.

Rugged by Design: Heavy-duty construction built for real-world conditions— hard to damage, and ready to withstand impact, dust, and daily wear.

5 Year Warranty: FlexCut power sources have a 5-year warranty.

Cut Capacity
• Recommended 3/4" @ 20ipm
• Maximum 1" @ 10ipm
• Severance 1 1/4" @ 5ipm

Includes:
• FlexCut 65 power source
• FlexCut PRO FlexConnect Hand Torch with 25 ft cable (KP5850-25)
• Air Filter (KP5844-1)
• Work Clamp and Cable (KP6035-1)
• Input Power Cord
• Complete Consumables Kit (KP5829-65)

Quick Specs:
• Input Power: 200-240V (1-Ph) | 200-600V (3-Ph) | 50/60 Hz
• Duty Cycle: 50% @ 65A | 100% @ 46A
• Recommended Circuit Breaker: 80A (1-Ph) | 50A (3-Ph)
• Output Range: 20-65A
• Engine Drive Needed: 15kW for 65A
• Air Pressure Needed: 90-130 psi
• Dimensions: 24.8" H x 10.3" W x 17.6" L
• Weight: 76.3 lbs

MPN: LINK5825-H

UPC: 015082817293

Download Product Spec Sheet
