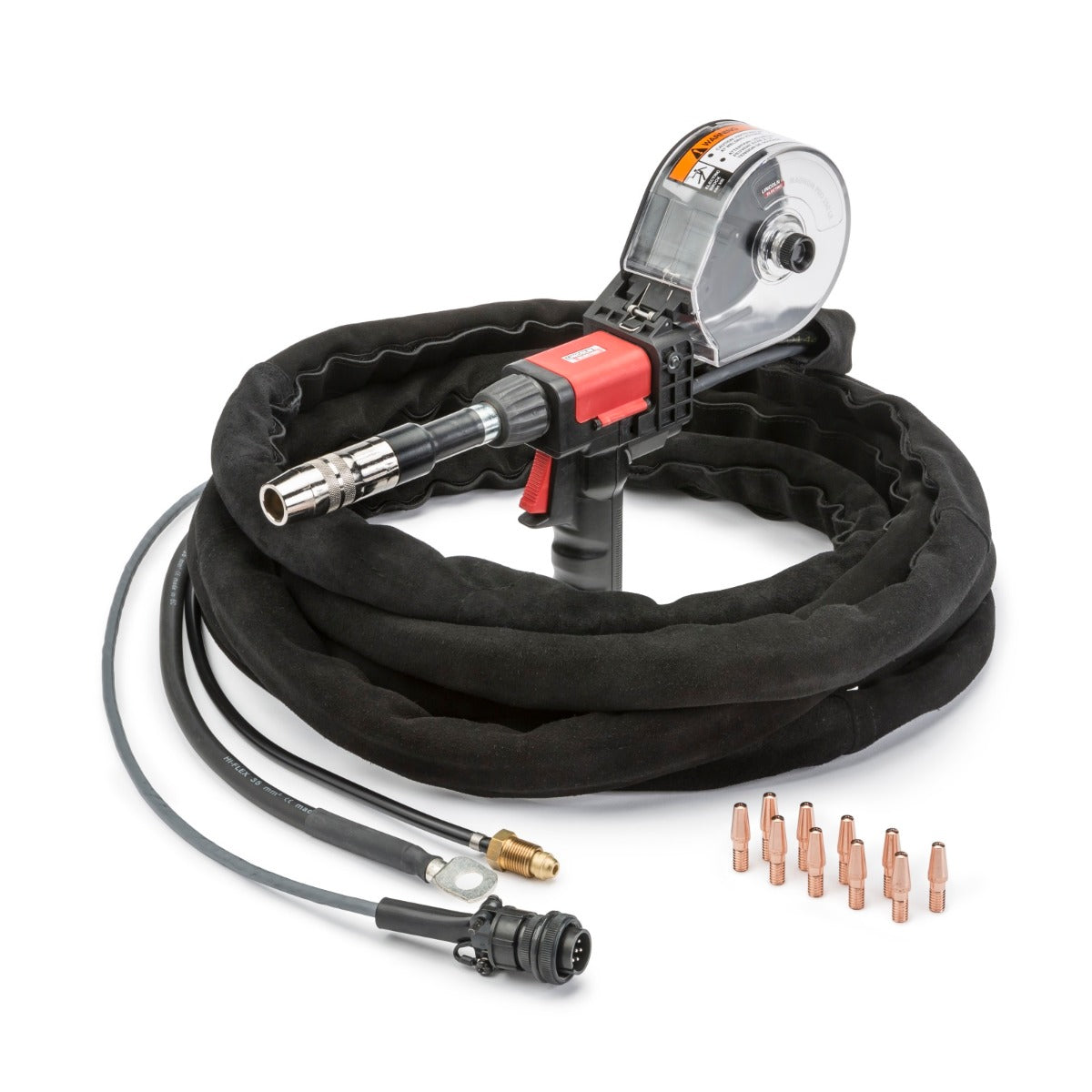

Lincoln Magnum Pro 250LX Spool Gun (K3570-2)
The Lincoln Magnum Pro 250LX Spool Gun is designed to be used with PowerMig 255, 256, and 260 units. This can also be used on the larger PowerMig 350MP.
Features
• Sure grip handle has a unique shape that fits comfortably in your hand and provides a secure grip
• Contact tip storage on top of gun, keeps spare tips close.

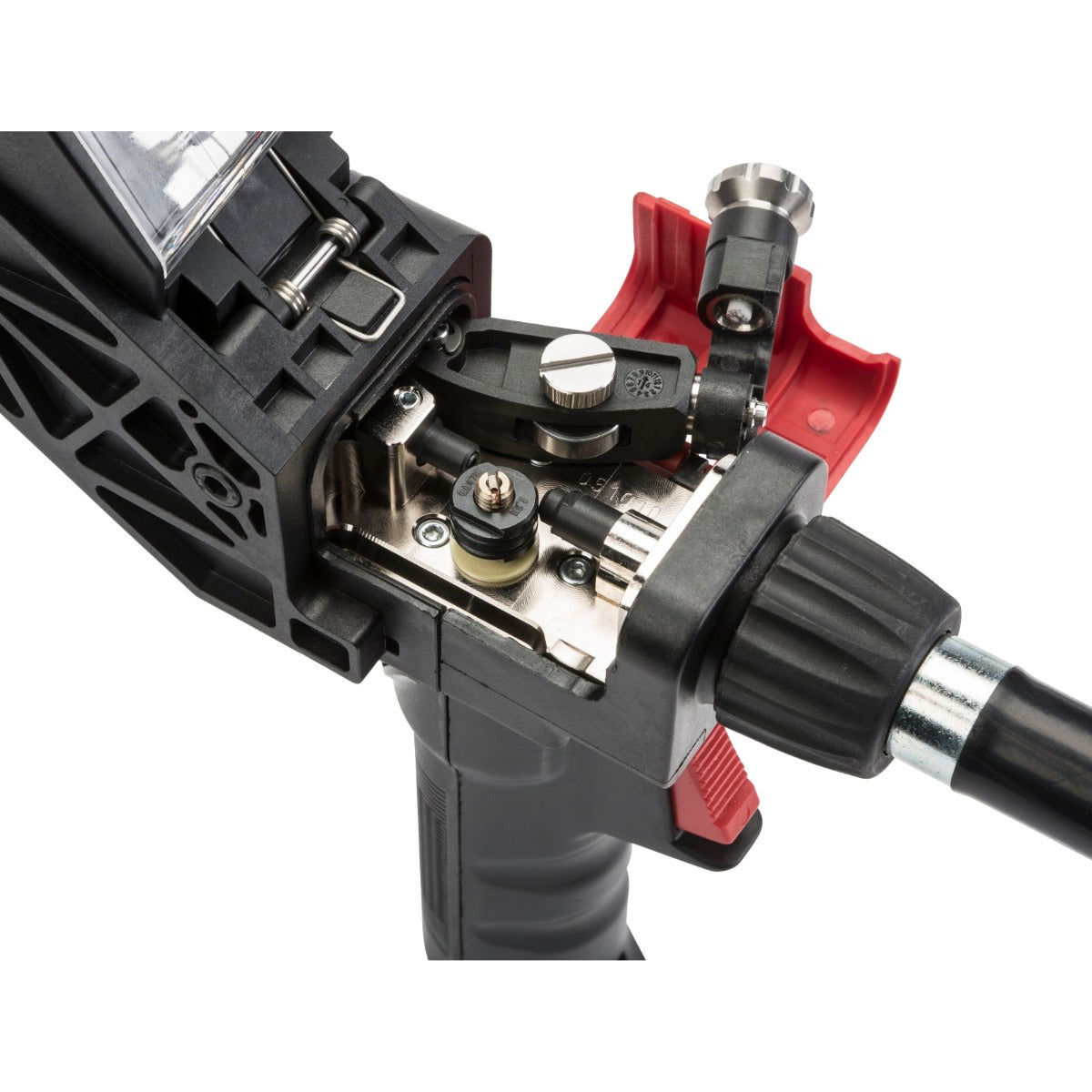

• Has a fixed spool brake with independent wire leveler, which prevents wire tangles with no adjustments.
• Multi-turn wire speed adjustment lets you adjust wire speed remotely at the gun with fine resolution
• 1-Year Warranty
Specifications
• Processes: MIG, Pulsed MIG
• Wire diameter range: .023-.047 in. (0.6-1.2 mm)
• Rated amperage: 300
• Duty cycle at rated amperage: 60%
• Air cooled
• 25 ft. cable length
• 3.0 in. x 15.5 in. x 10.50 in.
Included
• Magnum 250LX Spool Gun
• .035 in. (0.9 mm) steel or aluminum contact tip (KP14H-35)
• .3/64 in. (1.2 mm) aluminum contact tip (KP14AH-364)
• Fixed nozzle gas diffuser for .025-.047" (.06-1.2 mm) wire (KP2744-035T)
• Barrel liner (KP2521-1)
Recommended Power Sources:
Power MIG 255C and 350MP (Power MIG 255 with spool gun adapter).
Features
• Sure grip handle has a unique shape that fits comfortably in your hand and provides a secure grip
• Contact tip storage on top of gun, keeps spare tips close.
• Has a fixed spool brake with independent wire leveler, which prevents wire tangles with no adjustments.
• Multi-turn wire speed adjustment lets you adjust wire speed remotely at the gun with fine resolution
• 1-Year Warranty
Specifications
• Processes: MIG, Pulsed MIG
• Wire diameter range: .023-.047 in. (0.6-1.2 mm)
• Rated amperage: 300
• Duty cycle at rated amperage: 60%
• Air cooled
• 25 ft. cable length
• 3.0 in. x 15.5 in. x 10.50 in.
Included
• Magnum 250LX Spool Gun
• .035 in. (0.9 mm) steel or aluminum contact tip (KP14H-35)
• .3/64 in. (1.2 mm) aluminum contact tip (KP14AH-364)
• Fixed nozzle gas diffuser for .025-.047" (.06-1.2 mm) wire (KP2744-035T)
• Barrel liner (KP2521-1)
Recommended Power Sources:
Power MIG 255C and 350MP (Power MIG 255 with spool gun adapter).
| MPN: | LINK3570-2 |
|---|
MPN: LINK3570-2
