Lincoln Magnum Pro Curve 300 Ready Pak (K2951)
Liner & Connector Kit:
Liner & Connector Kit
Quantity:
The Magnum Pro Curve 300 series MIG guns feature a lightweight curved handle along with a rotating gun tube for those tight spaces. These guns are suitable for MIG, Flux-Cored (FCAW), and Pulsed MIG operations.
Please select the appropriate liner and connector kit in the drop-down box.
K466-6 Connector Kit works with Power Mig Series and Power Wave C300.
K466-10 Connector Kit works with LF-72, LF-74, LN-25 PRO, Power Feed 10 and 25 Series.

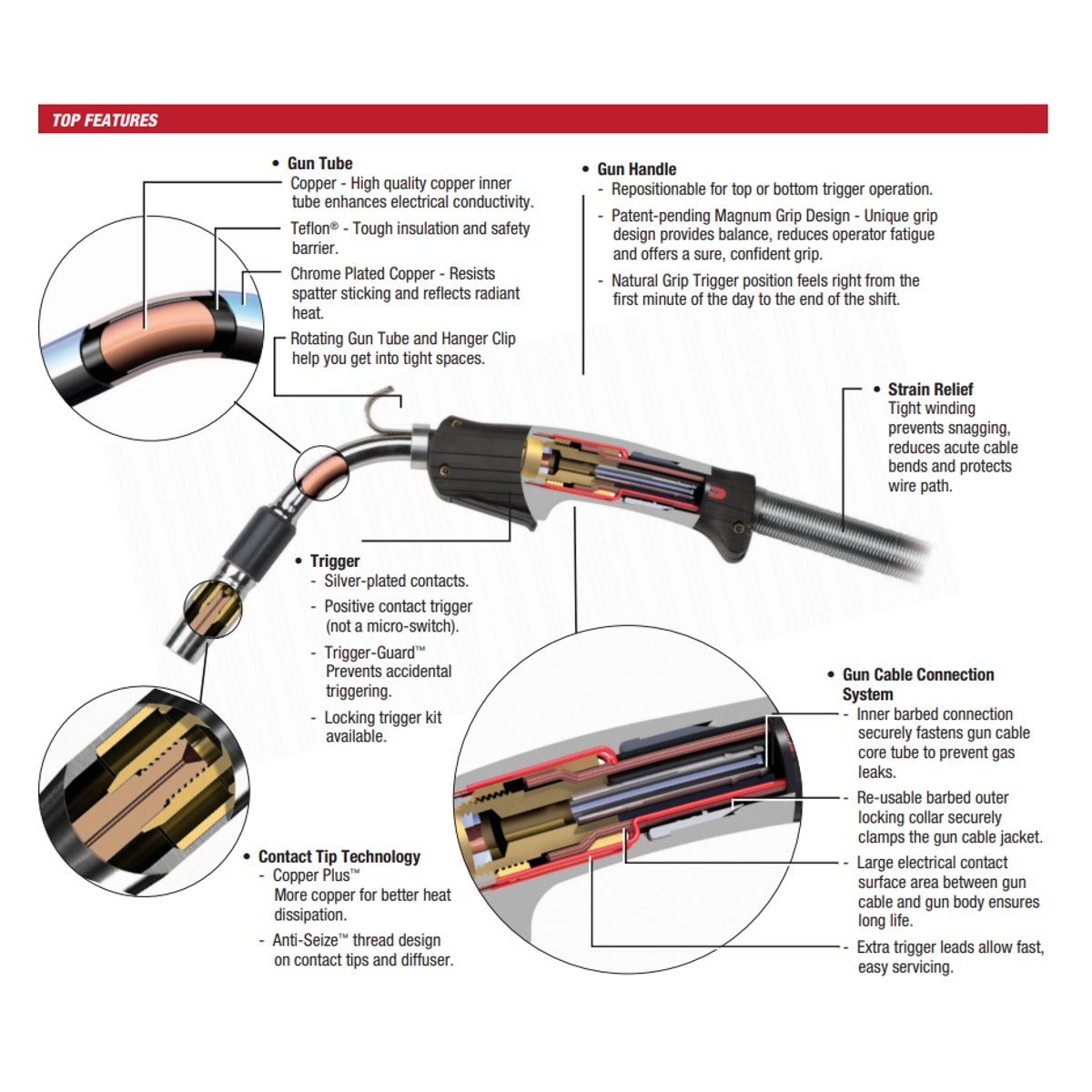

Features
• Duty Cycle: 60% @ 200A (Mixed Gas) | 60% @ 300A (CO2)
• Wire Diameter: .025 - 5/64
• High Quality Copper Parts
• Curve Handle Design
• Rotating Gun Tube
• Gun Hanger Clip
Includes
• Magnum Pro Curve 300 Gun (choose desired length)
• Select Liner (.035-.045 or .052-1/16)
• Select Connector Kit (K466-6 OR K466-10)
• (1) KP2744-045 Contact Tip
• (1) .0625 Thread On Nozzle with 1/8" Recess (KP2742-1-62R)
• (1) Thread-On-Diffuser (KP2746-1)
Please select the appropriate liner and connector kit in the drop-down box.
K466-6 Connector Kit works with Power Mig Series and Power Wave C300.
K466-10 Connector Kit works with LF-72, LF-74, LN-25 PRO, Power Feed 10 and 25 Series.
Features
• Duty Cycle: 60% @ 200A (Mixed Gas) | 60% @ 300A (CO2)
• Wire Diameter: .025 - 5/64
• High Quality Copper Parts
• Curve Handle Design
• Rotating Gun Tube
• Gun Hanger Clip
Includes
• Magnum Pro Curve 300 Gun (choose desired length)
• Select Liner (.035-.045 or .052-1/16)
• Select Connector Kit (K466-6 OR K466-10)
• (1) KP2744-045 Contact Tip
• (1) .0625 Thread On Nozzle with 1/8" Recess (KP2742-1-62R)
• (1) Thread-On-Diffuser (KP2746-1)
