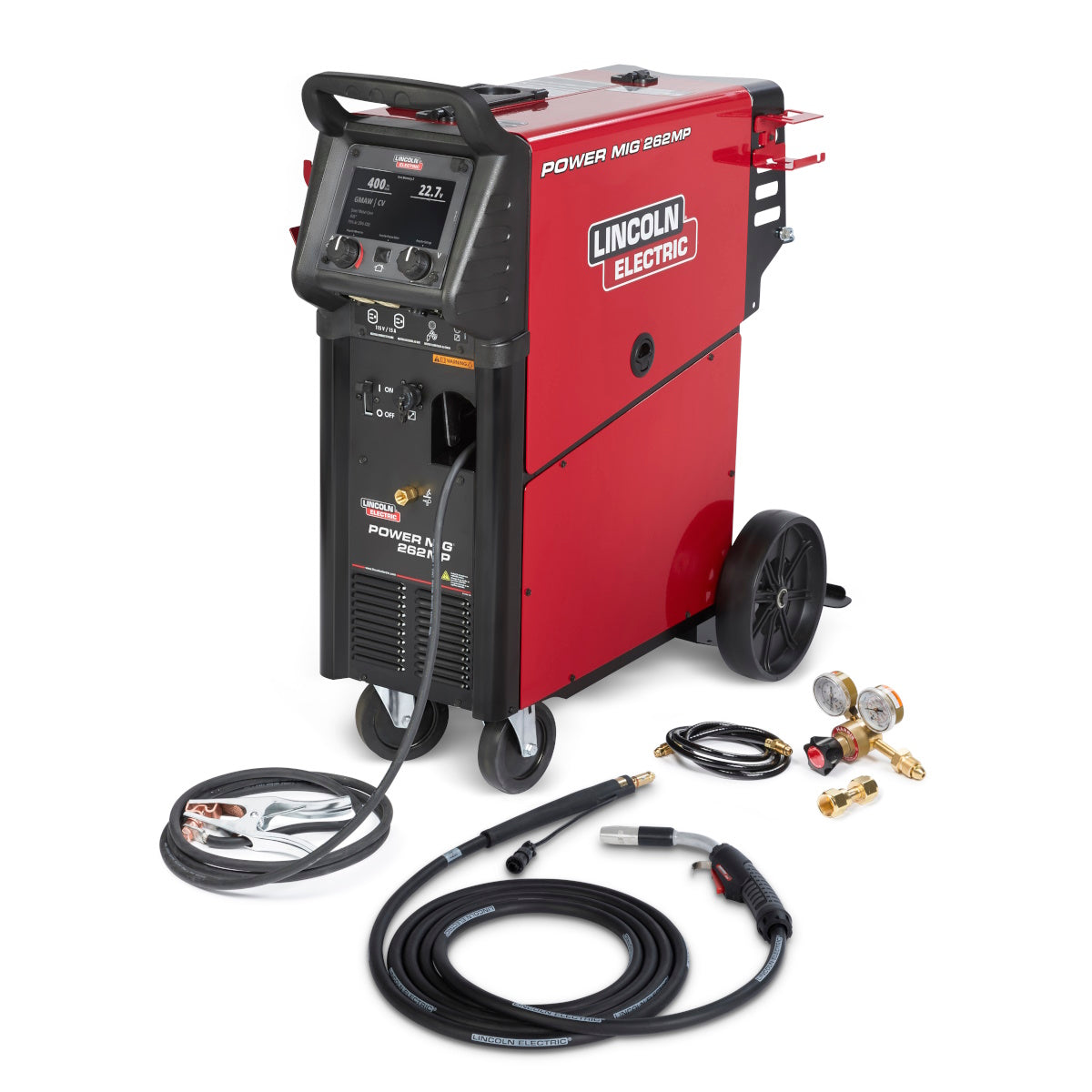

Lincoln Power MIG 262MP Multiprocess Welder w/Pulse Aluminum One-Pak (Push-Gun) (K5637-1)
Download Product Spec Sheet
The Power MIG 262MP is Lincoln's latest industrial multi-process welder with 300 amps of output. This welder offers MIG, Pulsed MIG, Stick, Flux-Cored, and DC TIG, delivering all the performance and versatility you expect from the Power MIG family.
Features
• 7 Inch color display
• Aluminum pulse process for 4000 or 5000 series wire
• Synergic control
• Stick settings for 6010 and 6011
• Rugged MAXTRAC industrial wire drive
• 300 Amp max output
• Memory recall
• (2) 115V front power outlets
Quick Specs
• Processes: MIG | Pulsed MIG | Flux-Cored | Stick | DC TIG
• Input Voltage: 208-575V | 1-Phase | 60 HZ
• Amperage Draw: 49.1A @ 208V | 44A @ 230V | 22.1A @ 460V
• Duty Cycle: 60% @ 230A
• Wire Feed Speed: 50-700 ipm
• Dimensions: 37.5"H x 18"W x 37.5"L
• Weight: 250lbs
Includes
• 15ft Magnum PRO 250L MIG gun (K4530-2)
• Adjustable gas regulator and hose (K586-1)
• .035/.045 Solid wire drive rolls (KP1696-1)
• 10ft work cable with clamp
• 10ft power cable with plug
• 15ft Magnum Pro Curve Aluminum push gun (K4700-1-6-116A)
• 3/64 aluminum drive rolls (KP1695-3/64A)
• Superglaze 5356 3/64 16lb spool of wire
| MPN: | LINK5637-1 |
|---|---|
| Weldable Metals | Mild Steel | Stainless | Aluminum |
| Input Phase | 1 Phase |
| Input Hz | 60 Hertz |
| Input Phase | DC |
| Rated Output | 60% @ 230A |
| Max Open Circuit Voltage | 90 Volts |
| Wire Feed Speed | 50-700 |
| Weld Output | 300 Amps |
| Weight | 250 lbs |
| Warranty | 3 Years |
MPN: LINK5637-1
