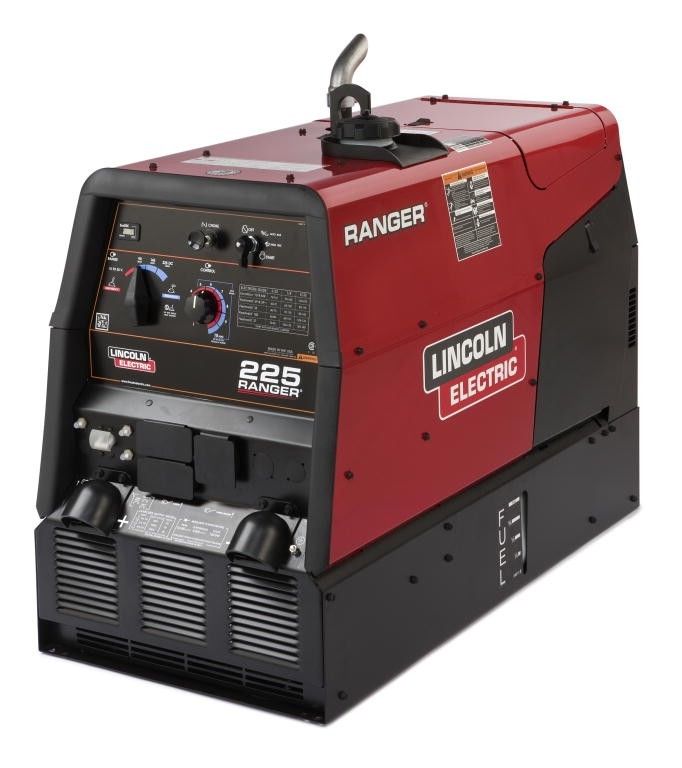

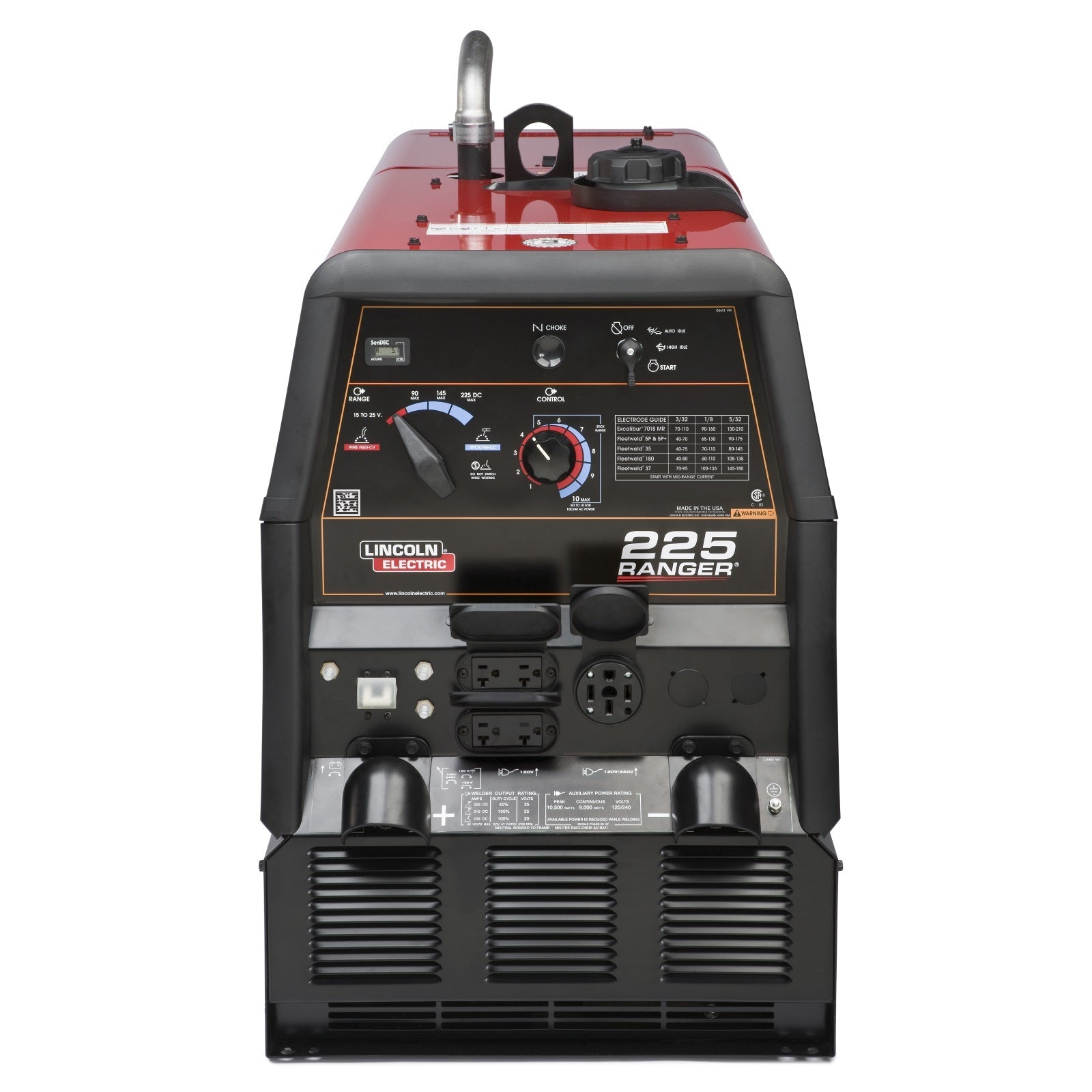

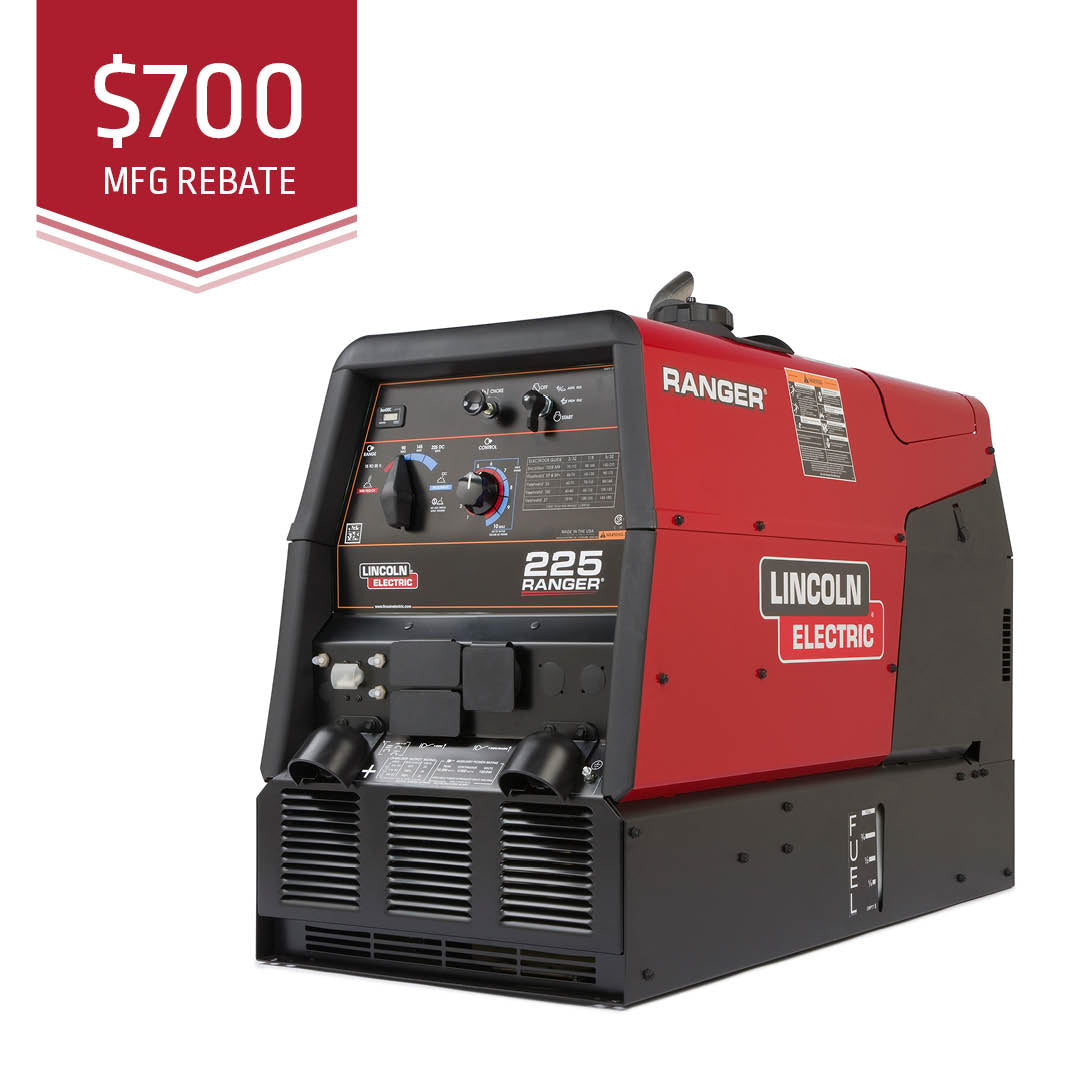

Lincoln Ranger 225 Engine Welder Generator (K2857-1)
Download Product Spec Sheet
The Lincoln Ranger 225 Engine Welder Generator does a variety of basic welding jobs. And with 10,500 watts of peak AC generator power, it handles a bunch of other jobs: lights, grinder, Lincoln Electric inverter, plasma cutter (separate air supply needed) or emergency power.
Totally Enclosed Case
• Engine is fully protected
• 3 service access doors
• Low Noise – 76.4 dBA sound level at 23 ft. (7 m); 100.7 dB sound power (Lwa) at rated output
Versatile DC Welding
• Smooth DC welding output for a broad range of stick electrode types
• MIG, Flux-Cored and TIG capable (with optional equipment)
10,500 Watts Peak Single-Phase AC Generator Power
• Peak for motor starting
• 9,000 watts continuous power for generator, plasma cutter or inverter welder
• Handles lights, grinder, power tools
23 HP Kohler Gasoline Engine
• 2 cylinder, 4 cycle overhead valve air-cooled design
• Oil drain extension for easy oil changes
• 12 gallon tank for extended run times
• Visual fuel level gauge on both sides of unit
Rugged Reliability
• Welding and AC Generator Outputs Rated at 104 F (40 C)
Totally Enclosed Case
• Engine is fully protected
• 3 service access doors
• Low Noise – 76.4 dBA sound level at 23 ft. (7 m); 100.7 dB sound power (Lwa) at rated output
Versatile DC Welding
• Smooth DC welding output for a broad range of stick electrode types
• MIG, Flux-Cored and TIG capable (with optional equipment)
10,500 Watts Peak Single-Phase AC Generator Power
• Peak for motor starting
• 9,000 watts continuous power for generator, plasma cutter or inverter welder
• Handles lights, grinder, power tools
23 HP Kohler Gasoline Engine
• 2 cylinder, 4 cycle overhead valve air-cooled design
• Oil drain extension for easy oil changes
• 12 gallon tank for extended run times
• Visual fuel level gauge on both sides of unit
Rugged Reliability
• Welding and AC Generator Outputs Rated at 104 F (40 C)
| MPN: | LINK2857-1 |
|---|---|
| UPC: | 015082888859 |
| Processes | Stick, TIG, MIG, Flux-Cored |
| Designed For | Farm and Ranch Construction and Fabrication |
| Amperage | 225A DC CC/25V/40% 210A DC CC/25V/100% 200A DC CV/20V/100% |
| Weldable Metals | Aluminum Stainless Steel Steel |
| Input Phase | DC |
| Portability | Lift Eye (Standard) Running Gear / Cart (Optional) Trailer (Optional) |
| Weld Output | CC / CV |
| Weight | 514 (233) |
| Warranty | 3 Years |
