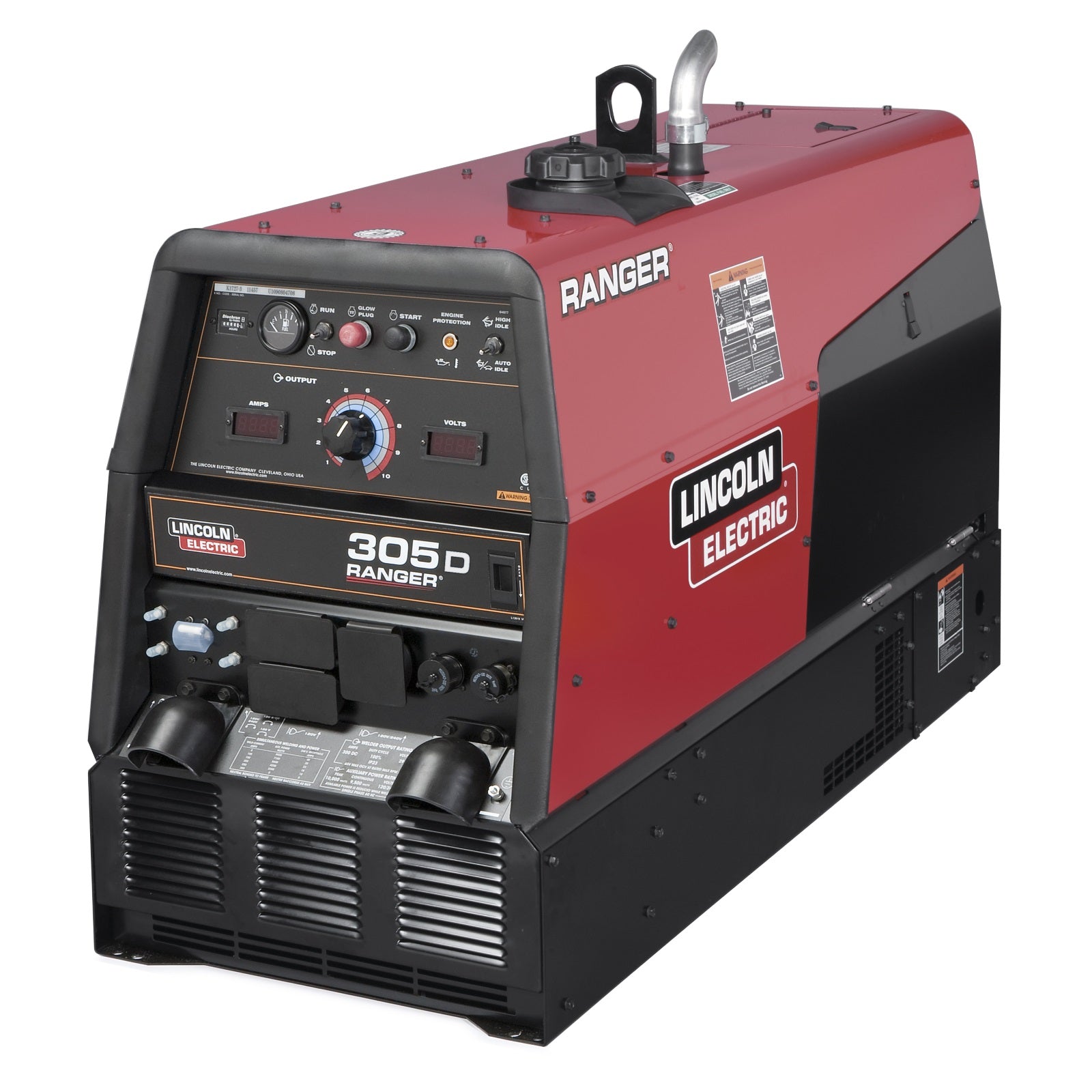

Lincoln Ranger 305D One-Pak Welder Generator (K2352-5)
Download Product Spec Sheet
This package is no longer available from Lincoln.
The Ranger 305 D is a powerful multi-process stick, TIG, wire and pipe welding engine-driven welder that is ready for all day, everyday performance. It includes Lincoln Electric Chopper Technology for superior arc performance.
Applications:
• Construction
• Maintenance & Repair
• Pipe
• Ranch/Farm
Features:
• Meets all EPA Tier 4 Requirements
• Excellent DC multi-process welding for general purpose stick ,downhill pipe (stick), TIG ,cored-wire, MIG, and arc gouging
• Only compact diesel welder in North America rated at 29V for 300 amps of stick or CV wire welding
• CV wire welding with up to 5/64" diameter electrodes
• Digital weld meters for amps and volts makes it easy to precisely pre-set your procedures and monitor actual welding output
• Lincoln Electric Chopper Technology provides easy starts, a smooth arc, low spatter, and excellent bead appearance
• 10,000 Watts peak for motor starting
• 9,500 watts continuous for high capacity needs such as a back-up generator, powering an Invertec welder, or using for lights & other power tools
• AC generator voltage is constant at 120V or 240V at any weld dial setting
• Skewed rotor design provides AC power suitable for operating inverter power sources
• Welding & AC generator outputs rated at 104 degrees F

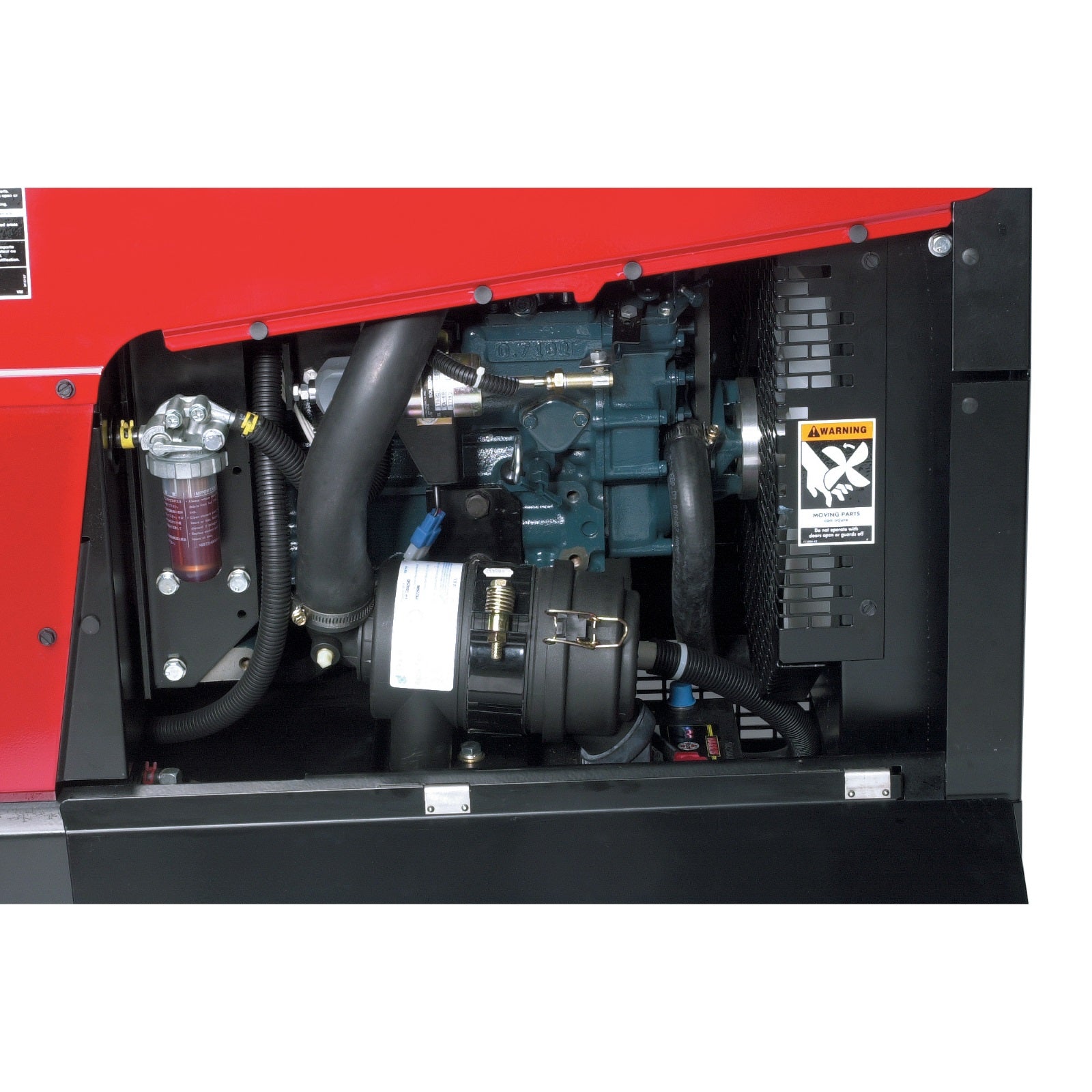

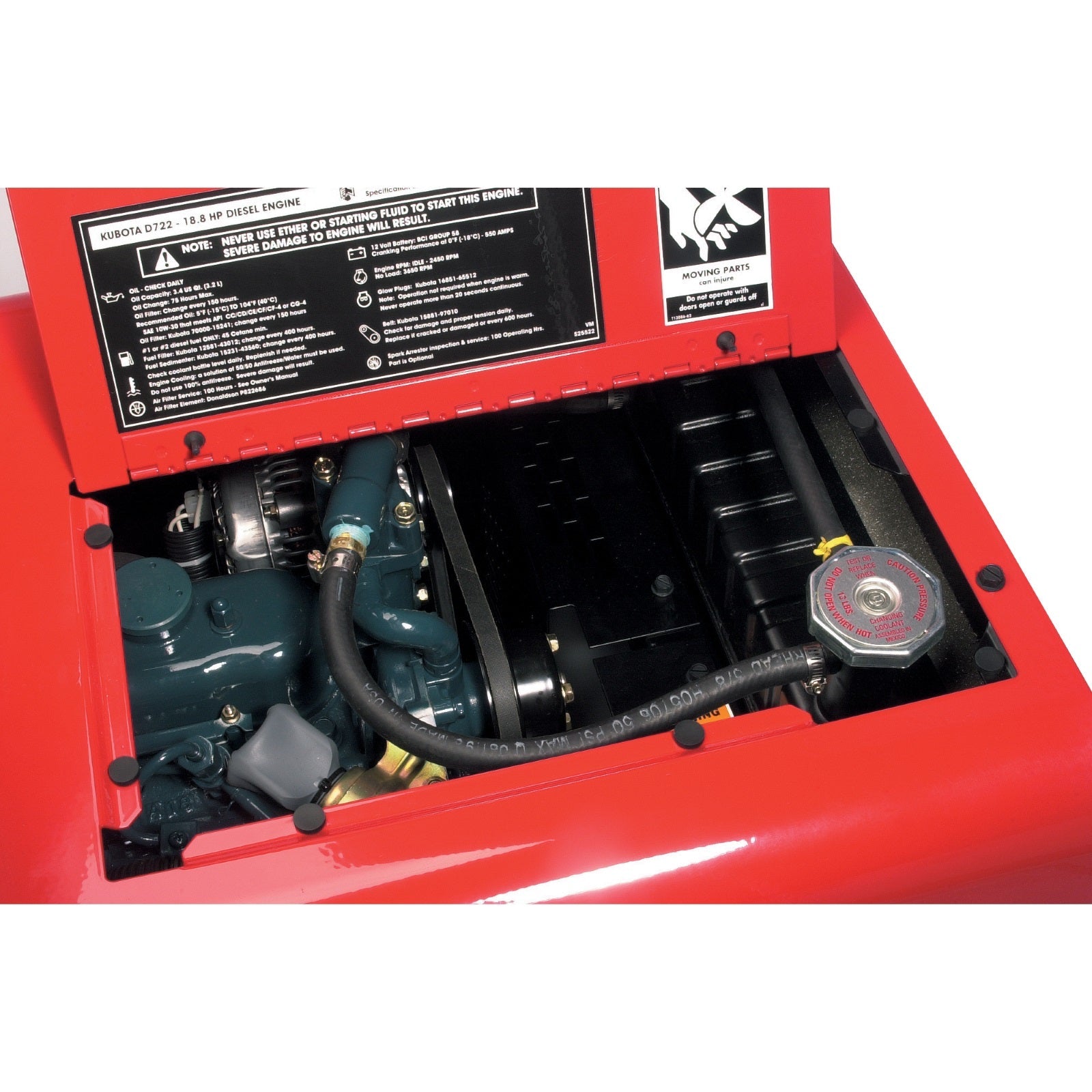

• 18.8 HP Kubota Diesel Engine (water-cooled for low noise)

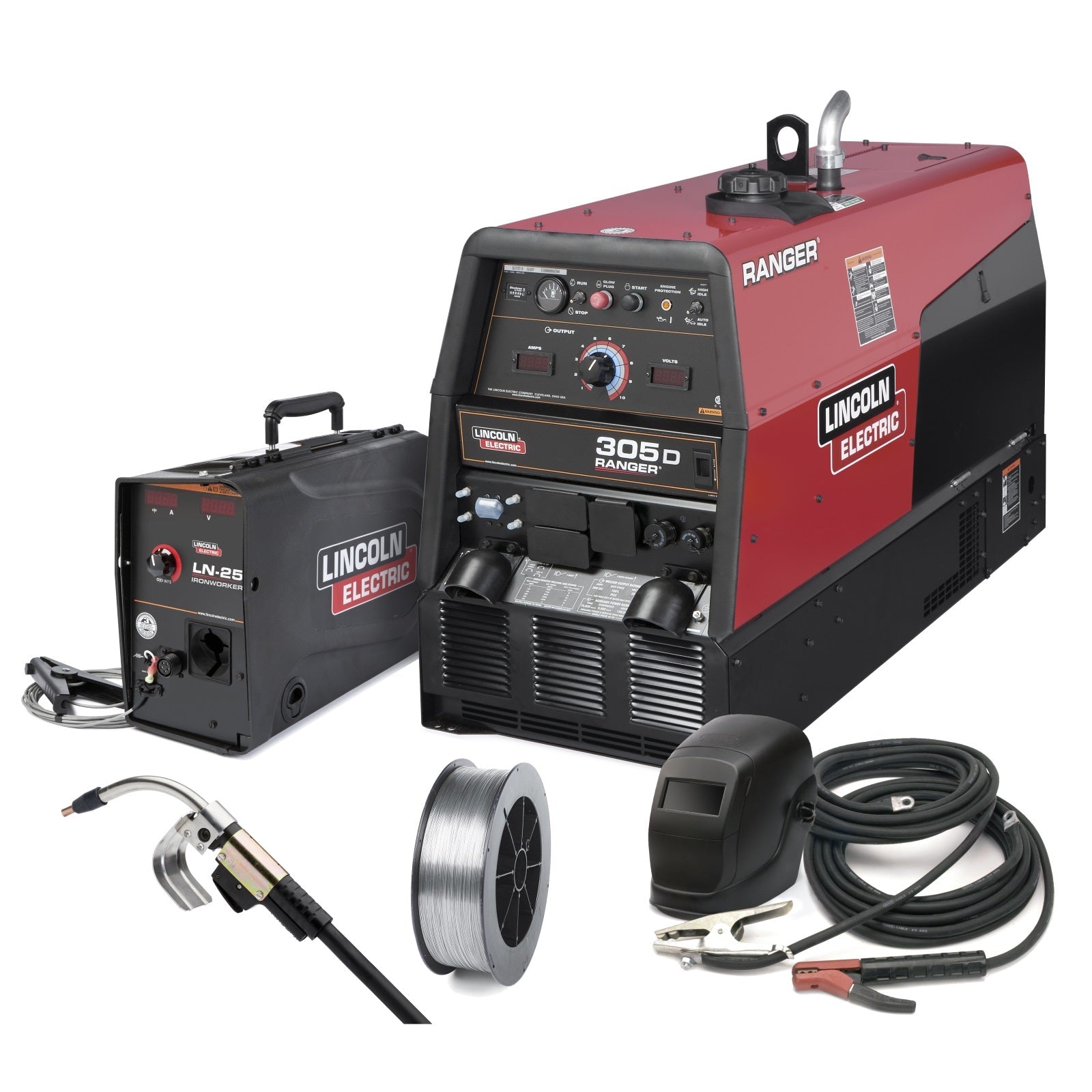

Includes:
• Ranger 305 D
• LN-25 Ironworker Wire Feeder
• K126 Pro 350 Amp Innershield Gun
• Accessory Kit, 400 Amp
• 5/64" Innershield NR-233, 25lb Spool
The Ranger 305 D is a powerful multi-process stick, TIG, wire and pipe welding engine-driven welder that is ready for all day, everyday performance. It includes Lincoln Electric Chopper Technology for superior arc performance.
Applications:
• Construction
• Maintenance & Repair
• Pipe
• Ranch/Farm
Features:
• Meets all EPA Tier 4 Requirements
• Excellent DC multi-process welding for general purpose stick ,downhill pipe (stick), TIG ,cored-wire, MIG, and arc gouging
• Only compact diesel welder in North America rated at 29V for 300 amps of stick or CV wire welding
• CV wire welding with up to 5/64" diameter electrodes
• Digital weld meters for amps and volts makes it easy to precisely pre-set your procedures and monitor actual welding output
• Lincoln Electric Chopper Technology provides easy starts, a smooth arc, low spatter, and excellent bead appearance
• 10,000 Watts peak for motor starting
• 9,500 watts continuous for high capacity needs such as a back-up generator, powering an Invertec welder, or using for lights & other power tools
• AC generator voltage is constant at 120V or 240V at any weld dial setting
• Skewed rotor design provides AC power suitable for operating inverter power sources
• Welding & AC generator outputs rated at 104 degrees F
• 18.8 HP Kubota Diesel Engine (water-cooled for low noise)
Includes:
• Ranger 305 D
• LN-25 Ironworker Wire Feeder
• K126 Pro 350 Amp Innershield Gun
• Accessory Kit, 400 Amp
• 5/64" Innershield NR-233, 25lb Spool
| MPN: | LINK2352-5 |
|---|---|
| UPC: | 015082565941 |
